The WN370 Wall Mount Access Point is designed specifically for in-room coverage for wired and wireless access for small and medium hotels and education dormitories. The WN370 has a sleek, elegant, and compact design that allows the AP to be deployed in an inconspicuous manner and can be installed quickly by non-technical personnel. The WN370 is powered with PoE with 1Gbps uplink and 4 (100 Mbps) Ethernet data ports, plus additional voice port for connectivity to digital phones. The WN370 is centrally managed by an enterprise class wireless controller with automatic RF and power tuning with guest captive portal and comprehensive wireless security.

Small form factor and inconspicuous appearance
The aesthetically pleasing design of the WN370 allows the access point to blend nicely in the hotel room and school dormitories. WN370 provides wired access directly to the users, where the traditional form factor Access Points are normally installed on the ceiling, away from the access of the users that need wired connectivity. The WN370 is installed with easy attachment to the junction box and appears with a nice decorative appearance.
Fast installation and PoE powered
The WN370 can be installed easily and less than 5 minutes. The WN370 ships with mounting brackets and fits into both US and EU standard electric junction boxes. Only 4 screws are needed to reliably install the WN370 to the wall with low protrusion. The WN370 is powered via Power over Ethernet on the 1 Gbps uplink. Simply connect a Ethernet cable between the WN370 and a PoE enabled switch and the WN370 is up and running. There is no separate power cord needed.
Flexible and easy deployment
WN370 can be installed easily and does not need sophisticated skills of engineers. WN370s are generally deployed in room, especially effective in areas where deploying the access points in traditional locations (such as ceiling mounted or hallways of dormitories and hotels) are not feasible. Because the WN370 is designed to provide coverage in a specific room, where the RF containment is more well defined, no extensive site survey is required. Finally, because the WN370 comes with four Ethernet ports, users can plug in multiple wired devices without the requirement to pull additional cables from the access point to the wiring closet, thereby saving both time and money to meet the requirements of multiple Ethernet ports per room
Centrally managed with complete enterprise features
The WN370 is centrally managed by Wireless Controllers. All of the configurations can be centrally configured and stored at the wireless controller. Once the WN370 is discovered by the wireless controller, it will receive the latest firmware and the updated configuration provided by the wireless controller. The wireless controller will automatically and dynamically adjust the RF frequency and the output power of the WN370 to ensure optimal frequency reuse and the best power setting to provide ubiquitous coverage of the intended location. Comprehensive site survey is generally not needed, thereby making the installation and wireless design of WN370 as simple as it gets.
Includes Guest Facebook WiFi check-in
  • Easy guest check-in to your business
  • Gain insight on your clients and business
  • Get more attention to your business
  • Instant set-up

Technical Specifications

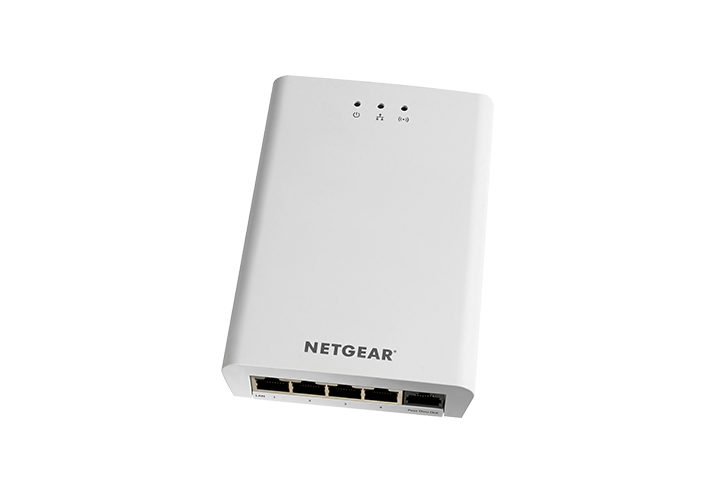

WN370_tech_specs_image_1

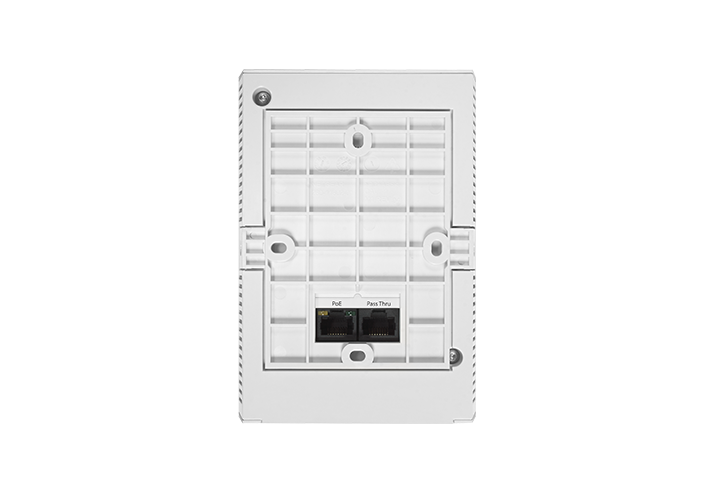

WN370_tech_specs_image_2
  • Dimensions : (L x W x H): 135.2 x 93.1 x 25.9mm (5.46 x 3.80 x 1.16in)
  • Weight : 0.218kg, 0.481lb

  • Power : Power over Ethernet
  • Mounting : Wall mounting to Electric Junction Box
  • Case : Support US and UN electric junction boxes
  • Designed to fit in standard US style electrical junction box of NEMA-WD6 and standard EU or china style electrical junction box of BS4662
  • Interfaces and Indicators : N/A
  • Physical Interfaces : Uplink: 1 x 10/100/1000 Mbps (PoE) + 1 10/100 voice port
  • Downlink: 4 x 10/100Mbps (data) + 1 10/100 Mbps (voice passthrough)
  • PoE : 802.3af Power over Ethernet (PoE)
  • LEDs : 3: Power, Status, WLAN
  • Default Reset : N/A
  • Environmental Conditions : N/A
  • Operating Temperature : 32° to 113° F (0° to 45° C)
  • Storage Temperature : -4° to 158° F (-20° to 70° C)
  • Operating Relative Humidity : 10% to 90%
  • Storage Humidity : 5% to 95%
  • MTBF : @ 25° C > 375,000 hours
  • @ 50° C >125,000 hours
  • Typical Power Consumption : 5.1 Watts
  • RF Characteristics : N/A
  • Standards : IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
  • Frequency Band : 2.4GHz
  • 802.11n Transmit x Receive : 2x2
  • Maximum Theoretical Throughput : 300 Mbps
  • Antenna Type : Internal
  • Antenna Gain : 3 dbi
  • Maximum Transmit Power : 21 dBm @ 802.11b (1Mbps)
  • 21 dBm @ 802.11g (6 Mbps)
  • 21 dBm @ 802.11n (MCS0)
  • Minimum RX Sensitivity : Up to -92 dBm
  • Network Management : N/A
  • Deployment options - controller managed : Web UI
  • CLI
  • Support for WC7500, WC7600v1, WC7600v2, WC9500
  • SNMP : SNMP v1, v2 with 802.11 standard and proprietary MIBs
  • Features : N/A
  • Wireless Security : WEP, WPA, WPA2, 802.1x
  • Advances Wireless Features : IEEE 802.1x Radius (EAP TLS, TTLS, PEAP)
  • Wireless access control to identify authorized wireless devices
  • MAC ACL
  • Rogue AP detection
  • Heat Map
  • Guest Access and Captivel Portal
  • Auto Healing
  • Auto RF adjustments
  • Auto AP power adjustments
  • VLAN
  • 802.11 WMM (Wireless Multimedia mode for QoS)
  • Multiple BSSID : up to 8
  • Safety Certification : UL/cUL, CE (EN60950-1)
  • Countries Certification (minimum set) : FCC, IC, CE, EN55022/24, EN301489, EN301489-17, EN30328, EN60950,
  • C-Tick, A-Tick, SRRC
  • Optional Support : PMB0351: 5 years OnCall 24x7
  • PMB0331: 3 years OnCall 24x7
  • PMB0311: 1 year OnCall 24x7
  • Product Ordering Information : WN370-10000S
  • Support : Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Warranty : This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Support
  • Package Contents : Wireless-N Access Point
  • Wall-mount kit
  • Installation guide
  • Warranty/support information card
