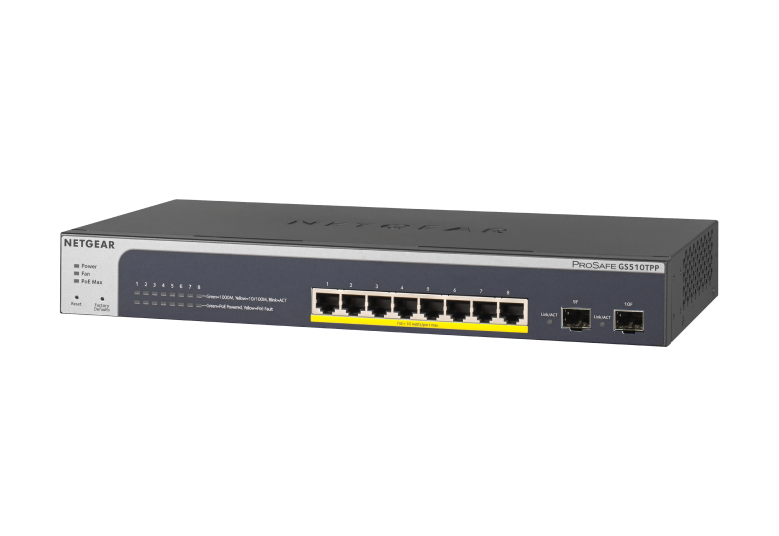

8-Port Gigabit Ethernet High-Power PoE+ Smart Switch with 2 Dedicated SFP Ports (190W) armor

Smart Switch Series (GS510TPP)

8-Port Gigabit Ethernet High-Power PoE+ Smart Switch with 2 Dedicated SFP Ports (190W) armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

×

addcartADDED TO CART

8-Port Gigabit Ethernet High-Power PoE+ Smart Switch with 2 Dedicated SFP Ports (190W)

Select Additional Software

NETGEAR ArmoritemSelect

Essential all-in-one internet security

Learn More

NETGEAR ProSupportitemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupportitemSelect

Premium Support

Learn More

1 year

NETGEAR ProSupportitemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupportitemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

Armor/ProSupport bundleitemSelect

NETGEAR Smart Parental ControlsitemSelect

Promote a balance between online and offline time

Learn More

1 year

Meural Membership - AnnualitemSelect

Save 35%. Get exclusive access to 30,000 curated artworks, plus exclusive savings and support

Learn More

1 year

Meural Membership - MonthlyitemSelect

Get exclusive access to 30,000 curated artworks, plus exclusive savings and support

Learn More

1 month

Error Occurred. Please try again later.

Get It By: Ships By:

Delivery dates may vary based on location. See Shipping & Returns for more information.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

NETGEAR Smart Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability.

Great choice of PoE options

As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing PoE options that can adapt to the business’s needs, whether in the hospitality, catering, education or retail domains

IEEE 802.3at PoE+

PoE devices encompass VoIP phones, IP Security Cameras, Wireless access points, proximity sensors, door locks and other IoT devices. Wave 2 802.11ac access points and PTZ cameras increasingly require 30W (PoE+).

Dedicated SFP Fiber Uplinks

Dedicated SFP ports provide fiber uplinks without sacrificing any downlink Gigabit port. 4 SFP ports provide not only redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover.

8 PoE+ ports with 190W total PoE budget

Users who buy infrastructure for the long term will prefer the GS510TPP and its 190W power budget across 8 Gigabit ports, compared to the lower PoE budget models.

Dynamic VLAN Assignment

IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.

Static Routing

A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.

Comprehensive IPv6 Support for Management, ACL and QoS

Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement.

Build current network with future in mind

Ensure investment protection and a smooth migration to IPv6-based network without switch replacement. Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra Multicast router.

Robust Security Features

Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.

802.1x authentication

DHCP Filtering

Port-based security by locked MAC

ACL filtering to permit or deny traffic based on MAC and IP addresses

Auto Voice and Auto Video

Automatic Voice over IP prioritization with Auto-VoIP simplifies most complex multi-vendor IP telephones deployments either based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user based OUIs) in the phone source MAC address; providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. When deployed IP phones are LLDP-MED compliant, the Voice VLAN will use LLDP-MED to pass on the VLAN ID, 802.1P priority and DSCP values to the IP phones, accelerating convergent deployments.

Comprehensive QoS Features

Advanced controls for optimized network performance and better delivery of mission-critical traffics such as voice and video.

Port-based or 802.1p-based prioritization

Layer 3-based (DSCP) prioritization

Port-based ingress and egress rate limiting

DHCP Snooping

Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network.

Dual Firmware Images

Dual firmware image and dual configuration file for transparent firmware updates / configuration changes with minimum service interruption.

PoE Timer

Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/off of POE ports.

Protected Ports

Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversation can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.

Technical Specifications

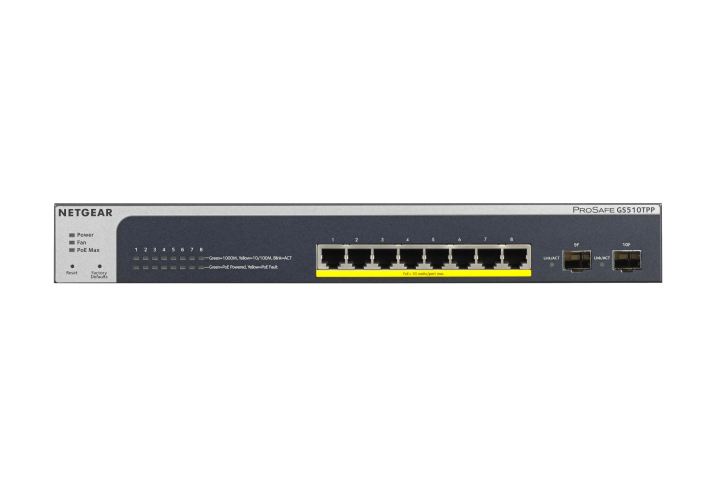

GS510TPP_tech_specs_image_1

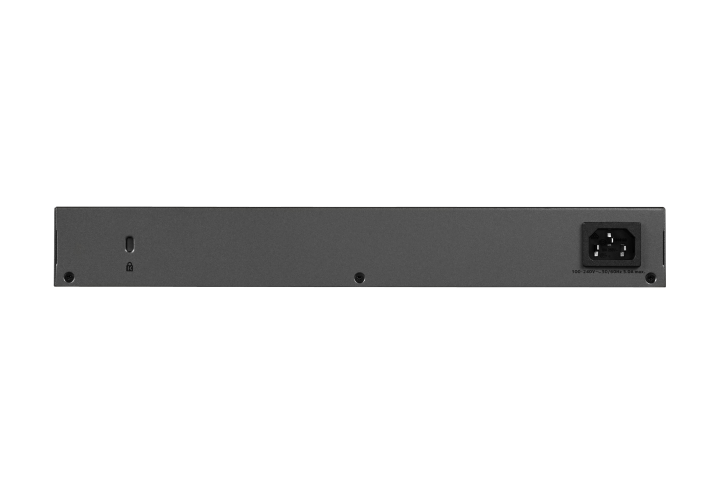

GS510TPP_tech_specs_image_2
  • Weight (kg) : 1.83 kg
  • Dimensions (WxDxH) mm : 328 x 169 x 43 mm
  • Model Description : ProSAFE® 8-Port 10/100/1000 PoE+ Smart Switch with 2 Gigabit SFP Ports
  • 10/100Mbps ports : N/A
  • Gigabit ports : 8
  • SFP ports : 2
  • Number of PoE ports : 8
  • PoE+ (802.3at) : 8
  • Total PoE Power budget (Watts) : 190W
  • Max MAC entries : 16K
  • Buffer size : 1.5MB
  • VLAN (Number Supported) : 256
  • VLAN routing : Yes
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : Yes
  • Static route : 32
  • Host ARP table : 479
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External : Internal 100-240VAC 50-60Hz
  • Max consumption (Watts) : 225W
  • FAN : 1
  • Acoustic Noise Level @25C (dBA) : 32
  • Operating Temperature : 0° to 50° C
  • MTBF : 1,509,979 hrs

    • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
