NETGEAR The NETGEAR Intelligent Edge M4100 series consists of 9 fully managed switches, ranging from 12-port to 50-port Fast and Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing. As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments. M4100-12GF GSM7212F-100NES GSM7212F-100NES

M4100-12GF (M4100-12GF) armor

12x1G and 12xSFP (shared) Managed Switcharmor

The NETGEAR Intelligent Edge M4100 series consists of 9 fully managed switches, ranging from 12-port to 50-port Fast and Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing. As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.

M4100-12GF (M4100-12GF)

12x1G and 12xSFP (shared) Managed Switcharmor

The NETGEAR Intelligent Edge M4100 series consists of 9 fully managed switches, ranging from 12-port to 50-port Fast and Gigabit Ethernet. They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing. As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.

Features

Layer 2+ with static routing

M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

L3 fixed routes to the next hop towards the destination network are added to the routing table.

L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)

Engineered for convergence

Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

Advanced classifier-based hardware for L2, L3, L4 security and prioritization

Advanced Multicast filtering with IGMP and MLD snooping and querier modes

High-value performance and IPv6 ready

16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)

High availability and PoE/PoE+ full power capability

Redundant power supply option for uninterruptible operation (RPS)

External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)

Industry Standard Management

Industry standard command line interface (CLI)

Fully functional NETGEAR web interface (GUI)

Industry Leading Warranty

NETGEAR M4100 series is backed by NETGEAR ProSAFE® Lifetime Hardware Warranty†

Also included ProSUPPORT™ Lifetime 24x7 Advanced Technical Support*

Also included Lifetime Next Business Day Hardware Replacement

Technical Specifications

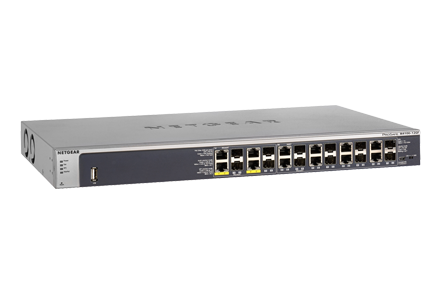

header-M4100-12GF-3-4rt-photo-large

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Model Description : 12 ports Gigabit Fiber, Layer 2+ software package
  • Ordering Number : GSM7212F
  • RJ45 Ports : 12 x 10/100/1000
  • Fiber SFP (100/1000) : 12 x SFP
  • Power over Ethernet (PoE / PoE+) : 4 x PoE+ 802.3at
  • PoE Budget (Watts) : 150W
  • Redundant Power Supply : RPS
  • Powered by PoE+ (Passthrough) : N/A
  • Feature Set : Layer 2+ (static routing)
  • Form Factor : Rack 1U - Standalone
