AX6000 WiFi Mesh System (SXS80)
AX6000 Tri-Band Orbi Pro WiFi 6 Add-On Satellite
AX6000 WiFi Mesh System (SXS80)
AX6000 Tri-Band Orbi Pro WiFi 6 Add-On Satellite
With the Orbi Pro WiFi 6 Tri-Band WiFi Add-On Satellite, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.
MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK

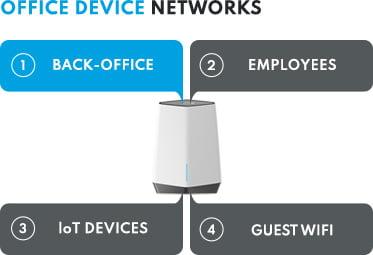

SMALL BUSINESS CONTROL
Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimising WiFi performance for everyone’s needs.

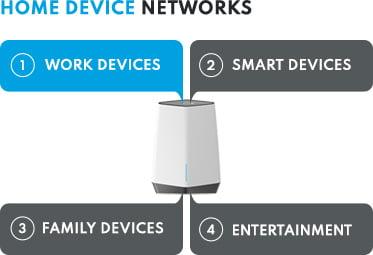

WORK FROM HOME CONTROL
Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.

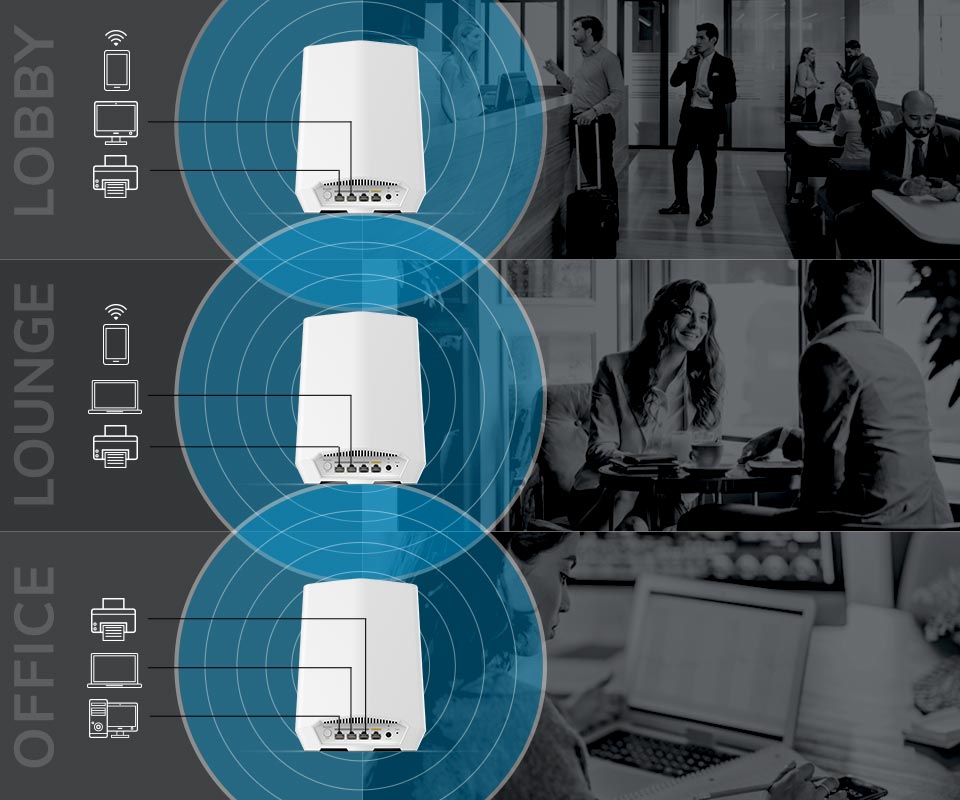

UNRIVALED SECURITY WITH NETWORK SEGMENTATION
Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.
WHITE PAPER
THE BEST
PERFORMANCE,
PERIOD

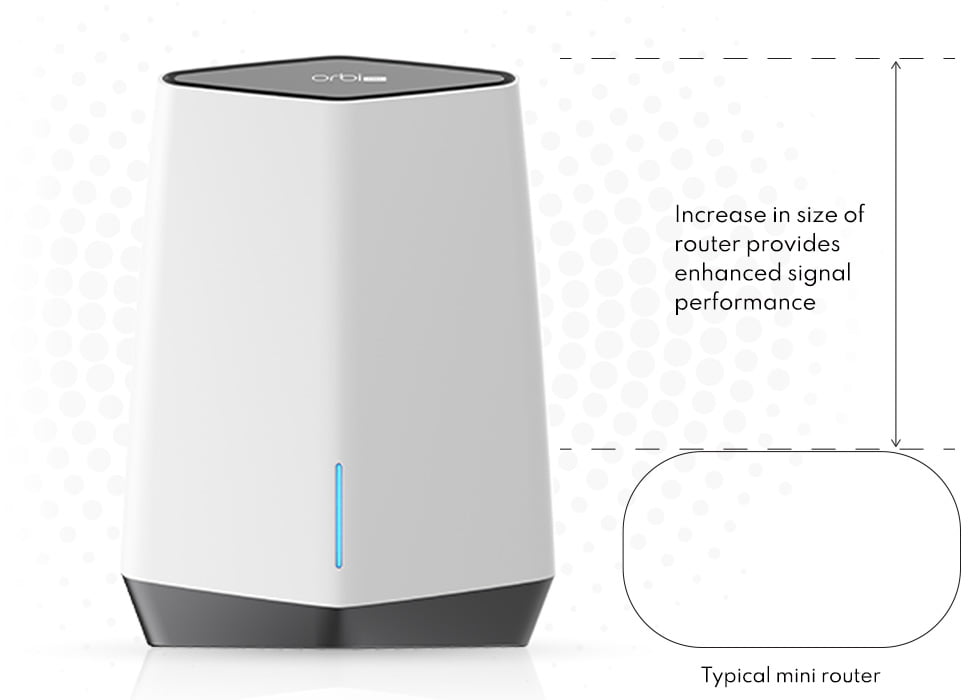

Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.

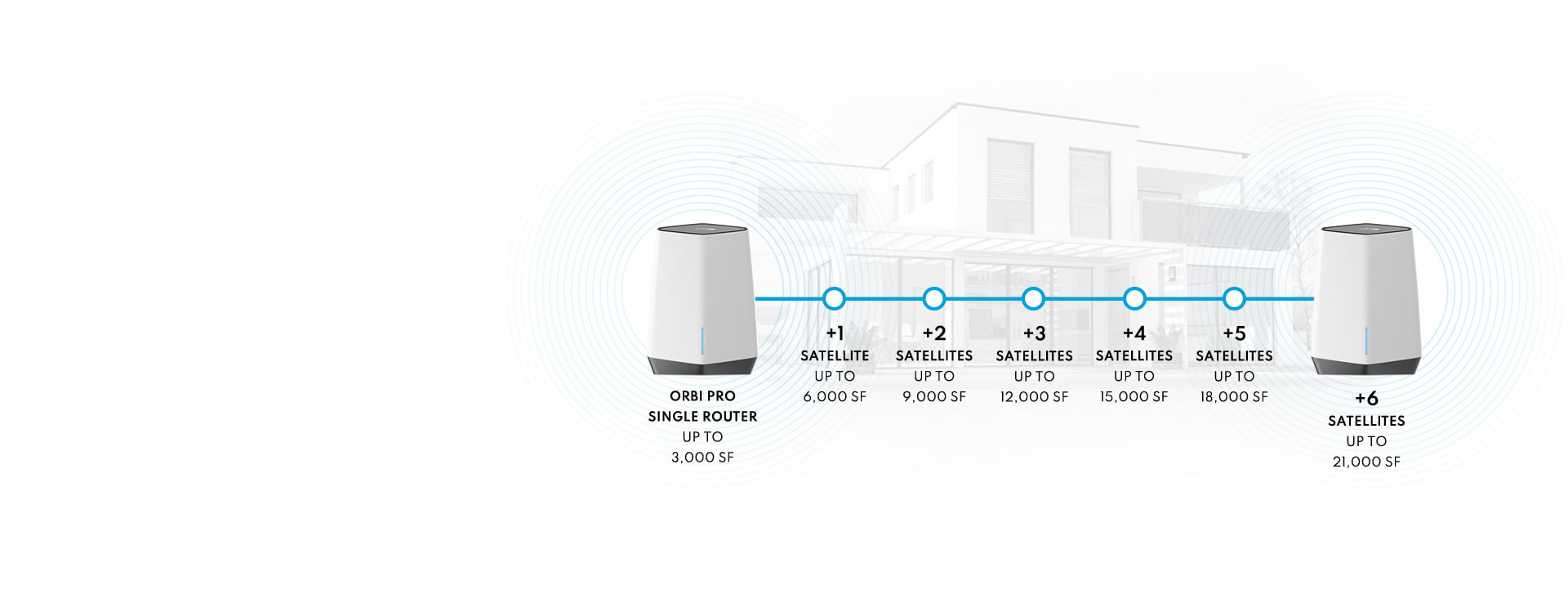

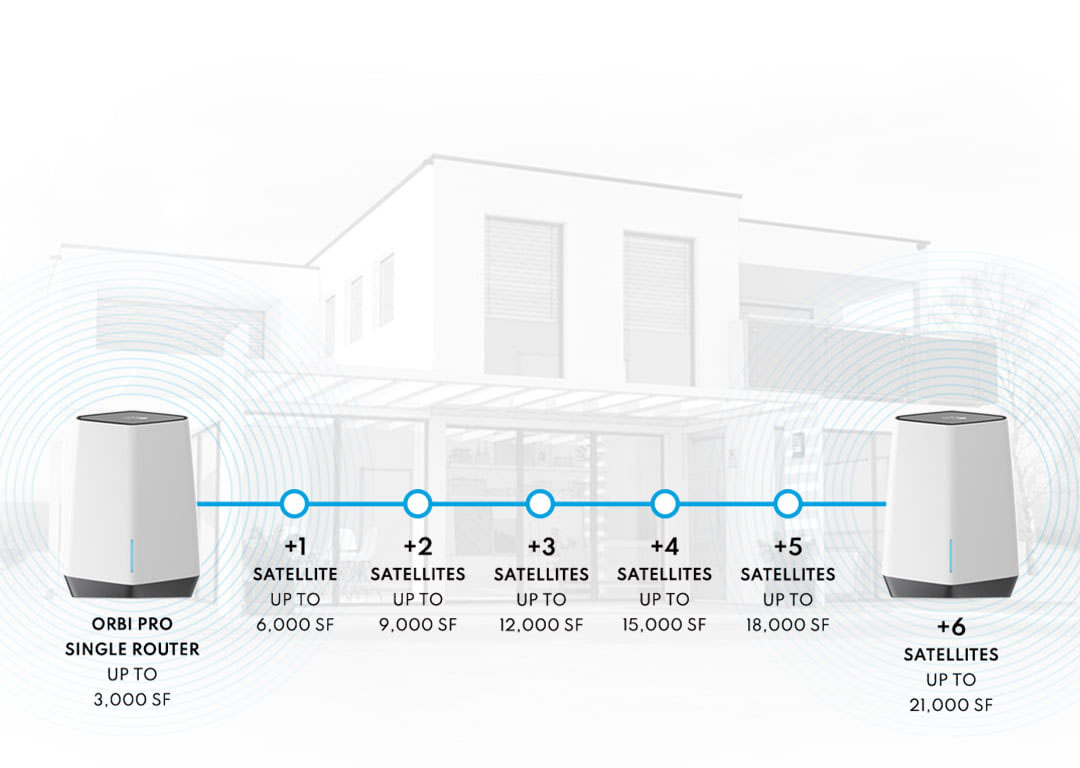

EXPANDABLE
AS YOUR
NEEDS GROW

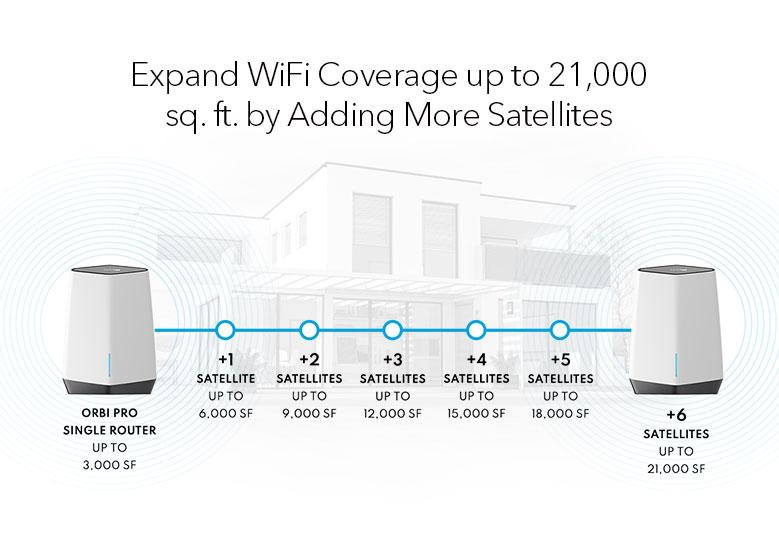

Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 3,000 sq. ft. (sold separately).
For the correct configuration and number of satellites, consult the KB here
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
Technical Specifications

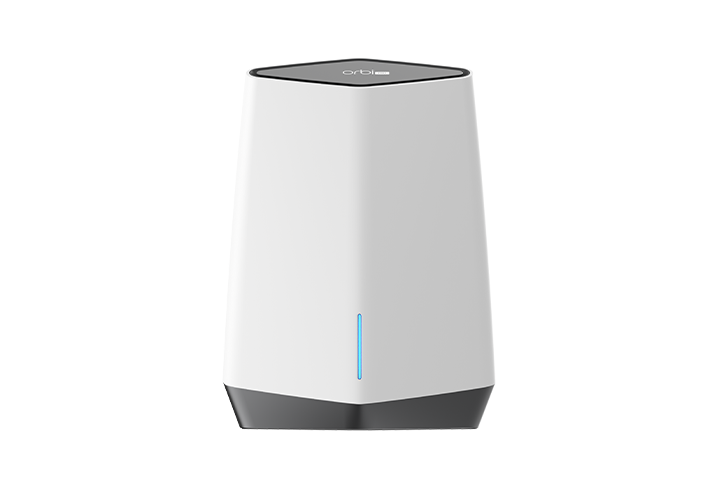

- Orbi Pro WiFi 6 Satellite (SXS80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
- What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing modem or gateway 3. Use the local UI to set up and customize in minutes
- WiFi Technology : (2,400 + 2,400 + 1,200) Mbps† Simultaneous Tri-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

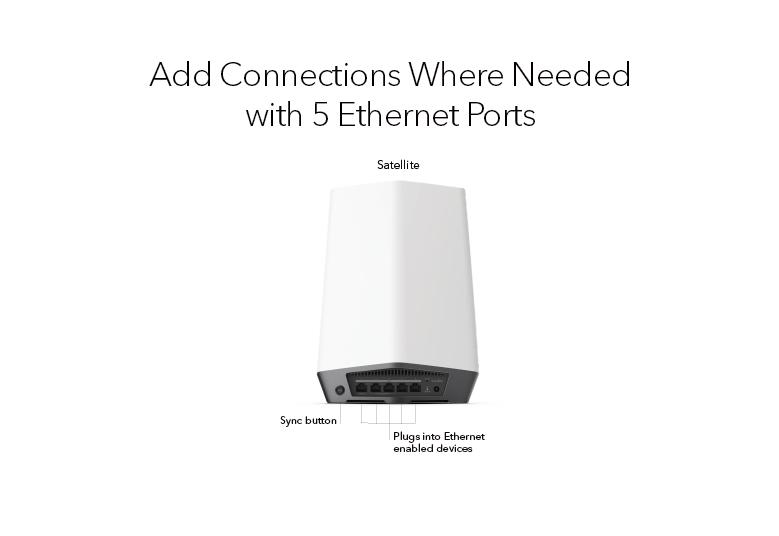

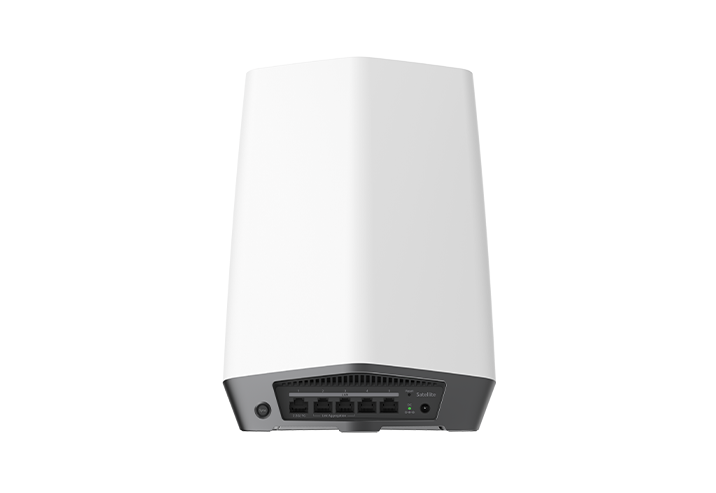

- Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
- Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices), Flexible VLAN configuration on all four (4) SSID WiFi networks, Client isolation by default on Guest SSID and configurable on other SSIDs, WPA/WPA2/WPA3 support,
- Local Admin : Local Admin UI available for extensive feature setting and maintenance
- Insight : Insight App - Secured Cloud for remote monitoring

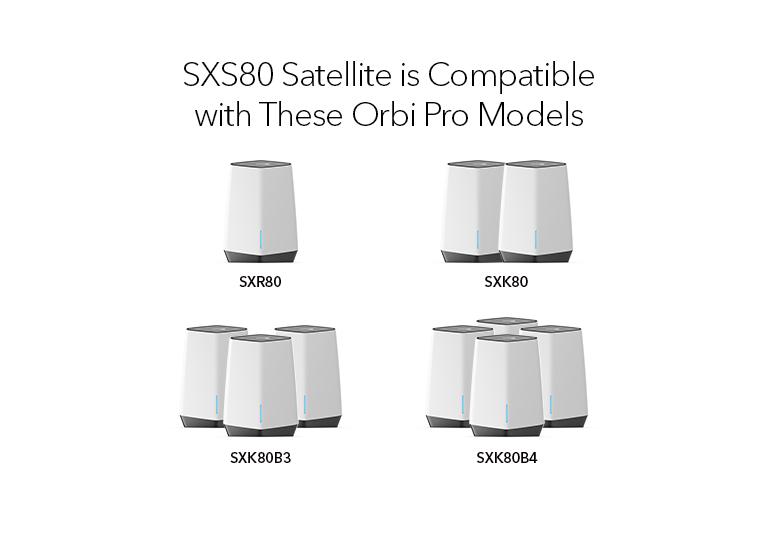

- Compatibility with Orbi Home : Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
- PMP0332-10000S
- PMP0352-10000S
- Insight : 1-year subscription included
- Support
- One (1) Orbi Pro WiFi 6 Satellite (SXS80)
- One (1) wall mounts with screws
- One (1) 12V/3.5A power adapters
- Installation guide
Data Sheet (PDF)

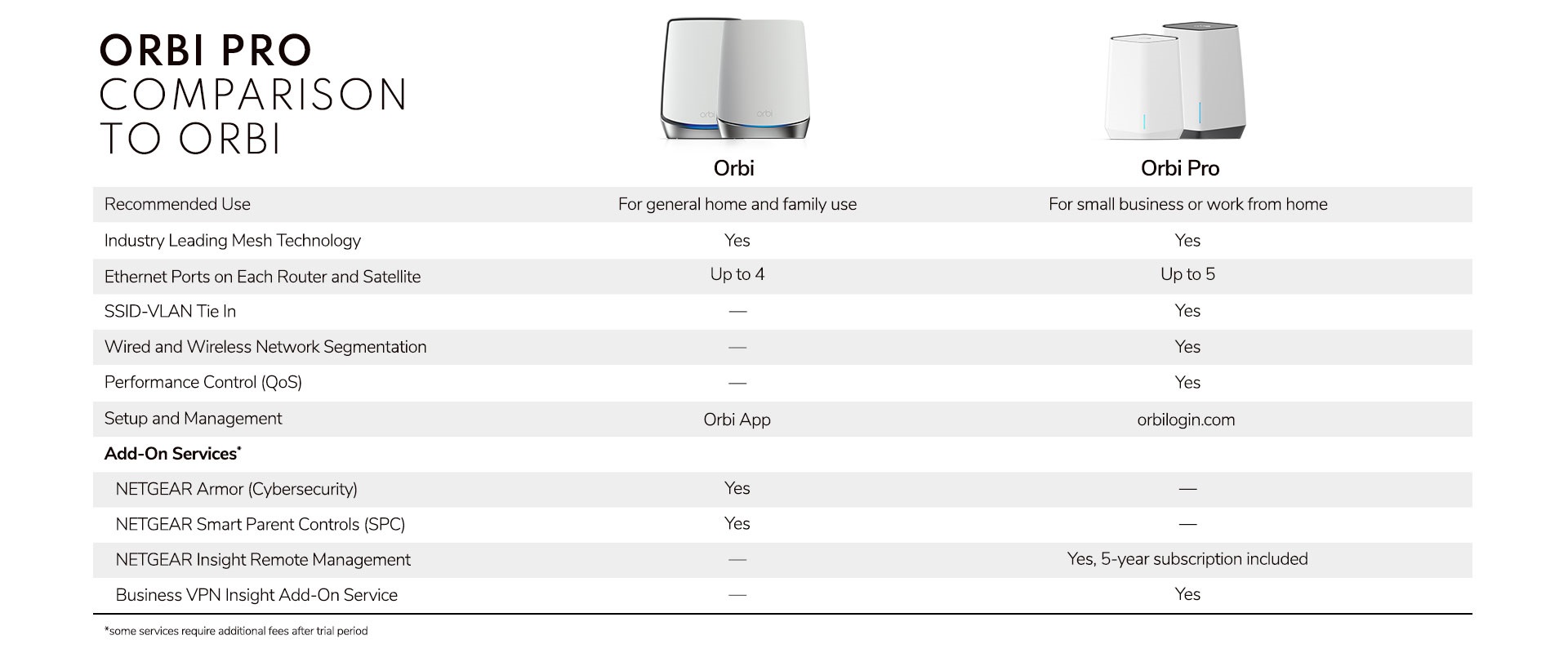

Orbi Pro Family Comparison
SXK30 Orbi Pro WiFi 6 Mini |
SXK80 Orbi Pro WiFi 6 |
SRK60 Orbi Pro |
|
|---|---|---|---|
|
WiFi Speed |
WiFi Speed WiFi 6 – AX1800 (Up to 1.8 Gbps) |
WiFi Speed WiFi 6 - AX6000 (Up to 6.0 Gbps) |
WiFi Speed WiFi 5 - AC3000 (Up to 3.0 Gbps) |
|
WiFi Configuration |
WiFi Configuration Dual-Band |
WiFi Configuration Tri-Band |
WiFi Configuration Tri-Band |
|
Physical Specifications |
Physical Specifications Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb |
Physical Specifications Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb |
Physical Specifications Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb |
|
# of Concurrent Users |
# of Concurrent Users 40 |
# of Concurrent Users 80 |
# of Concurrent Users 40 |
|
Ideal Use |
Ideal Use Small Business and SOHO |
Ideal Use SOHO and Small Business |
Ideal Use SOHO |
|
WiFi Coverage |
WiFi Coverage Up to 4,000 sq. ft. |
WiFi Coverage Up to 6,000 sq. ft. |
WiFi Coverage Up to 5,000 sq. ft. |
|
Dedicated Wireless Backhaul |
Dedicated Wireless Backhaul No |
Dedicated Wireless Backhaul Yes |
Dedicated Wireless Backhaul Yes |
|
Multi-Gig Port 2.5 |
Multi-Gig Port 2.5 No |
Multi-Gig Port 2.5 Yes |
Multi-Gig Port 2.5 No |
|
Integrated Plus Switch with VLANs |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs No |
|
Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
