With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places. SXR80 SXR80-100NAS SXR80-100NAS
5-Year NETGEAR Insight Premium Subscription Included

AX6000 WiFi Mesh Router (SXR80) armor

AX6000 Tri-Band Orbi Pro WiFi 6 Router armor

5-Year NETGEAR Insight Premium Subscription Included

AX6000 WiFi Mesh Router (SXR80)

AX6000 Tri-Band Orbi Pro WiFi 6 Router armor

With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.

Orbi Pro Orbi Pro - Maximum security and configurability at work

Orbi Pro



MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK

orbipro_sxk80_moreofeverything_mobile_v2 orbipro_sxk80_moreofeverything_desktop_v2
orbipro_sxk80_mobile_3 orbipro_sxk80_desktop_3

SMALL BUSINESS CONTROL

Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimising WiFi performance for everyone’s needs.


Orbi Pro - Office Device Networks
Orbi Pro - Small Business Control

Orbi Pro - Work From Home Control

WORK FROM HOME CONTROL

Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.


Orbi Pro - Home Device Networks

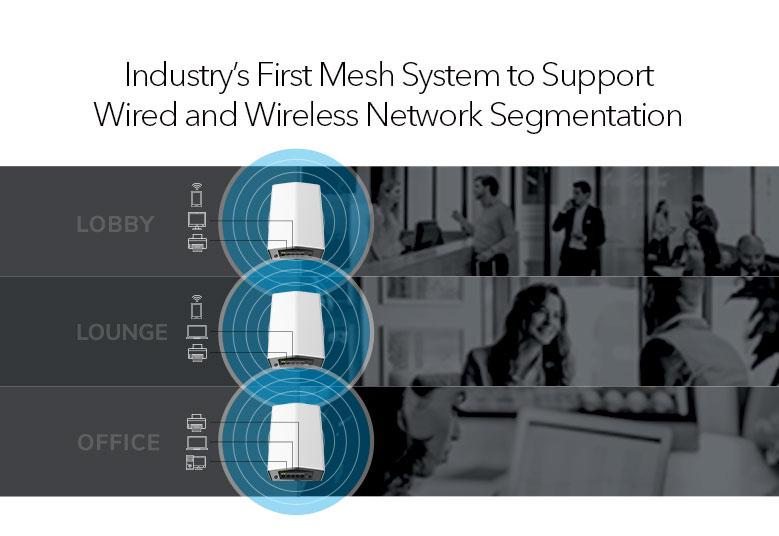

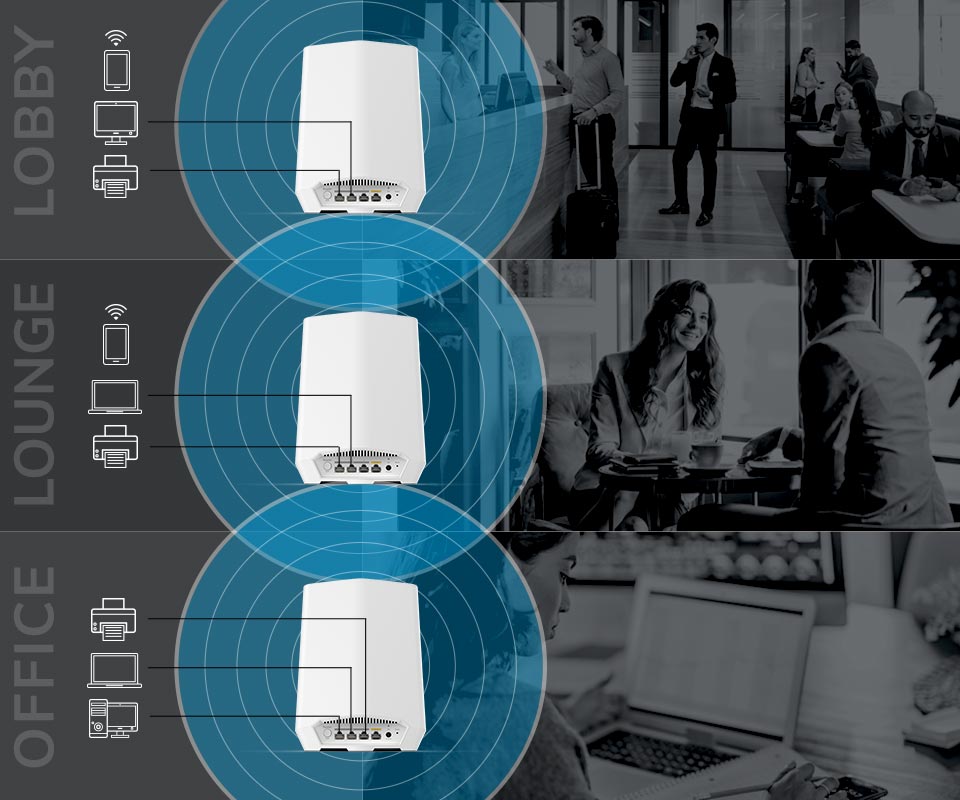

UNRIVALED SECURITY WITH NETWORK SEGMENTATION

Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.


WHITE PAPER
network-segmentation_6

Orbi Pro - The Best Performance, Period

THE BEST
PERFORMANCE,
PERIOD

Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.

orbipro_sxk80_mobile_8 orbipro_sxk80_desktop_8
Orbi Pro - Expandable as your needs grow Orbi Pro - Expandable as your needs grow

EXPANDABLE
AS YOUR
NEEDS GROW

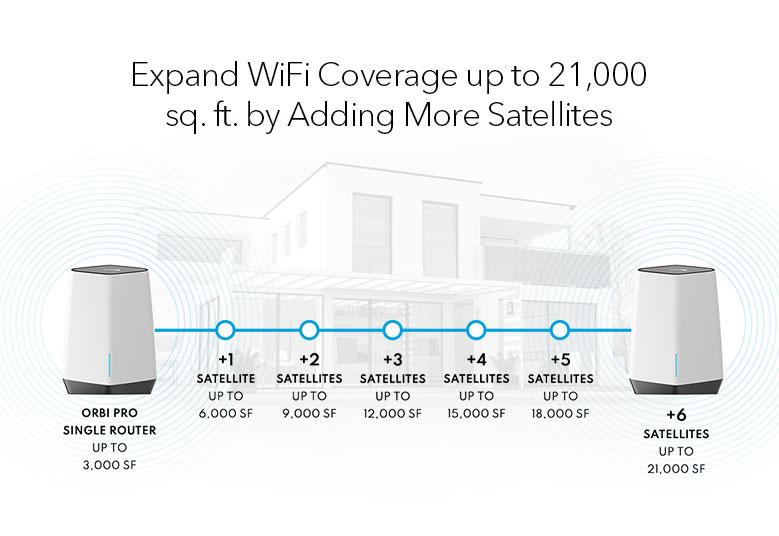

Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 3,000 sq. ft. (sold separately).

For the correct configuration and number of satellites, consult the KB here

NETGEAR Insight Management

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

One-Step VPN Connectivity for your Business

Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*

*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.

Technical Specifications

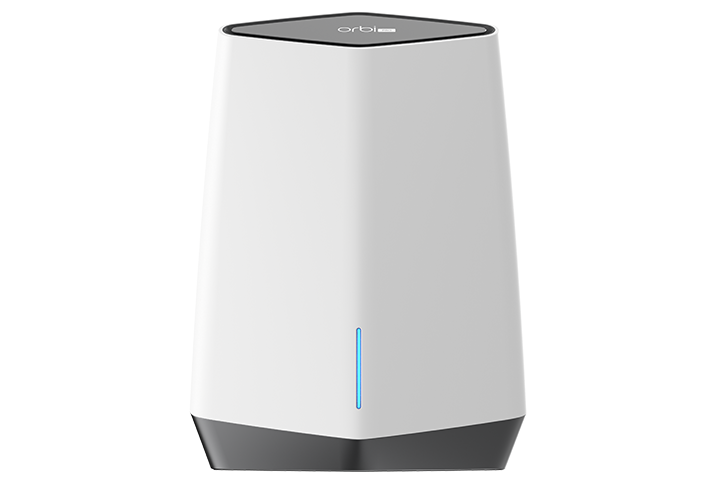

Everest_SRK80_PDP_Tech-Specs-Image-1

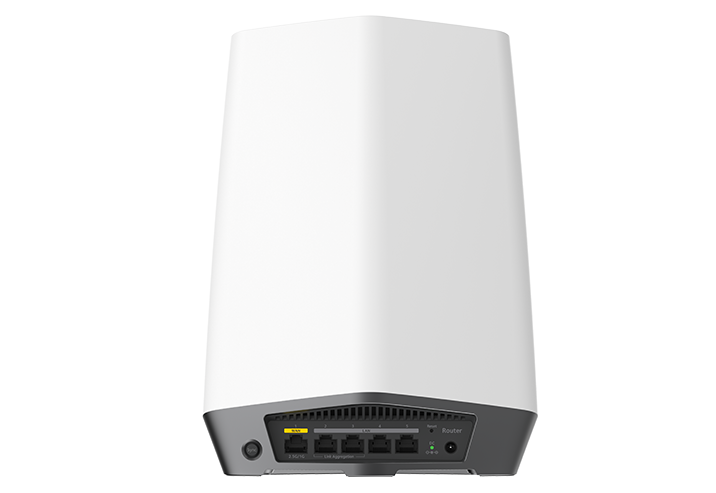

Everest_SRK80_PDP_Tech-Specs-Image-2
  • Orbi Pro WiFi 6 Router (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing modem or gateway 3. Use the local UI to set up and customize in minutes
  • WiFi Technology : (2,400 + 2,400 + 1,200) Mbps Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

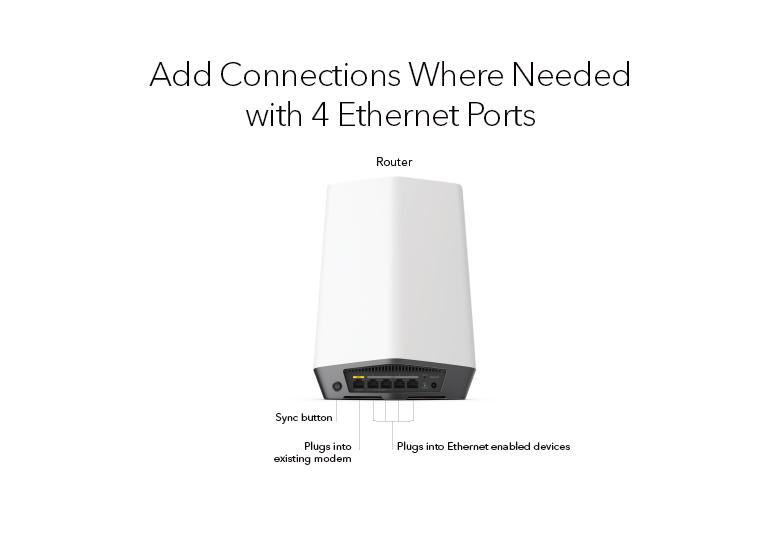

  • Ports – Orbi Pro WiFi 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports

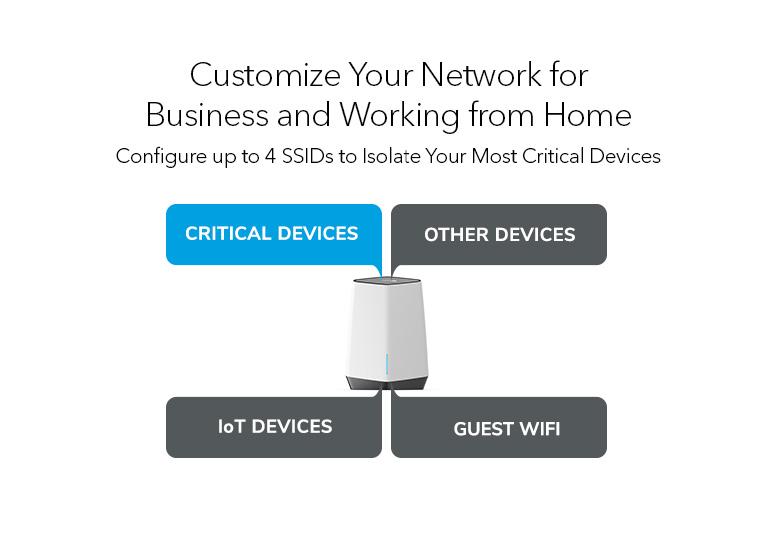

  • Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices), Flexible VLAN configuration on all four (4) SSID WiFi networks, Client isolation by default on Guest SSID and configurable on other SSIDs, WPA/WPA2/WPA3 support
  • Local Admin : Local Admin UI available for extensive feature setting and maintenance
  • Insight : Insight App - Secured Cloud for remote monitoring
  • Third party support : Domotz

  • Compatibility with Orbi Home : Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • One (1) Orbi Pro WiFi 6 Router (SXR80)
  • One (1) wall mounts with screws
  • One (1) 2m Ethernet cable
  • One (1) 12V/3.5A power adapters
  • Installation guide
