NETGEAR Experience the most versatile and easy to manage switches in the market featuring FlexPoE. GS110TPP GS110TPP-100AJS GS110TPP-100AJS

Smart w/ optional Cloud (GS110TPP) armor

8-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 2 Copper Ports (120W)armor

Experience the most versatile and easy to manage switches in the market featuring FlexPoE.

Smart w/ optional Cloud (GS110TPP)

8-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 2 Copper Ports (120W)armor

Experience the most versatile and easy to manage switches in the market featuring FlexPoE.

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection

Security

MAC lockdown

MAC lockdown by number of MACs

IEEE 802.1x port authentication - MD5: FS728TPv2, FS728TLP, GS108Tv2, GS110TP, GS510TP

IEEE 802.1x port authentication - EAP: GS510TLP, GS510TPP, GS418TPP, GS516TP, GS716Tv3, GS724Tv4, GS748Tv5, GS724TPv2, GS728TP, GS728TPv2, GS728TPP, GS728TPPv2, GS752TP, GS752TPv2, GS752TPP

Dynamic VLAN Assignment

Guest VLAN

TACACS+

3 HTTPS /SSL versions (except FS728TLP)

TLS session (except FS728TLP)

Trusted MAC

IPv4, L4-based Access Control List (ACL)

IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3

IGMP Snooping querier

Blocking of unknown multicast traffic

MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP

Option to enable/disable BPDU flooding when STP is disabled

Static routing with 32 static routes (Selected models)

Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP

LLDP-MED

Dual Image

SNTP

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client (except FS728TLP)

DHCP clients

DHCP snooping (except FS728TLP)

Ping and traceroute client (except FS728TLP)

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Technical Specifications

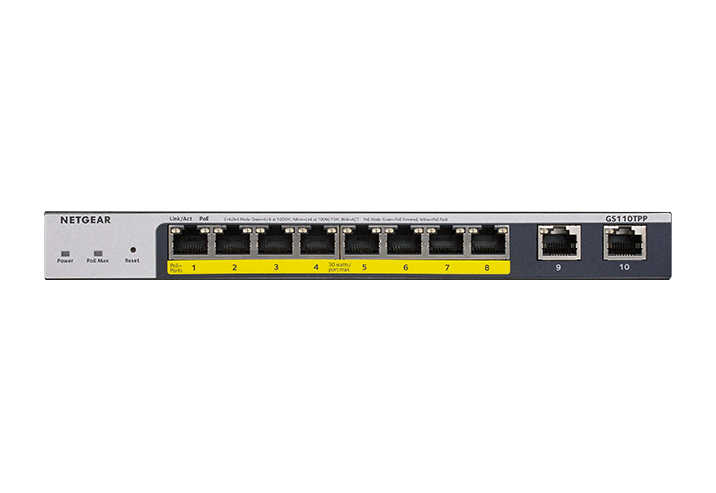

GS110TPP_tech_specs_image_1

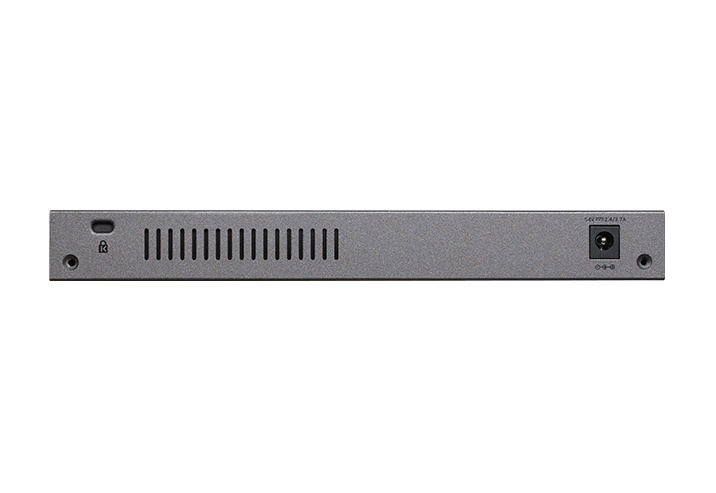

GS110TPP_tech_specs_image_2
  • Weight (kg) : 0.64kg ( 1.41 lb)
  • Dimensions (WxDxH) mm : 236 x 101 x 27 mm ( 9.3 x 4.0 x 1.1 in)
  • Model Description : NETGEAR 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch w/ optional Remote/Cloud Management and 2 Copper Ports (120W)
  • 10/100Mbps ports : 10
  • Gigabit ports : 10
  • SFP ports : 0
  • Number of PoE ports : 8
  • PoE+ (802.3at) : 8
  • Total PoE Power budget (Watts) : 8 PoE+ (120W)
  • FlexPoE Capability : Yes
  • Max MAC entries : 8K
  • Buffer size : 512KB
  • VLAN (Number Supported) : 64
  • VLAN routing : Yes
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : Yes
  • Static route : Yes (32)
  • Host ARP table : 512 ARP
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External : External DC 54V 2.4A
  • Max power (worst case, all ports used, line-rate traffic) : 141.3W (with PoE max)
  • FAN : 0
  • Acoustic Noise Level @25C (dBA) : 0
  • Operating Temperature : 0° to 40°C (32° to 104°F)
  • MTBF : 1,200,041 hrs (137 yrs)

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
