NETGEAR M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point. XCM8903SK XCM8903SK-10000S XCM8903SK-10000S

M6100-44G3-POE+ (XCM8903SK) armor

Starter Kit w/1blade 40x1G, 4x10G, 1xPoE+ daughter card Managed Switcharmor

M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.

M6100-44G3-POE+ (XCM8903SK)

Starter Kit w/1blade 40x1G, 4x10G, 1xPoE+ daughter card Managed Switcharmor

M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

Features

World-class availability

Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management

N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)

High speed performance

1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput

480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)

Extra high-density

Only 4U height (7 inches - 17.78cm) and 17.39 inches depth (44.16cm)

Supports 144 RJ45 10/100/1000 ports, or 120 SFP 100/1000 ports, or 72 RJ45 10GBASE-T ports, or 48 SFP+ 1000/10GBASE-X ports, or a combination

Higher flexibility

Distributed fabric removes the need for a dedicated supervisory module yet providing passive backplane, redundant fabric and redundant management

Any I/O blade spares hardware and software distributed fabric on board, facilitating campus management, maintenance and upgrades

Lower complexity

Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license

Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks

Investment protection

Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications

Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed

Industry standard management

Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN

Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support

Industry leading warranty

NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*

90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Technical Specifications

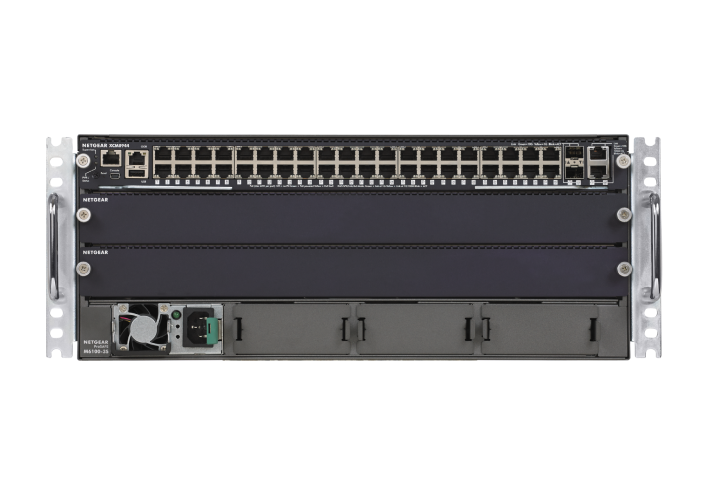

XCM8903SK_tech_specs_image_1

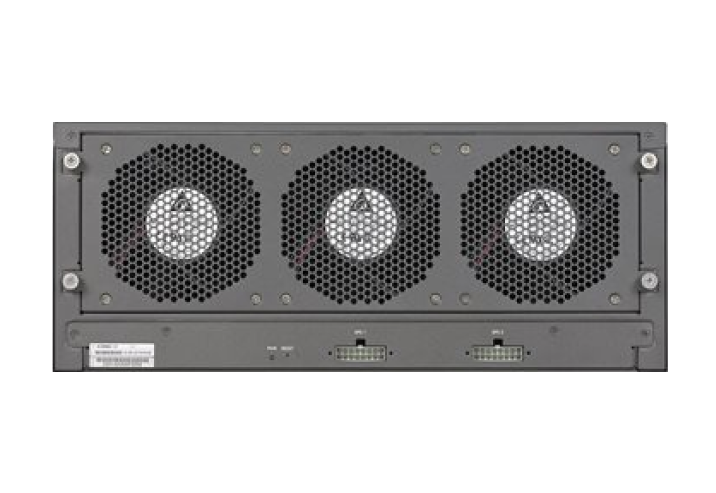

XCM8903SK_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Model Description : M6100-44G3-POE+ Chassis Starter Kit Bundle
  • Ordering Number : XCM8903SK-10000S
  • RJ45 Ports : 40 x 10/100/1000
  • 2 x 10GBASE-T (independent)
  • Fiber SFP+ (1000/10G) : 2 x SFP+ (independent)
  • Power over Ethernet : 40 x PoE+ 802.3at with included XCM89P daughter card
  • Feature Set : License-free L2/L3/L4 and IPv4/IPv6 advanced software package
  • Form Factor : 4U Base Chassis Bundle
  • I/O Blade XCM8944
  • Daughter Card XCM89P
  • Power Supply Unit APS1000W
  • Front-to-Back Fran Tray AFT603
  • 2-post Rack Mount Kit
  • 4-post Rack Sliding Rails
