NETGEAR Access enterprise-class networking perfect for your converged network needs. 180W PoE+ and 1-year Insight subscription included. GS716TP GS716TP-100EUS GS716TP-100EUS
1-Year NETGEAR Insight Subscription Included

Smart w/ optional Cloud (GS716TP) armor

16-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Cloud/Remote Management and 2 SFP ports (180W)armor

Access enterprise-class networking perfect for your converged network needs. 180W PoE+ and 1-year Insight subscription included.

Feature Videos

ETHERNET PORT CONFIGURATION: 16 Gigabit ports
POWER-OVER-ETHERNET: 16 PoE+ ports with 180W total power budget
FLEXIBILITY FROM UPLINK PORTS: 2 x 1G SFP ports
ADVANCED CONFIGURATION & CONTROL: Management software with easy-to-use GUI interface offers refined control for secure setup, access, and Cloud/Remote Insight management activation
INSIGHT CLOUD MANAGEMENT SOLUTION: 1-Year Insight Subscription Included
VERSATILE MOUNTING OPTIONS: Supports desktop or rackmount placement, and includes all the necessary mounting hardware in the box
ENERGY EFFICIENT: Designed to optimize power usage lowering its cost to operate. Most models are compliant with IEEE802.3az Energy Efficient Ethernet mode
WHISPER-QUIET DESIGN: Reduces fan noise to protect your home office or business environment
Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues
Essential IPv4 L3 static routing (no resiliency, no load balancing)
Assignment Auto-VoIP VLAN, Auto-voice VLAN, Auto-video VLAN
IGMP and MLD snooping
Advanced Security IPv6 for management, QoS and ACLD
HCP L2 relay
Powerful PoE+ installations with PoE budgets up to 180W, a compact size, and reliable performance, all at affordable prices
Standardized to IEEEE 802.3at (PSE) PoE+ switches can deliver up to 30W of power per port
Connections of higher power required devices, such as Voice over IP phones, IP cameras, wireless access points, etc.

Technical Specifications

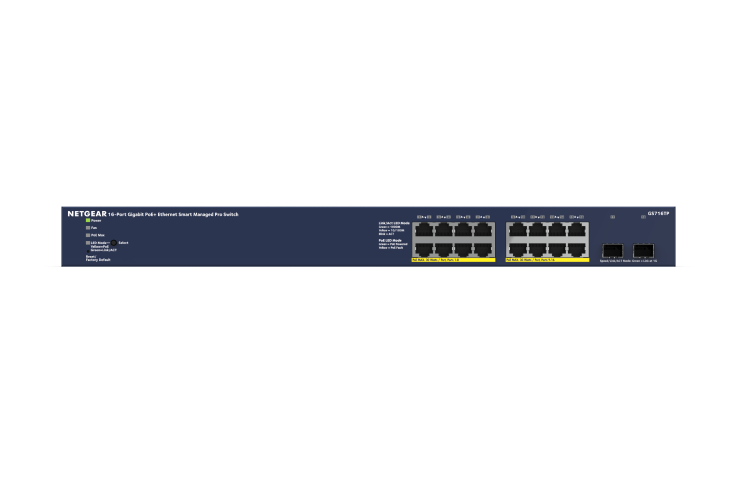

GS716TP_tech_specs_image_1

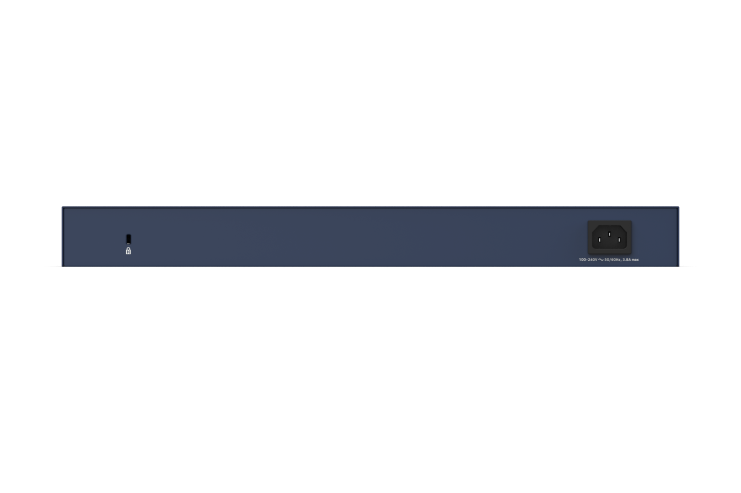

GS716TP_tech_specs_image_2
  • Dimensions : (W x D x H) 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in)
  • Weight : 3.00 kg (6.61 lb)
  • Gigabit Copper ports : 16
  • SFP Fiber ports : 2 dedicated
  • PoE ports (802.3af) : 16
  • PoE+ ports (802.3at) : 16
  • Form factor : Desktop, rack-mount
  • Total PoE power budget : 180W
  • Max noise @25℃, 77 ℉ : 27.3 dB
  • Feature set : Smart L2 (no routing)
  • Energy Efficient Ethernet (EEE) support

    • Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
