NETGEAR The world’s first Multigigabit Ethernet switch with eight full power PoE+ and multi-speed 1G, 2.5G ports combined with two 10G uplinks for a fully non-blocking deployment of eight Wave 2 11ac access points from any vendor. M4200-10MG-PoE-Plus GSM4210P-100NES GSM4210P-100NES

M4200-10MG-PoE+ (M4200-10MG-PoE-Plus) armor

8xMulti-Gig PoE+ (240W) and 2xSFP+ (shared) Managed Switcharmor

The world’s first Multigigabit Ethernet switch with eight full power PoE+ and multi-speed 1G, 2.5G ports combined with two 10G uplinks for a fully non-blocking deployment of eight Wave 2 11ac access points from any vendor.

M4200-10MG-PoE+ (M4200-10MG-PoE-Plus)

8xMulti-Gig PoE+ (240W) and 2xSFP+ (shared) Managed Switcharmor

The world’s first Multigigabit Ethernet switch with eight full power PoE+ and multi-speed 1G, 2.5G ports combined with two 10G uplinks for a fully non-blocking deployment of eight Wave 2 11ac access points from any vendor.

Features

Key features:
  • 1G, 2.5G and 5G NBASE-T compliant access layer in campus LAN and midsize organizations networks
  • Line-rate 8 x 2.5G access layer and 2 x 10G aggregation for 802.11ac wireless access points with PoE+ full provisioning
  • Advanced Layer 2, Layer 3 and Layer 4 feature set including static routing and RIP dynamic routing
  • Multi-Gigabit NBASE-T enables 2.5X to 5X faster speeds up to 100m on legacy Cat5e/Cat6 cables - yet providing 100M and 1G backward compatibility
  • Whisper quiet 28.9dB acoustics when operating at 25°C (77°F), well below normal offices ambient background noise
  • Secure placement above drop-down ceilings, in air passageways and where other switches will not go, vertical or horizontal, flat or perpendicular
  • Easy Mount options whether it's directly on a wall, attached to a rectangular or round pole, or mounted in a standard 19-inch rack
  • PoE+ (30 watts per port) across all (8) Multi-Gigabit access ports with 240W budget
  • Low latency and scalable table size with 16K MAC, 1K ARP/NDP, 1K VLANs, 64 routes
  • SDN-Ready OpenFlow 1.3 support for maximum investment protection
Software:
  • Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
  • Selectable Port-Channel / LAG (802.3ad - 802.1AX) L2/L3/L4 hashing for fault tolerance and load sharing with any type of Ethernet channeling
  • Voice VLAN with SIP, H323 and SCCP protocols detection and LLDP-MED IP phones automatic QoS and VLAN configuration
  • Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
  • Comprehensive IPv4/IPv6 static and IPv4 dynamic routing including RIP
  • Layer 2 multicast forwarding with IGMPv3/MLDv2 Snooping and IGMPv2/MLDv1 Snooping Querier
  • Advanced security including malicious code detection, DHCP Snooping, Dynamic ARP Inspection and DoS attacks mitigation
  • Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization
Availability:
  • Link Dependency new feature enables or disables ports based on the link state of different ports
  • Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP) offer interoperability with PVST+ infrastructures
Management:
  • DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
  • Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation
  • Service port for out-of-band Ethernet management (OOB)
  • Standard RS232 straight-through serial RJ45 and Mini-USB ports for local management console
  • Standard USB port for local storage, logs, configuration or image files
  • Dual firmware image and configuration file for updates with minimum service interruption
  • Industry standard command line interface (CLI) for IT admins used to other vendors commands
  • Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
  • Single-pane-of-glass NMS300 management platform with mass-configuration support

Technical Specifications

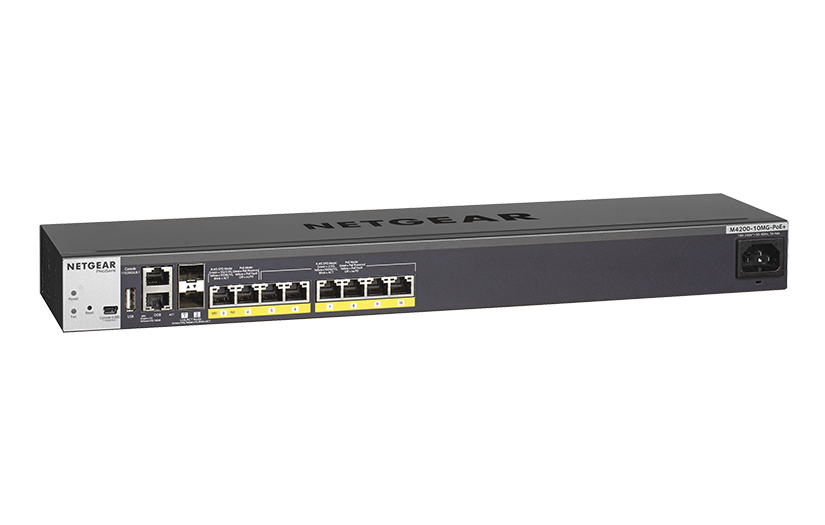

M4200-10MG-PoE-plus_right

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Model Description : Full Power PoE+ 8x2.5G and 2x10G Aggregation Switch For Wave 2 11ac AP Deployment
  • Ordering Number : GSM4210P
  • Acoustics : Whisper quiet 28.9dB @ 25°C (77°F)
  • Power Consumption (Max) : 281.6 Watts @ full PoE+
  • RJ45 Ports : 8 x 1G / 2.5G including two of these ports with 5Gbps capability
  • 10G Fiber SFP+ Ports : 2 x SFP+ (1G and 10G speeds)
  • Power over Ethernet : 8 x PoE+ 30W ports
  • PoE Budget (Watts) : 240W
  • Feature Set : Layer 3 (static routing and RIP dynamic routing)
  • Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • RS232 straight-through serial RJ45 for local management console
  • Mini-USB port for local management console
  • USB port for local storage, logs, configuration or image files
  • Form Factor : Easy Mount for standard rack mounting and plenum mounting on poles or walls
