NETGEAR Extend your network by a mile. Wirelessly Bridge networks or provide outdoor WiFi coverage WBC502 WBC502-100UKS WBC502-100UKS
1-Year NETGEAR Insight Subscription Included

Wireless AirBridge (WBC502) armor

Insight Instant Wireless AirBridgearmor

Extend your network by a mile. Wirelessly Bridge networks or provide outdoor WiFi coverage

1-Year NETGEAR Insight Subscription Included

Wireless AirBridge (WBC502)

Insight Instant Wireless AirBridgearmor

Extend your network by a mile. Wirelessly Bridge networks or provide outdoor WiFi coverage

High Performance WiFi

5GHz AC 2x2 with 500mbs at 500ft

Long Distance Outdoors
Usable connections for up to 9000ft (3km)
Rated for Outdoors
IP55 enclosure rated to resist harsh weather (water and dust resistant, long sun exposure, snow, hail, frost…)
Bridge the Gaps
High-gain directioinal 14 dBi Antenna
Flexible Mounting Options
Included mounting accessories, for easy outdoor installation on walls, poles
Unobtrusive design
Easily blend into many deployment enviroments
Power Supply
Use exclusively with the power supply provided in the box
Line-of-site Outdoor Point-to-point

Outdoor long-distance wireless bridge for over a mile (2 units required)

Local or Remote Insight Management 1-Year Insight Management Included

Point-to-multipoint
Designate one AirBridge as host and connect to multiple AirBridge as Satellites
Power Outdoor Security
Connect AirBridge to existing wireless networks and ethernet hardwire IP cameras
Outdoor Access Point
Local Management mode only
Experience Safety

Connect Outdoor IP surveillance camera for home and business security

Outdoor WiFi expansion
Take WiFi outdoors to where no wires have gone before such as golf-courses etc
Multiple buildings
Expand connectivity faster than perminant infastuture allows
Campgrounds
Cover large outdoors areas mulitple configurations
Schools
Improve campus connectivity to remote buildings

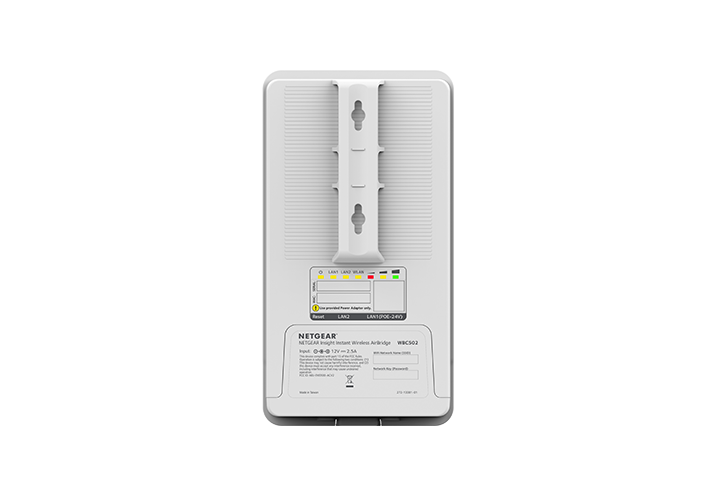

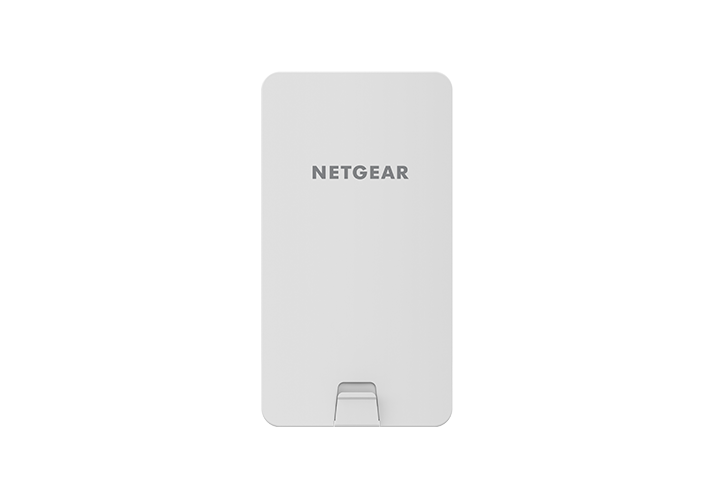

WBC502_tech_specs_image_1
WBC502_tech_specs_image_2
  • Dimensions : 186mm (L) x 100mm (W) x 29mm (H) (7.54” x 4.49” x 1.88”)
  • Weight : 504g (1.11lbs)
  • Model Description : Insight Instant Wireless AirBridge (WBC502)
  • Frequency Band : 5GHz
  • Operating Temperature : -20°C~60°C (-4°F~140°F)
  • Humidity : 0%~90% typical
  • Mounting : Pole Mounting Assemble a mounting bracket to fix this Access Point on a pole
  • Wall Mounting Mount this Access Point on a flat wall
  • Networking Interface : Two (2) 10/100/1000 BASE-T RJ-45 Ethernet Ports
  • Multi-User MIMO : Yes
  • Throughput : Delivers 500Mbps at 500ft (166m) distance at line-of-sight for long distance applications Maximium up to 9000ft (3,000M) with reduced bandwith
  • Deployment options : Outdoor Point-to-Point Wireless Bridge: extend a network up to 9000ft (3km)
  • Outdoor WiFi Client Bridge: provide a WiFi connection to an outdoor device that is not WiFi-capable
  • Outdoor WiFi Access Point: outdoor long-range WiFi connectivity
  • LEDs : Display system and wireless transmission status
  • Outdoor Protection : Main unit is IP55 Protected against dust and water. Power supply must remain protected indoors.

    • Warranty: This product is backed by a NETGEAR limited 5-year Hardware Warranty .

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support
WBC502_tech_specs_image_1
WBC502_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR limited 5-year Hardware Warranty .

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support
  • Wireless : Wifi Technology: Primary 5GHz 802.11 ac 2x2 MIMO. Compatible with 802.11 ac/a/n mode. (Secondary 2.4 Ghz radio is only for management).
  • Multiplexing : OFDM with TDMA
  • Maximum Signal Output : 23dBM (Output dependent on regulatory domain with)
