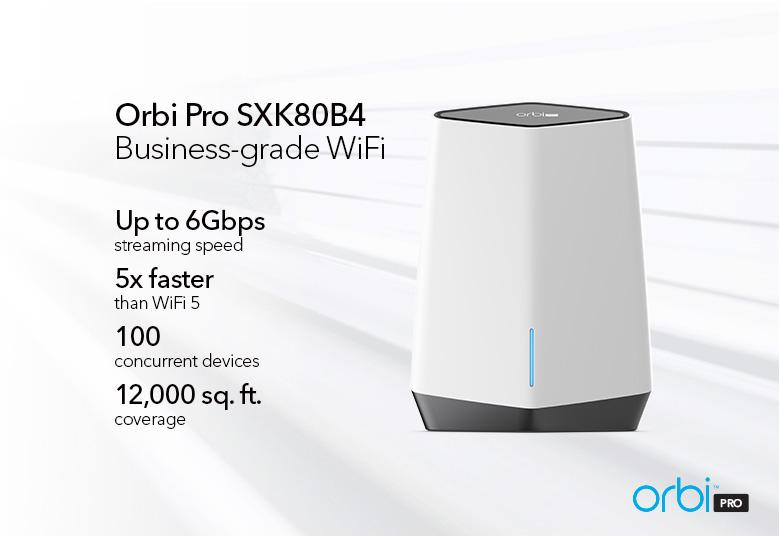

NETGEAR Cover up to 12,000 sq. ft. with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System provides unparalleled coverage, speed, and capacity to boost business productivity. SXK80B4 SXK80B4-100EUS SXK80B4-100EUS

Orbi Pro WiFi 6 (SXK80B4) armor

AX6000 Tri-Band Orbi Pro WiFi 6 WiFi System - Pack of 4armor

Cover up to 12,000 sq. ft. with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System provides unparalleled coverage, speed, and capacity to boost business productivity.

Orbi Pro WiFi 6 (SXK80B4)

AX6000 Tri-Band Orbi Pro WiFi 6 WiFi System - Pack of 4armor

Cover up to 12,000 sq. ft. with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System provides unparalleled coverage, speed, and capacity to boost business productivity.

Business-Minded WiFi
All the business features you need for fully secure, fast WiFi
Full WiFi Coverage for 12,000 Sq. Ft.
Covers your entire business with consistent WiFi so your customers and employees have stable internet
Fast, Simple Installation
A wire-free system makes setting up WiFi so easy

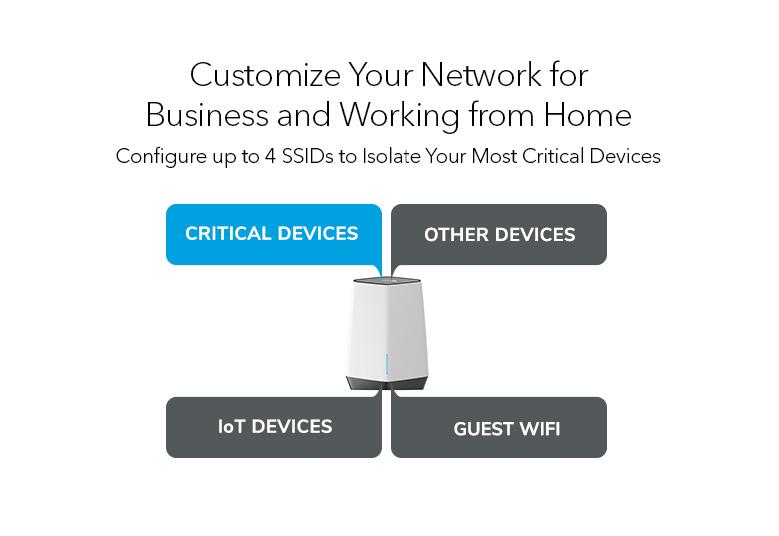

Securely Share your WiFi
Guests can connect to a dedicated SSID separate from staff use. Deploy up to 4 different SSIDs.

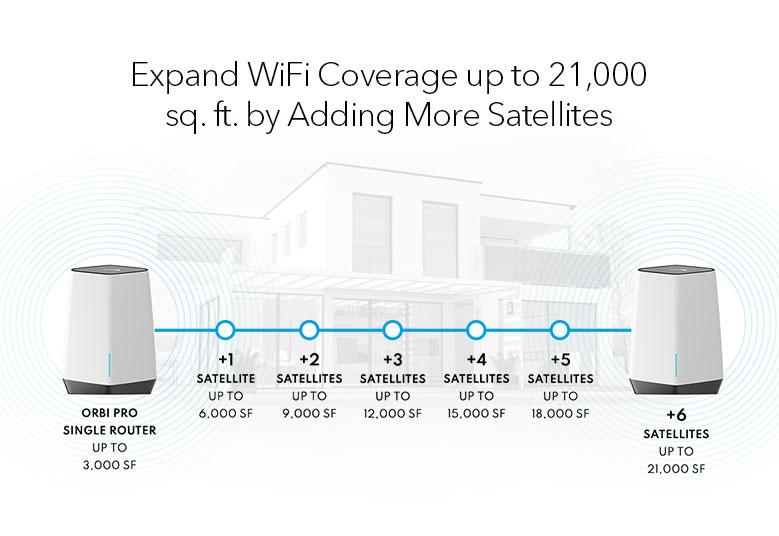

Grows with Your Business
Connect additional satellites with or without wires to extend your coverage indoors and outdoors by 3,000 sq. ft.
Wall and Ceiling Mounts
Mount out of reach or in the most convenient locations.
Great performance

100% more throughput than WiFi 5 Orbi Pro - AX6000 vs. AC3000

More capacity

4x more client device handling for less congestion and simultaneous WiFi 6 streaming, file transfer, and browsing on more devices.

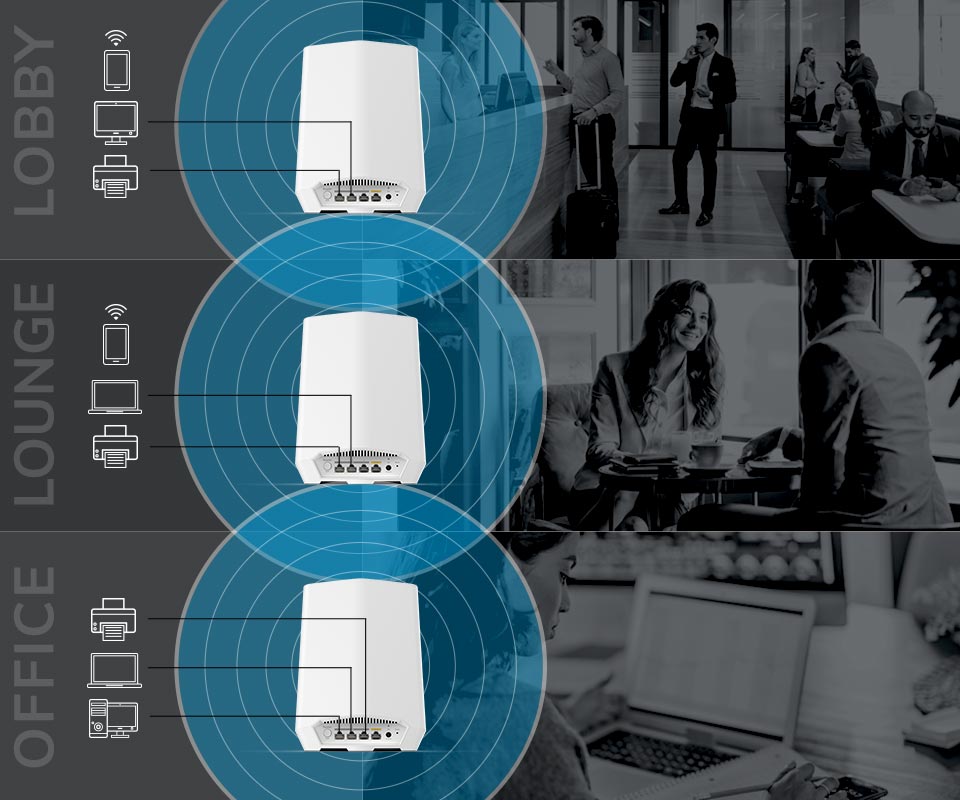

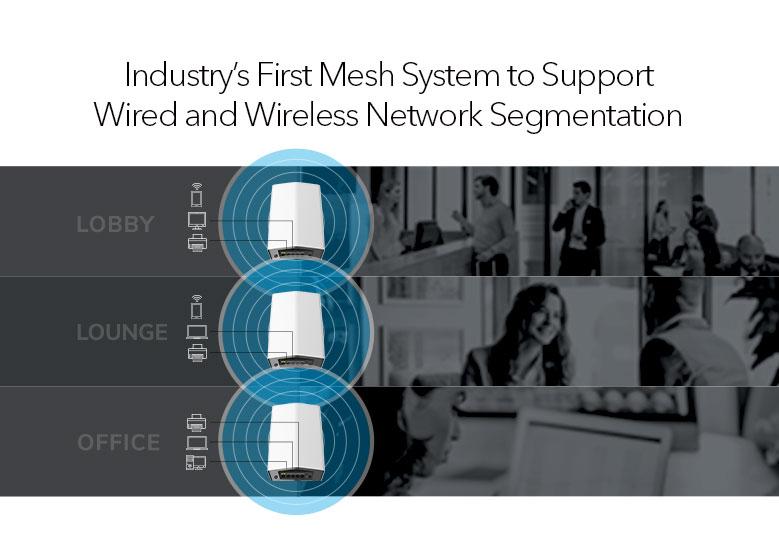

Secure WiFi zones

Supports WPA3 wireless security protocols and includes VLAN management and client separation enabled by VLAN-SSID tie-in

Tri-band WiFi

Orbi Pro establishes a dedicated connection between units, maxmising internet speeds

Daisy Chain

Satellites automatically connect to the router in the most efficient way

Wired or Wireless

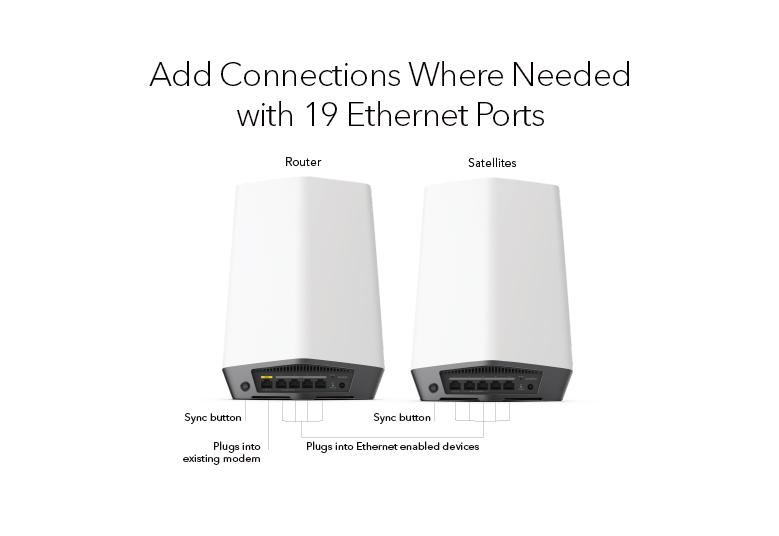

Use the 7 Ethernet ports to connect to PoS, printers, IP phones, digital billboards, and more

Maintain from Anywhere

Manage your Orbi Pro directly from your phone with the NETGEAR Insight app

VPN-swimlane1-sxk80

One-Step VPN Connectivity for your Business

Securely and efficiently extend your business network to multiple locations and work-from-home employees with the NETGEAR Insight add-on service, Business VPN.

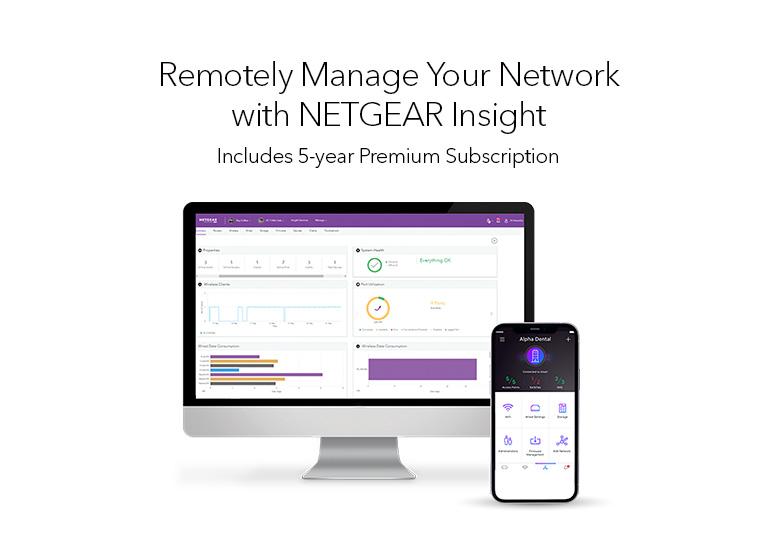

NETGEAR Insight Management

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Technical Specifications

Tech_Spec_ Image_1

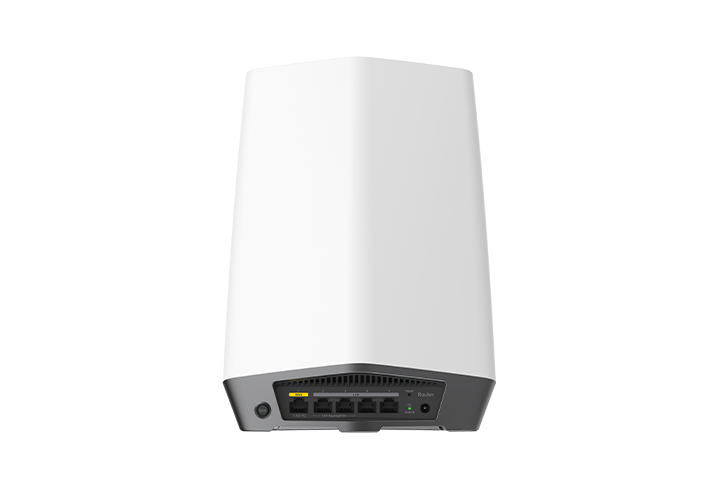

Tech_Specs_Image_2
  • Orbi Pro WiFi 6 Router (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • Orbi Pro WiFi 6 Satellite (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • What do I need for Orbi Pro WiFi 6 to work? : High-speed Internet connection. Connect to existing modem or gateway. Use NETGEAR Insight® app with an iOS or Android smartphone for easy setup.
  • WiFi Speed : (2,400 + 2,400 + 1,200) Mbps†
  • Tri-band : Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Antennas : Eight (8) high-performance antennas with high-power amplifiers
  • MU-MIMO : OFDMA and bi-directional MU-MIMO WiFi 6 throughput, MU-MIMO capable for simultaneous data streaming on multiple devices
  • TWT : TWT (Target Wait Time) for longer smartphone battery life
  • Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
  • Link Aggregation Grouping : Internet Port for Router Unit 1x 2.5Gbps Ethernet, Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG, Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
  • Ports – Orbi Pro WiFI 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices). Flexible VLAN configuration on all four (4) SSID WiFi networks. Client isolation by default on Guest SSID and configurable on other SSIDs. WPA/WPA2/WPA3 support.
  • Insight App : Insight App - Secured cloud and local management
  • Local Admin : Local Admin UI available for extensive feature setting and maintenance
  • Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • 90-day complimentary technical support1 www.NETGEAR.com/support
  • SXK80 Router + 1x Satellite
  • SXK80B3 Router + 2x Satellite
  • SXK80B4 Router + 3x Satellite
  • SXS80 Satellite only
  • One (1) Orbi Pro WiFi 6 Router (SXR80)
  • Two (2) Orbi Pro WiFi 6 Satellite (SXS80)
  • Three (3) wall mounts with screws
  • One (1) 2m Ethernet cable
  • Three (3) 12V/3.5A power adapters
  • Installation guide

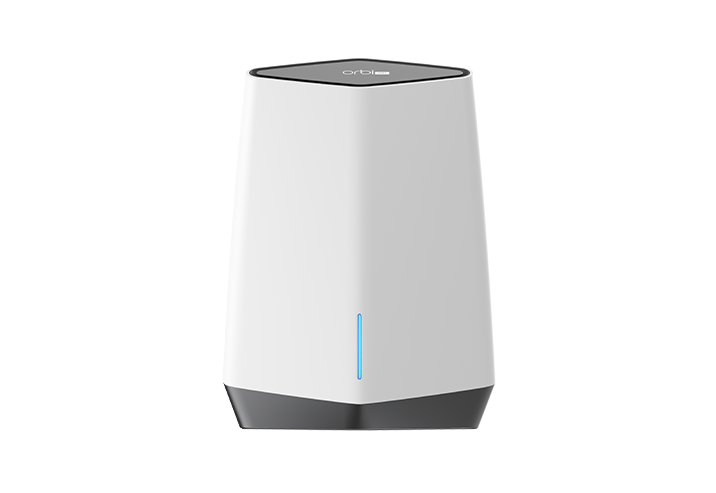

Tech_Specs_Tab_2_Image_1
Tech_Specs_Tab_2_Image_2
  • Orbi Pro WiFi 6 Router (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • Orbi Pro WiFi 6 Satellite (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • WiFi Speed : (2,400 + 2,400 + 1,200) Mbps†
  • Tri-band : Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Antennas : Eight (8) high-performance antennas with high-power amplifiers
  • Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
  • Link Aggregation Grouping : Internet Port for Router Unit 1x 2.5Gbps Ethernet, Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG, Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
  • Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • 90-day complimentary technical support1 www.NETGEAR.com/support
  • SXK80 Router + 1x Satellite
  • SXK80B3 Router + 2x Satellite
  • SXK80B4 Router + 3x Satellite
  • SXS80 Satellite only
  • One (1) Orbi Pro WiFi 6 Router (SXR80)
  • Two (2) Orbi Pro WiFi 6 Satellite (SXS80)
  • Three (3) wall mounts with screws
  • One (1) 2m Ethernet cable
  • Three (3) 12V/3.5A power adapters
  • Installation guide
