NETGEAR ProSAFE® Fast Ethernet Rack Mountable Switch with 24 10/100Mbps copper ports. Built for small and medium-sized networks where reliability and performance are the keys. JFS524v2 JFS524-200EUS JFS524-200EUS

Fast Ethernet Unmanaged Switch Series (JFS524v2) armor

24-Port 10/100Mbps Fast Ethernet Unmanaged Switcharmor

ProSAFE® Fast Ethernet Rack Mountable Switch with 24 10/100Mbps copper ports. Built for small and medium-sized networks where reliability and performance are the keys.

Fast Ethernet Unmanaged Switch Series (JFS524v2)

24-Port 10/100Mbps Fast Ethernet Unmanaged Switcharmor

ProSAFE® Fast Ethernet Rack Mountable Switch with 24 10/100Mbps copper ports. Built for small and medium-sized networks where reliability and performance are the keys.

Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput

24 ports, each delivering up to 200Mbps of dedicated network bandwdith to servers, PCs and network devices

Energy Efficient Ethernet (IEEE802.3az) for optimized power saving

Rugged metal case and fanless design for reliable and silent operation

Plug-and-play—begins working as soon as it’s powered on

Auto MDI/MDI-X automatically adjusts for straight-through or crossover cables

Auto Sensing and IEEE 802.3 Nway Auto Negotiation

IEEE 802.3x Flow Control

IEEE 802.1p QoS for traffic prioritization

Intelligent LEDs for port link status and activity

Compact size for the desktop or for mounting in a standard 19 -inch rack

Backed by a NETGEAR Lifetime Warranty

Technical Specifications

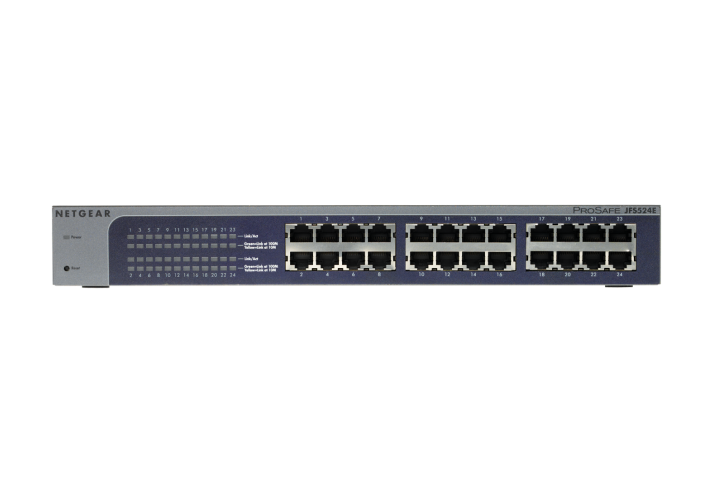

JFS524_tech_specs_image_1

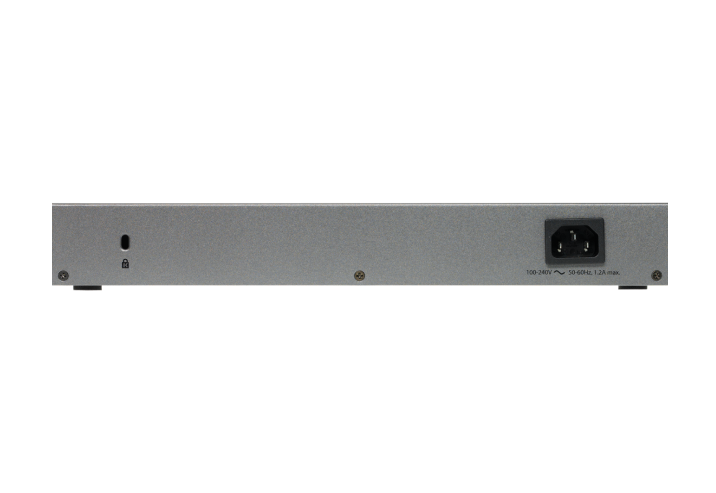

JFS524_tech_specs_image_2
  • Dimensions (WxDxH) (mm) : 280 x 126 x 44 mm
  • Weight (kg) : 1.00
  • Speed : 10/100Mbps Fast Ethernet
  • Number of Ports : 24
  • PoE ports : 2KB
  • Total PoE Budget : N/A
  • Loop Detection : N/A
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 2KB
  • Queue WRR Ratio : 1:2:4:8
  • MAC Table Size : 8K
  • Packet buffer size : 256KB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 4.0W
  • MTBF (hours) : 2,940,540
  • FCC Class : A
  • Operating Temperature : 0 to 50° C

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
    • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
