NETGEAR ProSAFE® Fast Ethernet Rack Mountable Switch with 16 10/100Mbps copper ports. Built for small and medium-sized networks where reliability and performance are the keys. JFS516v2 JFS516-200NAS JFS516-200NAS

Fast Ethernet Unmanaged Switch Series (JFS516v2) armor

16-Port 10/100Mbps Fast Ethernet Unmanaged Switcharmor

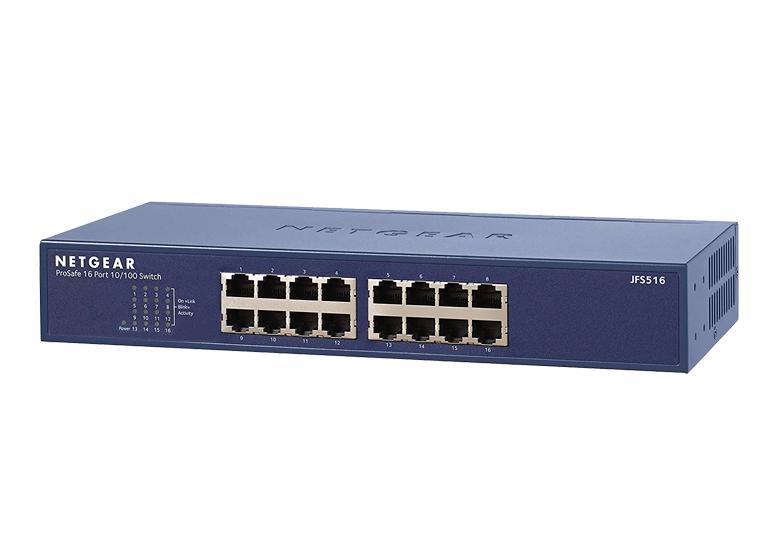

ProSAFE® Fast Ethernet Rack Mountable Switch with 16 10/100Mbps copper ports. Built for small and medium-sized networks where reliability and performance are the keys.

Fast Ethernet Unmanaged Switch Series (JFS516v2)

16-Port 10/100Mbps Fast Ethernet Unmanaged Switcharmor

ProSAFE® Fast Ethernet Rack Mountable Switch with 16 10/100Mbps copper ports. Built for small and medium-sized networks where reliability and performance are the keys.

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get it by icon
Ships by icon

Get It By: Ships By: with complimentary 2-day shipping

Free Shipping & Returns
Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
16 ports, each delivering up to 200Mbps of dedicated network bandwdith to servers, PCs and network devices
Energy Efficient Ethernet (IEEE802.3az) for optimized power saving
Rugged metal case and fanless design for reliable and silent operation
Plug-and-play—begins working as soon as it’s powered on
Auto MDI/MDI-X automatically adjusts for straight-through or crossover cables
Auto Sensing and IEEE 802.3 Nway Auto Negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS for traffic prioritization
Intelligent LEDs for port link status and activity
Compact size for the desktop or for mounting in a standard 19 -inch rack
Backed by a NETGEAR Lifetime Warranty

Technical Specifications

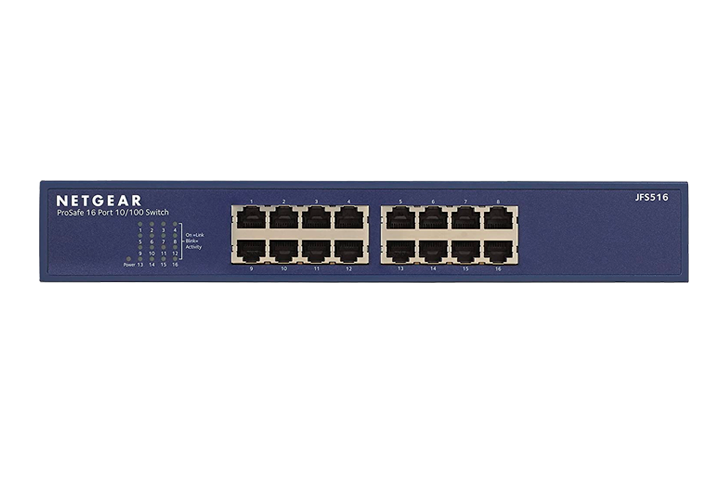

JFS516_Tech-Specs-Image-1
JFS516_Tech-Specs-Image-2
  • Dimensions (WxDxH) (mm) : 280 x 126 x 44 mm
  • Weight (kg) : 0.92
  • Speed : 10/100Mbps Fast Ethernet
  • Number of Ports : 16
  • PoE ports : N/A
  • Total PoE Budget : N/A
  • Loop Detection : N/A
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 2K
  • Queue WRR Ratio : 1:2:4:8
  • MAC Table Size : 8K
  • Packet buffer size : 256KB
  • IEEE 802.1p QoS : Yes
  • Max Power Consumption : 2.7W
  • Operating Temperature : 0 to 50° C
  • MTBF (hours) : 2,956,082
  • FCC Class : A

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
