NETGEAR M4100-50G is a 50 x 1000Base-T Layer 2+ switch with 4 shared SFP and internal PSU with RPS M4100-50G GSM7248-200NAS

M4100-50G (M4100-50G) armor

50x1G and 4xSFP (shared) Managed Switcharmor

M4100-50G is a 50 x 1000Base-T Layer 2+ switch with 4 shared SFP and internal PSU with RPS

Previous
Next

M4100-50G (M4100-50G)

50x1G and 4xSFP (shared) Managed Switcharmor

M4100-50G is a 50 x 1000Base-T Layer 2+ switch with 4 shared SFP and internal PSU with RPS

Temporarily Out of Stock

Order now and we’ll ship as soon as it’s back in stock.

Temporarily Out of Stock

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get it by icon
Ships by icon

Get It By: Ships By:

Free Shipping & Returns

Features

Layer 2+ with static routing

M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

L3 fixed routes to the next hop towards the destination network are added to the routing table.

L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)
Engineered for convergence

Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

Advanced classifier-based hardware for L2, L3, L4 security and prioritization

Advanced Multicast filtering with IGMP and MLD snooping and querier modes
High-value performance and IPv6 ready

16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
Industry Standard Management

Industry standard command line interface (CLI)

Fully functional NETGEAR web interface (GUI)
Industry Leading Warranty

NETGEAR M4100 series is backed by NETGEAR ProSAFE® Lifetime Hardware Warranty†

Also included ProSUPPORT™ Lifetime 24x7 Advanced Technical Support*

Also included Lifetime Next Business Day Hardware Replacement
Product Datasheet

Technical Specifications

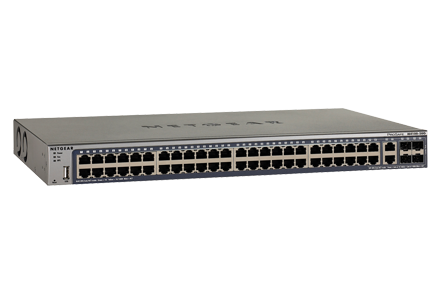

header-M4100-50G-3-4rt-photo-large

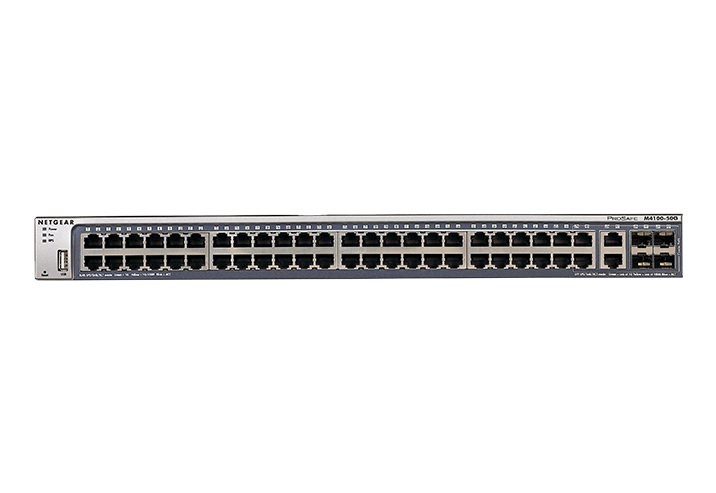

M4100-50G_tech_specs_image_1

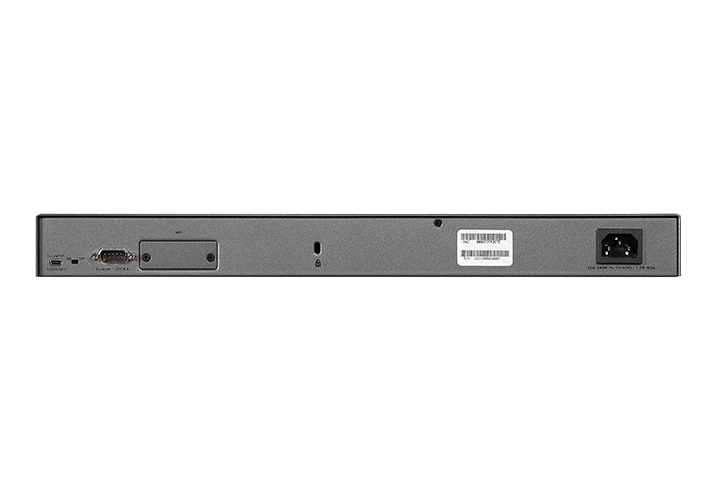

M4100-50G_tech_specs_image_2

Support & Warranty

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support

Technical Specs

  • Model Description : 50 ports Gigabit, Layer 2+ software package
  • Ordering Number : GSM7248
  • RJ45 Ports : 50 x 10/100/1000
  • Fiber SFP (100/1000) : 4 x SFP
  • Power over Ethernet (PoE / PoE+) : N/A
  • PoE Budget (Watts) : N/A
  • Redundant Power Supply : RPS
  • Powered by PoE+ (Passthrough) : N/A
  • Feature Set : Layer 2+ (static routing)
  • Form Factor : Rack 1U - Standalone
