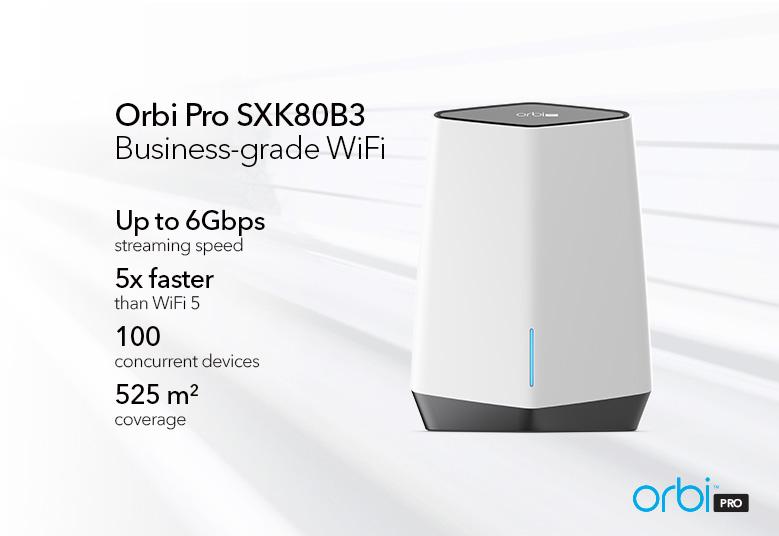

NETGEAR Cover up to 525 sq meter with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System provides unparalleled coverage, speed, and capacity to boost business productivity. SXK80B3 SXK80B3-100EUS SXK80B3-100EUS
5-Year NETGEAR Insight Premium Subscription Included

Orbi Pro WiFi 6 (SXK80B3) armor

AX6000 Tri-Band Orbi Pro WiFi 6 Mesh System - Pack of 3armor

Cover up to 525 sq meter with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System provides unparalleled coverage, speed, and capacity to boost business productivity.

5-Year NETGEAR Insight Premium Subscription Included

Orbi Pro WiFi 6 (SXK80B3)

AX6000 Tri-Band Orbi Pro WiFi 6 Mesh System - Pack of 3armor

Cover up to 525 sq meter with the latest, ultimate business-grade WiFi. The Orbi Pro WiFi 6 Tri-Band AX6000 WiFi System provides unparalleled coverage, speed, and capacity to boost business productivity.

Orbi Pro Orbi Pro - Maximum security and configurability at work

Orbi Pro



MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK

orbipro_sxk80_bnr2_MB_bnr2-1080x1080_no NG_ORBI-PRO-BNR-2_MORE_FINAL-07-2021_no
orbipro_sxk80_mobile_3 orbipro_sxk80_desktop_3

SMALL BUSINESS CONTROL

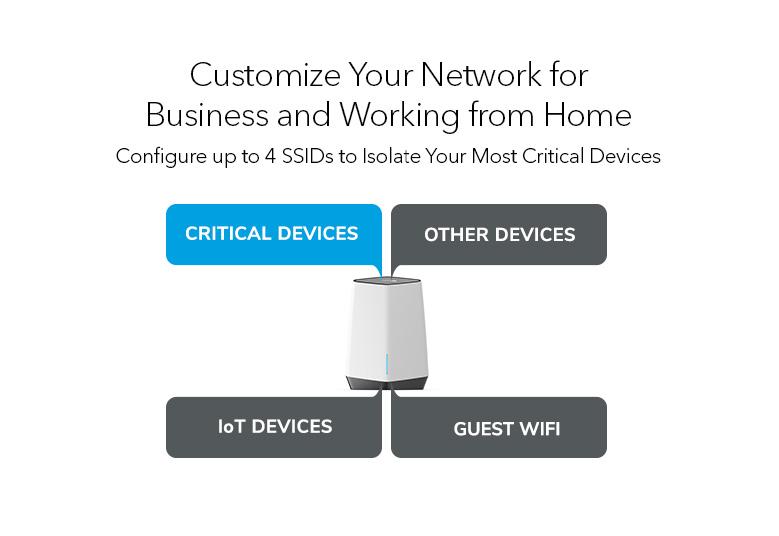

Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimising WiFi performance for everyone’s needs.


Orbi Pro - Office Device Networks
Orbi Pro - Small Business Control

Orbi Pro - Work From Home Control

WORK FROM HOME CONTROL

Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.


Orbi Pro - Home Device Networks

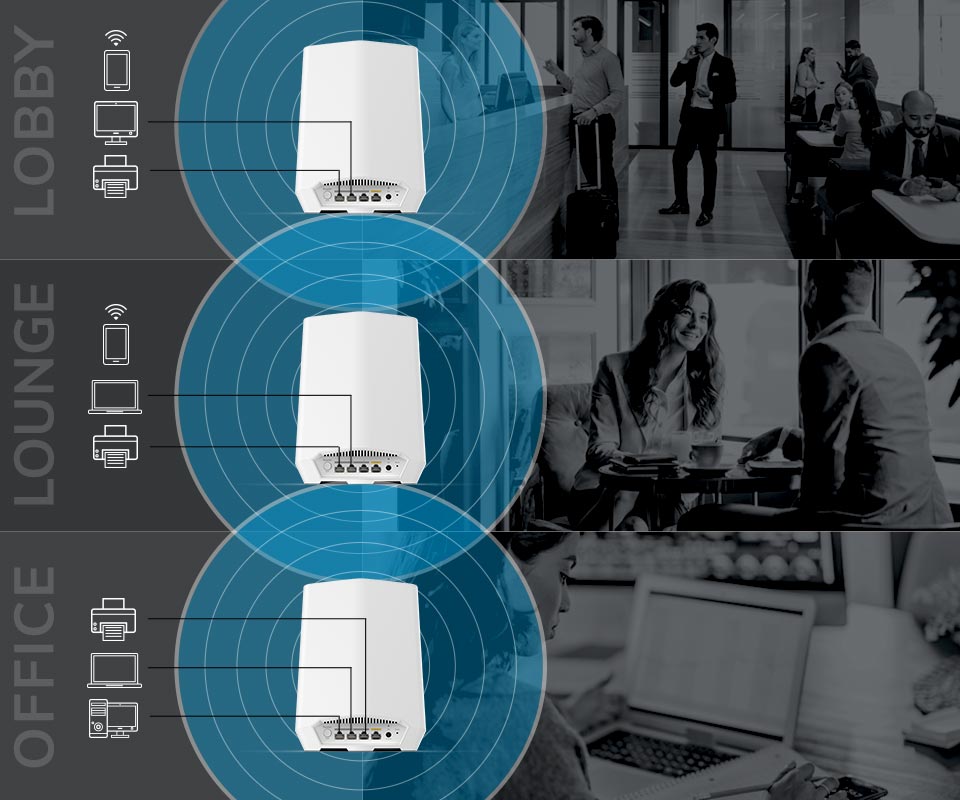

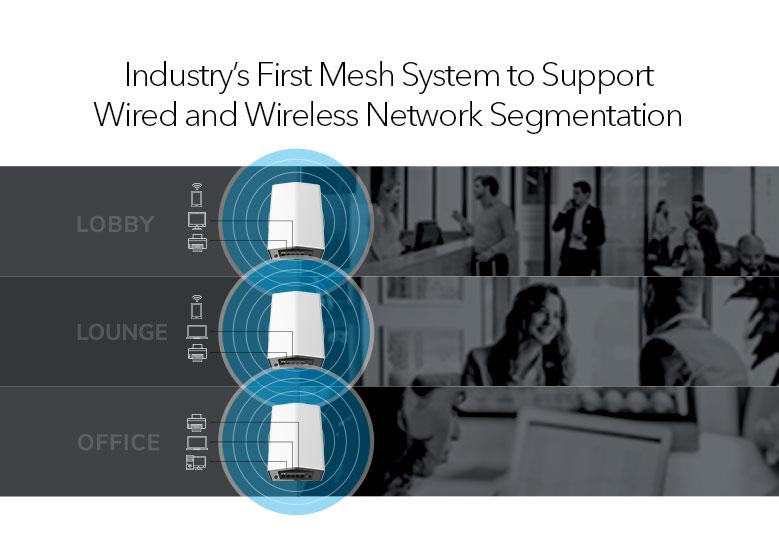

UNRIVALED SECURITY WITH NETWORK SEGMENTATION

Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.


WHITE PAPER
network-segmentation_6

Orbi Pro - The Best Performance, Period

THE BEST
PERFORMANCE,
PERIOD

Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.

orbipro_sxk80_expandable_7_expandable_7-980x700_no orbi-pro-expandable-full-asset_no

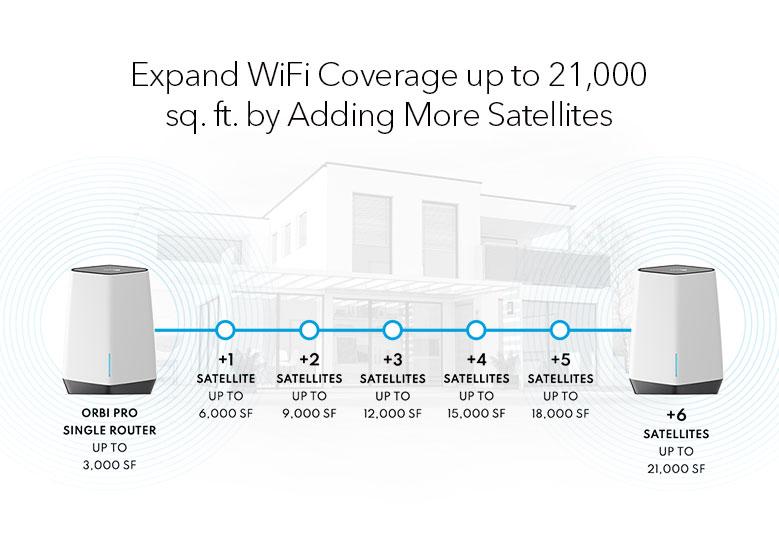

EXPANDABLE
AS YOUR
NEEDS GROW


Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 175 sq. mtr. (sold separately).

For the correct configuration and number of satellites, consult the KB here

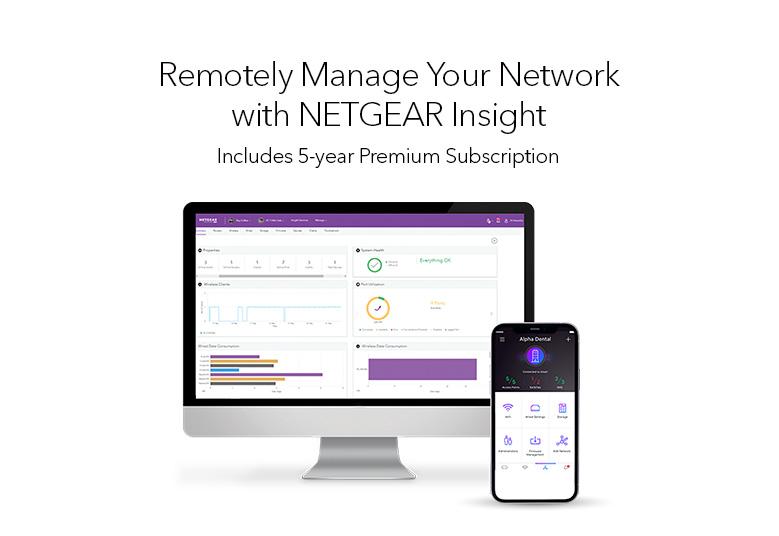

NETGEAR Insight Management

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

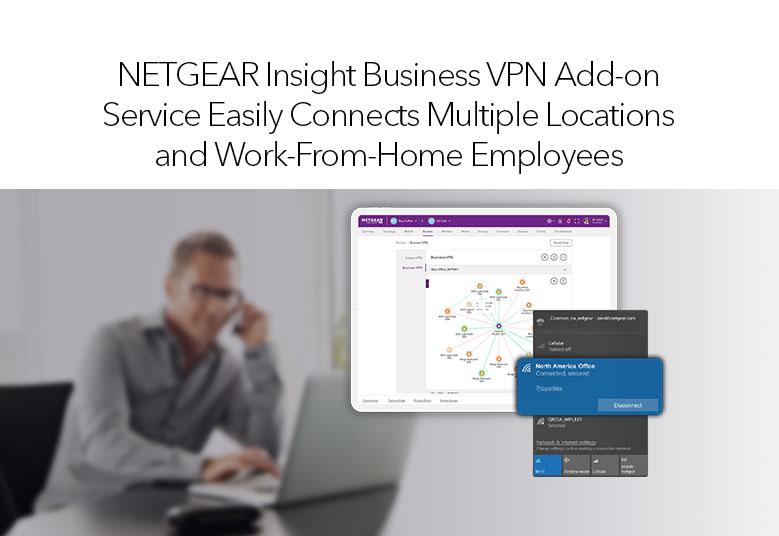

One-Step VPN Connectivity for your Business

Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*

*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.

Technical Specifications

Orbi Pro SXK80
Orbi Pro SXS80 Satellite

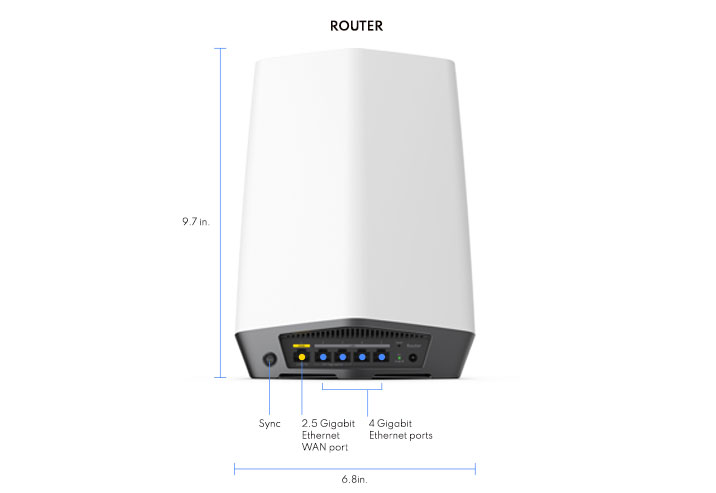

  • Orbi Pro WiFi 6 AX6000 Router : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb

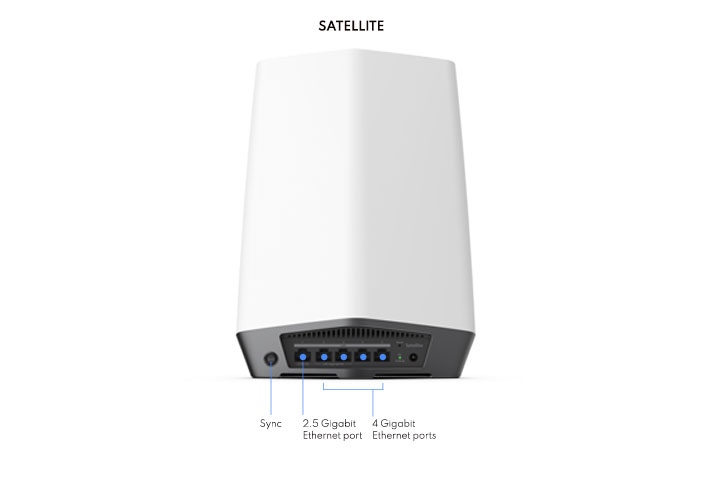

  • Orbi Pro WiFi 6 AX6000 Satellite : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb each
  • What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing modem or gateway 3. Use the local UI to set up and customize in minutes
  • WiFi Speeds : (2,400 + 2,400 + 1,200) Mbps† Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Antennas : Eight (8) high-performance antennas with high-power amplifiers
  • MU-MIMO : OFDMA and bi-directional MU-MIMO WiFi 6 throughput, MU-MIMO capable for simultaneous data streaming on multiple devices
  • Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
  • Link Aggregation Grouping : Internet Port for Router Unit 1x 2.5Gbps Ethernet, Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG, Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG

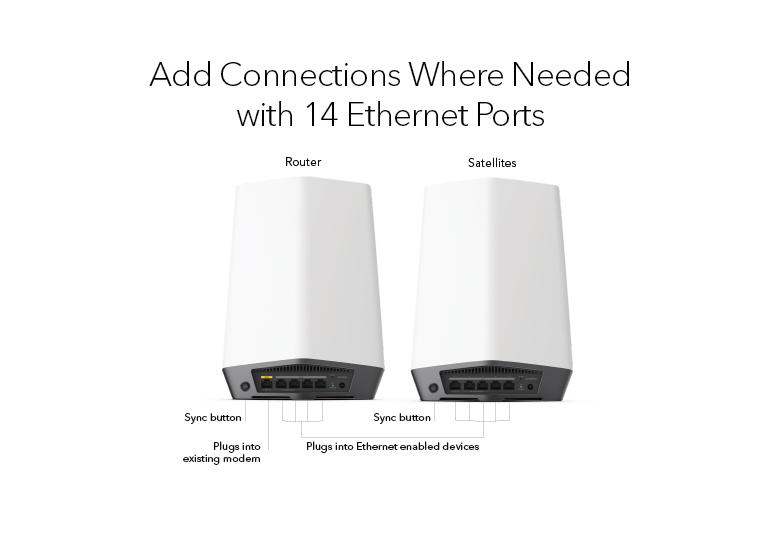

  • Ports – Orbi Pro WiFI 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices. Flexible VLAN configuration on all four (4) SSID WiFi networks. Flexible VLAN configuration on all four (4) SSID WiFi networks. Client isolation by default on Guest SSID and configurable on other SSIDs. WPA/WPA2/WPA3 support
  • Local Admin : Local Admin UI available for extensive feature setting and maintenance
  • Insight : Insight App - Secured Cloud for remote monitoring
  • Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • 90-day complimentary technical support1 www.NETGEAR.com/support
  • SXK80 Router + 1x Satellite
  • SXK80B3 Router + 2x Satellite
  • SXK80B4 Router + 3x Satellite
  • SXS80 Satellite only
  • Router : One (1) Orbi Pro WiFi 6 Router (SXR80)
  • Two (2) Orbi Pro WiFi 6 Satellite (SXS80)
  • Three (3) wall mounts with screws
  • One (1) 2m Ethernet cable
  • Three (3) 12V/3.5A power adapters
  • Installation guide
Orbi Pro SXK80
Orbi Pro SXS80 Satellite
  • Orbi Pro WiFi 6 AX6000 Router : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • Orbi Pro WiFi 6 AX6000 Satellite : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb each
  • WiFi Speeds : (2,400 + 2,400 + 1,200) Mbps† Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Antennas : Eight (8) high-performance antennas with high-power amplifiers
  • Beamforming : Implicit/Explicit Beamforming for 2.4GHz and 5GHz bands
  • Link Aggregation Grouping : Internet Port for Router Unit 1x 2.5Gbps Ethernet, Local Area Network Ports for Router Unit 4x GbE, of which two can be formed in a LAG, Local Area Network Ports for Satellite Unit 1x 2.5GbE; 4x GbE, of which two can be formed in a LAG
  • Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • 90-day complimentary technical support1 www.NETGEAR.com/support
  • SXK80 Router + 1x Satellite
  • SXK80B3 Router + 2x Satellite
  • SXK80B4 Router + 3x Satellite
  • SXS80 Satellite only
  • Router : One (1) Orbi Pro WiFi 6 Router (SXR80)
  • Two (2) Orbi Pro WiFi 6 Satellite (SXS80)
  • Three (3) wall mounts with screws
  • One (1) 2m Ethernet cable
  • Three (3) 12V/3.5A power adapters
  • Installation guide

Orbi Pro Family Comparison

SXK30 Orbi Pro WiFi 6 Mini

SXK50 Orbi Pro WiFi 6

SXK80 Orbi Pro WiFi 6

WiFi Speed

WiFi Speed

WiFi 6 – AX1800 (Up to 1.8 Gbps)

WiFi Speed

WiFi 6 – AX5400 (Up to 5.4 Gbps)

WiFi Speed

WiFi 6 - AX6000 (Up to 6.0 Gbps)

WiFi Configuration

WiFi Configuration

Dual-Band

WiFi Configuration

Tri-Band

WiFi Configuration

Tri-Band

# of Concurrent Users

# of Concurrent Users

40

# of Concurrent Users

75

# of Concurrent Users

80

Ideal Use

Ideal Use

Small Business and SOHO

Ideal Use

Small Business and SOHO

Ideal Use

SOHO and Small Business

WiFi Coverage

WiFi Coverage

Up to 500 m2

WiFi Coverage

Up to 625 m2

WiFi Coverage

Up to 1225 m2

Dedicated Wireless Backhaul

Dedicated Wireless Backhaul

No

Dedicated Wireless Backhaul

Yes

Dedicated Wireless Backhaul

Yes

Multi-Gig Port 2.5

Multi-Gig Port 2.5

No

Multi-Gig Port 2.5

No

Multi-Gig Port 2.5

Yes

Integrated Plus Switch with VLANs

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

Yes

Remote Management

Remote Management

Insight Remote Management

Remote Management

Insight Remote Management

Remote Management

Insight Remote Management
