Orbi WiFi System (RBK40) AC2200

Bring high-performance WiFi coverage to every corner of your home and beyond, without running Ethernet cables

Fast Home WiFi Everywhere

From the basement to the backyard, this Orbi Whole Home WiFi System (RBK40) covers up to 4,000 square feet with high performance AC2200 WiFi. First with innovative Tri-band WiFi, Orbi helps deliver the fastest available Internet speeds even as more devices connect. This Orbi WiFi System comes with an Orbi WiFi Router and Satellite and replaces your home router and extenders. It also easily works with existing Service Provider equipment so you’ll enjoy better WiFi everywhere

Ethernet ports

If you like the performance and stability of a wired connection, an Orbi WiFi system is a great solution for you. Connect more wired devices using the 4 Ethernet ports on the Orbi desktop Satellite

Better WiFi. Everywhere.

  • Speed & Coverage

    Get more than 100Mbps Internet speed over 4,000 square feet range*

  • Single SSID

    Enjoy a single WiFi network name for your entire home

  • Easy Setup

    Use the Orbi app or any web browser to create secure whole home WiFi in minutes.

  • Tri-band WiFi

    Innovative Tri-band WiFi helps maximize the Internet speeds available in your home.

COLOR LEDs

Orbi gently glows the status of your WiFi & automatically turns off when you have a strong connection.

SOPHISTICATED COOL-TOUCH DESIGN

Vertical industrial design enables ideal antenna separation, better WiFi range & minimizes RF crosstalk interference

Cool, fan-less design engineered for maximum processing power, heat dissipation & ultra-stable network performance

Flip to Back
HIGH PERFORMANCE ANTENNAS
HIGH PERFORMANCE RF FRONTEND

4 high-performance internal antennas broadcasting powerful Tri-Band WiFi.

Front haul Tx/Rx: 2x2 (2.4GHz) + 2x2 (5GHz)

Dedicated Backhaul Tx/Rx: 2x2 (5GHz Tri-band)

High power transmit (Tx) amplifier & ultra-low noise receiver (Rx) for superior WiFi range & signal sensitivity

Highly selective narrow band filter enable superior Tri-band WiFi performance.

512MB DDR3-SDRAM

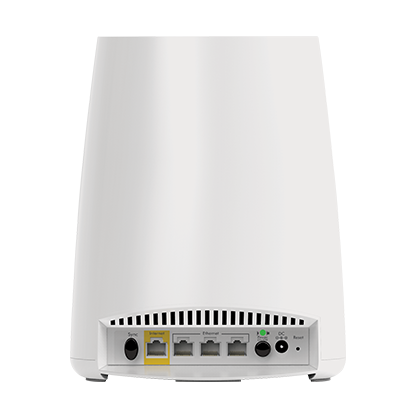

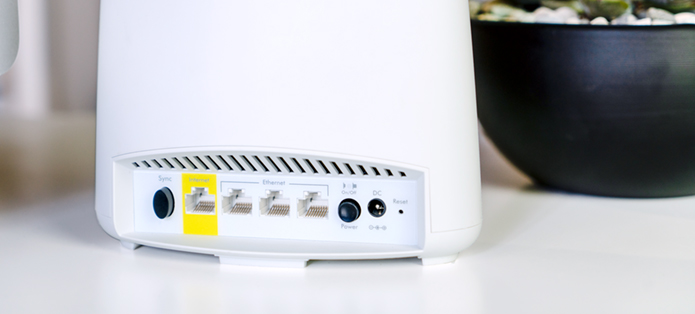

ETHERNET PORTS

4 Ethernet ports to connect more wired network devices like TVs, streaming players & game consoles

Tech specs

Combined WiFi speed 2,200 Mbps (400 + 866 + 866Mbps)
Coverage 4,000 sq ft
Dedicated Backhaul 2x2 (866 Mbps)
WiFi Technology Tri-band
Memory 4GB flash and 512MB RAM
MU-MIMO Capable Yes
Antennas Four (4) high-performance antennas
Dimensions 6.4 x 3.1 x 8.0in (Router), 6.4 x 3.1 x 8.0in (Satellite)
Weight 1.65lb (Router), 1.65lb (Satellite)
Gigabit Ethernet ports (Router) 1 WAN and 3 LAN
Gigabit Ethernet Port (per Satellite) 4 LAN
Beamforming Yes
Works with Orbi OS Yes
Orbi App Yes
Guest WiFi network Yes
WPA/PSK2 support Yes
Works with Amazon Alexa & the Google Assistant Yes
Show All Tech Specs Show Less Tech Specs

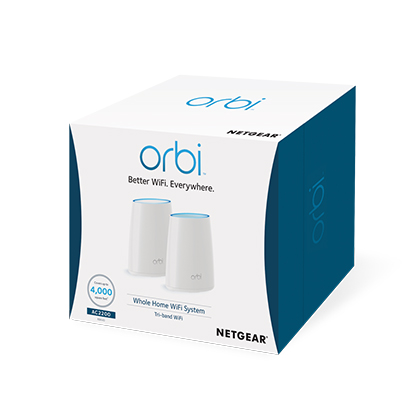

What’s in the box

  • One (1) Orbi Router (RBR40)
  • One (1) Orbi Satellite (RBS40)
  • One (1) 2m Ethernet cable
  • Two (2) 12V/2.5A power adapters
  • Quick start guide

Orbi WiFi System (RBK40) AC2200

Cover up to 4,000 square feet with high performance AC2200 WiFi.
