  • Extend high-performance Orbi 860 WiFi with up to 2,700 sq. ft. of additional coverage, including front & backyards
  • NEW: Upgraded antenna design boosts WiFi coverage & performance by 20% over previous generation satellites ‡
  • Stream 4K/8K movies, host Zoom conferences, make WiFi calls, & keep your security cameras, door locks, laptops, phones, & smart home devices connected with confidence
  • Four high-speed 1Gpbs† wired Ethernet ports for TVs, game consoles, streaming players, computers, and more
  • NETGEAR's patented Tri-Band & unique dedicated backhaul WiFi provides Orbi 860 router-to-satellite communication for max speeds
 RBS860B RBS860B-100EUS RBS860B-100EUS
NEW

AX6000 WiFi Satellite (RBS860B) armor

Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps, Black Edition armor

NEW

AX6000 WiFi Satellite (RBS860B)

Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps, Black Edition armor

  • Extend high-performance Orbi 860 WiFi with up to 2,700 sq. ft. of additional coverage, including front & backyards
  • NEW: Upgraded antenna design boosts WiFi coverage & performance by 20% over previous generation satellites ‡
  • Stream 4K/8K movies, host Zoom conferences, make WiFi calls, & keep your security cameras, door locks, laptops, phones, & smart home devices connected with confidence
  • Four high-speed 1Gpbs† wired Ethernet ports for TVs, game consoles, streaming players, computers, and more
  • NETGEAR's patented Tri-Band & unique dedicated backhaul WiFi provides Orbi 860 router-to-satellite communication for max speeds

3 Pack: 8,000 sq. ft. | White Edition + 1 Year NETGEAR Armor

3 Pack: 8,000 sq. ft. | Black Edition + 1 Year NETGEAR Armor

Orbi 860 WiFi 6 Router 2,700 sq. ft. + 1 year NETGEAR Armor

Add-on Satellite: 2,700 sq. ft. | White

Add-on Satellite: 2,700 sq. ft. | Black
SHOP NOW

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Product Overview


WiFi 6

Technology


Tri-Band

WiFi

Up to
6Gbps

maximum WiFi speed

Up to
100

concurrent devices

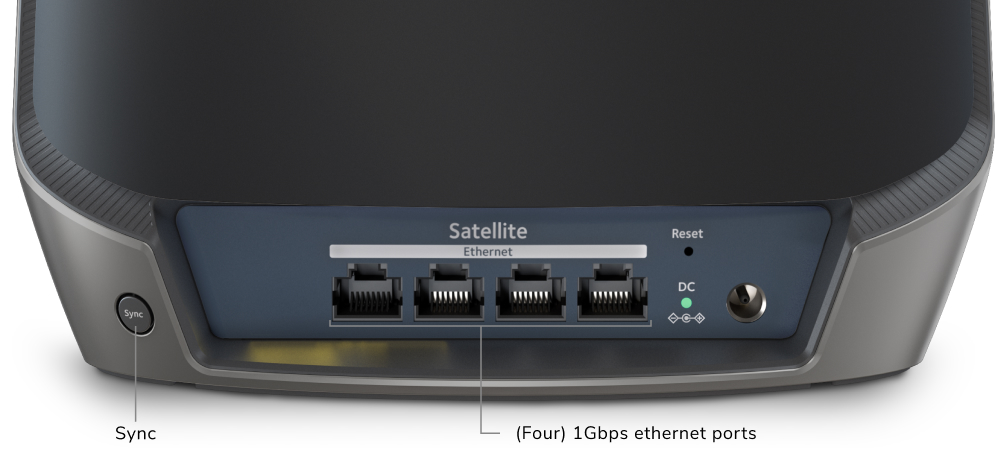

4

1Gbps Ethernet Ports

Satellite

Group-479-satellite Group-479-satellite
Group-600 Group-600

Product Specifications

  • Orbi WiFi 6 Satellites (RBS860B)
    1
  • 19V/3.16A power adapter
    1
  • Quick Start Guide
    1

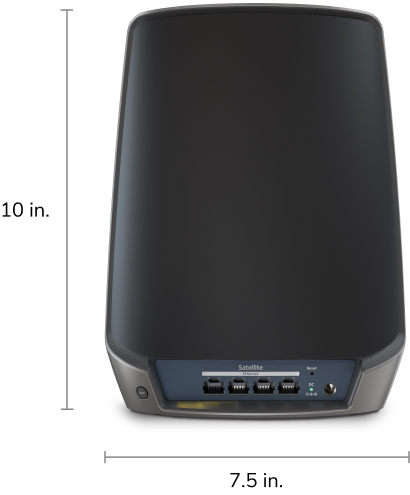

  • Height
    10 inches (254mm)
  • Width
    7.5 inches (190.5mm)
  • Depth
    2.8 inches (71.12mm)
  • Weight
    2.86 lbs (1.29kg)
  • WiFi Coverage
    2,700 sq. ft.
  • Requirements

    High-speed internet connection to existing modem or gateway.

    Orbi Router (RBR860) -- SOLD SEPARATELY

SATELLITE
  • WiFi Coverage
    2,700 sq. ft.
  • Speed
    AX6000 (2400 + 2400 + 1200Mbps)†
  • Simultaneous Tri-Band WiFi with dedicated backhaul

    Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support

    Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

    Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

  • Processor
    Quad-core 2.2GHz processor
  • Memory
    512MB NAND Flash and 1GB RAM
  • Antenna
    Eight (8) high-performance internal antennas with high-power amplifiers
  • Ports
    Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports each
  • Standards-based WiFi Security
    802.11i, 128-bit AES encryption with PSK
  • Guest WiFi Network
    Easy to setup separate & secure Internet access for guests
  • NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)

    Extend your warranty and technical support within 90 days of product purchase (US only)

  • 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
    Learn More
Common Module Orbi

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
image-95image-95

Never sacrifice speed

NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.

863_image863_image

Bigger means better coverage

Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi coverage across your entire property - inside and outdoors.

wifi6e-fullasset-1-890x350_v1wifi6e-fullasset-1-890x350_v1

Connect more devices than ever

Orbi WiFi 6 mesh systems are supercharged for today’s data-intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.

DualBox-easy-setup-and-managementDualBox-easy-setup-and-management

Easy setup and management

The Orbi app makes it simple to install your Orbi and get it up and running in less than 15 minutes. Add Orbi Satellites to your system with just the push of a button. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider.

Why buy directly from NETGEAR?

Truck_icon

FREE 2-DAY
SHIPPING

offer_logo

EXCLUSIVE
OFFERS

pre-purchase-concierge-live-chat

PRE-PURCHASE
CONCIERGE LIVE CHAT

Installation_Services_Icon

PREMIUM INSTALLATION SERVICES

Box_icon

HASSLE-FREE
RETURNS

Footnotes:

† Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.

†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.

‡ Compared to RBK853 throughput improvement at maximum range.
