Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more. MS108UP MS108UP-100NAS MS108UP-100NAS

Multi-Gigabit Ethernet Unmanaged Switch (MS108UP) armor

8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Unmanaged Switch armor

Multi-Gigabit Ethernet Unmanaged Switch (MS108UP)

8-port Multi-Gigabit (2.5G) Ultra60 PoE++ Ethernet Unmanaged Switch armor

Provides 8 ports 1G/2.5G with 4 PoE+ ports and 4 Ultra60 PoE++ ports making it a perfect switch for WiFi 6 AP connectivity, IP surveillance and more.

8-port | Unmanaged | PoE++ | Multi-Gig/2.5G | MS108UP

8-port | Plus | PoE++ | Multi-Gig/2.5G | MS108EUP

8-port | Insight | PoE++ | Multi-Gig/10G | MS510TXUP

8-Port | Mulit-Gig | 10G Uplinks | PoE+ | MS510TXPP

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Features

Multi-Gigabit Ethernet
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each.
PoE Support
4 Ultra60 PoE++ and 4 PoE+ ports provide a total of 230W of power so you can power and connect your devices with a single wire.
PoE Auto-Balance
Automatically balances the PoE power based on the device needs independent of PoE class detected
Non-Blocking Switching
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.
Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
Product Datasheet

Technical Specifications

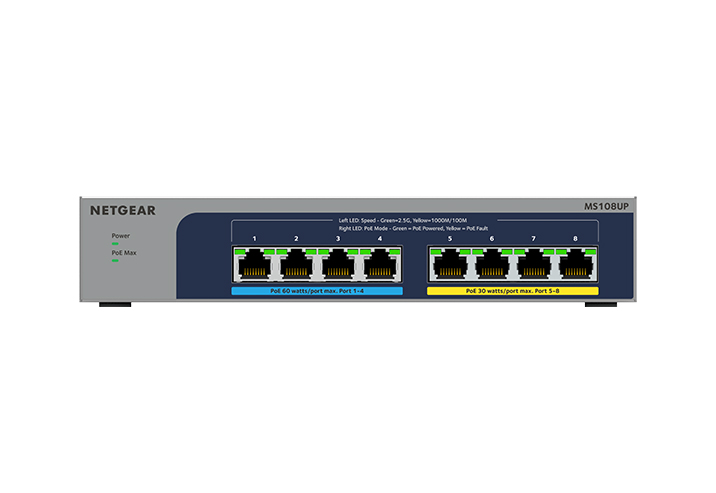

MS108UP_PDP_Tech_Specs_Image_1

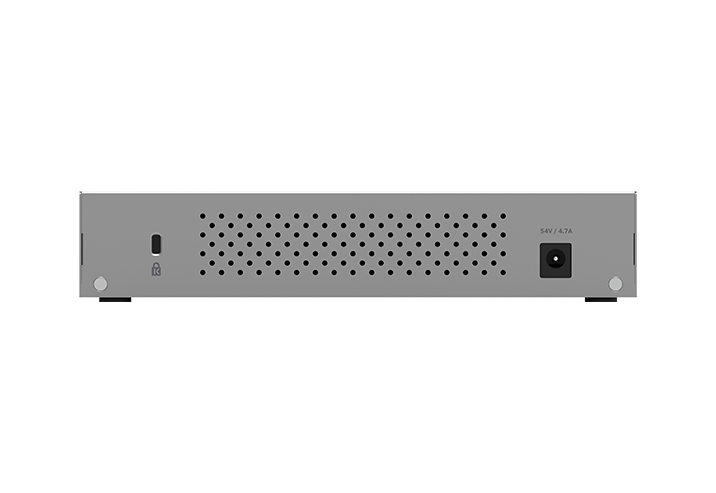

MS108UP_PDP_Tech_Specs_Image_2
  • Dimensions (W x D x H) : 210 x 140 x 40 mm (8.27 x 5.51 x 1.58 in)
  • Weight : 0.9 kg (1.984 lb)
  • Multi-gigabit copper ports : 8 (1G/2.5G)
  • Number of PoE+ (802.3at) ports : 4
  • Number of PoE++ (802.3bt) ports : 4
  • Total PoE Power budget : 230 Watts
  • Uninterrupted PoE : Yes
  • Max MAC entries : 16K
  • Buffer size : 1.5MB
  • EEE : Yes
  • Internal/External PSU : External
  • Max power (worst case, all ports used, line-rate traffic) : 230W
  • Fans : 0
  • Acoustic Noise Level @25C : Fanless
  • Operating Temperature : 0° to 40° C (32 to 104F)
  • MTBF : 373,643.7 hrs (42.6 yrs)

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement.
    • Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
