NETGEAR Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades. GS324v1 GS324-100EUS GS324-100EUS

SOHO Ethernet Unmanaged (GS324v1) armor

24-Port Gigabit Ethernet Unmanaged Switcharmor

Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.

SOHO Ethernet Unmanaged (GS324v1)

24-Port Gigabit Ethernet Unmanaged Switcharmor

Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.

PLUG & PLAY

Simple setup with no software or configuration needed.

FLEXIBLE MOUNTING

Mount on rack, desktop, or wall.

SMALL SIZE, METAL CASE, AND SILENT OPERATION

Durable quality, space saver, and quietness for peace of mind.

LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT
NETGEAR has your back to ensure your network is up and running.
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
Can be placed on desk or on mounted rack and will operate quietly with assured durability.

Choice of Fast Ethernet and Gigabit Ethernet connectivity

Energy-efficient technology for power savings

Auto-MDI/MDIX eliminates the need for crossover cables

Non-blocking switching architecture for maximum throughput at wire speed

Auto-negotiation for automatic connection at the highest common speed between switch and an end device

Desktop, wall or rackmountable

SILENT OPERATION

The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

ENERGY EFFICIENT

Designed to optimize power usage lowering its cost to operate.

Metal Case

Durable and Rugged

VERSATILE MOUNTING OPTIONS

Supports desktop and wall placement. Includes wall mount kit in the box

STANDARDS-BASED DESIGN

Ensure interoperability with any standards-based PDs

Technical Specifications

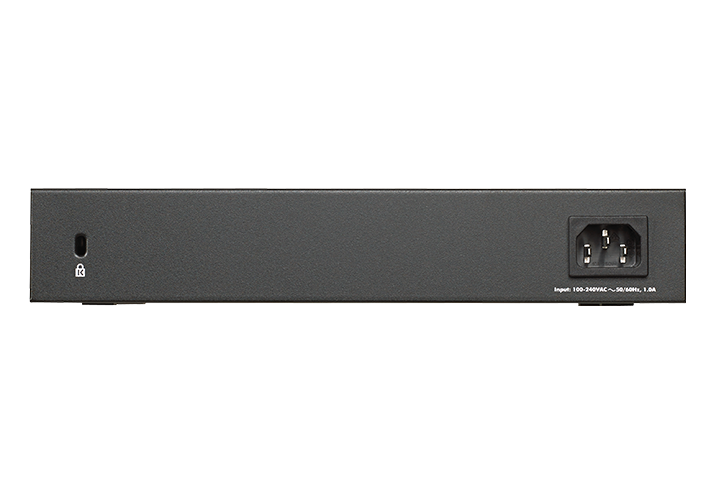

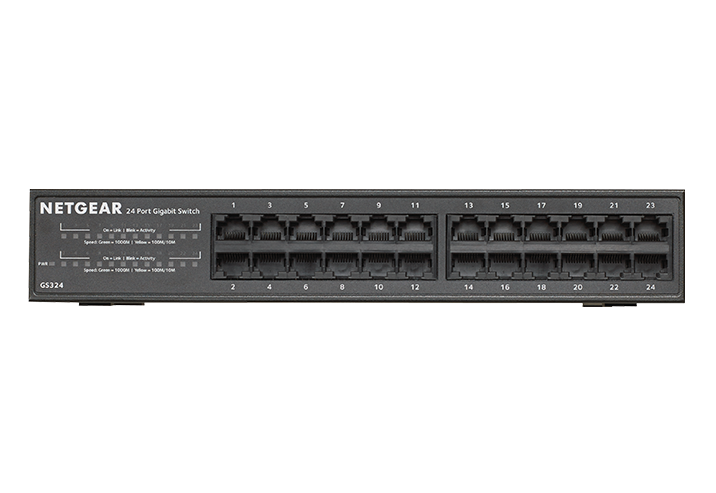

GS324_tech_specs_image_1
GS324_tech_specs_image_2
  • Dimensions (W x D x H) : 252 x 180 x 44 mm (9.9 x 7.1 x 1.7 in)
  • Weight : 1.31 kg (2.90 lb)
  • Model Description : 24-Port Gigabit Ethernet Switch
  • Speed : Gigabit
  • Number of Ports : 24
  • PoE Ports / Max Power Per Port : n/a
  • PoE Max Power Supplied (All Ports) : n/a
  • Connector Type : Plastic
  • Switch Housing : Metal
  • LEDs : Power, Speed, Link/Activity
  • Short cable power saving : Yes
  • Energy Efficient Ethernet Support (IEEE 802.3az) : Yes
  • Jumbo Frame Support : 9,216 bytes
  • MAC Table Size : 8K
  • Packet buffer size : 512 KB
  • Power : Internal (AC: 110-240V, 50-60Hz, 1.0A max)
  • Max Power Consumption (Watts) : 11.1W
  • Acoustic Noise Level @ 25° C (dBA) : 0 dBA (Fanless)
  • Operating Temperature : 0° to 40°C (32° to 104°F)
  • MTBF (@ 25° C) : 620,798 hours
  • Electromagnetic compliance (A or B) : Class A
  • Form Factor : Desktop, wall-mountable, or rack-mountable

    • Warranty: These products are backup by a NETGEAR limited Hardware Warranty up to 3 years (depending on model and region).

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
