NETGEAR Take your network beyond reliability. With 10G, get high bandwidth perfect for sharing, collaborating, editing and streaming. XS716T XS716T-100NES XS716T-100NES

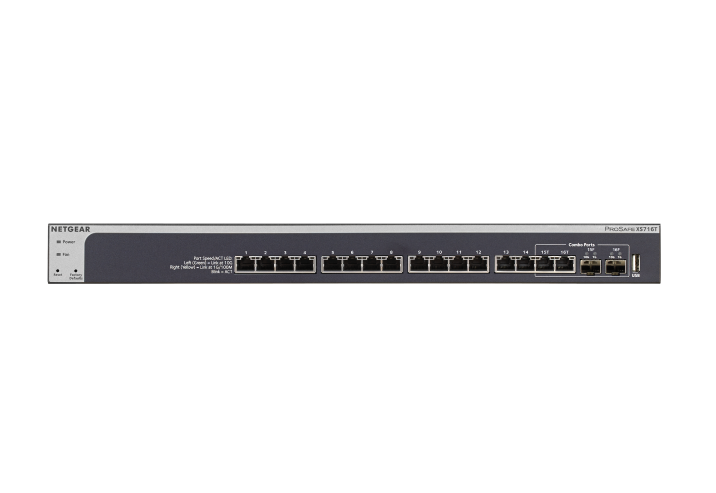

10-Gigabit Smart Switch Series (XS716T) armor

16-Port 10-Gigabit Ethernet Smart Switch with 2 Copper/SFP+ Combo Portsarmor

Take your network beyond reliability. With 10G, get high bandwidth perfect for sharing, collaborating, editing and streaming.

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS


IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection


MAC lockdown

MAC lockdown by number of MACs

IEEE 802.1x port authentication

Dynamic VLAN Assignment

Guest VLAN


3 HTTPS /SSL versions

TLS session

Trusted MAC

IPv4, L4-based Access Control List (ACL)

IPv6-based ACL (selected models)

Multicast Efficiency

IGMP snooping, v1, v2 and v3

IGMP Snooping querier

Blocking of unknown multicast traffic

MLD snooping

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP

Option to enable/disable BPDU flooding when STP is disabled

Static routing with 32 static routes (Selected models)

Hosted ARP table size of 512 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP


Dual Image


Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client

DHCP clients

DHCP snooping

Ping and traceroute client

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Technical Specifications

  • Weight (kg) : 0.61kg, ( 1.34lb)
  • Dimensions (WxDxH) mm : 236 x 101 x 27mm, ( 9.3 x 4.0 x 1.1in)
  • Gigabit ports : 8
  • 10-Gigabit copper ports : 16 10GBASE-T copper
  • SFP ports : 2 SFP+ 1000/10GBASE-X fiber ports (shared)
  • Number of PoE ports : 8
  • PoE+ (802.3at) : 8
  • Total PoE Power budget (Watts) : 8 PoE+ (55W)
  • MAC address database size : 16K
  • Max MAC entries : 8K
  • Buffer size : 2 MB
  • VLAN (Number Supported) : 512
  • Number of LAGs & number of members : 8 LAGS with max 8 members in each LAG (LACP)
  • Number of priority queues : 8
  • Access Control Lists (ACLs) : 100 shared for MAC, IP and IPv6 ACLs
  • IPv4 Static routes : 32
  • IPV6 Static routes : 32
  • Power supply : Internal 100-240VAC 50-60Hz
  • Max power consumption (Watts) : 96 W
  • VLAN routing : Yes
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : Yes
  • Static route : Yes (32)
  • Host ARP table : 512ARP
  • EEE : Yes
  • DoS Prevention : Yes
  • Internal/External : External DC 54V 1.25A
  • Max consumption (Watts) : 15.1W
  • FAN : 2
  • Acoustic Noise Level @25C (dBA) : 29.1 dBA
  • Operating Temperature : -5° to 55°C (23° to 131°F)
  • MTBF : 276,832 hours
  • Electromagnetic compliance (A or B) : Class A

    • This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
