NETGEAR NETGEAR Smart Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability. GS728TPP GS728TPP-200EUS GS728TPP-200EUS

Standalone Smart Switch Series (GS728TPP) armor

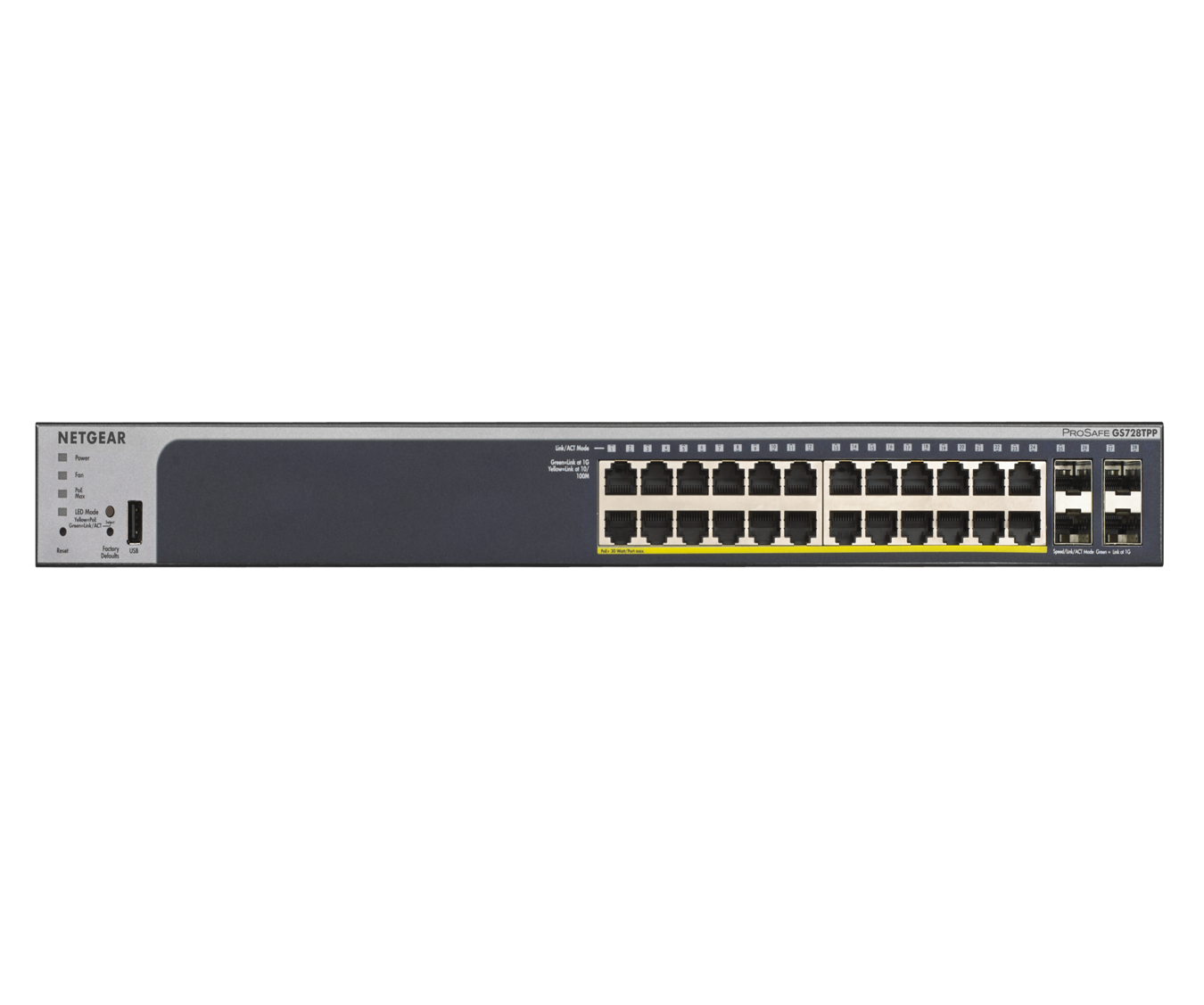

24-Port Gigabit PoE+ Ethernet Smart Switch with 4 Dedicated 4 SFP Uplink Ports (384W)armor

NETGEAR Smart Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability.

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS


DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection


MAC lockdown by number of MACs

IEEE 802.1x port authentication

IEEE 802.1x port authentication

Dynamic VLAN Assignment

Guest VLAN


3 HTTPS /SSL versions

TLS session

Trusted MAC

IPv4, L4-based Access Control List (ACL)

IPv6-based ACL

Spanning Tree, Routing and Stacking

IEEE 802.1D, IEEE 802.1w RSTP and MSTP

Option to enable/disable BPDU flooding when STP is disabled

Static routing with 32 static routes (Selected models)

Hosted ARP table size of 1,024 (Selected models)

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

IEEE 802.1ab LLDP


Dual Image


Option to enable/disable the flooding of EAPOL when 802.1x is disabled

Protected ports

DNS client (except FS526T/FS728TLP/FS750T2)

DHCP clients

DHCP snooping (except FS526T/FS728TLP/FS750T2)

Ping and traceroute client (except FS526T/FS728TLP/FS750T2)

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Power savings with short cable detection (GS752TXS only) and auto power-down when ports are in idle mode

Technical Specifications

  • Weight (kg) : 4.36kg
  • Dimensions (WxDxH) mm : 440 x 257 x 44
  • Gigabit ports : 24
  • SFP ports : 4
  • Number of PoE ports : 24
  • PoE+ (802.3at) ports : 24
  • Total PoE Power budget (Watts) : 384w
  • Max MAC entries : 8K
  • Buffer size : N/A
  • VLAN (Number Supported) : 256
  • VLAN routing : Yes
  • Dynamic VLAN assignment : Yes
  • MLD Snooping : Yes
  • Static route : 32
  • Host ARP table : 1024 in Switch mode, approximately 100 in Router mode
  • EEE : Yes
  • DoS Prevention : N/A
  • Internal/External : Internal 100-240VAC ~ 50-60Hz
  • Max consumption (Watts) : 483.5w
  • FAN : 2
  • Acoustic Noise Level @25C (dBA) : 31.8
  • Operating Temperature : 0° to 50° C
  • MTBF : 247163.4 hrs

    • Warranty: This product is backed by a NETGEAR 5-year Hardware Warranty .
    • 5-year Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone, email and chat for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • GS728TPP Support
