NETGEAR On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, port mirroring. GS108PE GS108PE-300EUS GS108PE-300EUS

Gigabit Plus Switch Series (GS108PE) armor

8-Port Gigabit Ethernet Plus with 4 Ports PoE (53W)armor

On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, port mirroring.

Gigabit Plus Switch Series (GS108PE)

8-Port Gigabit Ethernet Plus with 4 Ports PoE (53W)armor

On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, port mirroring.

Traffic Management

Auto Negotiation of speed and duplex modes

802.3x Flow Control

DHCP Client

Dynamic MAC address management

IEEE 802.1Q-based or port-based VLAN

QoS based on WRR, strict priority, or both

Port-based and IEEE 802.1p-based QoS

QoS based on ToS (Type-of-Service)

DSCP Support (GS105E and GS105PE only)

Rate Limiting

Link Aggregation / Port Trunking (Static LAGs on 16 ports and 24 ports, Static LAGs and LACP on 48 ports)

Switch Management

Switch discovery on MAC or PC using the NETGEAR Switch Discovery Tool

Advanced configuration and management using web browser-based GUI

Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)

Firmware upgrade thru ProSAFE Plus Utility (TFTP) or web browser-based GUI

Configuration upload (to Server)

System password protection

Multi-language support (varies by model, see datasheet for specifics)

IGMP snooping, v1, v2 and v3

Blocking of unknown multicast traffic

Act as static multicast router port

Reliability, Performance and Troubleshooting

Port mirroring both on ingress and egress traffic

Jumbo frame support

Broadcast Storm control

Cable diagnostics

Loop Detection

DoS Prevention

Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)

Power savings with short cable detection and auto power-down when ports are in idle mode

Technical Specifications

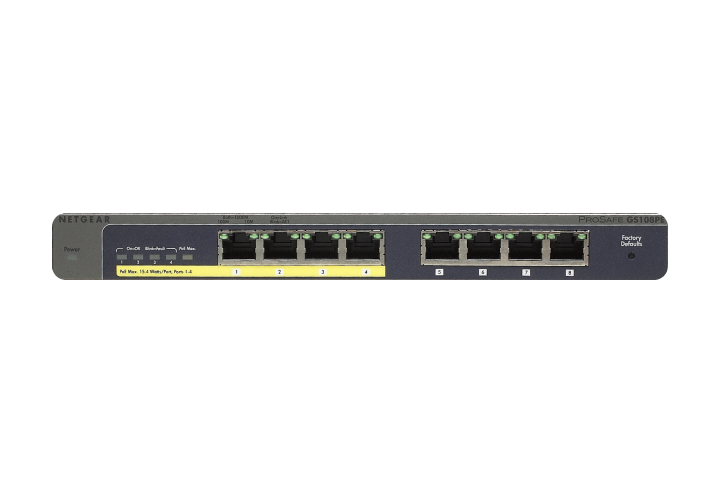

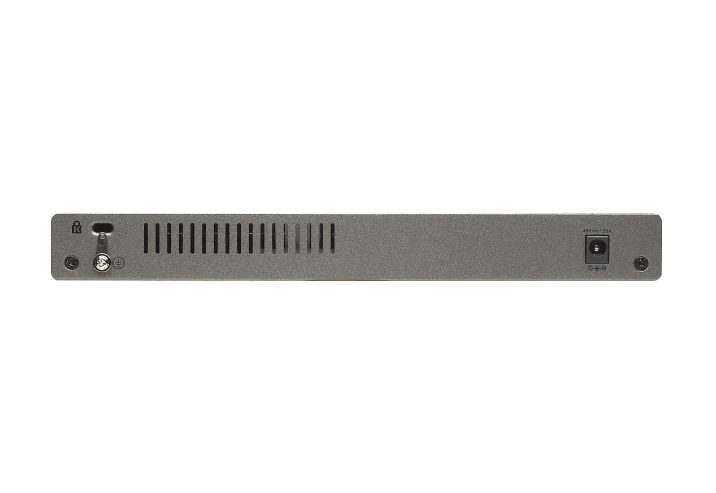

GS108PE_tech_specs_image_1
GS108PE_tech_specs_image_2
  • Weight (kg) : 0.54Kg
  • Dimensions (WxDxH) mm : 158x101x29
  • Gigabit Ports : 8
  • 10 Gbps Port : n/a
  • Number of PoE ports : 4
  • Total PoE Power budget (Watts) : 53
  • Max MAC entries : 4K
  • Buffer size : 192KB
  • VLAN (Number Supported) : 32
  • Number of LAGs & number of members : n/a
  • Supported Mulitcast groups : 128
  • Max number of source ports allowed (many to 1) : 7
  • Internal/External : External
  • Input: 48V/1.25A
  • Max consumption (Watts) : 7.0W (no PoE) / 60.0W (w/PoE max)
  • FAN : No
  • Acoustic Noise Level @25C (dBA) : 0
  • Operating Temperature : 0° to 50° C
  • MTBF (hrs) : 1,242,394 hrs
  • Electromagnetic Compliance (A or B) : A
  • Warranty : This product is backed by a NETGEAR Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
