NETGEAR Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 199W PoE+ Budget - IT Core & AV-over-IP XSM4316PA XSM4316PA-100NES XSM4316PA-100NES

M4300-16X (XSM4316PA) armor

16x Multi-Gig, PoE+ (199W) Managed Switcharmor

Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 199W PoE+ Budget - IT Core & AV-over-IP

M4300-16X (XSM4316PA)

16x Multi-Gig, PoE+ (199W) Managed Switcharmor

Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 199W PoE+ Budget - IT Core & AV-over-IP

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

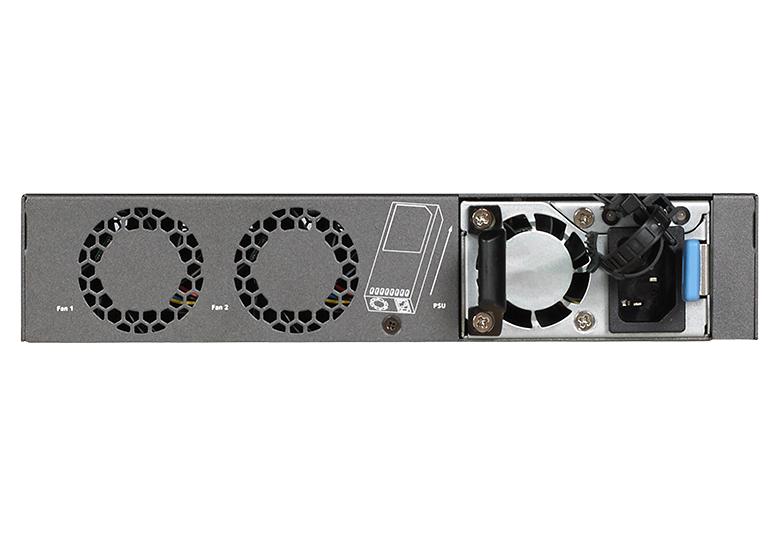

299W PSU

Ships with 299W PSU APS299W installed

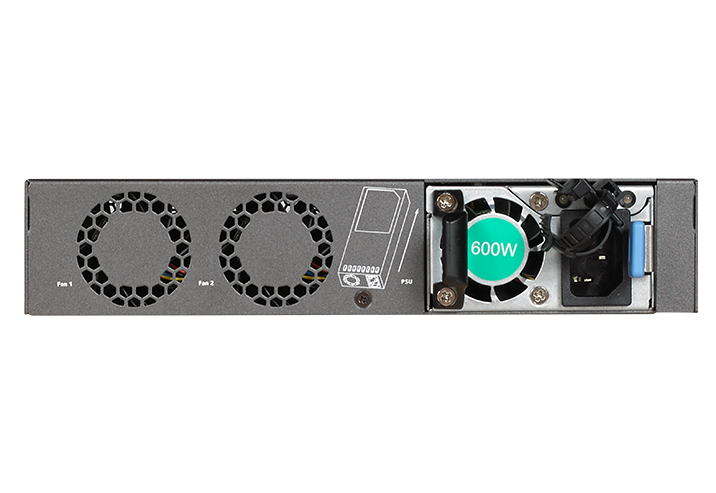

Optional 600W PSU APS600W

Half-Width ToR

Combine 2 half-width models in a single rack space for redundant Top-of-Rack

Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface

Flexible & Efficient

Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.

Mix & Match Stacking

Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit

Room to Grow

With PoE+, upgradeable PSU plug and play ports, and hot swap, you're ready to grow whenever you need to.

Industry Standard

SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)

Full PoE+ Provisioning

All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (199W budget)

Zero Touch AV-over-IP

Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)

Pre-configured for Out-of-Box Multicast/IGMP

No Delay

Non-Blocking Fabric for Near-Zero Switch Latency

NETGEAR IGMP Plus™

Prevent network flooding with effortless multicast implementation of Layer 2 Multicast

Dedicated Design

ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

Technical Specifications

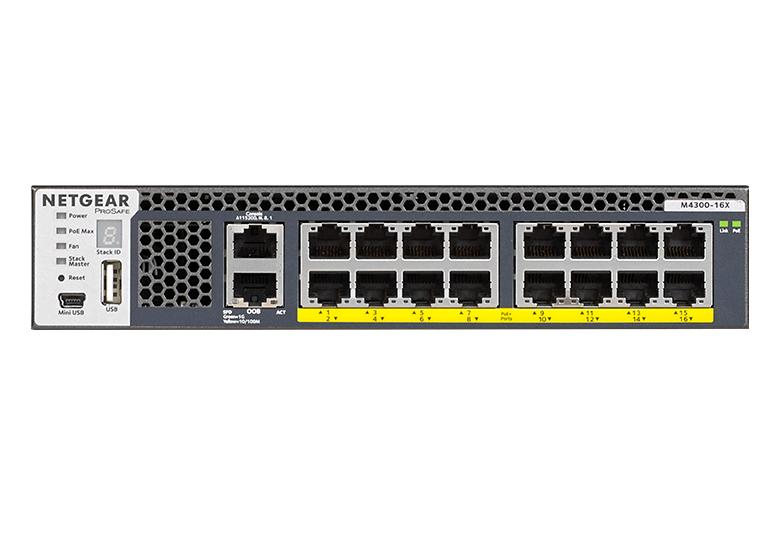

Tech Specs Image 1

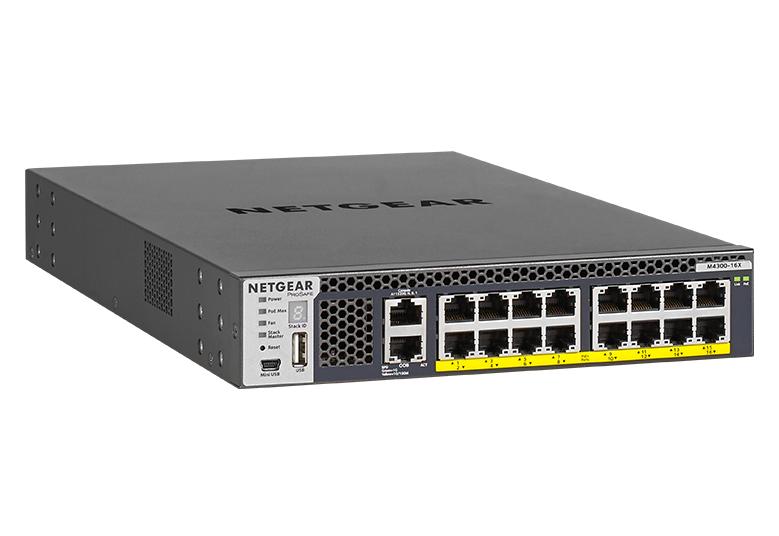

Tech Specs Image 2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Power over Ethernet PoE : 16x 10GBASE-T PoE+
  • Fully provisioned for up to 30 Watts Per Port
  • 199 Watts Total PoE+ Budget
  • Hardware Specifications : 16 Ports RJ45 PoE+ Multi-Gigabit 100M/ 1G / 2.5G / 5G / 10G
  • 1 Modular Bay with 1 299W Modular PSU included APS299W (or 500W Budget with optional APS600W PSU)
  • 1-unit 1U / 2-unit 1U Rack Mount (Included)
  • 320 Gbps Switching Fabric
  • Fixed Fan Front-to-Back 35db
  • Management Options : Ethernet: Out-of-band 1G port (Back)
  • Console: RJ45 RS232 (Back)
  • Console: Mini-USB (Front)
  • Storage: USB (Front)
  • Single-pane-of-glass NMS300 management platform with mass-configuration support
  • Dual firmware image and configuration file for updates with minimum service interruption
Tech Specs Image 1
Tech Specs Image 2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Table Sizes : 16K MAC 888ARP / NDP. Up to 480 Gbps. Throughput up to 357 Mpps
  • Application Static Routing- 64v4 / 64v6 RIP : 512 OSPF: 512
  • Latency : 2.76us 10G RJ45
  • IP Multicast : 96 IPv4 / 32 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
  • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
  • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
  • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)
