Stackable Half-Width Managed Switch with 12-Port 10GBASE-T and 12-Port 10GBase-X SFP+

We're always here to help

Want a custom configuration?

Need to check compatibility?

Ready for a quote?

Our experts are available via online chat, phone, or email.

High Availability (HA)
  • Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
  • Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
  • Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
  • Enables or disables ports based on  link state of different ports
Advanced IPv4/IPv6 security
  • Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Half-Width ToR
  • Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI

Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Industry Standard
  • SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Zero Touch AV-over-IP
  • Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready). Pre-configured for Out-of-Box Multicast/IGMP
No Delay
  • Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
  • Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
  • ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
Product Datasheet

M4250 AV Line Switches

An entirely new series of switches developed and engineered for the growing AV over IP market.

Technical Specifications

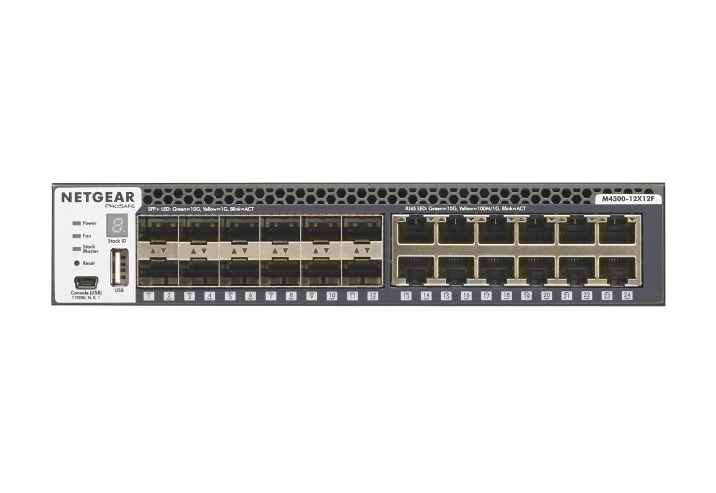

M4300_12X12F_tech_specs_image_1

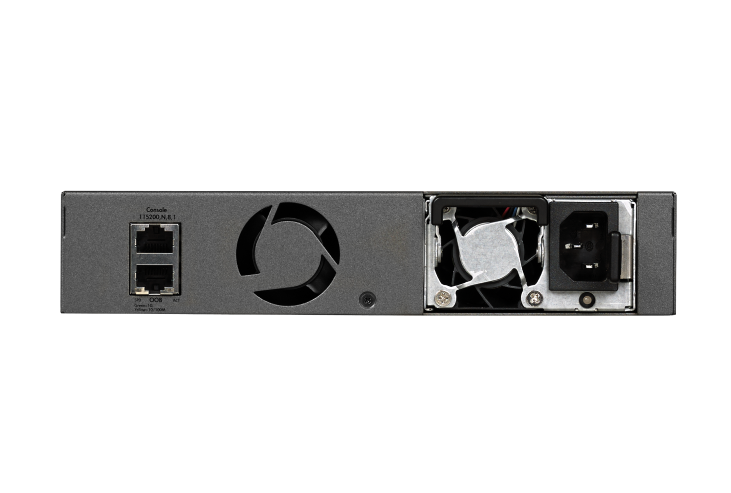

M4300_12X12F_tech_specs_image_2
  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support

    Hardware Specifications

    Model Number: XSM4324S

    12 Ports Copper 100M / 1G / 10G

    12 Ports SFP+ 1G / 10G

    1 Modular Bay with One (1) 250W Modular PSU included APS250W

    480 Gps Switching Fabric

    Fixed Fan Front-to-Back 36.9dB

    Management Options

    Ethernet: Out-of-band 1G port (Back)

    Console: RJ45 RS232 (Back)

    Console: Mini-USB (Front)

    Storage: USB (Front)

    Single-pane-of-glass NMS300 management platform with mass-configuration support

    Dual firmware image and configuration file for updates with minimum service interruption

M4300_12X12F_tech_specs_image_1
M4300_12X12F_tech_specs_image_2
  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Model Description : Half-Width 24x10G Stackable Managed Switch with 12x10GBASE-T and 12xSFP+

    • Table Sizes

    128K MAC 8k ARP / NDP

    Up to 960 Gbps

    Throughput up to 714 Mpps

  • Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512

    • Latency

    <0.9µs 10G SFP+

    <1.25µs 10G RJ45

  • IP Multicast : 1,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership : 2k IPv4 / IPv6
  • M4300 Series features: : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

    • VLANS

    4k with 2K DHCP Server Leases, IPv4: 256 Pools /  IPV6: 16 Pools

    Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models

    Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

    PoE+ Options (30W per port) with hot swap & redundant PSUs options

  • Ordering Number : XSM4324S
  • Acoustics : 36.9dB @ 25°C (77°F)
  • Power Consumption (Max) : 97 Watts
  • 1G RJ45 Ports : -
  • 10G RJ45 Ports : 12 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
  • 10G Fiber SFP+ Ports : 12 x SFP+ (1G and 10G speeds)
  • Power over Ethernet : -
  • PoE Budget (Watts) : -
  • Feature Set : Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
  • Form Factor : Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack
  • 1 modular PSU
