AX6000 WiFi Mesh Router (SXR80)
Tri-Band Orbi Pro WiFi 6 AX6000 WiFi Router (SXR80)
With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.
AX6000 WiFi Mesh Router (SXR80)
Tri-Band Orbi Pro WiFi 6 AX6000 WiFi Router (SXR80)
With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.

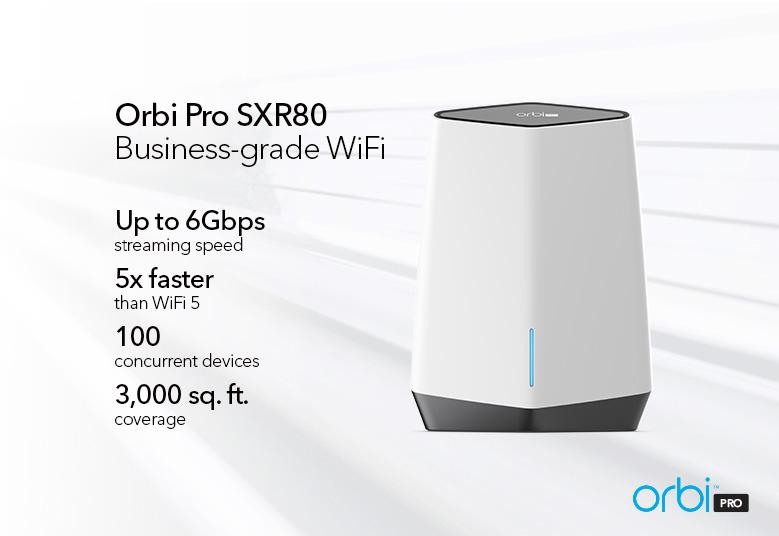

Maximum Speeds
Enjoy WiFi 6 performance with up to 6,000Mbps of total data throughput and 3,000 square feet of coverage per unit
Easy Local Installation
Built for small business professionals who demand easy and intuitive installation and management, Orbi Pro WiFi 6 is easy to set up through the local UI. Orbi Pro WiFi 6 also includes a 1-Year Insight Premium or Pro subscription with purchase, for optional remote Cloud monitoring and management.
Easy Setup with NETGEAR Insight
Connect to your existing cable modem to set up and customize in minutes with the Insight app – easily manage your WiFi settings at the device and network level, test your Internet speed, view speed history, and monitor data usage remotely.
Business-Class Security
Supports WPA3 wireless security protocols and includes VLAN management and 4SSIDs for separate and secure admin, employee, guest, and IoT networks.
Features
Business-Minded WiFi
All the business features you need for fully secure, fast WiFiEasy Local Installation
Connect to your existing cable modem to set up and customize in minutes through the local UISecurely Share your WiFi
Guests can connect to a dedicated SSID separate from staff use. Deploy up to 4 different SSIDs.Grows with Your Business

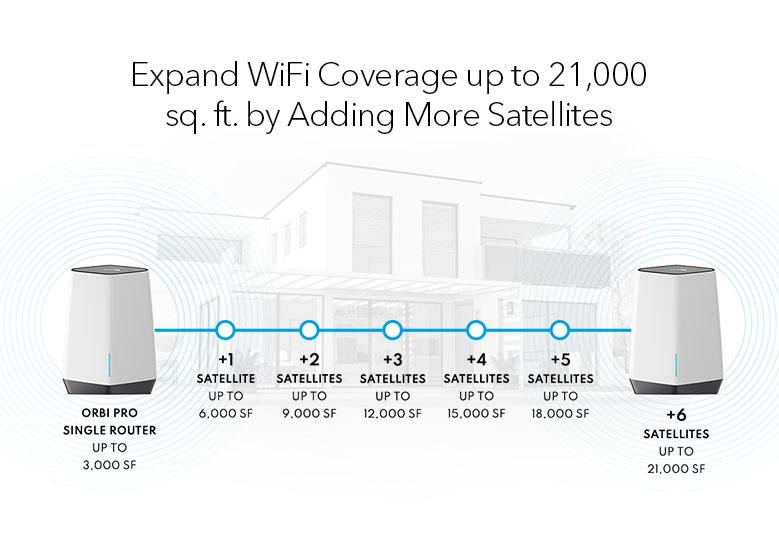

Connect additional satellites with or without wires to extend your coverage indoors and outdoors by 3,000 sq. ft.Content Filtering
Eliminate the risk of losing business-critical information and protect your employees, guests and customers from malicious websites with a premium NETGEAR Insight add-on serviceNETGEAR Insight Services
Further enhance your network management and security with NETGEAR Insight advanced add-on services. Learn more hereGreat performance
100% more throughput than WiFi 5 Orbi Pro - AX6000 vs. AC3000
More capacity
4x more client device handling for less congestion and simultaneous WiFi 6 streaming, file transfer, and browsing on more devices.

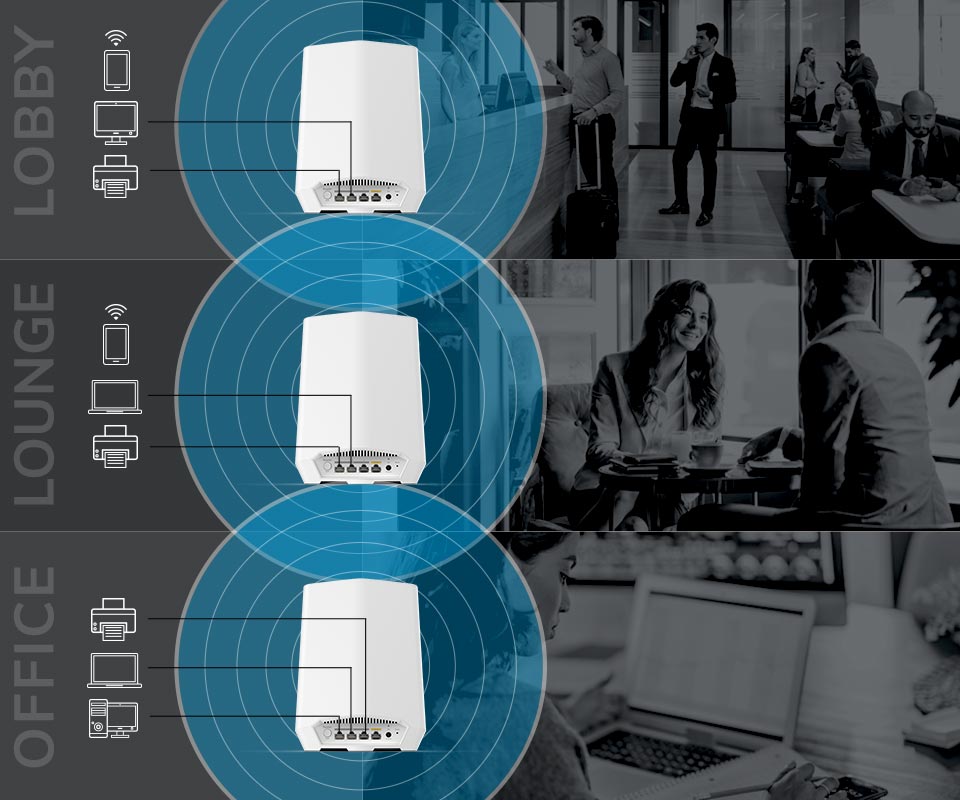

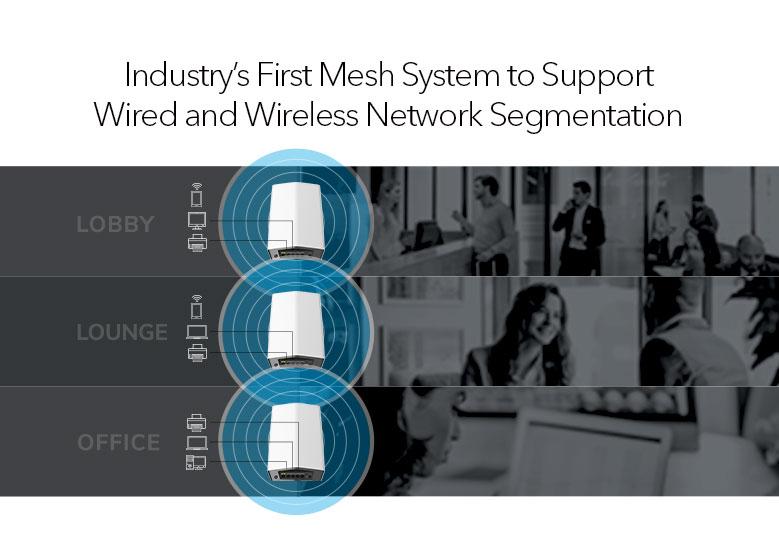

Secure WiFi zones
Supports WPA3 wireless security protocols and includes VLAN management and client separation enabled by VLAN-SSID tie-in
Integrated Plus Switch
Integrated NETGEAR Plus Switch offering VLAN and access control capabilities to support business class network security and managementTri-band WiFi
Orbi Pro establishes a dedicated connection between units, maximizing internet speeds
Daisy Chain
Satellites automatically connect to the router in the most efficient way

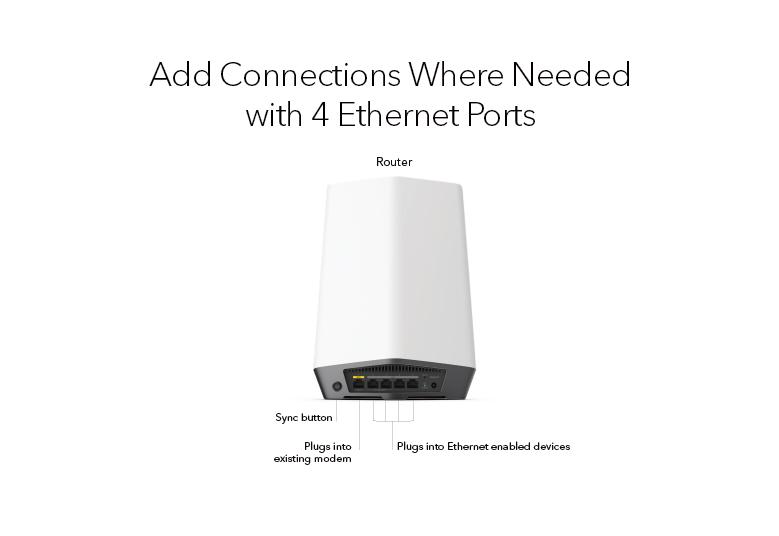

Wired or Wireless
Use the 4 Ethernet ports to connect to PoS, printers, IP phones, digital billboards, and more
Maintain from Anywhere
Manage your Orbi Pro directly from your phone with the NETGEAR Insight app
Wall and Ceiling Mounts
Mount out of reach or in the most convenient locations.
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
One-Step VPN Connectivity for your Business
Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*
*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.
Technical Specifications

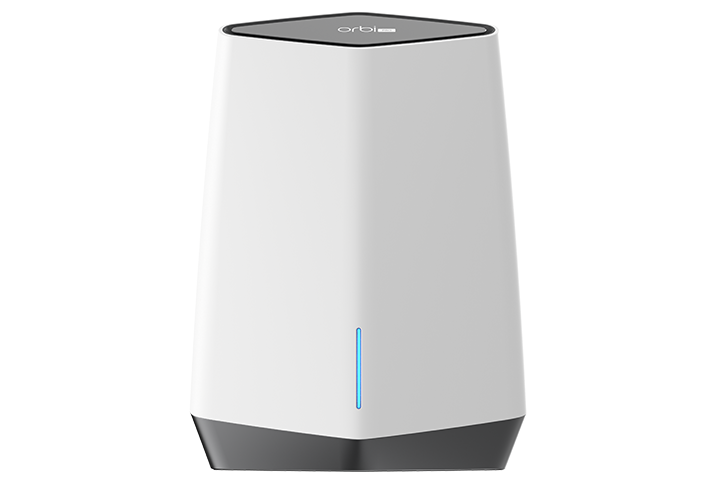

- Orbi Pro WiFi 6 Router (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
- What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing Orbi Pro WiFi 6 Router 3. Use NETGEAR Insight® app with an iOS or Android smartphone for easy setup
- WiFi Technology : (2,400 + 2,400 + 1,200) Mbps† Simultaneous Tri-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

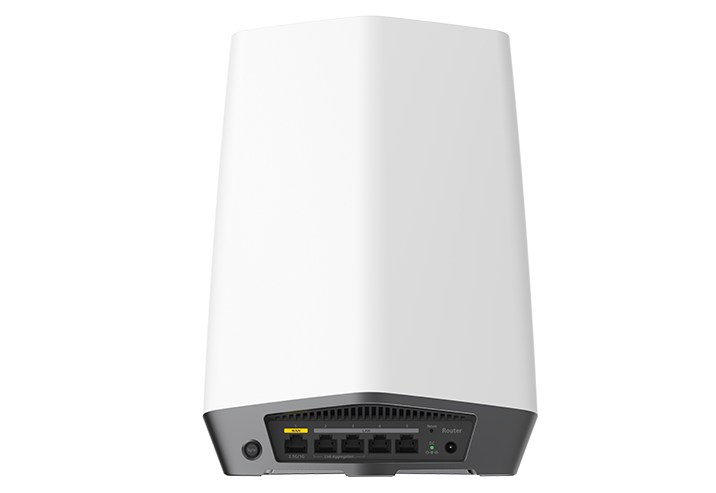

- Ports – Orbi Pro WiFi 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
- Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices), Flexible VLAN configuration on all four (4) SSID WiFi networks, Client isolation by default on Guest SSID and configurable on other SSIDs, WPA/WPA2/WPA3 support
- Insight : Insight App - Secured cloud and local management
- Local Admin : Local Admin UI available for extensive feature setting and maintenance
- Compatibility with Orbi Home : Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
- PMP0332-10000S
- PMP0352-10000S
- Insight : 1-year subscription included
- Support
- One (1) Orbi Pro WiFi 6 Router (SXR80)
- One (1) wall mounts with screws
- One (1) 2m Ethernet cable
- One (1) 12V/3.5A power adapters
- Installation guide
Data Sheet (PDF)
