NETGEAR Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses. SXS30 SXS30-100EUS SXS30-100EUS

AX1800 WiFi Mesh Satellite (SXS30) armor

Orbi Pro WiFi 6 Mini AX1800 Satellite (SXS30)armor

Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.

AX1800 WiFi Mesh Satellite (SXS30)

Orbi Pro WiFi 6 Mini AX1800 Satellite (SXS30)armor

Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.

FUTURE-PROOF
WiFi 6 (802.11ax) is backward compatible with WiFi 5 (802.11ac) and earlier generation devices. Works with existing WiFi devices and new WiFi 6 devices
FAST WIRED INTERNET
Includes four additional GbE LAN ports in the satellite to create a business-friendly work environment
BUSINESS RELIABLITY
Orbi Pro WiFi 6 Mini has dual firmware images ensuring no firmware corruption from any instances, thus ensuring non-disrupted operation in the system

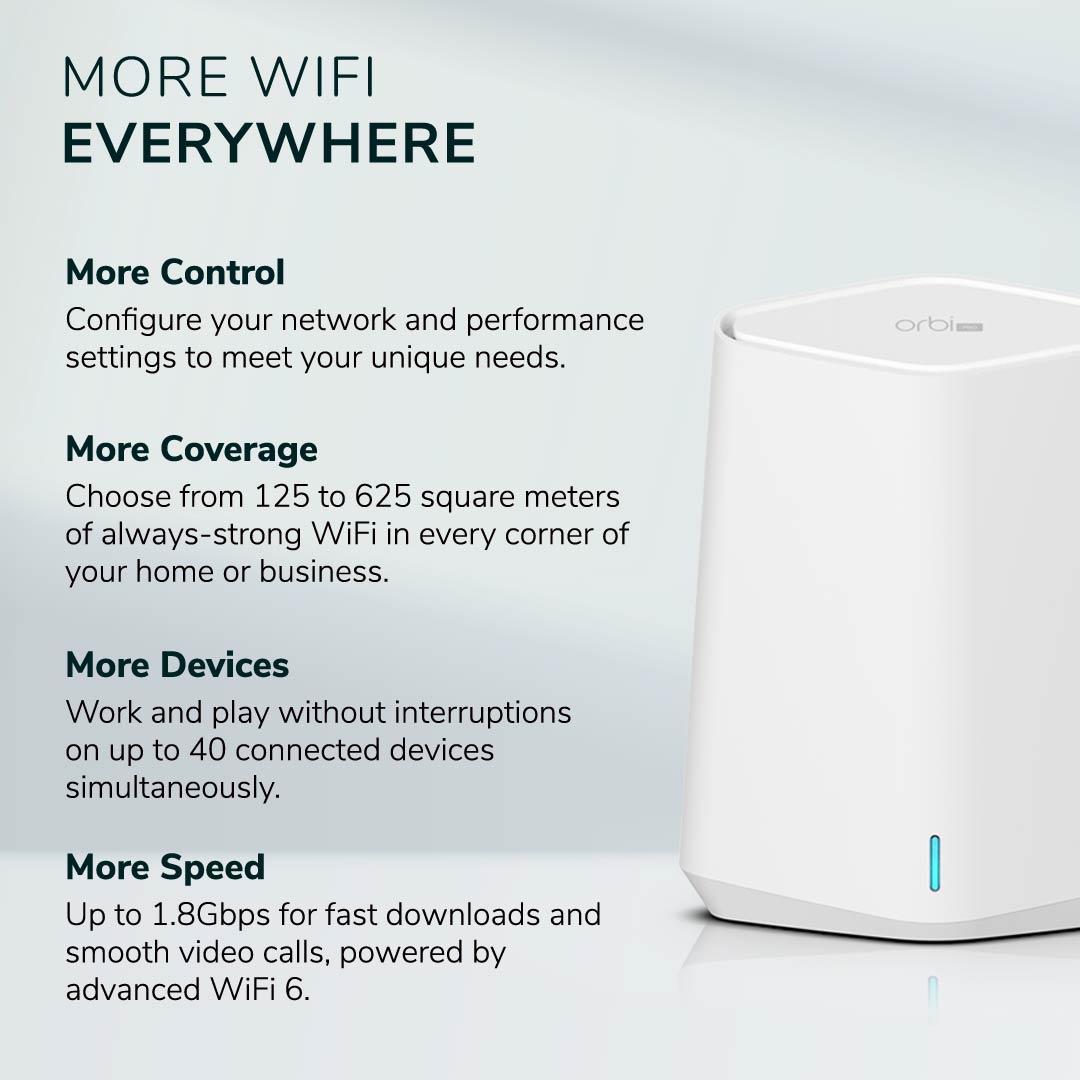

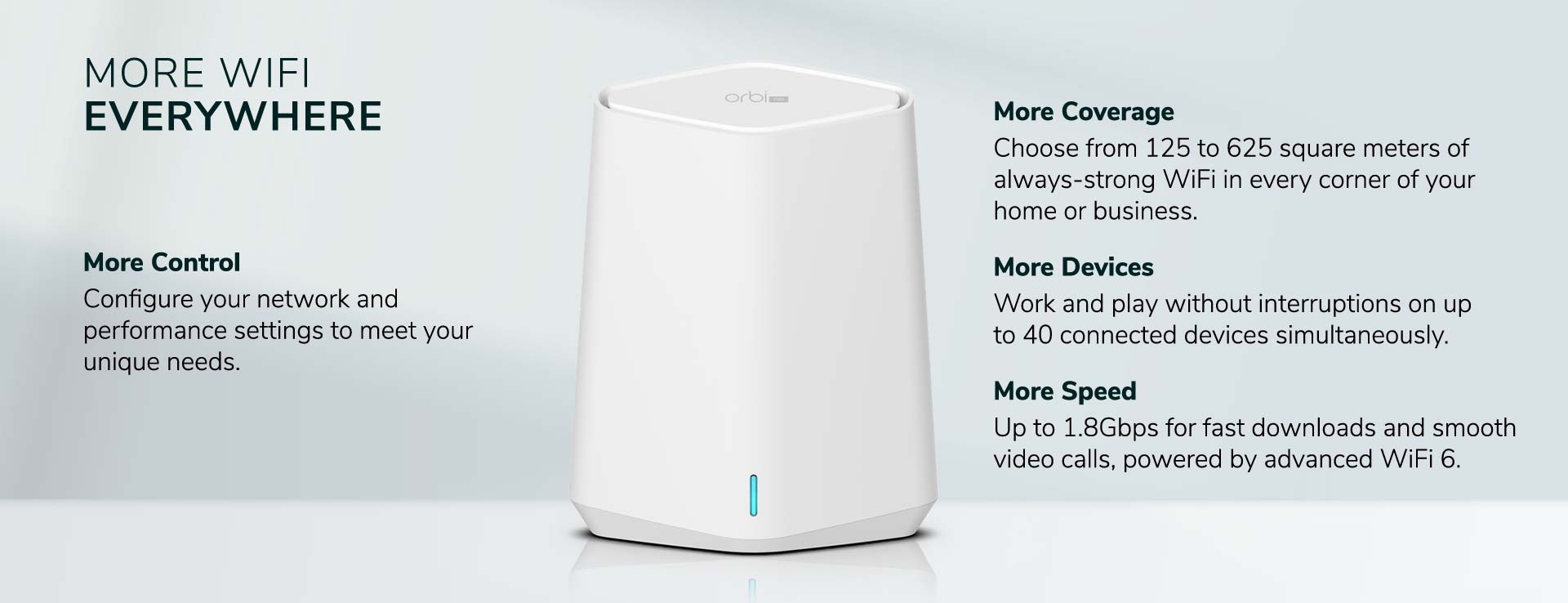

HIGH WIFI 6 PERFORMANCE & COVERAGE
High-performance small business dual-band AX1800 mesh WiFi satellite
MULTI-UNIT MESH SYSTEM

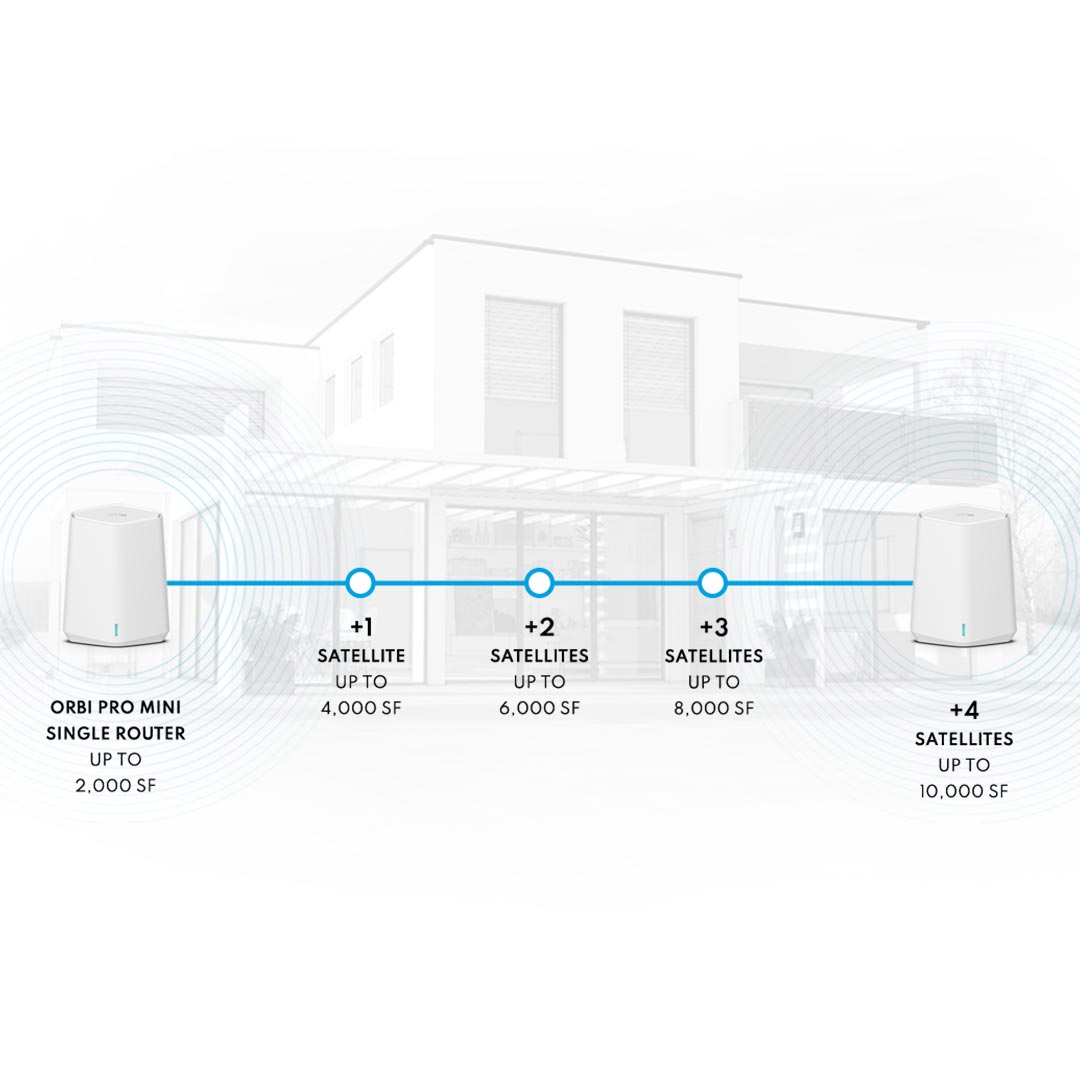

Stay connected as you roam around the office or home while using a single network name even as you extend coverage by up to 2,000 sq. ft. per added satellite and up to 4 additional satellites (sold separately)
EASY LOCAL INSTALLATION
Connect to your existing cable modem to set up and customize in minutes through the local UI
PRE-PAIRED KIT FOR EASIER INSTALLATION
When you purchase the Orbi Pro WiFi 6 Mini kit (SXK30), the router and satellite and pre-paired for easier installation
REMOTE CLOUD MANAGEMENT WITH NETGEAR INSIGHT
Monitor and manage your devices from anywhere and get insightful analytics on your network usage with 1-year of Insight Premium or Pro subscription with purchase
COMPATIBILITY
Only compatible with Orbi Pro WiFi 6 Satellites. Not compatible with previous Orbi Pro generations or Orbi home products.
PRIVACY ASSURANCE
NETGEAR does not collect, process or sell your personal data, so your information is safe and protected
INTEGRATED PLUS SWITCH
Integrated NETGEAR Plus Switch offering VLAN and access control capabilities to support business class network security and management
SAFE AND SECURE

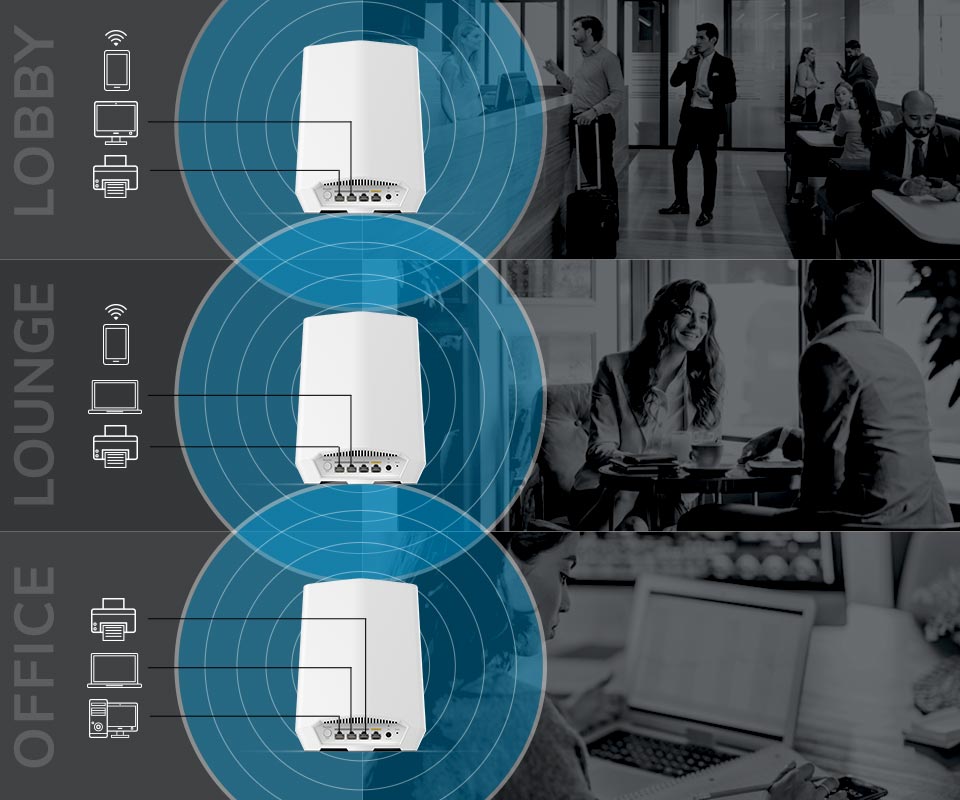

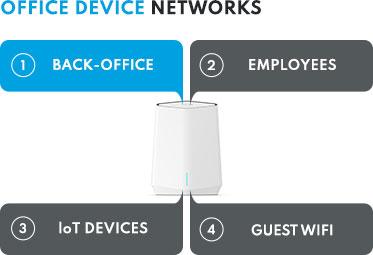

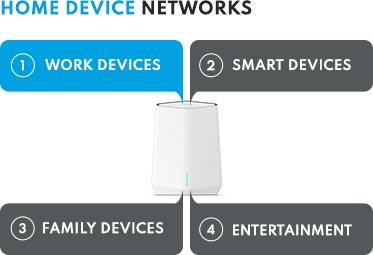

Supports WPA3 wireless security protocols. Includes 4 SSIDs and VLANs for separate networks

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Technical Specifications

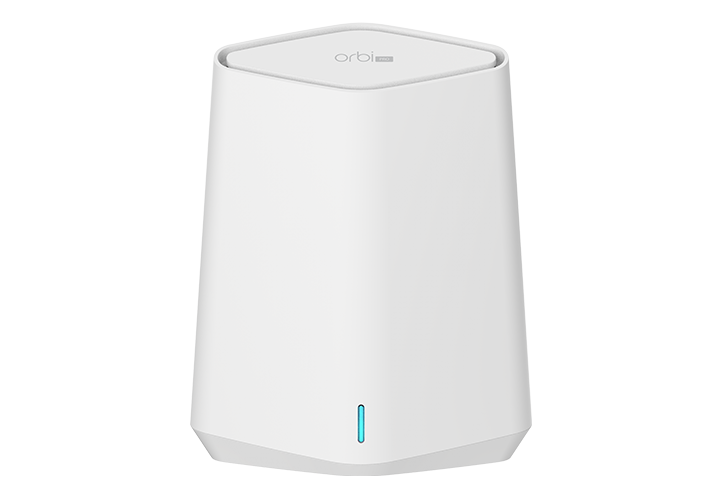

Everest_SXS30_PDP_Tech-Specs-Image-1

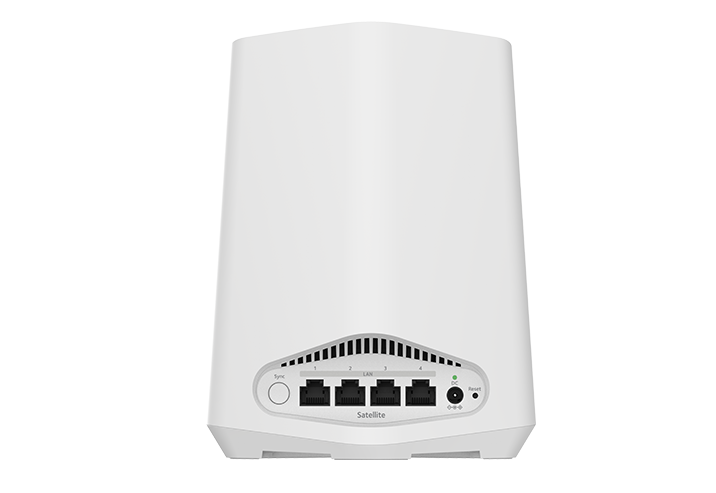

Everest_SXS30_PDP_Tech-Specs-Image-2

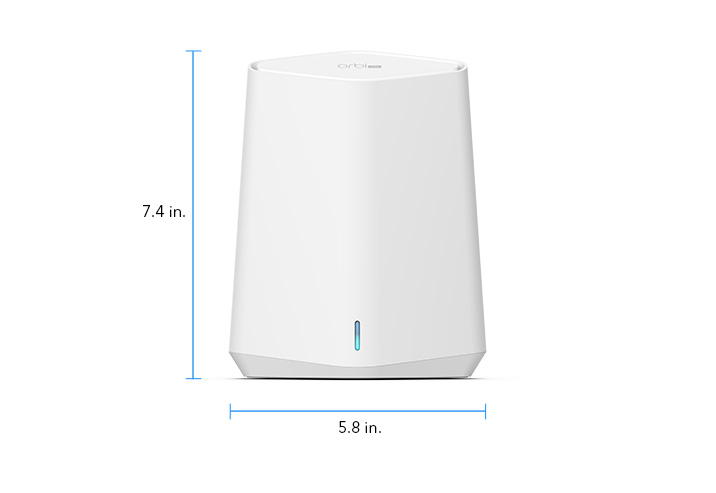

  • Dimensions : 5.8 x 2.7 x 7.4in (148 x 68 x 189mm) each
  • Weight : 1.06lb (0.48kg) each
  • What do I need for Orbi Pro WiFi 6 to work? : Orbi Pro WiFi 6 Mini Dual-band AX1800 Satellite (1,200 + 600) Mbps
  • WiFI Technology : Simultaneous Dual-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Antennas : Two (2) high-performance antennas with high-power amplifiers each
  • Beamforming : Explicit Beamforming for 2.4GHz and 5GHz bands
  • Integrated Gigabit Smart Ethernet Switch for business grade security and applications
  • 802.3Q VLAN
  • Access Control
  • MU-MIMO : MU-MIMO capable for simultaneous data streaming on multiple devices

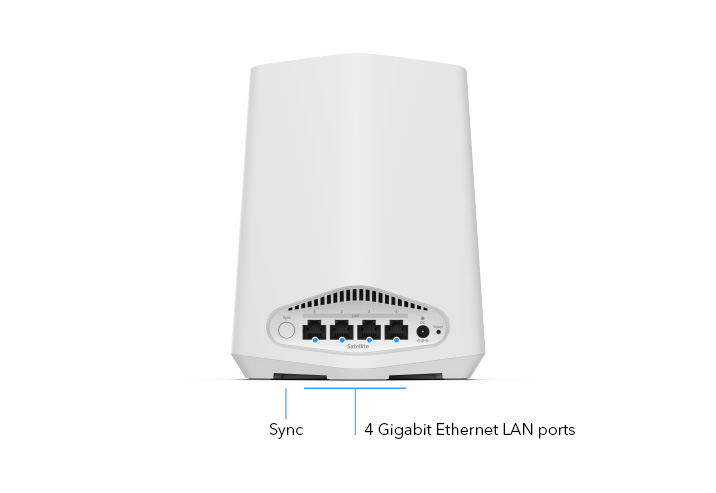

  • Ethernet Ports : Orbi Pro WiFi 6 Mini Satellite, Four (4) Gigabit Ethernet LAN ports
  • Orbi Pro WiFi 6 Mini Dual-band AX1800 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • 5-year limited hardware warranty
  • ProSUPPORT OnCall 24x7 Service Packs3 : SXK30 Router + 1x Satellite PMB0312-10000S (1 year)
  • Insight : 1-year subscription included
  • Support
  • One (1) Orbi Pro WiFi 6 Mini Satellite (SXS30)
  • One (1) wall mounts with screws
  • One (1) 2m Ethernet cable
  • One (1) 12V/3.5A power adapters (varies based on region)
  • Installation guide

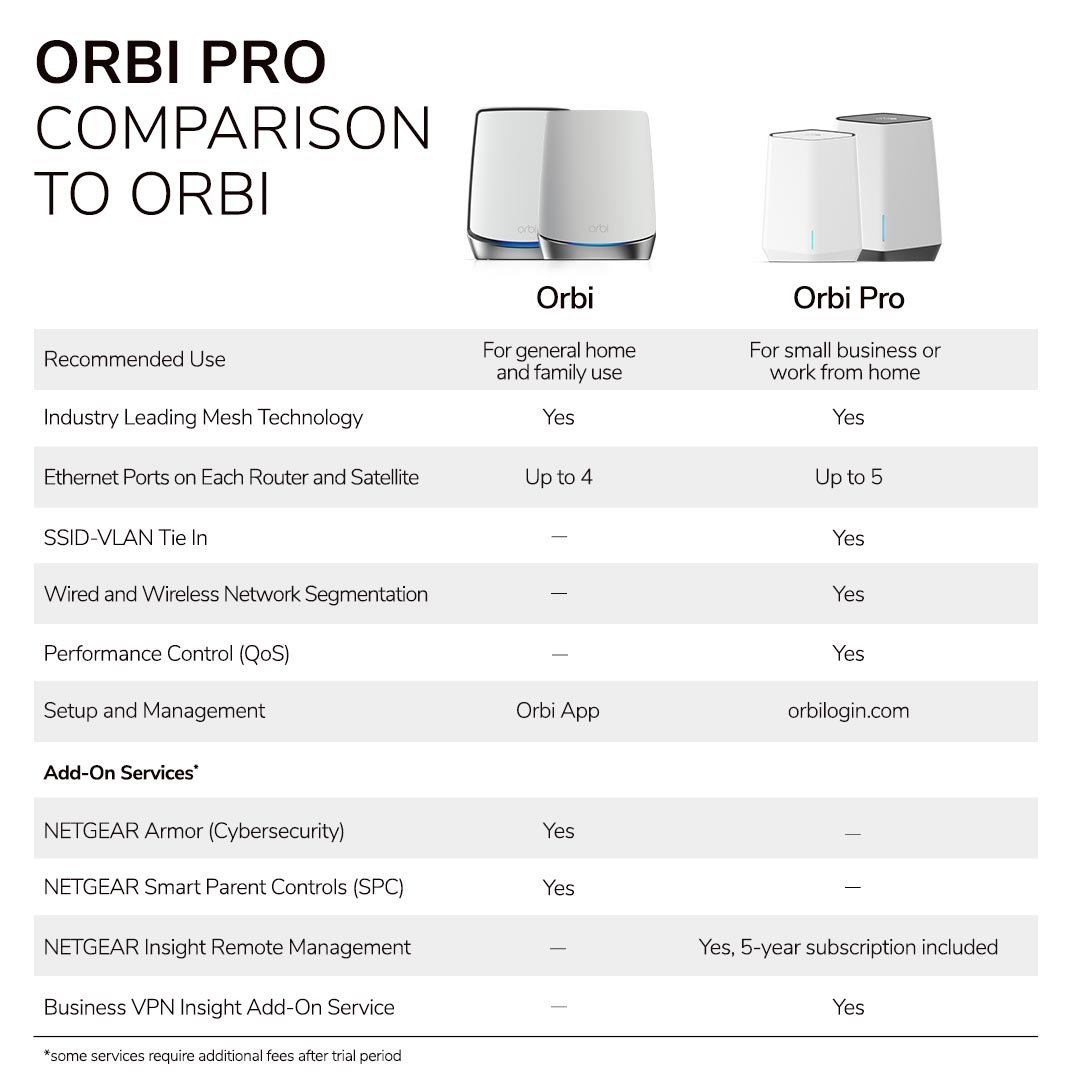

Orbi Pro Family Comparison

SXK30 Orbi Pro WiFi 6 Mini

SXK80 Orbi Pro WiFi 6

SRK60 Orbi Pro

WiFi Speed

WiFi Speed

WiFi 6 – AX1800 (Up to 1.8 Gbps)

WiFi Speed

WiFi 6 - AX6000 (Up to 6.0 Gbps)

WiFi Speed

WiFi 5 - AC3000 (Up to 3.0 Gbps)

WiFi Configuration

WiFi Configuration

Dual-Band

WiFi Configuration

Tri-band

WiFi Configuration

Tri-band

# of Concurrent Users per unit

# of Concurrent Users per unit

40

# of Concurrent Users per unit

80

# of Concurrent Users per unit

40

Ideal Use

Ideal Use

Small Business and SOHO

Ideal Use

SOHO and Small Business

Ideal Use

SOHO

WiFi Coverage

WiFi Coverage

Up to 4,000 sq. ft.

WiFi Coverage

Up to 6,000 sq. ft.

WiFi Coverage

Up to 5,000 sq. ft.

Physical Specifications

Physical Specifications

Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb

Physical Specifications

Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb

Physical Specifications

Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb

Dedicated Wireless Backhaul

Dedicated Wireless Backhaul

No

Dedicated Wireless Backhaul

Yes

Dedicated Wireless Backhaul

Yes

Multi-Gig Port 2.5

Multi-Gig Port 2.5

No

Multi-Gig Port 2.5

Yes

Multi-Gig Port 2.5

No

Integrated Plus Switch with VLANs

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

No

Remote management

Remote management

Insight Remote Management

Remote management

Insight Remote Management

Remote management

Insight Remote Management
