AX1800 WiFi Mesh System (SXK30B3)
Orbi Pro WiFi 6 Mini AX1800 Mesh System - Pack of 3 (SXK30B3)
Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.
AX1800 WiFi Mesh System (SXK30B3)
Orbi Pro WiFi 6 Mini AX1800 Mesh System - Pack of 3 (SXK30B3)
Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.
High WiFi 6 Speeds

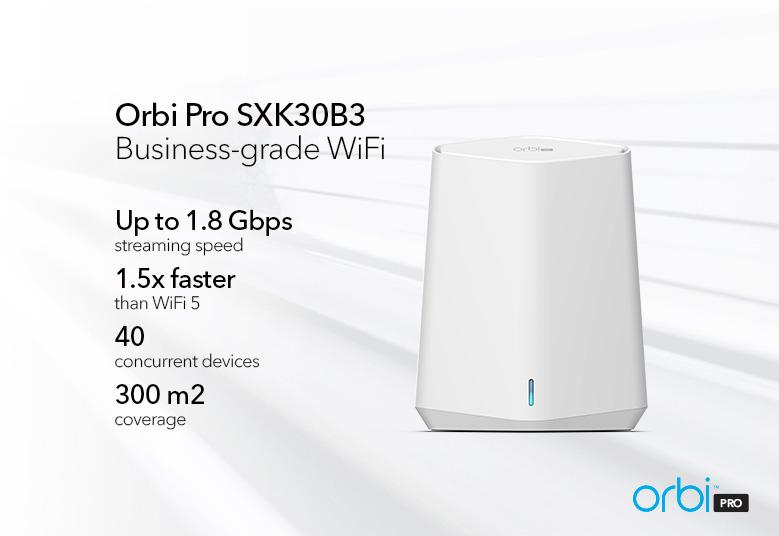

Enjoy WiFi 6 performance with up to 1.8Gbps of total data throughput and 4,000 square feet of coverage
Business-Grade Security
Supports WPA3 wireless security protocols and create up to 4 individual networks with SSIDs and VLANs. Orbi Pro WiFi 6 Mini is also an integrated NETGEAR Plus Switch offering VLAN and access control capabilities to support network security and management
Wired Network

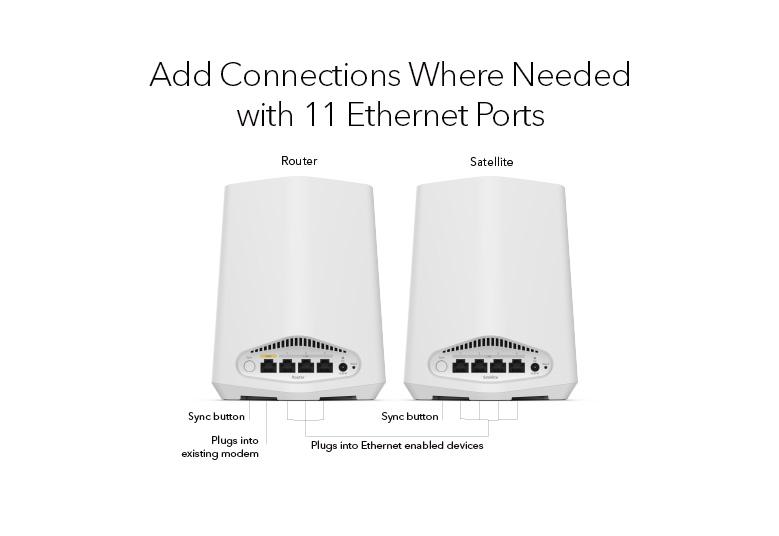

Four wired network connectors (GbE LAN ports) for fast wired Internet on printers, scanners and other wired devices. Connect the wired devices to wireless devices making them accessible from anywhere the Orbi Pro WiFi 6 Mini connection reaches
Easy Local Installation
Built for small business professionals who demand easy and intuitive installation and management, Orbi Pro WiFi 6 Mini is easy to set up through the local UI. Orbi Pro WiFi 6 Mini also includes a 1-Year Insight Premium or Pro subscription with purchase, for optional remote Cloud monitoring and management.
Features
NETGEAR Insight Services
Further enhance your network management and security with NETGEAR Insight advanced add-on services. Learn more hereFUTURE-PROOF
WiFi 6 (802.11ax) is backward compatible with WiFi 5 (802.11ac) and earlier generation devices. Works with existing WiFi devices and new WiFi 6 devicesFAST WIRED INTERNET
Includes four additional GbE LAN ports in the router and satellite to create a business-friendly work environmentBUSINESS RELIABLITY
Orbi Pro WiFi 6 Mini has dual firmware images ensuring no firmware corruption from any instances, thus ensuring non-disrupted operation in the systemHIGH WIFI 6 PERFORMANCE & COVERAGE
High-performance small business dual-band AX1800 mesh WiFi system. WiFi 6 coverage for up to 4,000 square feet and 80+ devices
MULTI-UNIT MESH SYSTEM

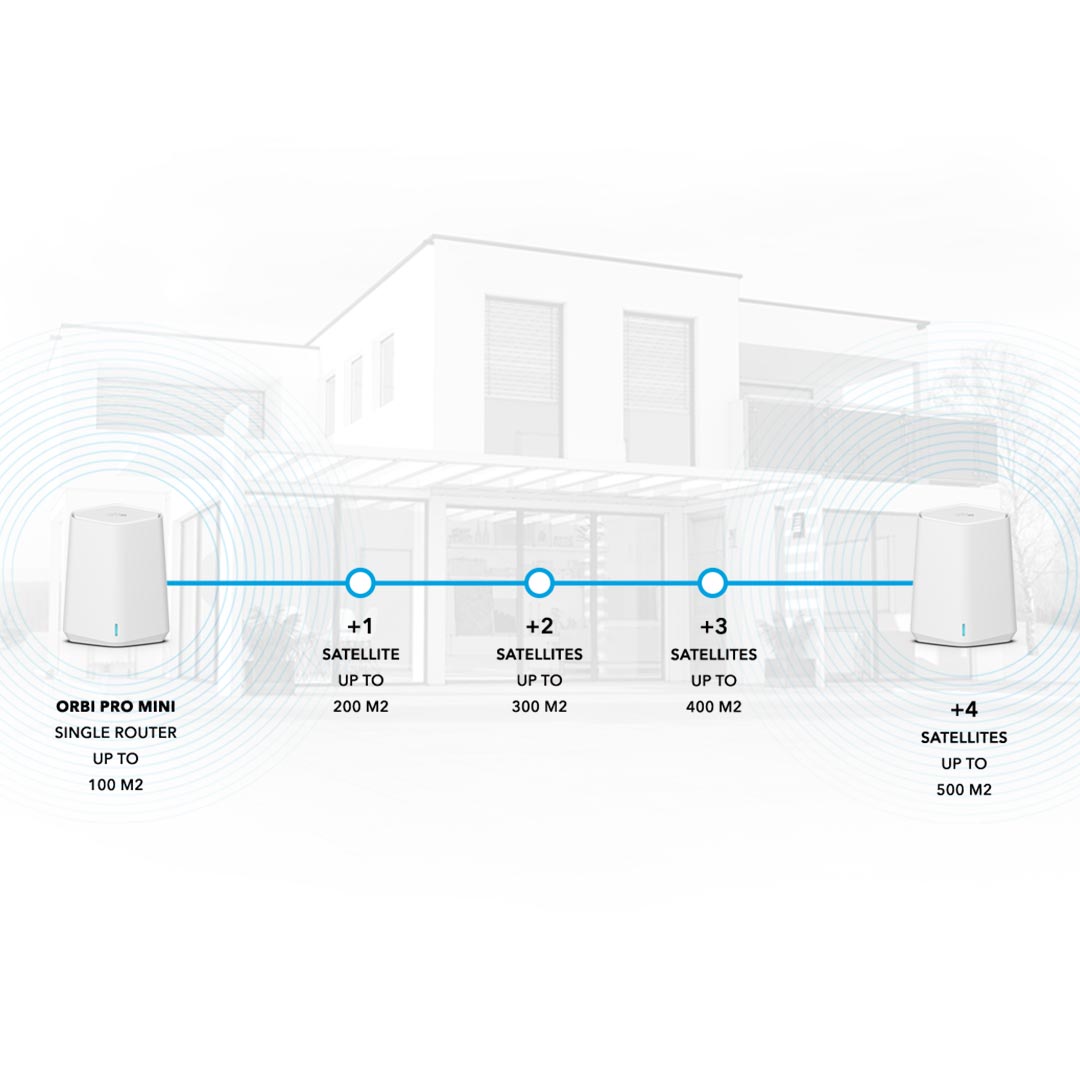

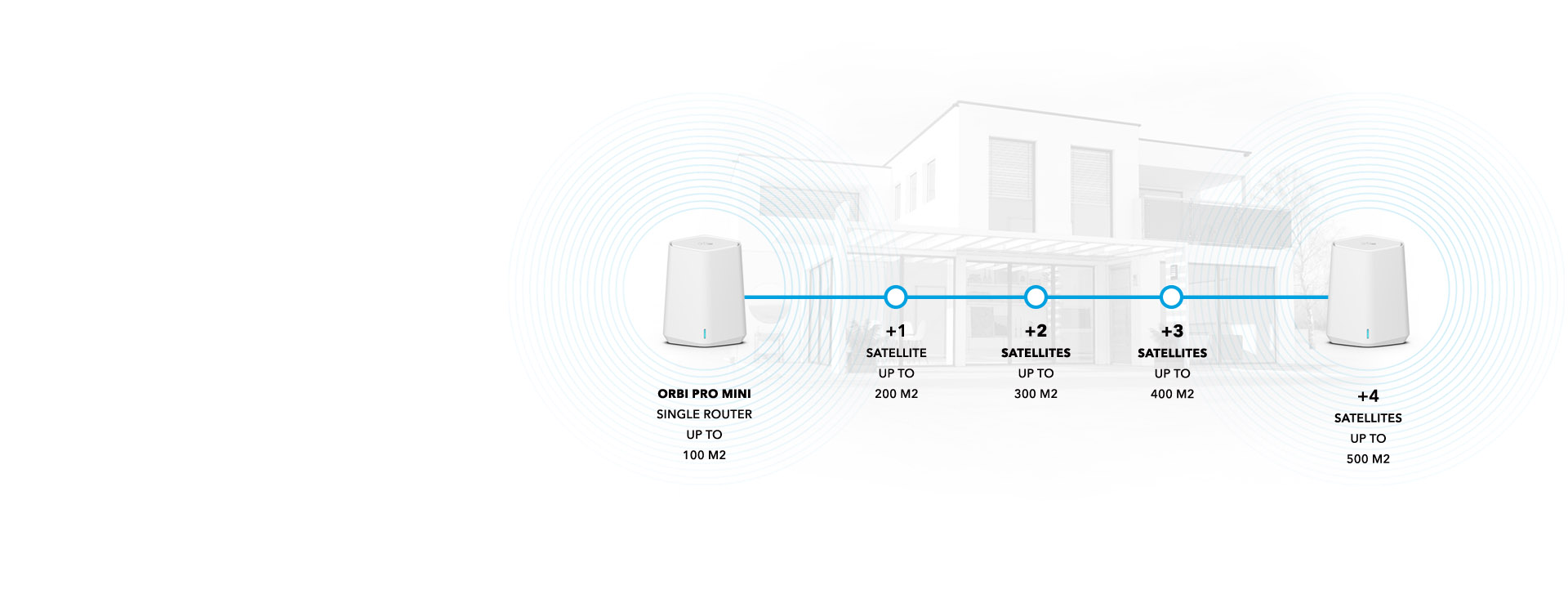

Stay connected as you roam around the office or home while using a single network name even as you extend coverage by up to 2,000 sq. ft. per added satellite and up to 4 additional satellites (sold separately)
EASY LOCAL INSTALLATION
Connect to your existing cable modem to set up and customize in minutes through the local UI
PRE-PAIRED KIT FOR EASIER INSTALLATION
When you purchase the Orbi Pro WiFi 6 Mini kit (SXK30), the router and satellite and pre-paired for easier installation
REMOTE CLOUD MANAGEMENT WITH NETGEAR INSIGHT
Monitor and manage your devices from anywhere and get insightful analytics on your network usage with 1-year of Insight Premium or Pro subscription with purchase
COMPATIBILITY
Only compatible with Orbi Pro WiFi 6 Satellites. Not compatible with previous Orbi Pro generations or Orbi home products.PRIVACY ASSURANCE
NETGEAR does not collect, process or sell your personal data, so your information is safe and protected
INTEGRATED PLUS SWITCH
Integrated NETGEAR Plus Switch offering VLAN and access control capabilities to support business class network security and management
SAFE AND SECURE

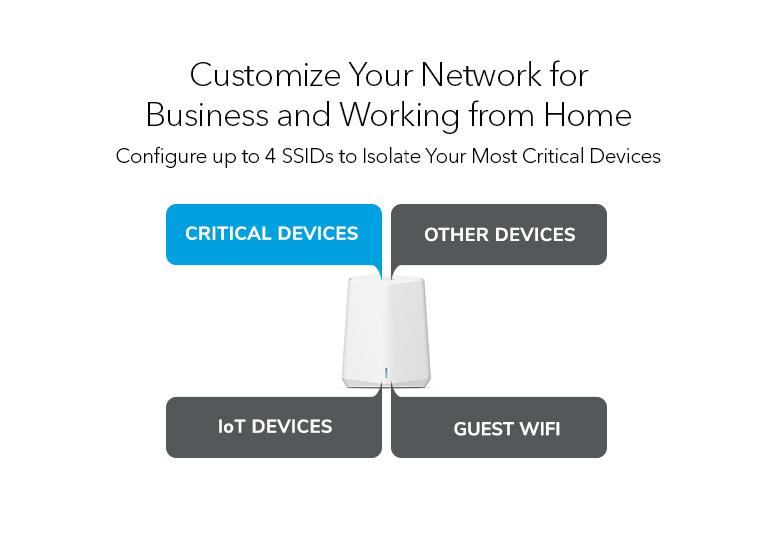

Supports WPA3 wireless security protocols. Includes 4 SSIDs and VLANs for separate networks
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
Technical Specifications
- Dimensions: 5.8 x 2.7 x 7.4in (148 x 68 x 189mm) each
- Weight: 1.06lb (0.48kg) each
- Orbi Pro WiFi 6 Mini Dual-band AX1800 Router and WiFi 6 Mini Dual-band AX1800 Satellite (1,200 + 600) Mbps
- Simultaneous Dual-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Two (2) high-performance antennas with high-power amplifiers each
- Explicit Beamforming for 2.4GHz and 5GHz bands
- Integrated Gigabit Smart Ethernet Switch for business grade security and applications
- 802.3Q VLAN
- Access Control
- MU-MIMO capable for simultaneous data streaming on multiple devices

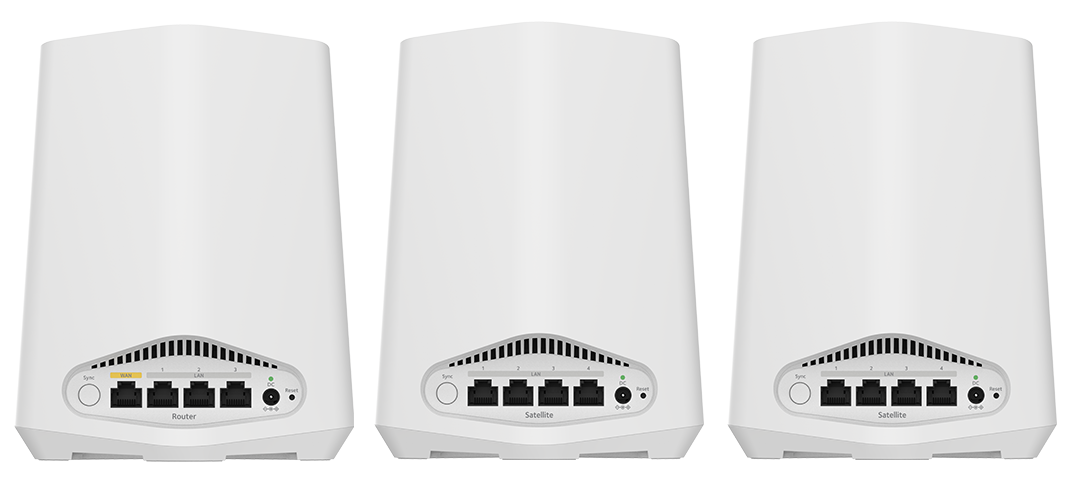

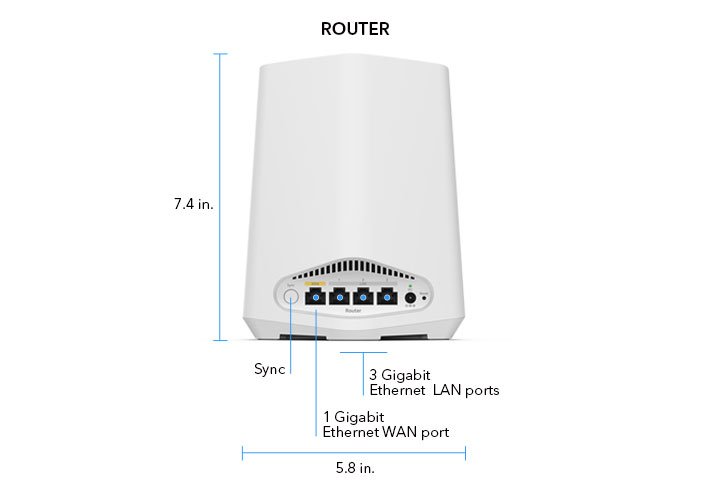

- Ethernet Ports – Orbi Pro WiFi 6 Mini Router: One (1) Gigabit Ethernet WAN port, Three (3) Gigabit Ethernet LAN ports

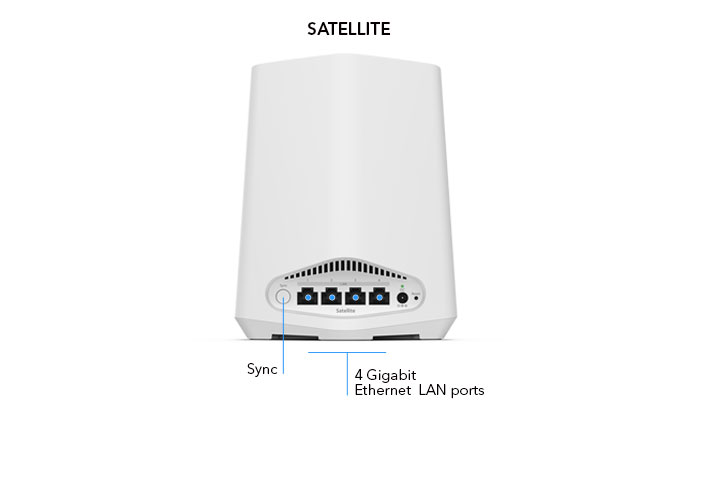

- Ethernet Ports – Orbi Pro WiFi 6 Mini Satellite, Four (4) Gigabit Ethernet LAN ports
- Insight : Insight App - Secured cloud and local management
- Orbi Pro WiFi 6 Mini Dual-band AX1800 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- 5-year limited hardware warranty
- ProSUPPORT OnCall 24x7 Service Packs3 SXK30 Router + 1x Satellite PMB0312-10000S (1 year)
- Insight : 1-year subscription included
- Support

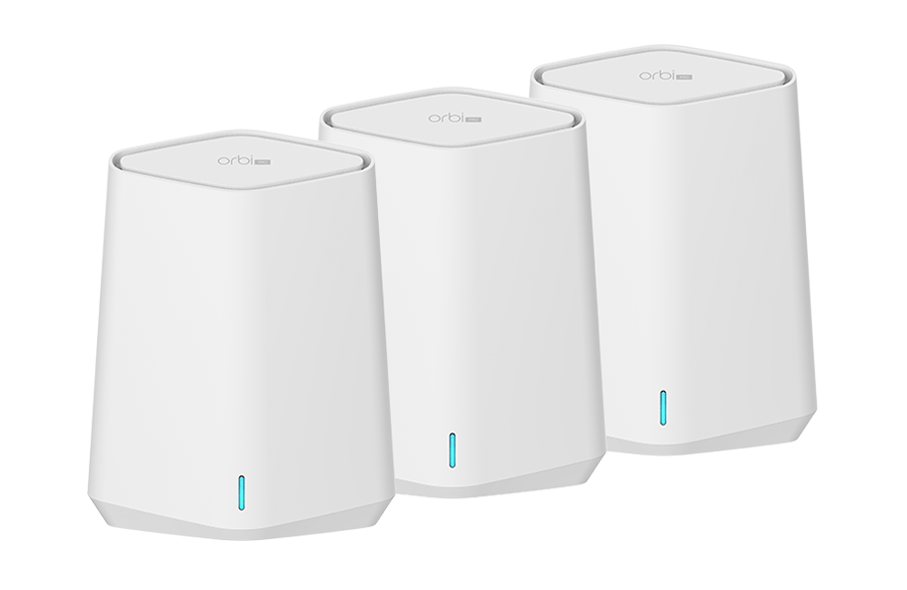

- One (1) Orbi Pro WiFi 6 Mini Router (SXR30)
- Two (2) Orbi Pro WiFi 6 Mini Satellite (SXS30)
- Three (3) wall mounts with screws
- One (1) 2m Ethernet cable
- Three (3) 12V/3.5A power adapters (varies based on region)
- Installation guide
Low Resolution Image

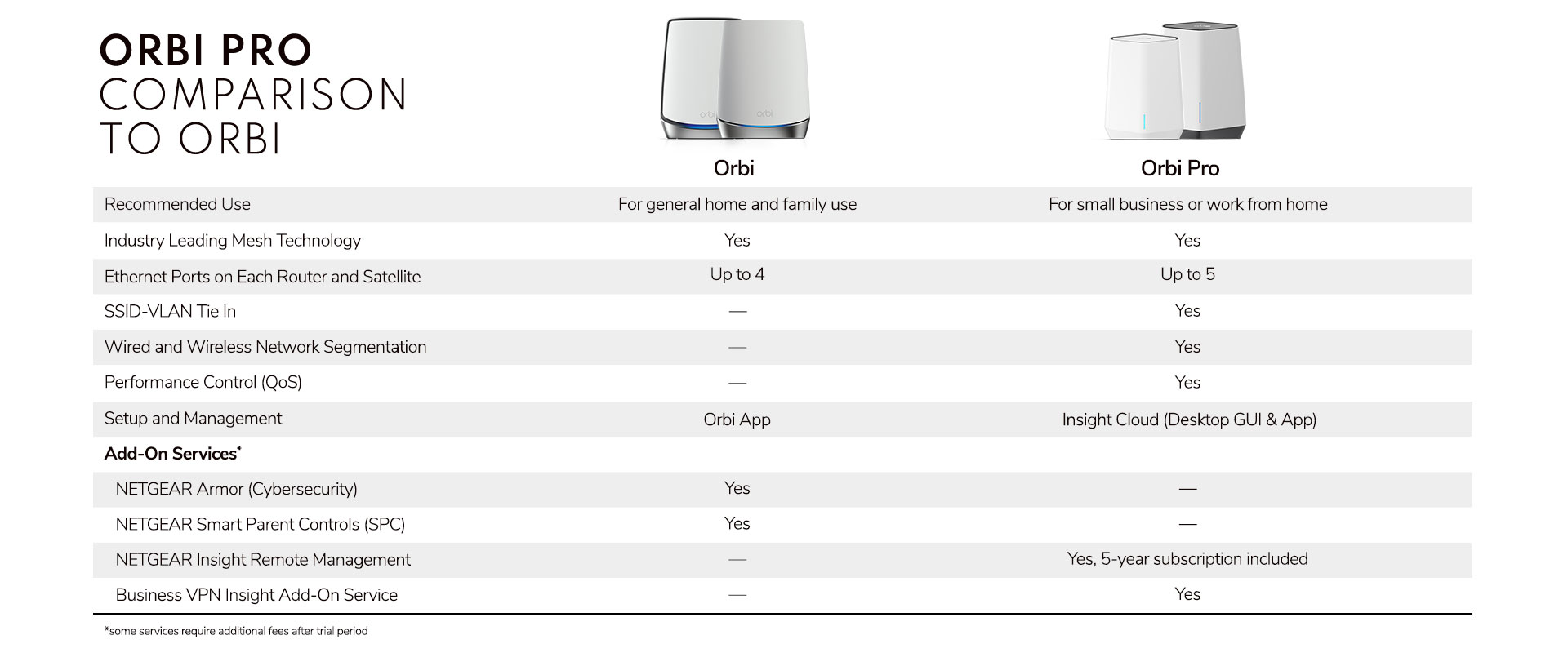

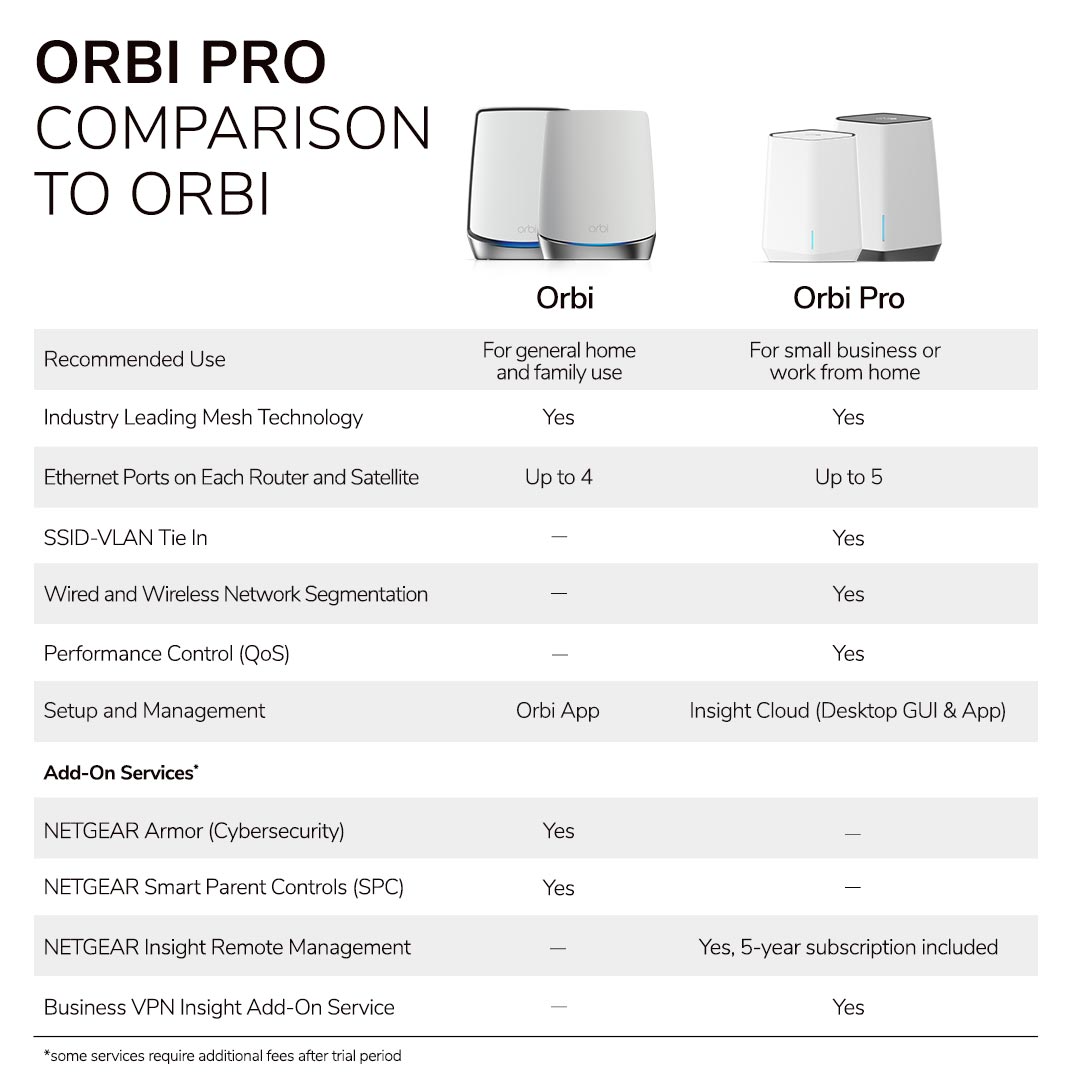

Orbi Pro Family Comparison
SXK30 Orbi Pro WiFi 6 Mini |
SXK80 Orbi Pro WiFi 6 |
SRK60 Orbi Pro |
|
|---|---|---|---|
|
WiFi Speed |
WiFi Speed WiFi 6 – AX1800 (Up to 1.8 Gbps) |
WiFi Speed WiFi 6 - AX6000 (Up to 6.0 Gbps) |
WiFi Speed WiFi 5 - AC3000 (Up to 3.0 Gbps) |
|
WiFi Configuration |
WiFi Configuration Dual-Band |
WiFi Configuration Tri-Band |
WiFi Configuration Tri-Band |
|
Physical Specifications |
Physical Specifications Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb |
Physical Specifications Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb |
Physical Specifications Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb |
|
# of Concurrent Users |
# of Concurrent Users 40 |
# of Concurrent Users 80 |
# of Concurrent Users 40 |
|
Ideal Use |
Ideal Use Small Business and SOHO |
Ideal Use SOHO and Small Business |
Ideal Use SOHO |
|
WiFi Coverage |
WiFi Coverage Up to 4,000 sq. ft. |
WiFi Coverage Up to 6,000 sq. ft. |
WiFi Coverage Up to 5,000 sq. ft. |
|
Dedicated Wireless Backhaul |
Dedicated Wireless Backhaul No |
Dedicated Wireless Backhaul Yes |
Dedicated Wireless Backhaul Yes |
|
Multi-Gig Port 2.5 |
Multi-Gig Port 2.5 No |
Multi-Gig Port 2.5 Yes |
Multi-Gig Port 2.5 No |
|
Integrated Plus Switch with VLANs |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs No |
|
Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
