Cloud managed standalone or Mesh Access Point for high-density environment with support of up to 600 users. WAC540 WAC540-10000S WAC540-10000S
1-Year NETGEAR Insight Subscription Included

Cloud Managed WiFi (WAC540) armor

AC3000 Tri-Band PoE Insight Managed Smart Cloud Wireless Access Point armor

1-Year NETGEAR Insight Subscription Included

Cloud Managed WiFi (WAC540)

AC3000 Tri-Band PoE Insight Managed Smart Cloud Wireless Access Point armor

Cloud managed standalone or Mesh Access Point for high-density environment with support of up to 600 users.

NETGEAR Insight Management

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

LEARN MORE
Flexible Deployments

Wired or deployed as a wire-free mesh network
Tri-Band Radios

2.4GHz, 5GHz high and low, dedicated backhaul for continuous performance
Separate SSIDs and VLANs

Separate WiFi networks for employees, guest, IoT
High-Density Environments

Supports up to 600 client devices and support higher number of concurrent users
Stand-Alone or Remote Cloud Managed Options

No additional cloud-keys or hardware required

1 year Insight Management included
Dual Gigabit Ethernet Ports

Up to 2Gb Backhaul with Port Aggregation
Powered by PoE+

PoE+ 25.5W IEEE 802.3at or optional AC/DC Power Adapter (WAC540PA only)
Deploy Anywhere

Includes Ceiling / Wall mount Kit

5-year warranty, 90 days of chat support where available
Advanced WiFi

Client load balancing based on channel utilisation and automatically tune to best channel and Tx power based on the dynamics of WiFi environments with Instant WiFi

Insight Management unlocks even more options
Instant Mesh

Ideal for rental space or neightbouring 2nd office

Expand your WiFi without running cables

Fast deployment with NETGEAR Insight
Instant WiFi

Ideal for any small business

Automatic WiFi coverage optimization

One-click on NETGEAR Insight
Instant Captive Portal

Ideal for hospitality businesses

Advanced/Customisable guest portal and analytics

Easy set up with NETGEAR Insight
Product Datasheet

Technical Specifications

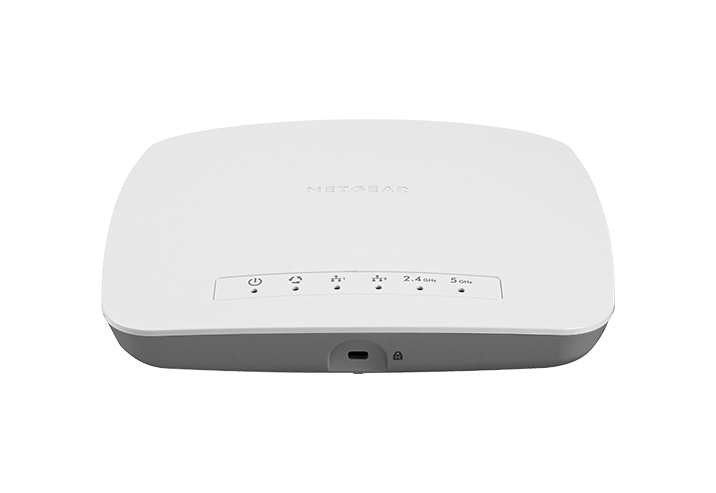

WAC510_tech_specs_image_1

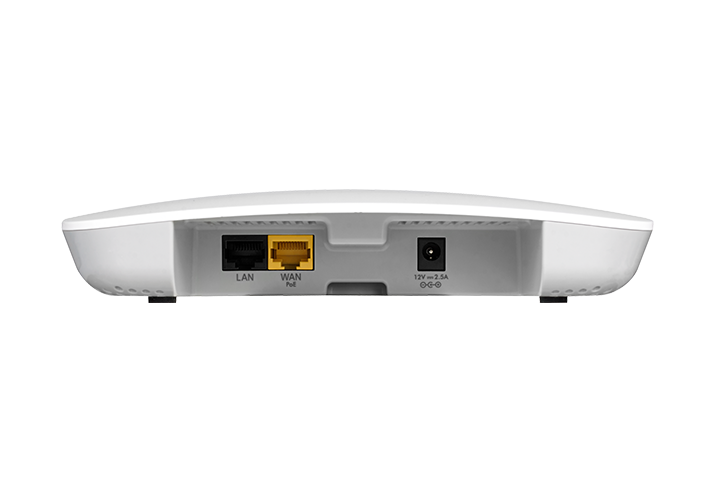

WAC510_tech_specs_image_2

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT 24x7 Advanced Technical Support via chat for 90 days.
  • Support
  • Wireless Features : IEEE 802.11ac Wave 2 Wifi 5 (2x2) /802.11ac (4x4)
  • 3Gbps AC3000
  • Tri-Band 256QAM Radios : 2.4GHz (400Mbps), 5GHz (866Mbps), 5GHz 1733Mbps)
  • Client Loadbalancing via Rx RSSI & Client threshold.
  • Max clients : Up to 600 wireless clients.
  • Full MU-MIMO support.
  • Airtime fairness : Improves network performance in mixed client 802.11a/b/n/ac environments
  • SNMP : v1, v2c, Secure SSH, SSL
  • Wireless Distribution System (WDS)
  • Hardware Features : Stand-alone or remote cloud managed options, no additional cloud-keys or hardware requried 1 year Insight Management Included
  • Dual Gigabit Ethernet Ports
  • Up to 2Gb Backhaul with Port Aggregation
  • Powered by PoE+ 25.5W IEEE 802.3at or optional AC/DC Power Adapter (WAC540PA only)
  • Includes Ceiling / Wall mount Kit
  • 5 year warranty, 90 days of chat support where available
  • Antenna : Internal 3/4dBi (2.4/5GHz)
