AX1800 WiFi Mesh System (SXK30)
AX1800 Dual-Band Orbi Pro WiFi 6 Mini Mesh System
AX1800 WiFi Mesh System (SXK30)
AX1800 Dual-Band Orbi Pro WiFi 6 Mini Mesh System

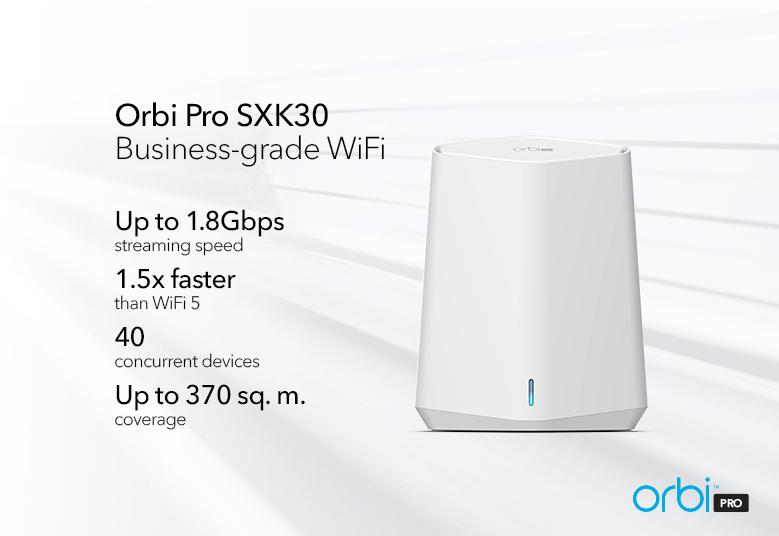

Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.

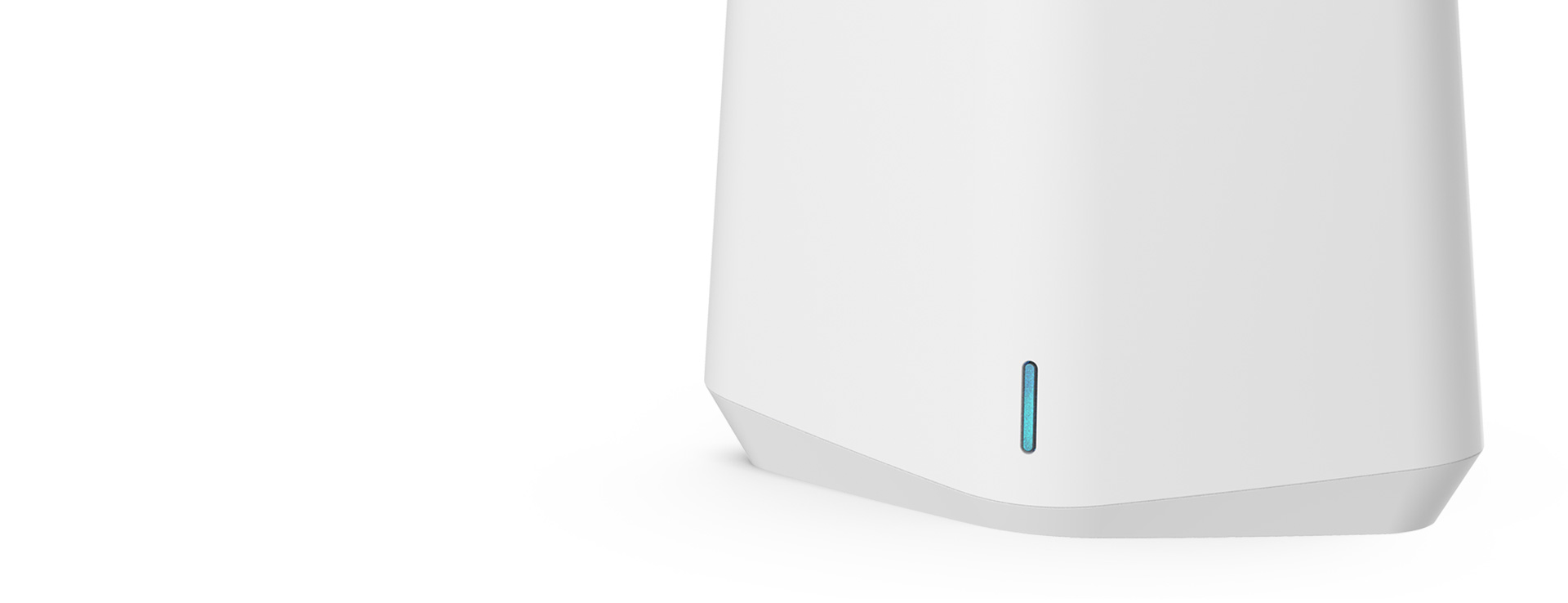

MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK
WORK
FROM HOME
CONTROL

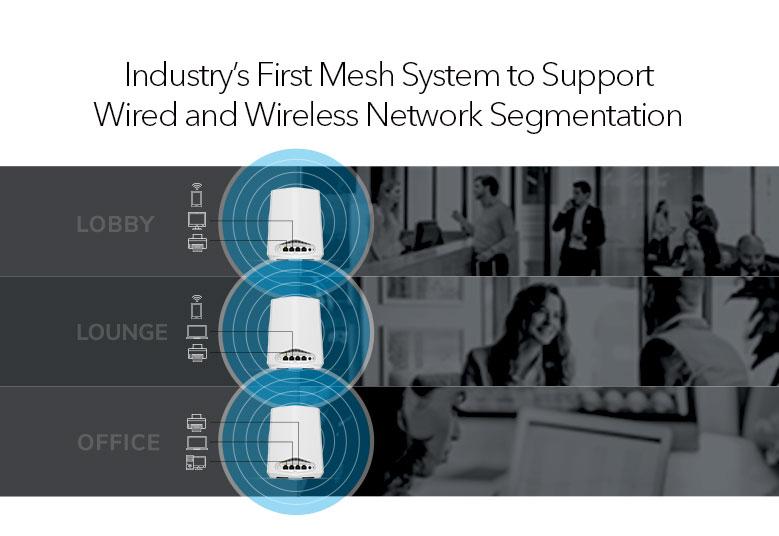

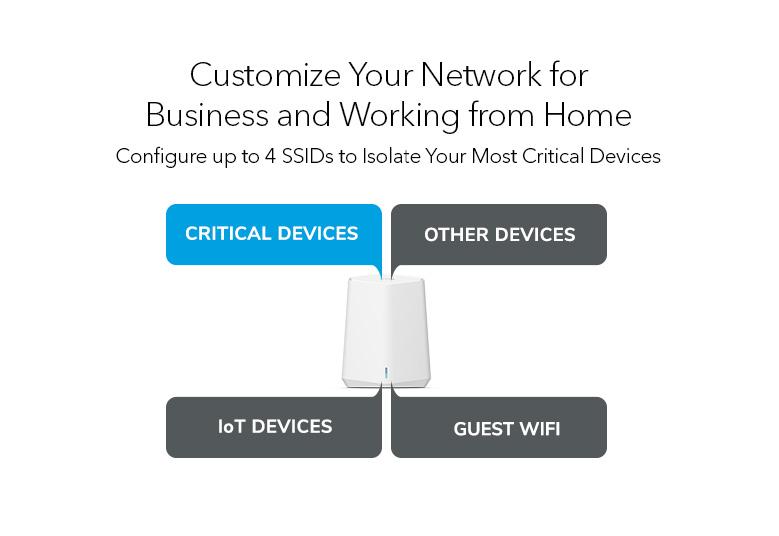

Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.
SMALL
BUSINESS
CONTROL
Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimizing WiFi performance for everyone’s needs.

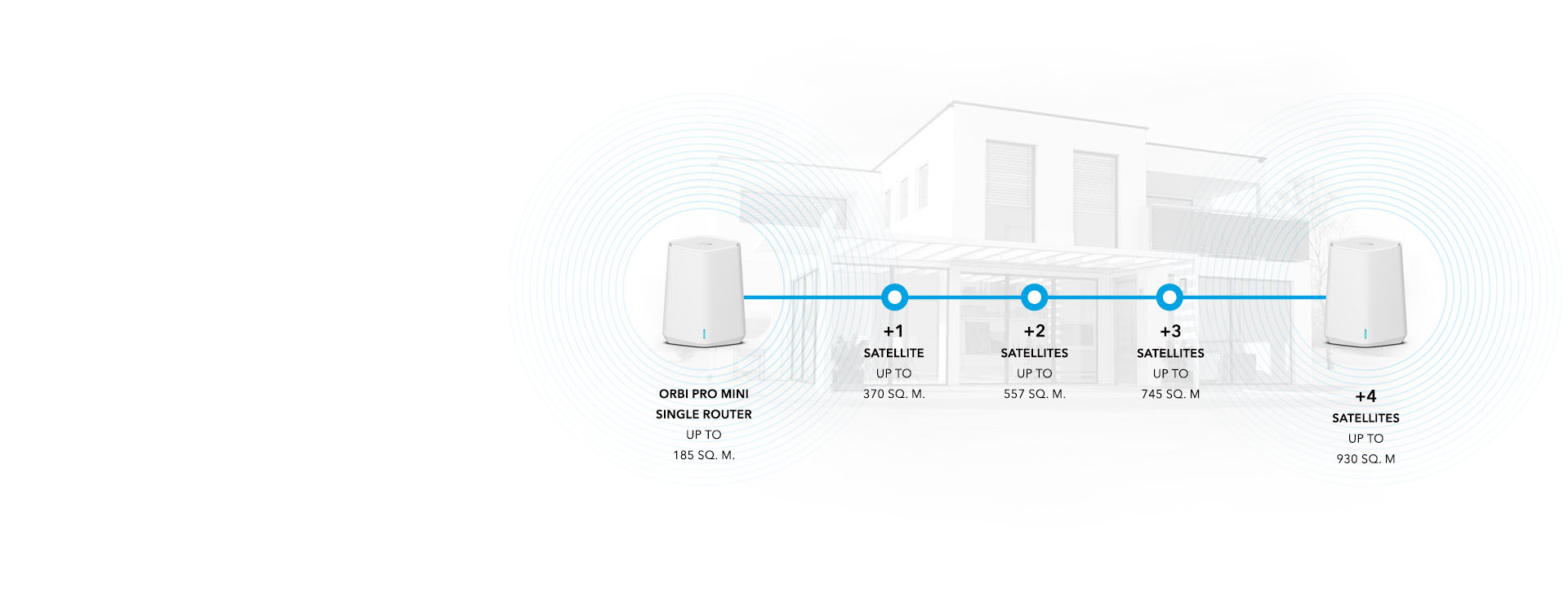

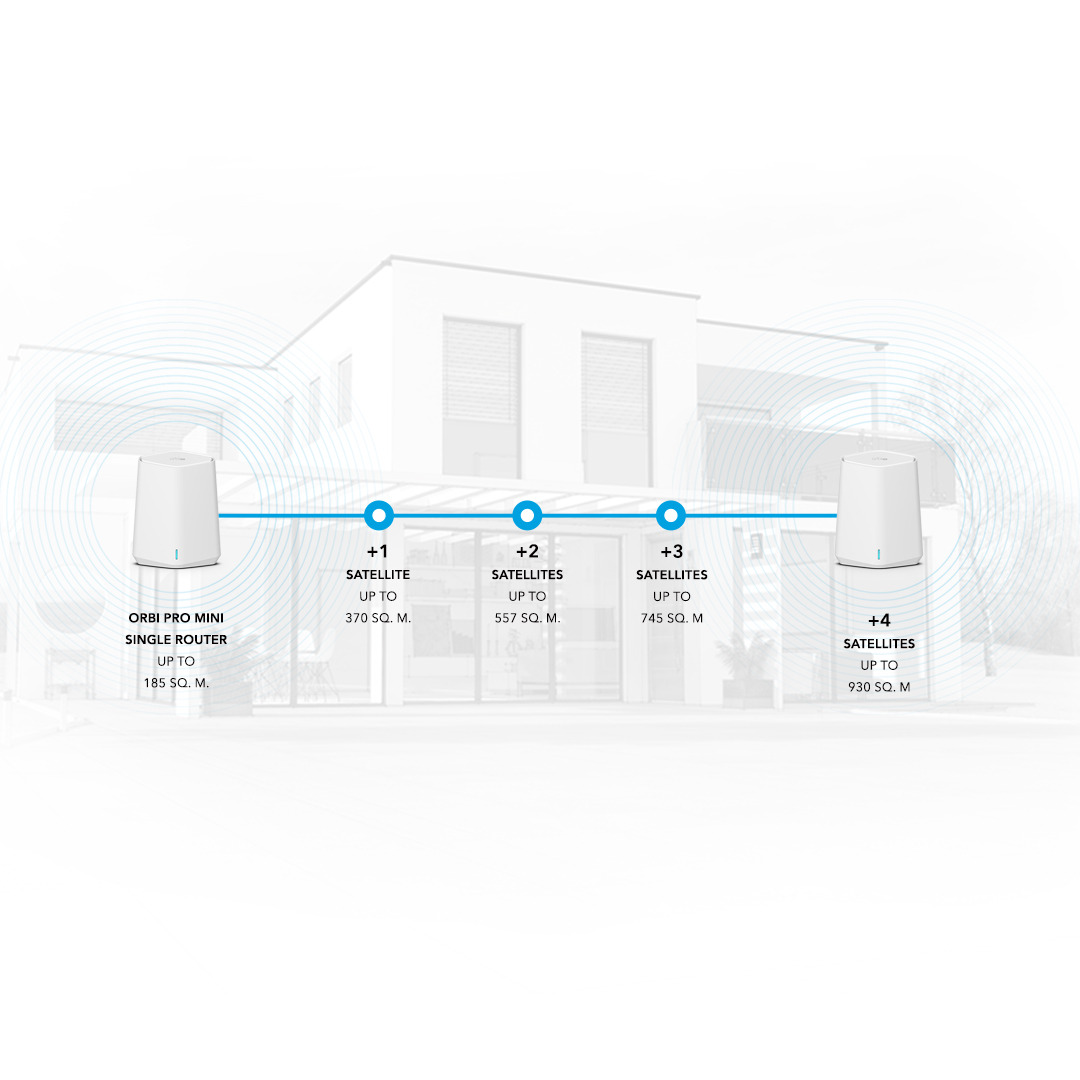

EXPANDABLE
AS YOUR
NEEDS GROW
Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 185 sq. m. (sold separately).

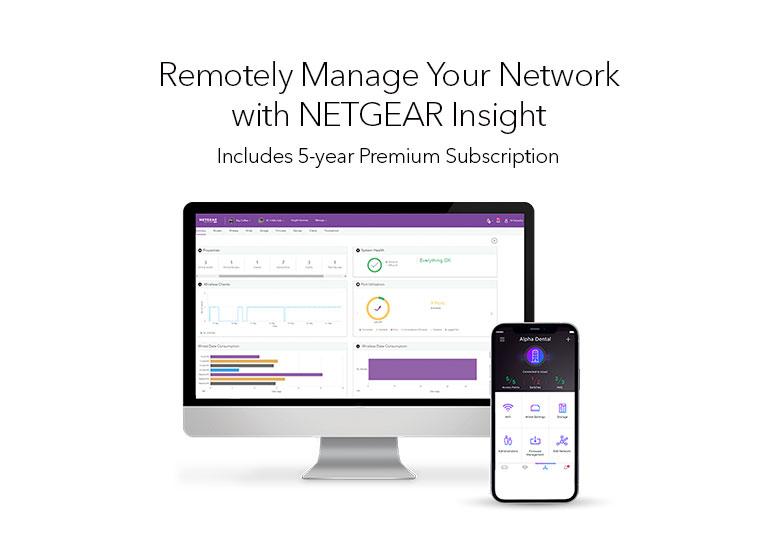

NETGEAR
INSIGHT
MANAGEMENT
Manage locally or remotely
through the Cloud for simple
yet powerful control of your
network anytime, anywhere.
One-Step VPN Connectivity for your Business
Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*
*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.
Technical Specifications

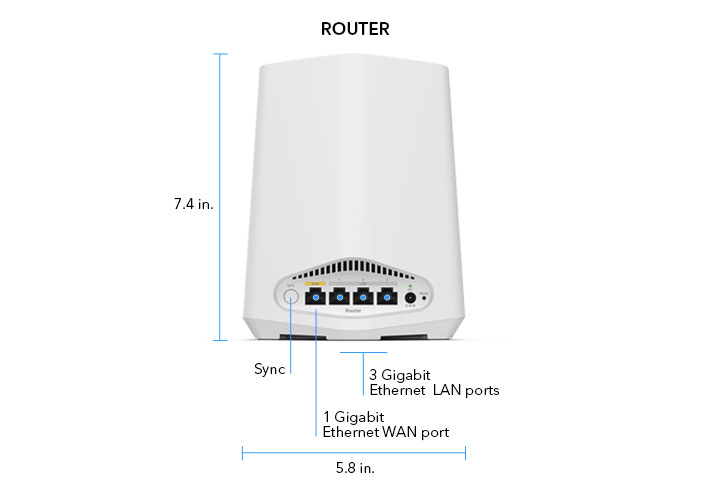

- Dimensions: 5.8 x 2.7 x 7.4in (148 x 68 x 189mm) each
- Weight: 1.06lb (0.48kg) each
- Orbi Pro WiFi 6 Mini Dual-band AX1800 Router and WiFi 6 Mini Dual-band AX1800 Satellite (1,200 + 600) Mbps
- Simultaneous Dual-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Two (2) high-performance antennas with high-power amplifiers each
- Explicit Beamforming for 2.4GHz and 5GHz bands
- Integrated Gigabit Smart Ethernet Switch for business grade security and applications
- 802.3Q VLAN
- Access Control
- MU-MIMO capable for simultaneous data streaming on multiple devices

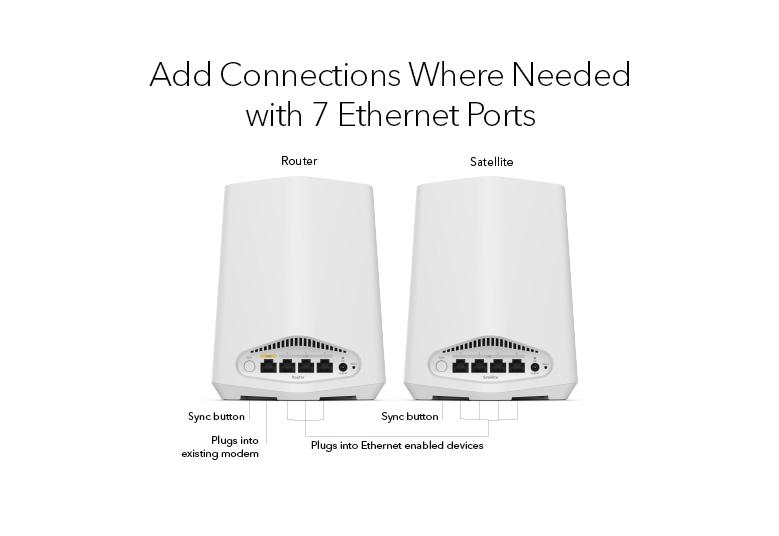

- Ethernet Ports – Orbi Pro WiFi 6 Mini Router: One (1) Gigabit Ethernet WAN port, Three (3) Gigabit Ethernet LAN ports

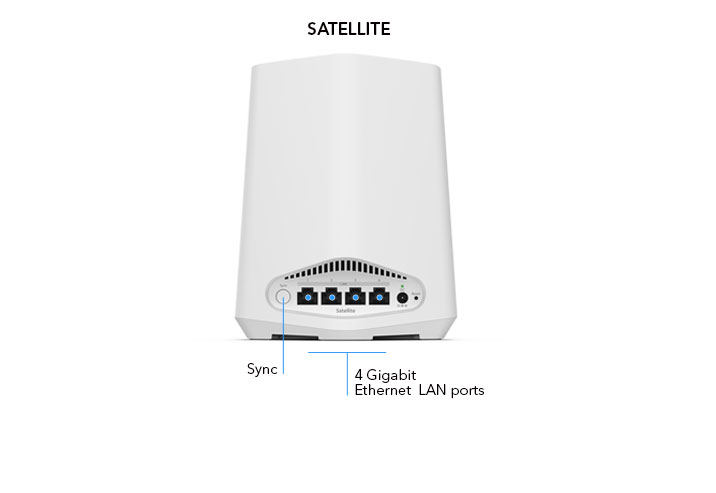

- Ethernet Ports – Orbi Pro WiFi 6 Mini Satellite, Four (4) Gigabit Ethernet LAN ports
- Insight : Insight App - Secured cloud and local management
Third party support : Domotz
- Orbi Pro WiFi 6 Mini Dual-band AX1800 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- 5-year limited hardware warranty
- ProSUPPORT OnCall 24x7 Service Packs3 SXK30 Router + 1x Satellite PMB0312-10000S (1 year)
- Insight : 1-year subscription included
- Support
- One (1) Orbi Pro WiFi 6 Mini Router (SXR30)
- One (1) Orbi Pro WiFi 6 Mini Satellite (SXS30)
- Two (2) wall mounts with screws
- One (1) 2m Ethernet cable
- Two (2) 12V/3.5A power adapters (varies based on region)
- Installation guide
Low Resolution Image
Orbi Pro Family Comparison
SXK30 Orbi Pro WiFi 6 Mini |
SXK80 Orbi Pro WiFi 6 |
SRK60 Orbi Pro |
|
|---|---|---|---|
|
WiFi Speed |
WiFi Speed WiFi 6 – AX1800 (Up to 1.8 Gbps) |
WiFi Speed WiFi 6 - AX6000 (Up to 6.0 Gbps) |
WiFi Speed WiFi 5 - AC3000 (Up to 3.0 Gbps) |
|
WiFi Configuration |
WiFi Configuration Dual-Band |
WiFi Configuration Tri-Band |
WiFi Configuration Tri-Band |
|
Physical Specifications |
Physical Specifications Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb |
Physical Specifications Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb |
Physical Specifications Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb |
|
# of Concurrent Users |
# of Concurrent Users 40 |
# of Concurrent Users 80 |
# of Concurrent Users 40 |
|
Ideal Use |
Ideal Use Small Business and SOHO |
Ideal Use SOHO and Small Business |
Ideal Use SOHO |
|
WiFi Coverage |
WiFi Coverage Up to 370 sq. m. |
WiFi Coverage Up to 557 sq. m. |
WiFi Coverage Up to 465 sq. m. |
|
Dedicated Wireless Backhaul |
Dedicated Wireless Backhaul No |
Dedicated Wireless Backhaul Yes |
Dedicated Wireless Backhaul Yes |
|
Multi-Gig Port 2.5 |
Multi-Gig Port 2.5 No |
Multi-Gig Port 2.5 Yes |
Multi-Gig Port 2.5 No |
|
Integrated Plus Switch with VLANs |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs Yes |
Integrated Plus Switch with VLANs No |
|
Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
Remote Management Insight Remote Management |
