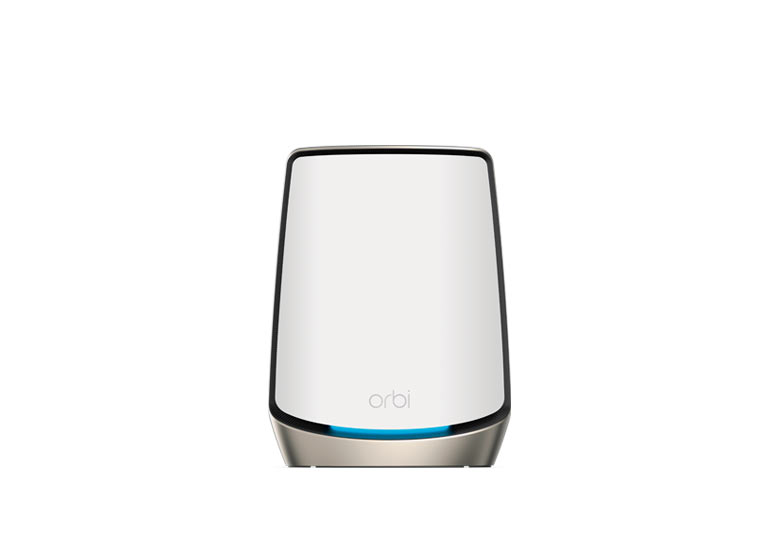

NETGEAR Orbi RBS860 WiFi 6 Whole Home Mesh Add on Satellite - White Edition
NETGEAR Orbi RBS860 WiFi 6 Whole Home Mesh Add on Satellite - White Edition

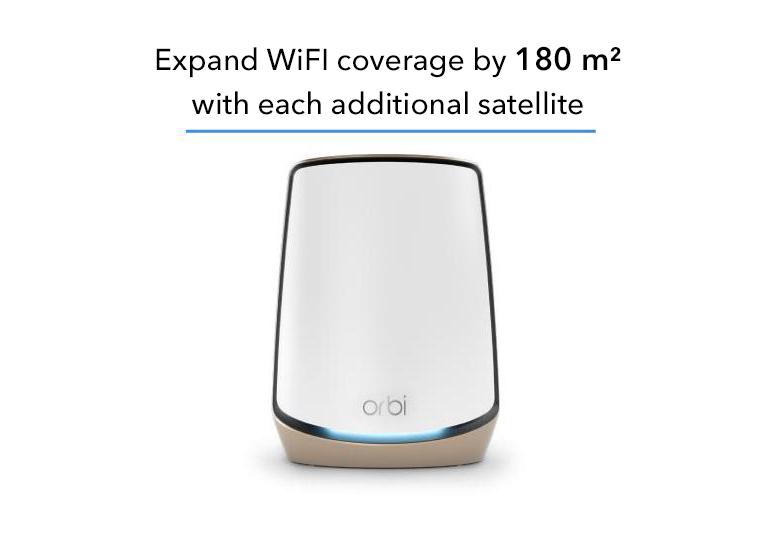

up to 180 m²
1 / 6
up to 180 m²
up to 180 m²
Buy upgrade or replacement WiFi products from NETGEAR
Get help from an official NETGEAR representative
Search, ask, and find answers from other NETGEAR users in the community
Finding the perfect Orbi is easy
With a few simple questions, we can help you discover the right speed, coverage, and WiFi technology for your needs
Product Specifications
| Orbi WiFi 6 Satellites (RBS860) | 1 |
| 19V/3.16A power adapter | 1 |
| Quick Start Guide | 1 |

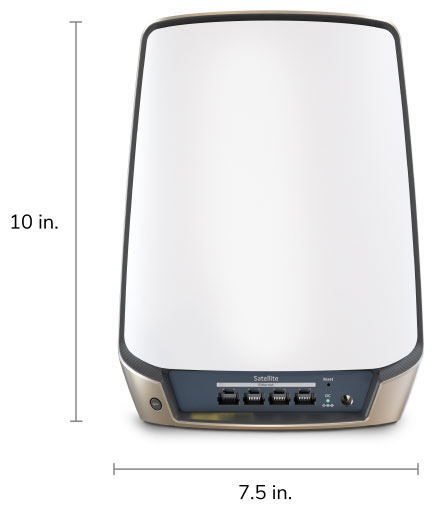

| Height | 10 inches (254mm) |
| Width | 7.5 inches (190.5mm) |
| Depth | 2.8 inches (71.12mm) |
| Weight | 2.86 lbs (1.29kg) |
| Total WiFi Coverage | 2,700 sq. ft. |
| Requirements | High-speed internet connection to existing modem or gateway. Orbi Router (RBR860) -- SOLD SEPARATELY |
SATELLITE
| WiFi Coverage | 2,700 sq. ft. |
| Speed | AX6000 (2400 + 2400 + 1200Mbps)† |
| Simultaneous Tri-Band WiFi with dedicated backhaul | Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support |
| Processor | Quad-core 2.2GHz processor |
| Memory | 512MB NAND Flash and 1GB RAM |
| Antenna | Eight (8) high-performance internal antennas with high-power amplifiers |

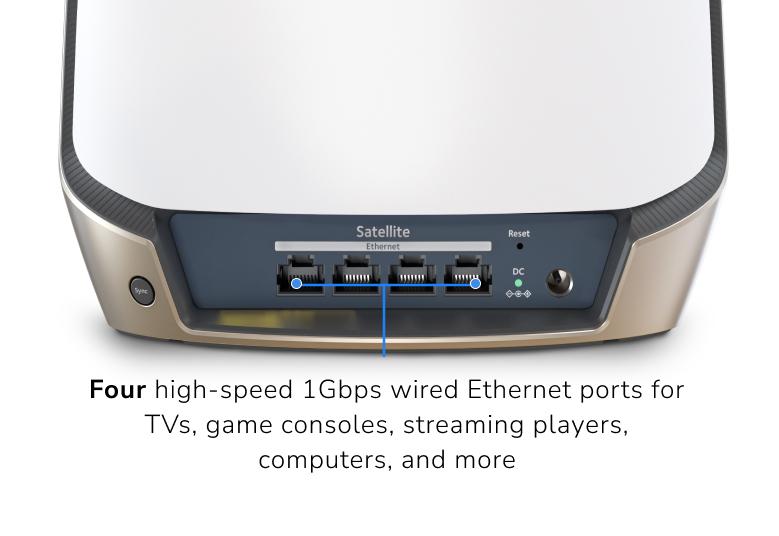

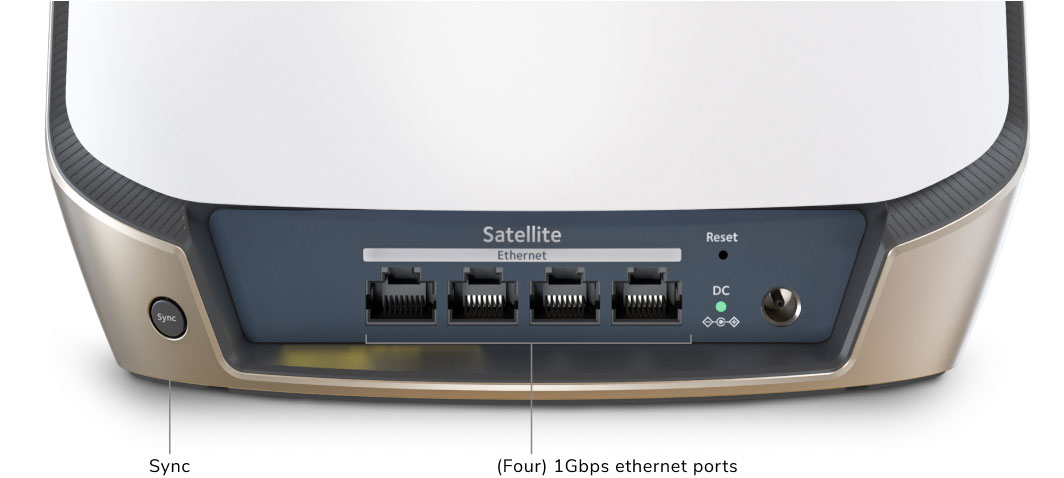

| Ports | Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports each |
| Standards-based WiFi Security | 802.11i, 128-bit AES encryption with PSK |
| Guest WiFi Network | Easy to setup separate & secure Internet access for guests |
| NETGEAR 1-year limited warranty (valid only if purchased from a NETGEAR authorized reseller) | Extend your warranty and technical support within 90 days of product purchase (US only) Learn More |
| 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller) | Learn More |
Never sacrifice speed
NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.
Bigger means better coverage

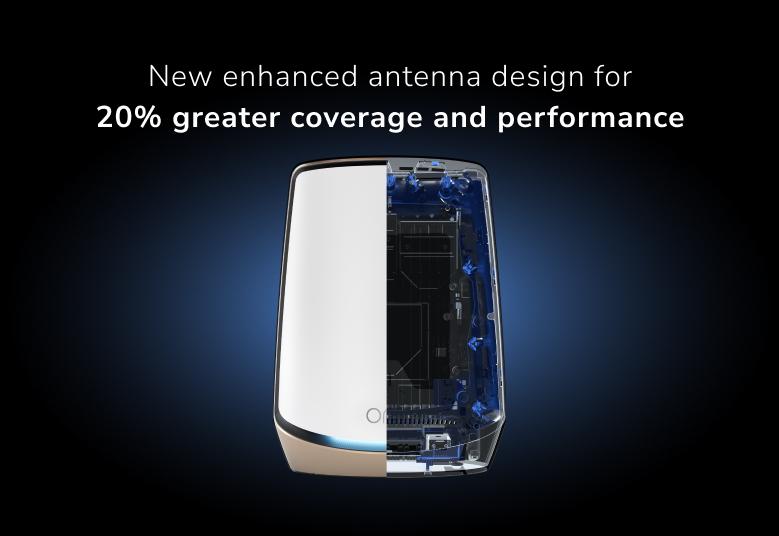

Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi across the whole home. The Orbi 860 Series' all-new antenna upgrades deliver a stunning 20% boost in performance and coverage from the previous generation.
Connect more devices than ever
Orbi WiFi 6 mesh systems are supercharged for today’s data-intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.
Easy setup and management
The Orbi app makes it simple to install your Orbi and get it up and running in less than 15 minutes. Add Orbi Satellites to your system with just the push of a button. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider.
Why buy directly from NETGEAR?
Footnotes
† Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.
†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.
‡ Compared to RBK853 throughput improvement at maximum range.
