NETGEAR With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places. SXR80 SXR80-100EUS SXR80-100EUS

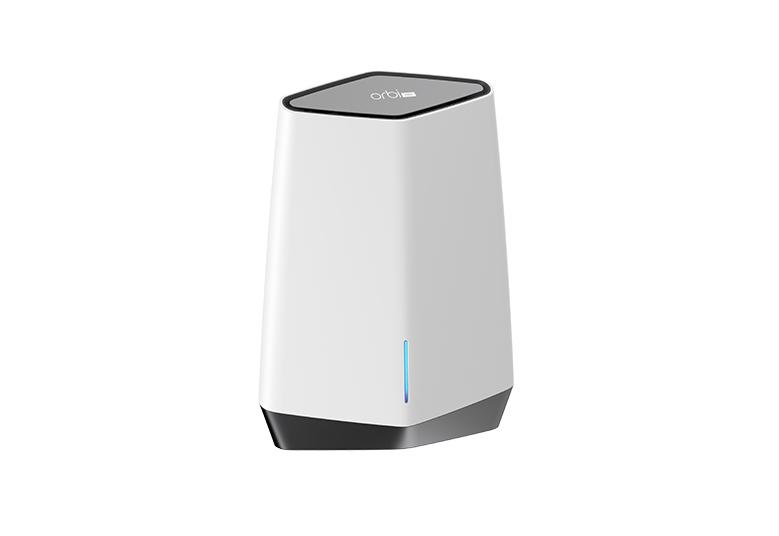

AX6000 WiFi Mesh Router (SXR80) armor

Tri-Band Orbi Pro WiFi 6 AX6000 WiFi Router (SXR80)armor

With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.

AX6000 WiFi Mesh Router (SXR80)

Tri-Band Orbi Pro WiFi 6 AX6000 WiFi Router (SXR80)armor

With the Orbi Pro WiFi 6 Tri-Band WiFi Router, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.

Business-Minded WiFi
All the business features you need for fully secure, fast WiFi
Easy Local Installation
Connect to your existing cable modem to set up and customize in minutes through the local UI

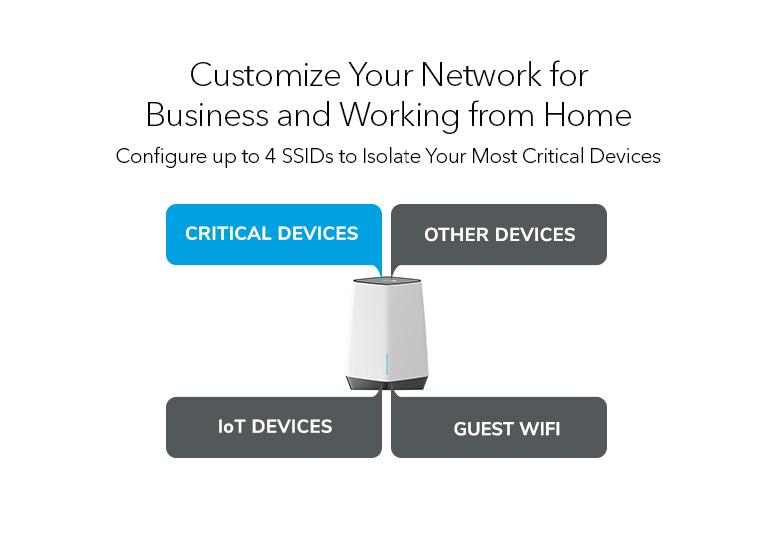

Securely Share your WiFi
Guests can connect to a dedicated SSID separate from staff use. Deploy up to 4 different SSIDs.

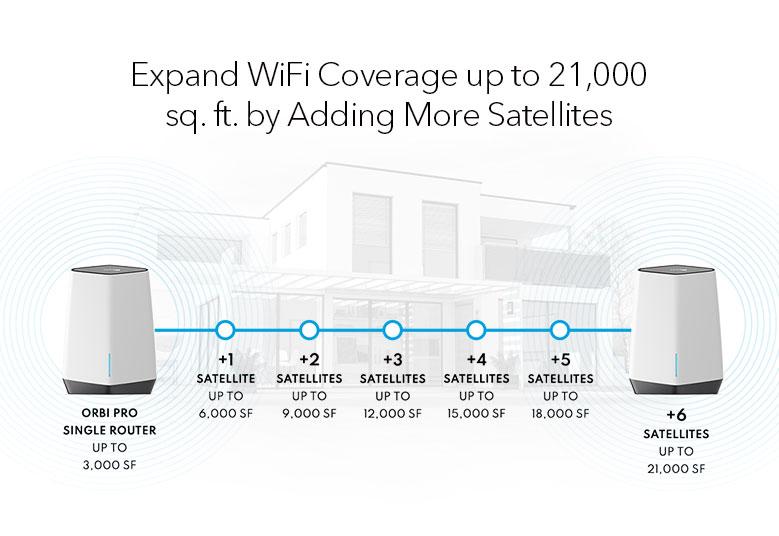

Grows with Your Business
Connect additional satellites with or without wires to extend your coverage indoors and outdoors by 3,000 sq. ft.
Content Filtering
Eliminate the risk of losing business-critical information and protect your employees, guests and customers from malicious websites with a premium NETGEAR Insight add-on service
NETGEAR Insight Services
Further enhance your network management and security with NETGEAR Insight advanced add-on services. Learn more here

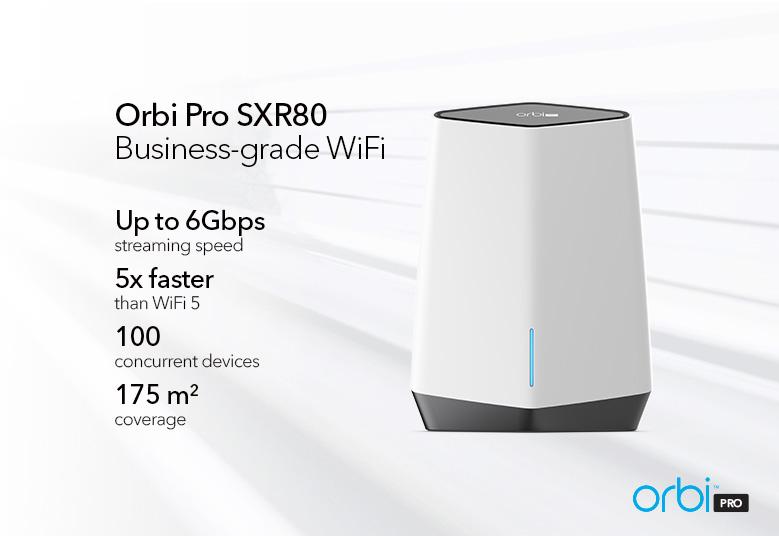

Great performance

100% more throughput than WiFi 5 Orbi Pro - AX6000 vs. AC3000

More capacity

4x more client device handling for less congestion and simultaneous WiFi 6 streaming, file transfer, and browsing on more devices.

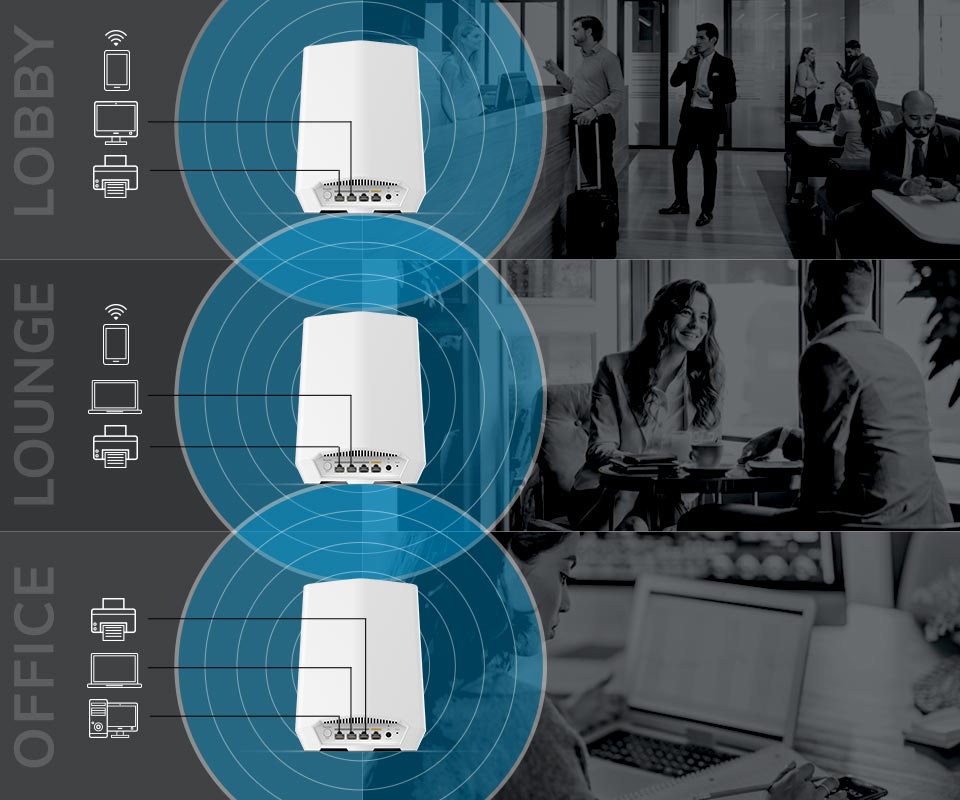

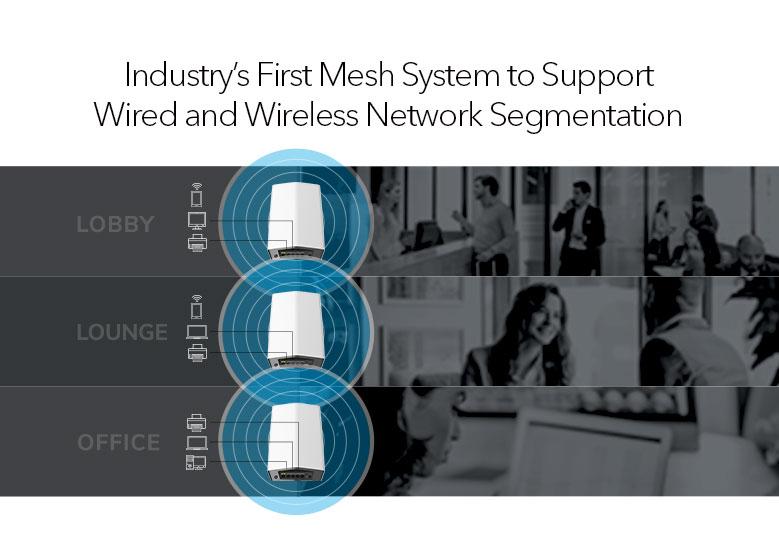

Secure WiFi zones

Supports WPA3 wireless security protocols and includes VLAN management and client separation enabled by VLAN-SSID tie-in

Integrated Plus Switch
Integrated NETGEAR Plus Switch offering VLAN and access control capabilities to support business class network security and management
Tri-band WiFi

Orbi Pro establishes a dedicated connection between units, maximizing internet speeds

Daisy Chain

Satellites automatically connect to the router in the most efficient way

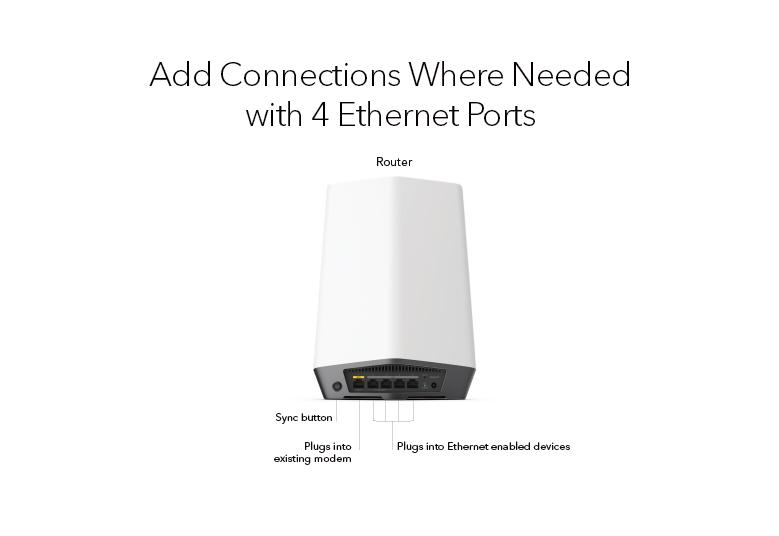

Wired or Wireless

Use the 4 Ethernet ports to connect to PoS, printers, IP phones, digital billboards, and more

Maintain from Anywhere

Manage your Orbi Pro directly from your phone with the NETGEAR Insight app

Wall and Ceiling Mounts
Mount out of reach or in the most convenient locations.

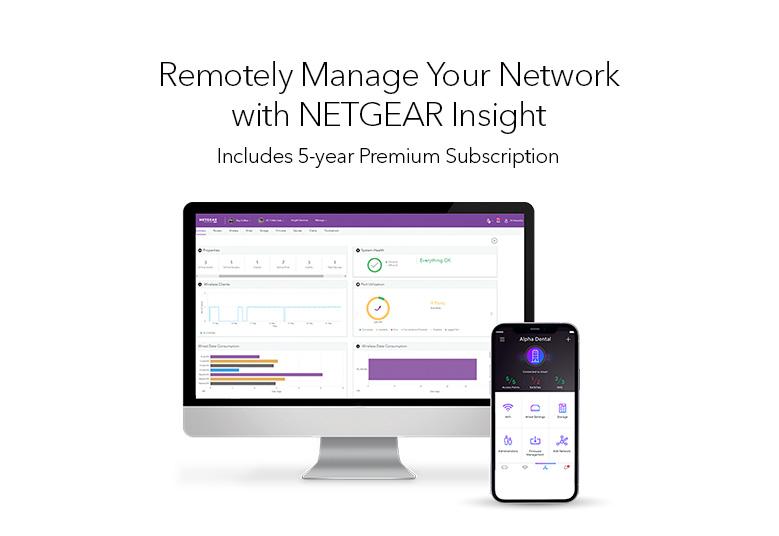

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Technical Specifications

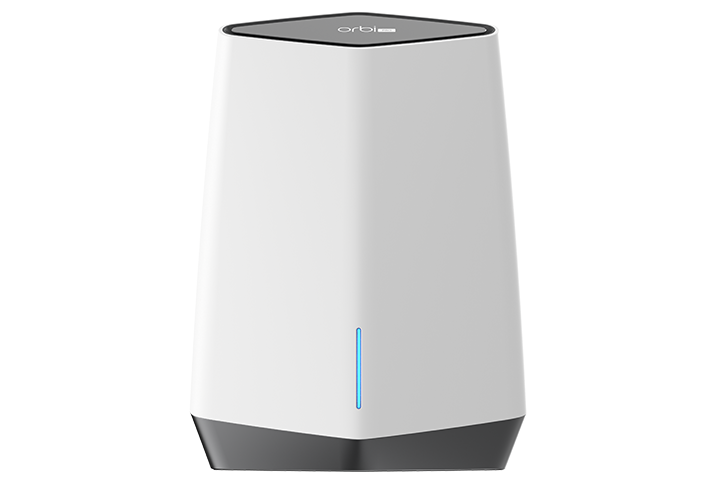

Everest_SRK80_PDP_Tech-Specs-Image-1

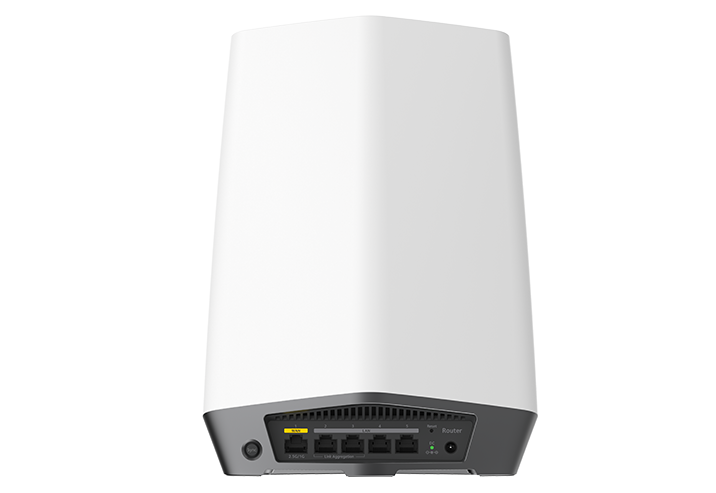

Everest_SRK80_PDP_Tech-Specs-Image-2
  • Orbi Pro WiFi 6 Router (SXR80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing Orbi Pro WiFi 6 Router 3. Use NETGEAR Insight® app with an iOS or Android smartphone for easy setup
  • WiFi Technology : (2,400 + 2,400 + 1,200) Mbps Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Ports – Orbi Pro WiFi 6 Router : One (1) Gigabit or 2.5 Gigabit Ethernet WAN or LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices), Flexible VLAN configuration on all four (4) SSID WiFi networks, Client isolation by default on Guest SSID and configurable on other SSIDs, WPA/WPA2/WPA3 support
  • Insight : Insight App - Secured cloud and local management
  • Local Admin : Local Admin UI available for extensive feature setting and maintenance
  • Compatibility with Orbi Home : Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • One (1) Orbi Pro WiFi 6 Router (SXR80)
  • One (1) wall mounts with screws
  • One (1) 2m Ethernet cable
  • One (1) 12V/3.5A power adapters
  • Installation guide

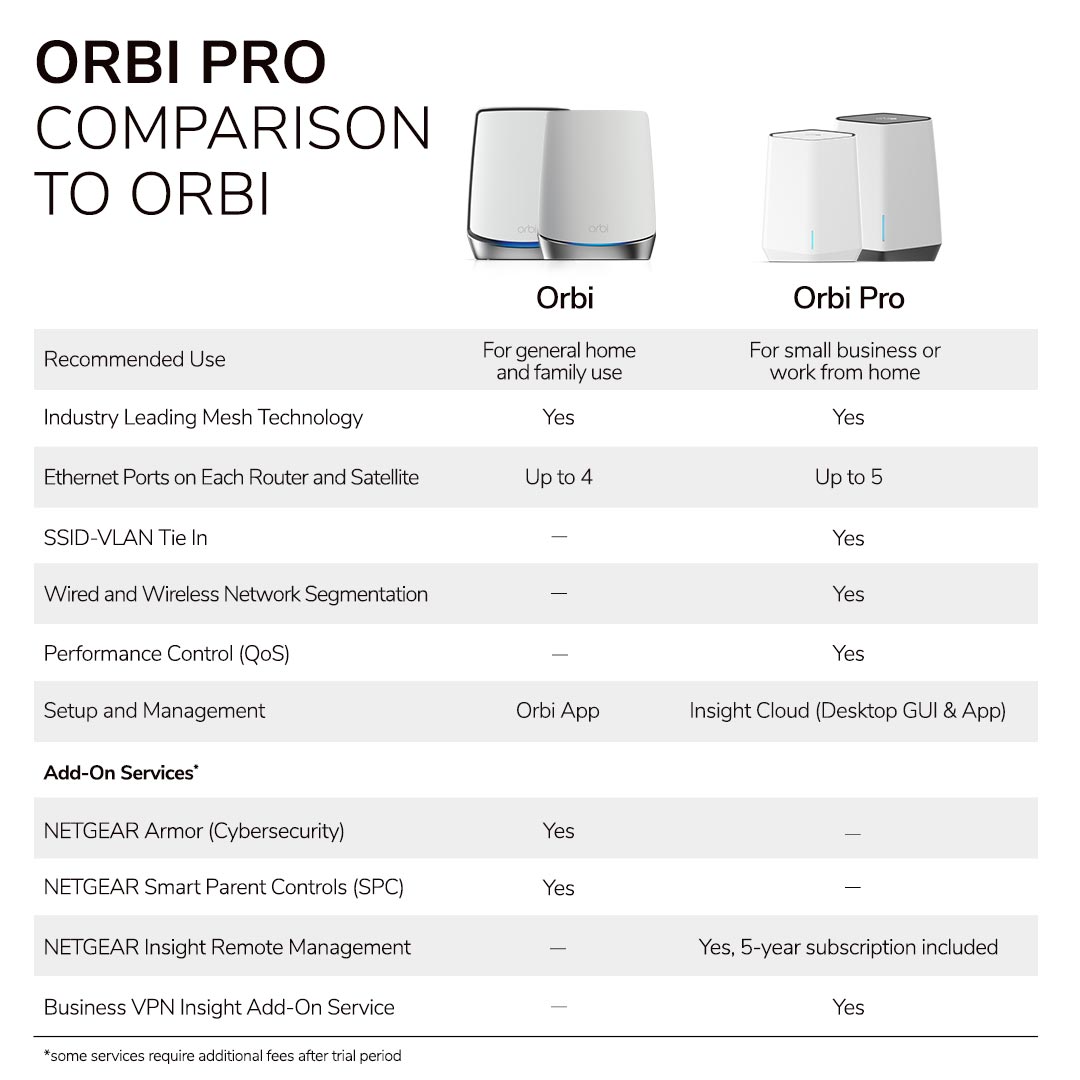

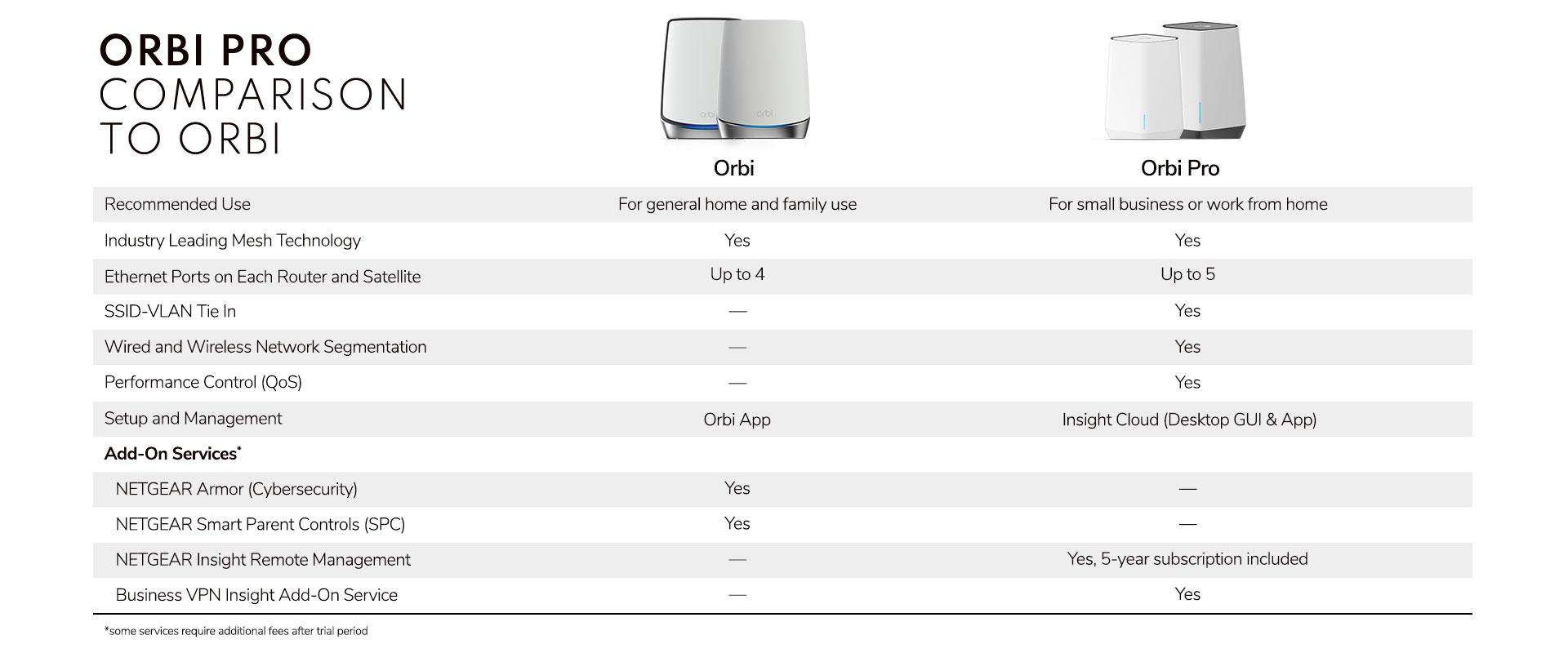

Orbi Pro Family Comparison

SXK30 Orbi Pro WiFi 6 Mini

SXK80 Orbi Pro WiFi 6

SRK60 Orbi Pro

WiFi Speed

WiFi Speed

WiFi 6 – AX1800 (Up to 1.8 Gbps)

WiFi Speed

WiFi 6 - AX6000 (Up to 6.0 Gbps)

WiFi Speed

WiFi 5 - AC3000 (Up to 3.0 Gbps)

WiFi Configuration

WiFi Configuration

Dual-Band

WiFi Configuration

Tri-Band

WiFi Configuration

Tri-Band

Physical Specifications

Physical Specifications

Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb

Physical Specifications

Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb

Physical Specifications

Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb

# of Concurrent Users

# of Concurrent Users

40

# of Concurrent Users

80

# of Concurrent Users

40

Ideal Use

Ideal Use

Small Business and SOHO

Ideal Use

SOHO and Small Business

Ideal Use

SOHO

WiFi Coverage

WiFi Coverage

Up to 4,000 sq. ft.

WiFi Coverage

Up to 6,000 sq. ft.

WiFi Coverage

Up to 5,000 sq. ft.

Dedicated Wireless Backhaul

Dedicated Wireless Backhaul

No

Dedicated Wireless Backhaul

Yes

Dedicated Wireless Backhaul

Yes

Multi-Gig Port 2.5

Multi-Gig Port 2.5

No

Multi-Gig Port 2.5

Yes

Multi-Gig Port 2.5

No

Integrated Plus Switch with VLANs

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

No

Remote Management

Remote Management

Insight Remote Management

Remote Management

Insight Remote Management

Remote Management

Insight Remote Management
