NETGEAR M4100-50G-POE+ is a 48 x 1000Base-T PoE+ Layer 2+ switch with 2 x 1000Base-T and 4 shared SFP, internal PSU with RPS/EPS and 380W budget with up to 1,440W with EPS M4100-50G-POE+

M4100-50G-PoE+ (M4100-50G-POE+) armor

50x1G PoE+ (380W) and 4xSFP (shared) Managed Switcharmor

M4100-50G-POE+ is a 48 x 1000Base-T PoE+ Layer 2+ switch with 2 x 1000Base-T and 4 shared SFP, internal PSU with RPS/EPS and 380W budget with up to 1,440W with EPS

M4100-50G-PoE+ (M4100-50G-POE+)

50x1G PoE+ (380W) and 4xSFP (shared) Managed Switcharmor

M4100-50G-POE+ is a 48 x 1000Base-T PoE+ Layer 2+ switch with 2 x 1000Base-T and 4 shared SFP, internal PSU with RPS/EPS and 380W budget with up to 1,440W with EPS

Features

Layer 2+ with static routing

M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

L3 fixed routes to the next hop towards the destination network are added to the routing table.

L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)

Engineered for convergence

Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

Advanced classifier-based hardware for L2, L3, L4 security and prioritization

Advanced Multicast filtering with IGMP and MLD snooping and querier modes

High-value performance and IPv6 ready

16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)

High availability and PoE/PoE+ full power capability

Redundant power supply option for uninterruptible operation (RPS)

External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)

Industry Standard Management

Industry standard command line interface (CLI)

Fully functional NETGEAR web interface (GUI)

Industry Leading Warranty

NETGEAR M4100 series is backed by NETGEAR ProSAFE® Lifetime Hardware Warranty†

Also included ProSUPPORT™ Lifetime 24x7 Advanced Technical Support*

Also included Lifetime Next Business Day Hardware Replacement

Technical Specifications

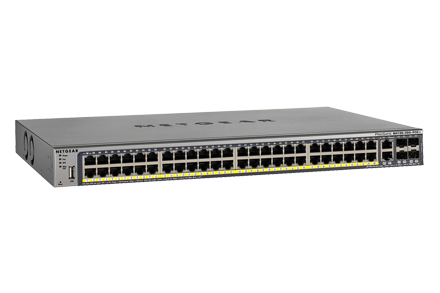

header-M4100-50G-POE-plus-3-4rt-photo-large-1

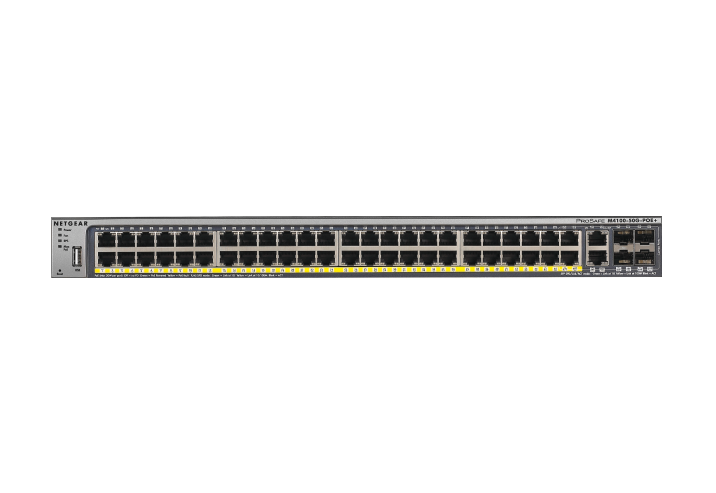

M4100_50G_POE_plus_tech_specs_image_1

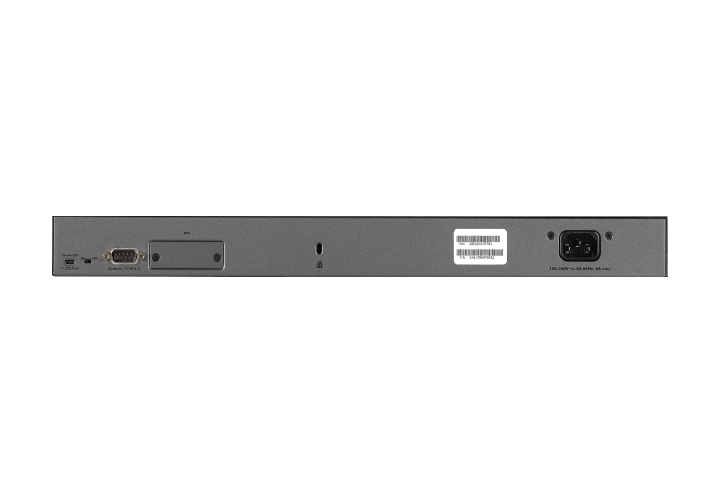

M4100_50G_POE_plus_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Model Description : 48 ports Gigabit PoE+ 802.3at, Layer 2+ software package
  • Ordering Number : GSM7248P
  • RJ45 Ports : 50 x 10/100/1000
  • Fiber SFP (100/1000) : 4 x SFP
  • Power over Ethernet (PoE / PoE+) : 48 x PoE+ 802.3at
  • PoE Budget (Watts) : 380W / 1,440W EPS
  • Redundant Power Supply : RPS
  • Powered by PoE+ (Passthrough) : N/A
  • Feature Set : Layer 2+ (static routing)
  • Form Factor : Rack 1U - Standalone
