Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.
MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK
SMALL
BUSINESS
CONTROL

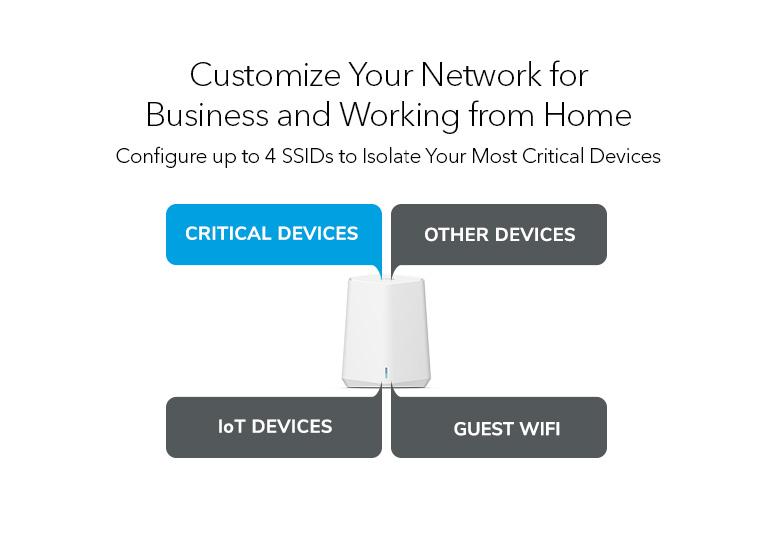

Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimizing WiFi performance for everyone’s needs.
WORK
FROM HOME
CONTROL
Separate your work devices on their own network, for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.

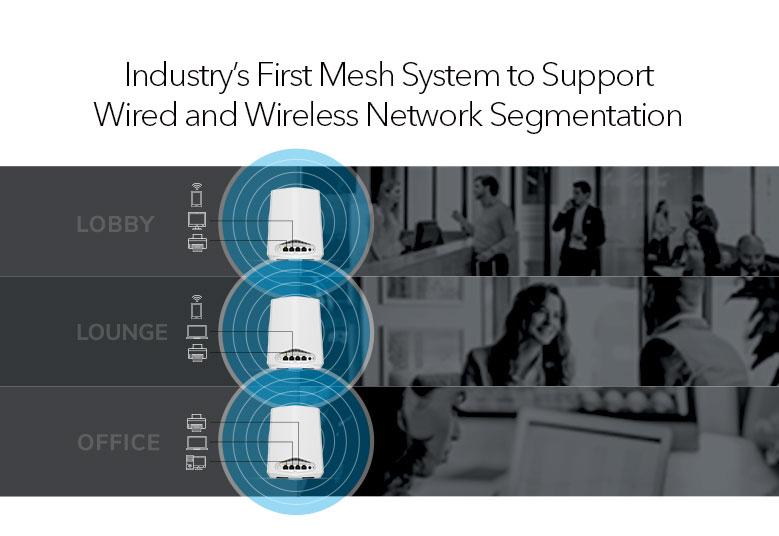

UNRIVALED SECURITY
WITH NETWORK
SEGMENTATION
Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.
WHITE PAPER

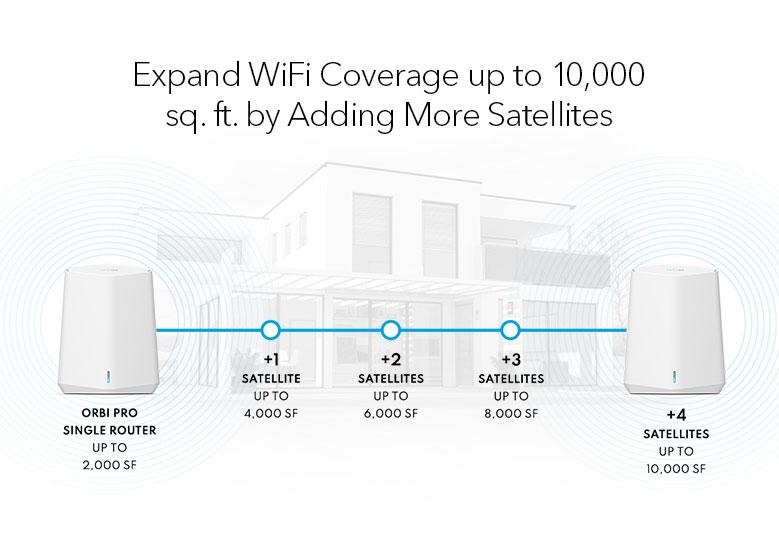

EXPANDABLE
AS YOUR
NEEDS GROW
Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 2,000 sq. ft. (sold separately).
For the correct configuration and number of satellites, consult the KB here
NETGEAR INSIGHT MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.
One-Step VPN Connectivity for your Business
Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*
*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.
Technical Specifications

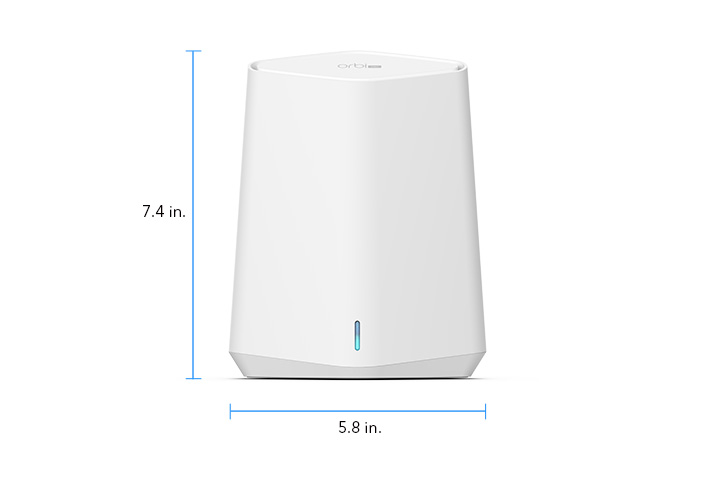

- Dimension : 5.8 x 2.7 x 7.4in (148 x 68 x 189mm)
- Weight : 1.06lb (0.48kg)

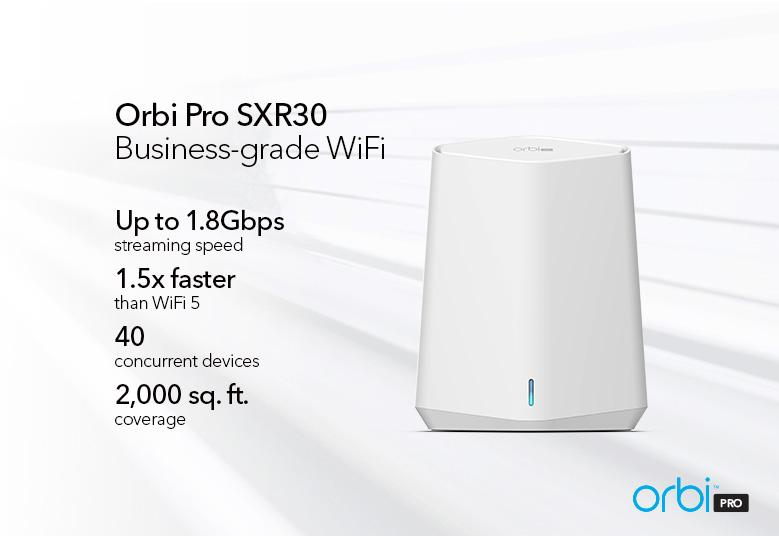

- Orbi Pro WiFi 6 Mini Dual-band AX1800 Router (1,200 + 600) Mbps
- Simultaneous Dual-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Two (2) high-performance antennas with high-power amplifiers each
- Explicit Beamforming for 2.4GHz and 5GHz bands
- Integrated Gigabit Smart Ethernet Switch for business grade security and applications
- 802.3Q VLAN
- Access Control
- MU-MIMO capable for simultaneous data streaming on multiple devices

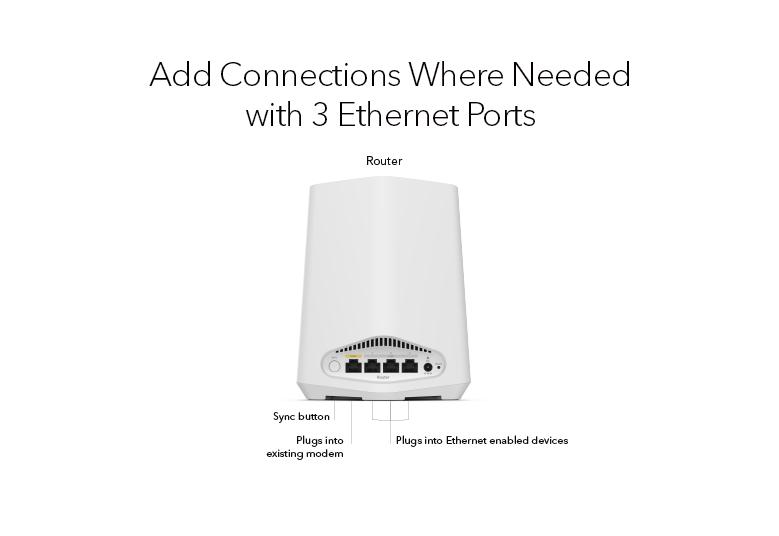

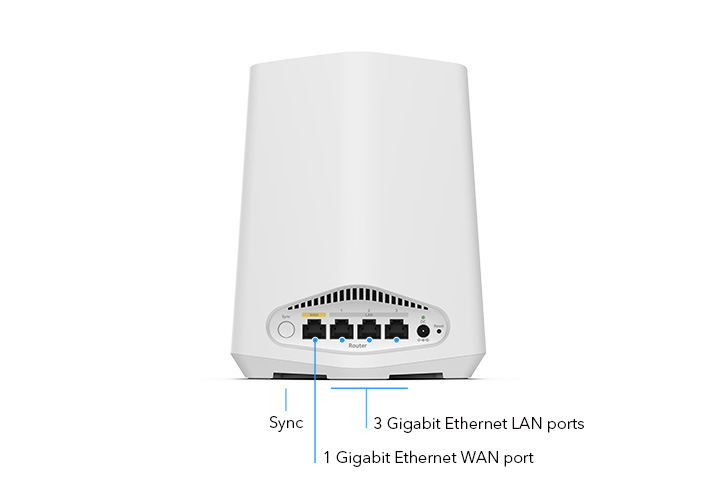

- Ethernet Ports : Orbi Pro WiFi 6 Mini Router One (1) Gigabit Ehternet WAN port, Three (3) Gigabit Ethernet LAN ports
Third party support : Domotz
- Orbi Pro WiFi 6 Mini Dual-band AX1800 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- 5-year limited hardware warranty
- ProSUPPORT OnCall 24x7 Service Packs3 : SXK30 Router + 1x Satellite PMB0312-10000S (1 year)
- Insight : 1-year subscription included
- Support

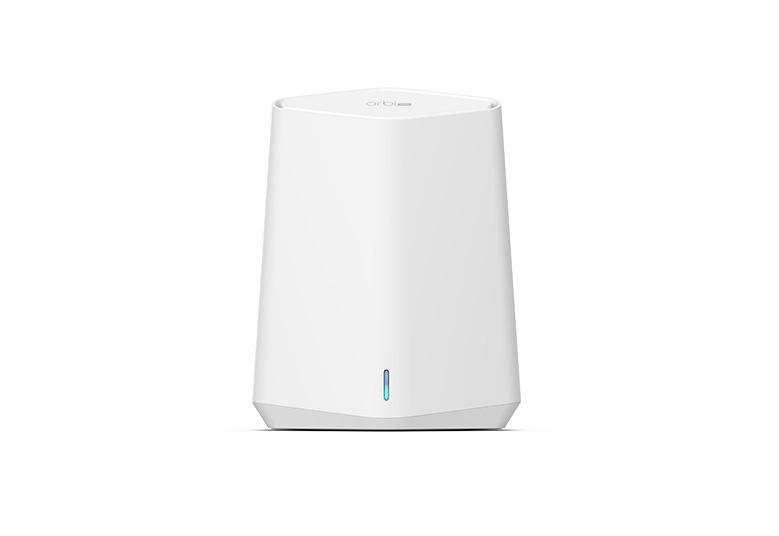

- One (1) Orbi Pro WiFi 6 Mini Router (SXR30)
- One (1) wall mounts with screws
- One (1) 2m Ethernet cable
- One (1) 12V/3.5A power adapters (varies based on region)
- Installation guide
