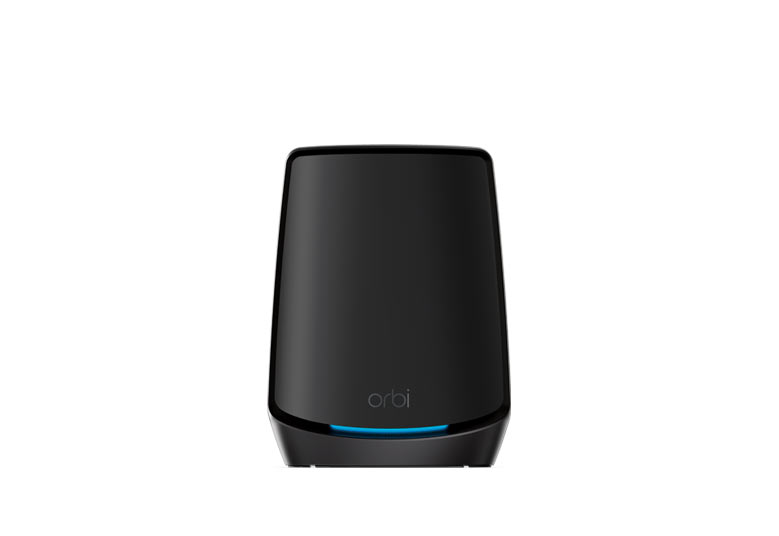

AX6000 WiFi Satellite (RBS860B)
Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps, Black Edition
AX6000 WiFi Satellite (RBS860B)
Orbi 860 Series Tri-Band WiFi 6 Mesh Add-on Satellite, 6Gbps, Black Edition

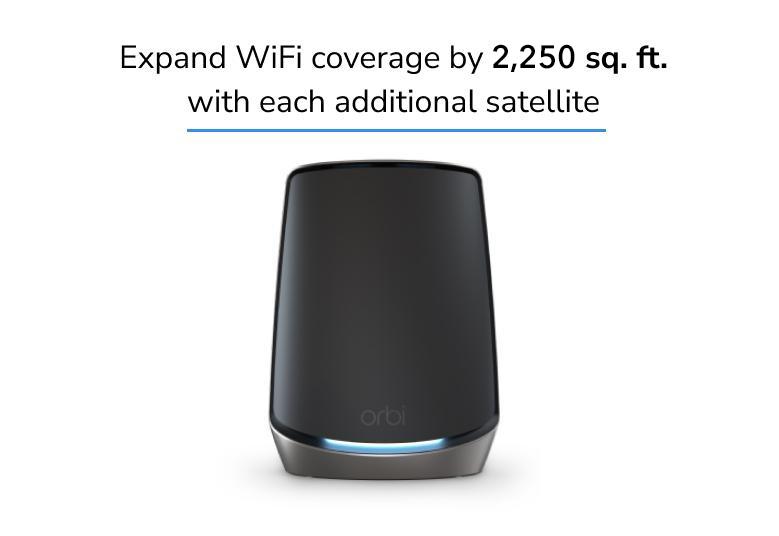

- Extend high-performance Orbi 860 WiFi with up to 2,250 sq. ft. of additional coverage, including front & backyards

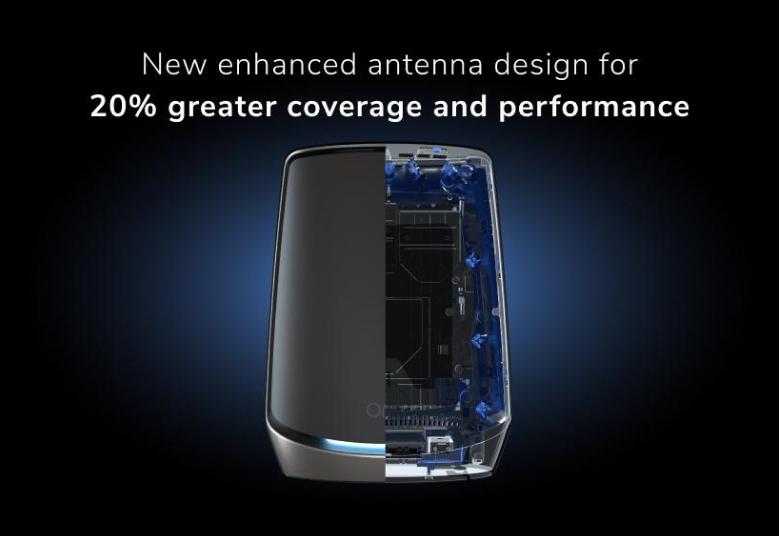

- NEW: Upgraded antenna design boosts WiFi coverage & performance by 20% over previous generation satellites ‡
- Stream 4K/8K movies, host Zoom conferences, make WiFi calls, & keep your security cameras, door locks, laptops, phones, & smart home devices connected with confidence

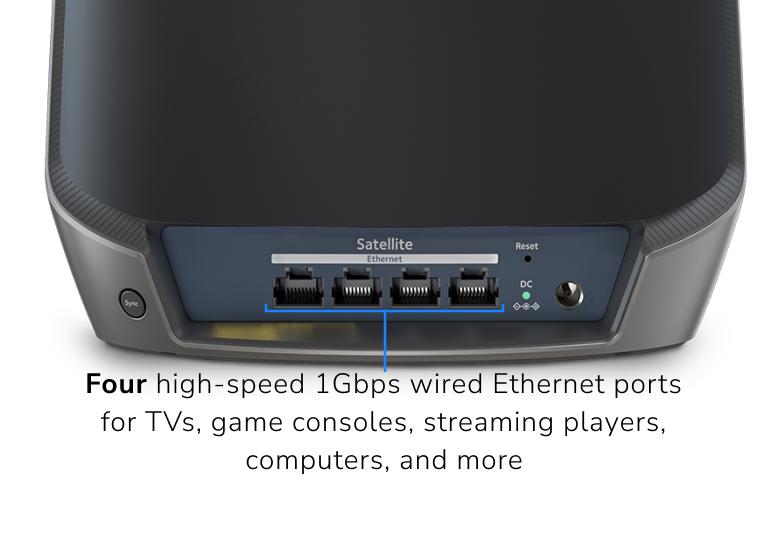

- Four high-speed 1Gpbs† wired Ethernet ports for TVs, game consoles, streaming players, computers, and more
- NETGEAR's patented Tri-Band & unique dedicated backhaul WiFi provides Orbi 860 router-to-satellite communication for max speeds
Product Overview
WiFi 6
Technology
Tri-Band
WiFi
Up to
6Gbps
maximum WiFi speed
Up to
100
concurrent devices
4
1Gbps Ethernet Ports
Satellite
Product Specifications
-
Orbi WiFi 6 Satellites (RBS860B)1
-
19V/3.16A power adapter1
-
Quick Start Guide1
-
Height10 inches (254mm)
-
Width7.5 inches (190.5mm)
-
Depth2.8 inches (71.12mm)
-
Weight2.86 lbs (1.29kg)
-
WiFi Coverage2,250 sq. ft.
-
Requirements
High-speed internet connection to existing modem or gateway.
Orbi Router (RBR860) -- SOLD SEPARATELY
SATELLITE
-
WiFi Coverage2,250 sq. ft.
-
SpeedAX6000 (2400 + 2400 + 1200Mbps)†
-
Simultaneous Tri-Band WiFi with dedicated backhaul
Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
-
ProcessorQuad-core 2.2GHz processor
-
Memory512MB NAND Flash and 1GB RAM
-
AntennaEight (8) high-performance internal antennas with high-power amplifiers
-
PortsFour (4) 10/100/1000Mbps Gigabit Ethernet LAN ports each
-
Standards-based WiFi Security802.11i, 128-bit AES encryption with PSK
-
Guest WiFi NetworkEasy to setup separate & secure Internet access for guests
-
NETGEAR 2-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)
Extend your warranty and technical support within 90 days of product purchase
-
90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
Never sacrifice speed
NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.
Bigger means better coverage
Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi coverage across your entire property - inside and outdoors.
Connect more devices than ever
Orbi WiFi 6 mesh systems are supercharged for today’s data-intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.
Easy setup and management
The Orbi app makes it simple to install your Orbi and get it up and running in less than 15 minutes. Add Orbi Satellites to your system with just the push of a button. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider.
Footnotes:
† Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.
†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.
‡ Compared to RBK853 throughput improvement at maximum range.
