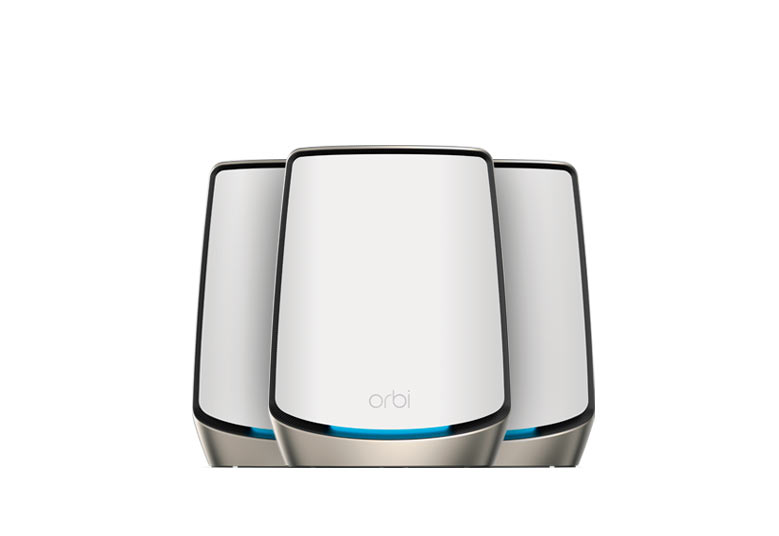

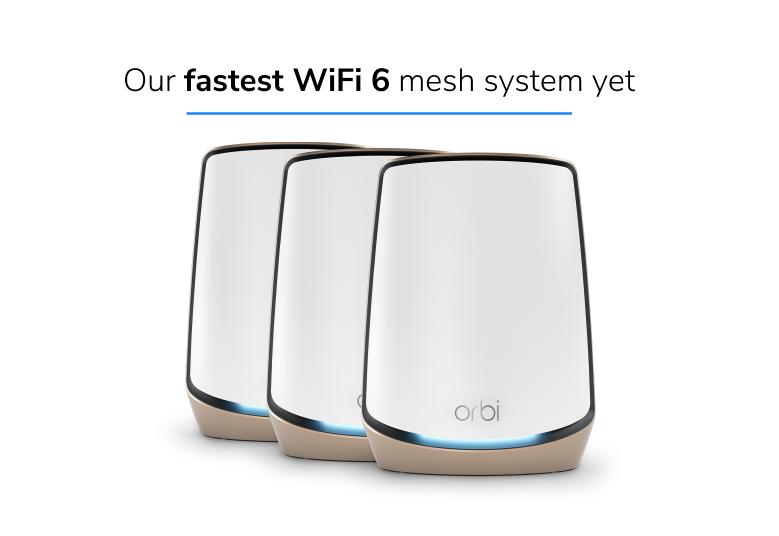

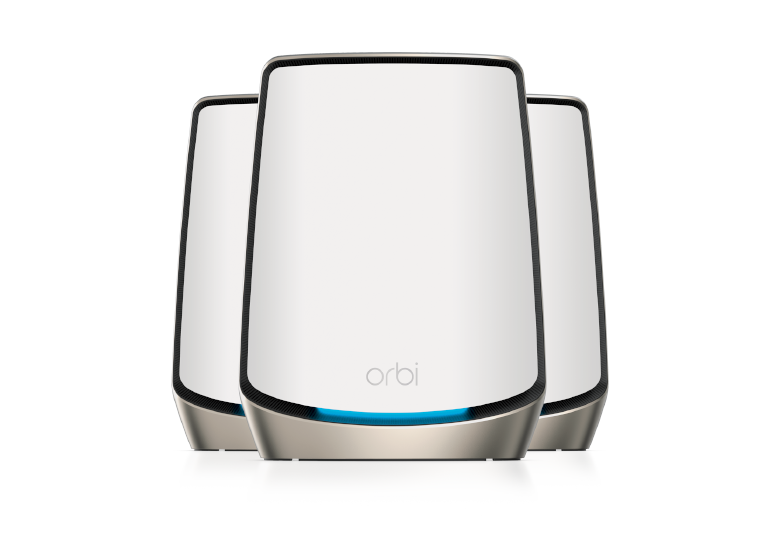

AX6000 Mesh WiFi System (RBK863S)
Orbi 860 Series Tri-Band WiFi 6 Mesh System, 6Gbps, 10 Gig Port, 3-Pack, with 1-year NETGEAR Armor included
AX6000 Mesh WiFi System (RBK863S)
Orbi 860 Series Tri-Band WiFi 6 Mesh System, 6Gbps, 10 Gig Port, 3-Pack, with 1-year NETGEAR Armor included
- High-performance, whole-home WiFi with up to 6Gbps† WiFi speeds & coverage up to 6,750 sq. ft., including front & back yards
- NEW: 10 Gig internet port unleashes the fastest download speeds of today & tomorrow. Connect to the latest cable or fiber Internet service up to 10Gbps††
- NEW: Upgraded, patented antenna design boosts WiFi coverage and performance by 20% over previous generation‡
- Patented & industry unique Tri-Band & Dedicated Backhaul WiFi ensures max speeds for up to 100 connected devices
- NETGEAR® Armor™ software provides an automatic shield of security for your WiFi and connected devices (PC, phone, camera, TV, Echo, etc.) for real-time protection against hackers and added privacy with VPN. 1-year subscription included.1
- Compatible with any internet service provider
What’s New
Compared to the 850 Series
INTERNET PORT
futureproof for the fastest speeds
MORE POWER AND COVERAGE
with enhanced antenna design
OF ADDITIONAL COVERAGE
from the front door to the back garden
Product Overview
WiFi 6
Technology
Tri-Band WiFi
with Dedicated Backhaul
6,750 sq. ft.
WiFi coverage
6Gbps
maximum wireless speed
100
concurrent devices
Router & Satellite
-
Orbi WiFi 6 Router (RBR860S)1
-
Orbi WiFi 6 Satellites (RBS860)2
-
6ft (2m) Ethernet cable1
-
19V/3.16A power adapters3
-
Quick Start Guide1
-
Height10 inches (254mm)
-
Width7.5 inches (190.5mm)
-
Depth2.8 inches (71.12mm)
-
Weight2.86 lbs (1.29kg)
-
Overall WiFi Coverage6,750 sq. ft.
-
RequirementsHigh-speed internet connection to existing modem or gateway
ROUTER
-
WiFi Coverage2,250 sq. ft.
-
SpeedAX6000 (2400 + 2400 + 1200Mbps)†
-
Simultaneous Tri-Band WiFi with dedicated backhaul
Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
-
ProcessorQuad-core 2.2GHz processor
-
Memory512MB NAND Flash and 1GB RAM
-
AntennaEight (8) high-performance internal antennas with high-power amplifiers
-

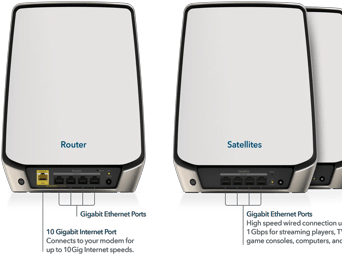

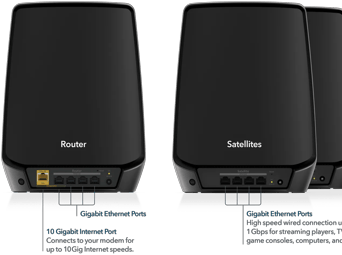

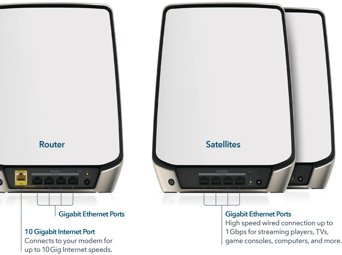

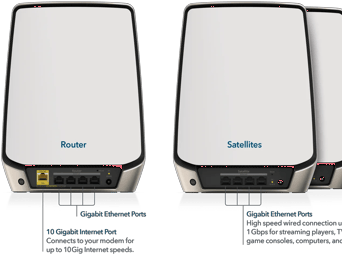

Ports
One (1) 10Gbps Multi-Gigabit Ethernet WAN port
Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports
SATELLITE
-
WiFi Coverage2,250 sq. ft.
-
SpeedAX6000 (2400 + 2400 + 1200Mbps)†
-
Simultaneous Tri-Band WiFi with dedicated backhaul
Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support
Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support
-
ProcessorQuad-core 2.2GHz processor
-
Memory512MB NAND Flash and 1GB RAM
-
AntennaEight (8) high-performance internal antennas with high-power amplifiers
-
Ports(Four) 10/100/1000Mbps Gigabit Ethernet LAN ports each
-
Standards-based WiFi Security802.11i, 128-bit AES encryption with PSK
-
Guest WiFi NetworkEasy to setup separate & secure Internet access for guests
-
NETGEAR Armor™
Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft.
Learn More -
NETGEAR Smart Parental Controls™
Easily manage your kids' time and accessibility online across their connected devices.2
Learn More
-
NETGEAR 2-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)
-
90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
Never sacrifice speed
NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.
Bigger means better coverage
Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi across the whole home. The Orbi 860 Series' all-new antenna upgrades deliver a stunning 20% boost in performance and coverage from the previous generation.
Connect more devices than ever
Orbi WiFi 6 mesh systems are supercharged for today’s data intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.
Easy setup and management
The Orbi app makes it easy to install your Orbi and get it up and running in less than 15 minutes. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider’s equipment.
Secure your network with NETGEAR ArmorTM
You wouldn’t leave your doors unlocked at night. Protect your family’s WiFi with the same level of security with an automatic shield for your connected devices. Get real-time protection against hackers to secure devices like laptops, phones, security cameras, & door locks, and get alerts when sensitive data may be stolen. Enjoy added privacy protection with VPN for secure network access. 1-year subscription included.
Protect your investment with NETGEAR ProSupport
Get total peace of mind that your Orbi is protected for the long run. With NETGEAR ProSupport, you are a VIP. Enjoy 24/7 priority access to tech support from NETGEAR experts, plus accidental damage coverage, and express replacement in the event of an issue.
CONNECTED KIDS ARE PROTECTED TOO
Easily manage kids’ time and accessibility online across all connected devices using Smart Parental Control
Satellite Considerations
Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.
Which Orbi is right for you?
Answer a few questions and we'll find the perfect
solution for your home
Compare Similar Products
RBK863S |

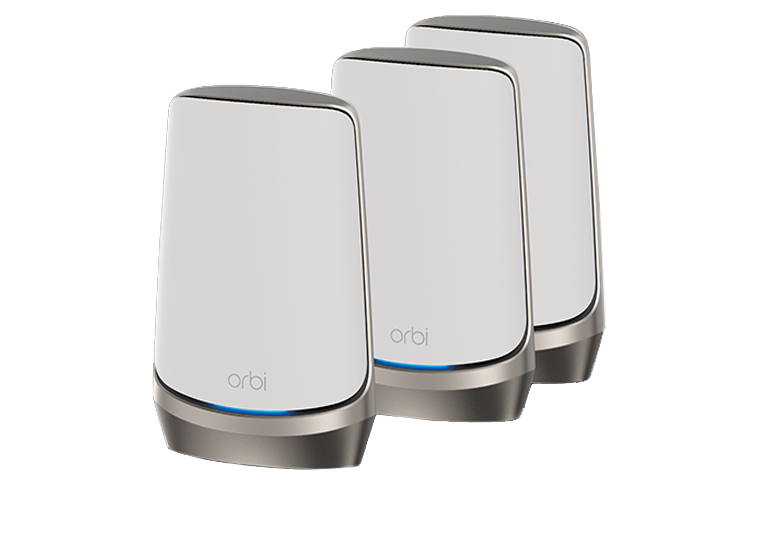

RBKE963 |
|
---|---|---|
Price |
Price |
Price |
WiFi 6 / 6E |
WiFi 6 / 6E WiFi 6 |
WiFi 6 / 6E WiFi 6E |
WiFi Bands |
WiFi Bands Tri-Band |
WiFi Bands Quad-Band |
Max WiFi Speed |
Max WiFi Speed 6 Gbps |
Max WiFi Speed 10.8 Gbps |
Coverage |
Coverage 6,750 sq. ft. |
Coverage 7,500 sq. ft. |
# of Devices |
# of Devices 100 |
# of Devices 200 |
Internet Port Speed |
Internet Port Speed up to 10 Gig |
Internet Port Speed up to 10 Gig |
Dedicated WiFi Backhaul |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Dedicated WiFi Backhaul Dedicated 5GHz 4x4 (80MHz) |
Fronthaul WiFi |
Fronthaul WiFi 5GHz: 4x4 (80MHz); 2.4GHz: 4x4 |
Fronthaul WiFi 6GHz: 4x4 (160MHz), 5GHz: 4x4 (80MHz), 2.4GHz: 4x4 |
Total Wired Ethernet Ports (Router) |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Router) One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) |
Total Wired Ethernet Ports (Each Satellite) Four (4) 1Gbps Gigabit Ethernet LAN ports |
Total Wired Ethernet Ports (Each Satellite) One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports |
