NETGEAR M4100-D12G is a desktop 12 x 1000Base-T Layer 2+ switch with 2 shared SFPs, External fanless PSU and can be powered by PoE+ M4100-D12G GSM5212-100NES GSM5212-100NES

M4100-D12G (M4100-D12G) armor

12x1G and 2xSFP (shared) Managed Switcharmor

M4100-D12G is a desktop 12 x 1000Base-T Layer 2+ switch with 2 shared SFPs, External fanless PSU and can be powered by PoE+

M4100-D12G (M4100-D12G)

12x1G and 2xSFP (shared) Managed Switcharmor

M4100-D12G is a desktop 12 x 1000Base-T Layer 2+ switch with 2 shared SFPs, External fanless PSU and can be powered by PoE+

Features

Layer 2+ with static routing

M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

L3 fixed routes to the next hop towards the destination network are added to the routing table.

L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)

Engineered for convergence

Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

Advanced classifier-based hardware for L2, L3, L4 security and prioritization

Advanced Multicast filtering with IGMP and MLD snooping and querier modes

High-value performance and IPv6 ready

16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)

Powered by PoE+

The M4100-D12G can be powered by PoE as a cost-effective solution when there is no existing electrical wiring or power outlets.

The switch can draw power directly from the wiring closet.

Industry Standard Management

Industry standard command line interface (CLI)

Fully functional NETGEAR web interface (GUI)

Industry Leading Warranty

NETGEAR M4100 series is backed by NETGEAR ProSAFE® Lifetime Hardware Warranty†

Also included ProSUPPORT™ Lifetime 24x7 Advanced Technical Support*

Also included Lifetime Next Business Day Hardware Replacement

Technical Specifications

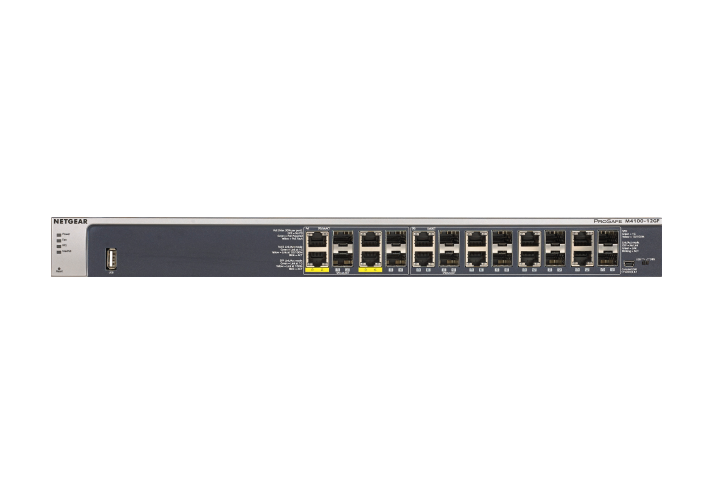

M4100-D12G_tech_specs_image_1

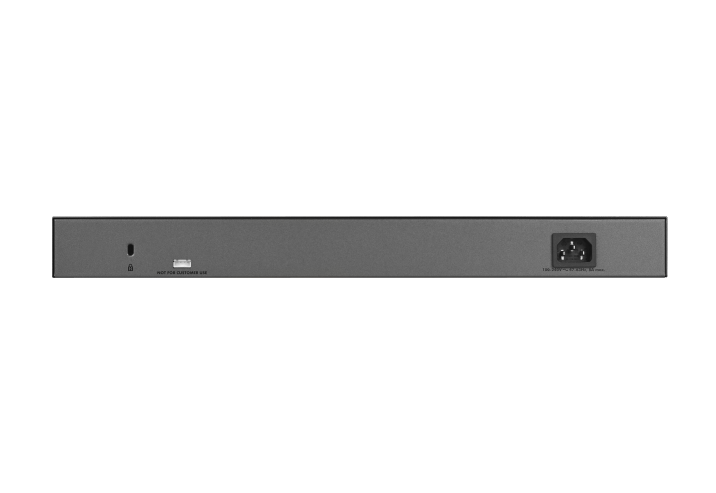

M4100-D12G_tech_specs_image_2

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Support
  • Model Description : Desktop 12 ports Gigabit, Layer 2+ software package
  • Ordering Number : GSM5212
  • RJ45 Ports : 12 x 10/100/1000
  • Fiber SFP (100/1000) : 2 x SFP
  • Power over Ethernet (PoE / PoE+) : N/A
  • PoE Budget (Watts) : N/A
  • Redundant Power Supply : PD Mode
  • Powered by PoE+ (Passthrough) : 1 x PoE+ 30W port in
  • Feature Set : Layer 2+ (static routing)
  • Form Factor : Desktop
