Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses. SXK30 SXK30-100EUS SXK30-100EUS
5-Year NETGEAR Insight Premium Subscription Included

AX1800 WiFi Mesh System (SXK30) armor

AX1800 Dual-Band Orbi Pro WiFi 6 Mini Mesh Systemarmor

5-Year NETGEAR Insight Premium Subscription Included

AX1800 WiFi Mesh System (SXK30)

AX1800 Dual-Band Orbi Pro WiFi 6 Mini Mesh Systemarmor

Orbi Pro WiFi 6 Mini AX1800 Mesh System is built to provide your business or your home office with next-level coverage, speed, and connection capacity for the ultimate business-grade WiFi experience, today and tomorrow at an affordable cost for budget conscious businesses.

Orbi Pro



MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK

orbipromini_sxk30_mobile_2 orbipromini_sxk30_morewifi_desktop_2
sxk30_freedom_lane_mobile_uk sxk30_freedom_lane_uk

SMALL
BUSINESS
CONTROL

Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimising WiFi performance for everyone’s needs.


office-device-networks_4

WORK
FROM HOME
CONTROL

Separate your work devices on their own network, for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.


home-device-networks_5

UNRIVALED SECURITY
WITH NETWORK
SEGMENTATION

Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.


WHITE PAPER

orbipromini_sxk30_mobile_6 orbipromini_sxk30_desktop_6

EXPANDABLE
AS YOUR
NEEDS GROW


Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 2,000 sq. ft. (sold separately).

For the correct configuration and number of satellites, consult the KB here

Orbi Pro - Netgear Insight Management Orbi Pro - Netgear Insight Management

NETGEAR INSIGHT MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.



Netgear Insight App Store  Netgear Insight Google Play

One-Step VPN Connectivity for your Business

Site-to-site and site-to-multisite VPN to connect the main office with branch and home offices, all through a common SSID with the NETGEAR Insight add-on service, Business VPN*

*30-day trial included with the purchase of an Orbi Pro. One Orbi Pro router is required in the main office, and one additional Orbi Pro router required in each branch or home office.

Technical Specifications

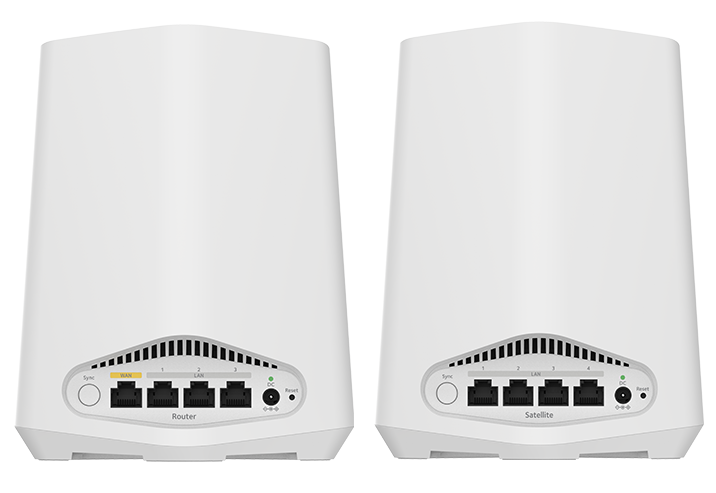

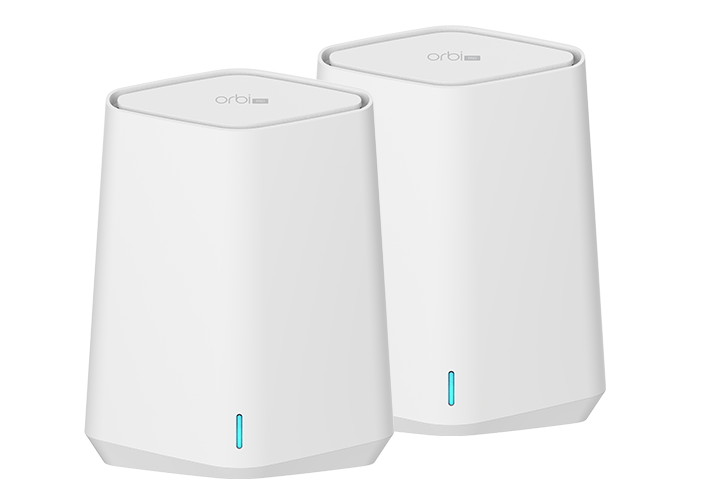

orbipromini_sxk30_router
orbipromini_sxk30_satellite
  • Dimensions: 5.8 x 2.7 x 7.4in (148 x 68 x 189mm) each
  • Weight: 1.06lb (0.48kg) each
  • Orbi Pro WiFi 6 Mini Dual-band AX1800 Router and WiFi 6 Mini Dual-band AX1800 Satellite (1,200 + 600) Mbps
  • Simultaneous Dual-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Two (2) high-performance antennas with high-power amplifiers each
  • Explicit Beamforming for 2.4GHz and 5GHz bands
  • Integrated Gigabit Smart Ethernet Switch for business grade security and applications
  • 802.3Q VLAN
  • Access Control
  • MU-MIMO capable for simultaneous data streaming on multiple devices
  • Ethernet Ports – Orbi Pro WiFi 6 Mini Router: One (1) Gigabit Ethernet WAN port, Three (3) Gigabit Ethernet LAN ports
  • Ethernet Ports – Orbi Pro WiFi 6 Mini Satellite, Four (4) Gigabit Ethernet LAN ports
  • Insight : Insight App - Secured cloud and local management
  • Orbi Pro WiFi 6 Mini Dual-band AX1800 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • 5-year limited hardware warranty
  • ProSUPPORT OnCall 24x7 Service Packs3 SXK30 Router + 1x Satellite PMB0312-10000S (1 year)
  • Insight : 1-year subscription included
  • Support
  • One (1) Orbi Pro WiFi 6 Mini Router (SXR30)
  • One (1) Orbi Pro WiFi 6 Mini Satellite (SXS30)
  • Two (2) wall mounts with screws
  • One (1) 2m Ethernet cable
  • Two (2) 12V/3.5A power adapters (varies based on region)
  • Installation guide
