High-Performance Whole Home Mesh WiFi System- Covers large homes up to 4,000 sq. ft with fast WiFi. System includes a WiFi router and one satellite. RBK22 RBK22-100NAS RBK22-100NAS

AC2200 Mesh WiFi System (RBK22) armor

Orbi Tri-band Mesh WiFi System, 2.2Gbps, Router + 1 Satellite armor

AC2200 Mesh WiFi System (RBK22)

Orbi Tri-band Mesh WiFi System, 2.2Gbps, Router + 1 Satellite armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Get It By: Ships By:

Free Shipping & Returns

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

High-Performance Whole Home Mesh WiFi System- Covers large homes up to 4,000 sq. ft with fast WiFi. System includes a WiFi router and one satellite.

New models are available

Let us help you find the right Orbi by answering questions about your home size and WiFi usage.

RBK752 Product Image
LEARN MORE

Award-Winning, Unmatched Performance


Tri-band mesh technology creates the ultimate WiFi experience. It uses a third dedicated WiFi connection between your router and satellites to deliver maximum speeds throughout every square inch of your home, even hard-to-reach places. Stay constantly connected on all your devices, even as you move through the house.

netgear armor netgear armor

ArmorBitedefender_NETGEAR_Primary_Blackv2


ESSENTIAL ALL-IN-ONE INTERNET SECURITY

You wouldn't leave your door unlocked at night. Treat your WiFi with the same level of security. NETGEAR Armor keeps your family and your connected devices safe with an automatic shield of protection for your network to stop hackers, password thieves, ransomware, and brute force attacks.

Orbi App with Armor

Easy Setup and Use with the Orbi App

With the Orbi app, setup takes just minutes, so you can start enjoying better WiFi sooner. You can also see your connected devices, run an internet speed test, manage your NETGEAR service subscriptions, and more from the palm of your hand.


App Store google play
Your Home Covered
This system covers homes up to 4,000 sq ft with fast mesh WiFi. The kit includes an AC2200 Tri-band WiFi router and one satellite
Tri-band Mesh Speed
That old router you have may be slowing you down. Orbi Mesh WiFi Systems give you fast, secure, and the most consistent Internet speeds available, even as more devices connect
Customized Coverage
Place the satellite wherever you need coverage most to create a powerful WiFi mesh system for one seamless network throughout your home
Fast Internet Speeds
The dedicated tri-band WiFi connection gives you the fastest and most consistent Internet speeds available, even as more devices connect
Seamless & Consistent WiFi Coverage
From front door to backyard and in every corner of your home. The dedicated backhaul allows consistent throughput throughout your home
Orbi App
Easily set up your Orbi WiFi and monitor devices connected to your network
Cybersecurity with NETGEAR Armor™
Protect your connected home devices from Internet threats with best-in-class antivirus, anti-malware & data protection. One year of service is included
Instant Alerts
Get instant alerts on your smartphone or computer when threats are detected or blocked
Guest WiFi Network
Provide internet access to friends and family without sharing your personal network password
Total Security
Protects each device connected to your WiFi, giving you protection from malware, phishing, and fraud – even when you’re on the go

Technical Specifications

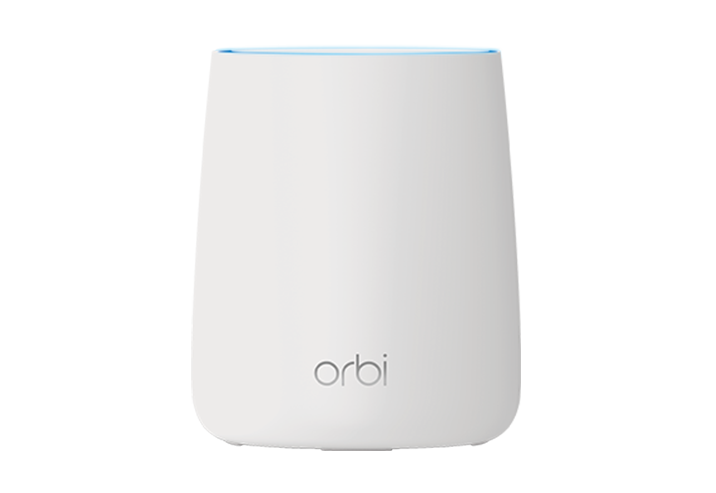

Tech Specs Image 1

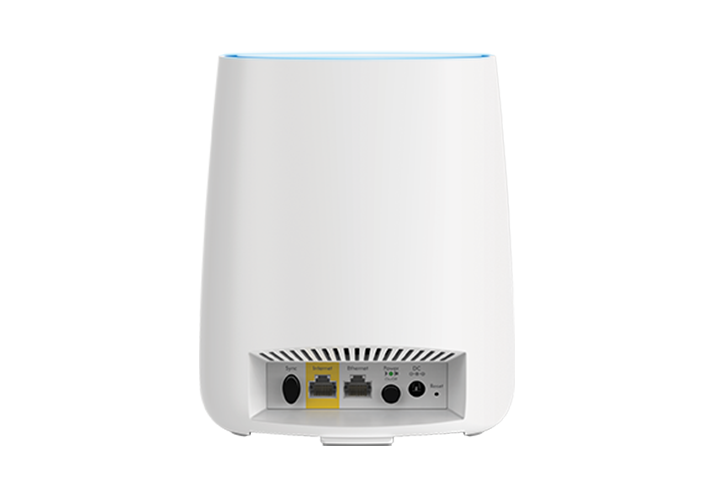

Tech Specs Image 2
  • Dimensions : 5.6 x 2.4 x 6.6in
  • Weight : 1.05lb
  • WiFi Coverage : 4,000 sq. ft.
  • Orbi Router (AC2200) : Four (4) high performance internal antennas with high-powered amplifiers
  • Implicit & Explicit Beamforming for 2.4GHz & 5GHz bands
  • MU-MIMO capable for simultaneous data streaming to multiple devices
  • Powerful Quad-Core 710MHz processor
  • AC2200 Tri-Band WiFi : 2.4GHz (400Mbps†) + 5GHz (866Mbps†) for WiFi devices to connect to the Internet
  • 5GHz (866Mbps†) dedicated WiFi link for faster data connections between Orbi router and Orbi Satellite
  • Actual data throughput and data over distance will vary based on network conditions and environmental factors
  • Ports : Two (2) 10/100/1000Mbps Gigabit Ethernet ports
  • One (1) WAN & one (1) LAN
  • Memory : 256MB flash and 512MB RAM
  • Works with Amazon Alexa & the Google Assistant
    • Security: WPA/WPA2-PSK support
    • Guest WiFi Network is easy to setup separate & secure Internet access for guests
    • Circle® Smart Parental Controls to manage content and time online for all your devices. Learn more at netgear.com/circle

  • Warranty : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support
  • Footnotes : Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 2,200Mbps wireless speeds achieved when connecting to other 802.11ac 2,200Mbps devices.
  • One (1) Orbi Router (RBR20)
  • One (1) Orbi Satellite (RBS20)
  • One (1) 6.5f Ethernet cable
  • Two (2) 12V/1.5A power adapters
  • Quick start guide

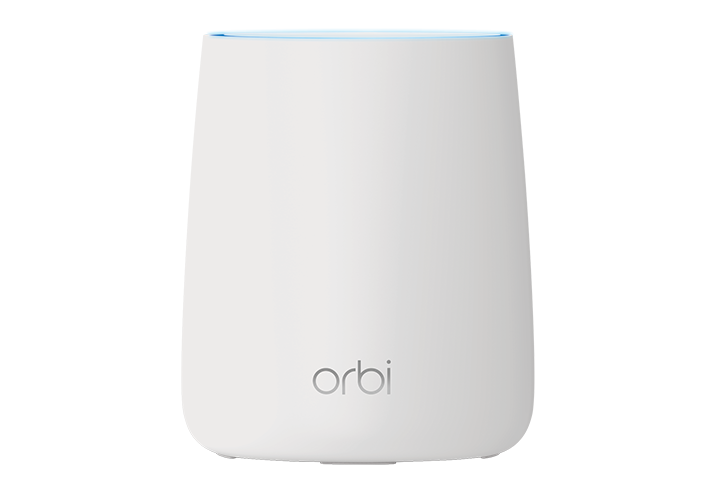

Tech Specs Tab 2 Image 1
Tech Specs Tab 2 Image 2
  • Dimensions : 5.6 x 2.4 x 6.6in
  • Weight : 1.05lb
  • Orbi Satellite (AC2200) : Four (4) high-performance antennas with high-powered amplifiers
  • Implicit & Explicit Beamforming for 2.4 and 5GHz bands
  • MU-MIMO capable for simultaneous data streaming to multiple devices
  • AC2200 Tri-Band WiFi : 2.4GHz (400Mbps†) + 5GHz (866Mbps†) for WiFi devices to connect to the Internet
  • 5GHz (866Mbps†) dedicated WiFi link for faster data connections between Orbi router and Orbi Satellite
  • Ports : Two (2) 10/100/1000Mbps Gigabit Ethernet LAN ports each
  • Works with Amazon Alexa & the Google Assistant :
    • Security: WPA/WPA2-PSK support

  • Warranty: : This product is backed by a NETGEAR limited 1-year Hardware Warranty.
  • Support: : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support
  • Footnotes : Maximum wireless signal rate derived from IEEE 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 2,200Mbps wireless speeds achieved when connecting to other 802.11ac 2,200Mbps devices.
  • One (1) Orbi Router (RBR20)
  • One (1) Orbi Satellite (RBS20)
  • One (1) 6.5f Ethernet cable
  • Two (2) 12V/1.5A power adapters
  • Quick start guide
