NETGEAR The NETGEAR BR200 Insight Managed Business Router provides secure client-to-site and site-2-site connections and remote network management to keep your business going no matter where your employees or locations are. BR200 BR200-100NAS BR200-100NAS

Business Security Router (BR200) armor

Insight Managed Business Routerarmor

The NETGEAR BR200 Insight Managed Business Router provides secure client-to-site and site-2-site connections and remote network management to keep your business going no matter where your employees or locations are.

Business Security Router (BR200)

Insight Managed Business Routerarmor

The NETGEAR BR200 Insight Managed Business Router provides secure client-to-site and site-2-site connections and remote network management to keep your business going no matter where your employees or locations are.

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get it by icon
Ships by icon

Get It By: Ships By:

Free Shipping & Returns

NETGEAR Insight Management

Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business

Features

NETGEAR Insight
Remotely monitor your network from a single pane of glass, even across multiple sites.
VPN
Create remote client-to-site VPN connections using Open VPN, and site-2-site VPN connections with IPsec configuration.
Firewall
A firewall provides instant protection against intrusion.
WAN/LAN Ports
Comes with 1 WAN port for internet and 4 LAN ports for wired connectivity.
Routing
Full routing capabilities with DHCP, NAT, PTTP, and L2TP.
VLAN
Enjoy InterVLAN routing and VLAN in VLAN support.

Technical Specifications

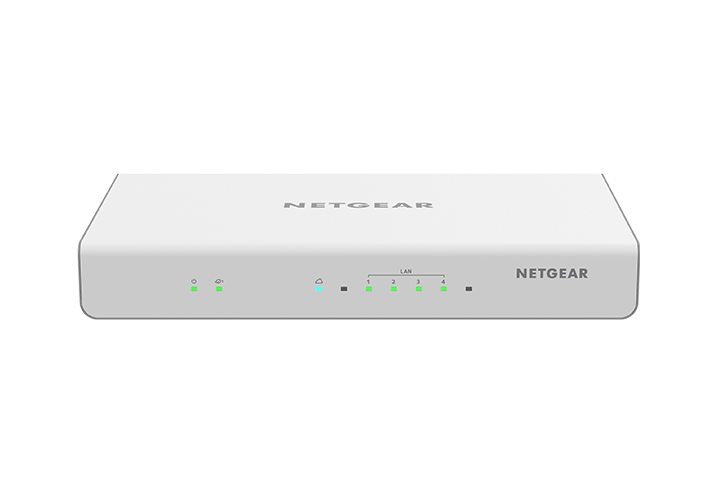

BR200_tech_specs_image_1

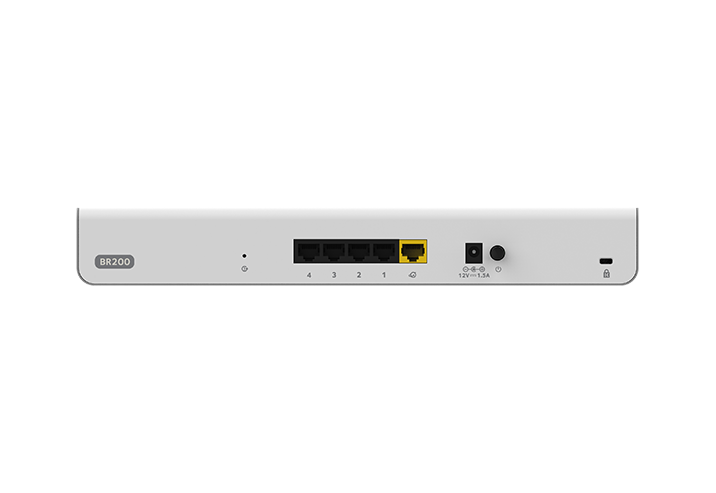

BR200_tech_specs_image_2
  • Dimensions : (W x D x H) cm 31.4 x 18.75 x 4.365
  • (W x D x H) in 12.36 x 7.38 x 1.72
  • Weight : kg/lb 1.55/3.41
  • Connectivity : Gigabit Ports WAN/LAN 1/4, DMZ Interfaces (Configurable)
  • Performance : LAN-to-WAN Throughput1 924Mbps
  • Maximum Number of VLANs : 256
  • Security : Firewall Functions, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood
  • WAN/LAN Ping Response Control : Content Filtering (HTTP Only) Web Keyword Blocking, Trusted Domains
  • VoIP SIP ALG : Yes
  • Networking : ISP Address Assignment DHCP, Static IP Assignment, PPPoE, PPTP, NAT Modes 1-1, NAT, Routing Static, Dynamic, RIPv1, RIPv2, DHCP DHCP Server (limit is 4), DHCP Relay, DNS Proxy, DDNS NETGEAR, No-IP.com, Dyn.com, VLANs 802.1Q
  • Essential Networking Features : Port Range Forwarding, Port Triggering, DNS proxy, MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports, L3 Quality of Service (QoS), LAN-to-WAN and WAN-to-LAN (ToS), Bandwidth Profiling
  • VPN : IPsec
  • Encryption/Authentication : 56-bit DES, 168-bit 3DES, AES, (128, 192, 256 bit)/SHA-1, MD5
  • Key Exchange : IKE, IKEv1, IKEv2, Manual Key, Pre-shared Key, PKI, X.509v3
  • Access Modes Insight remote access : SSL Version Support SSLv3, TLS1.0, SSL Encryption Support DES, 3DES, ARC4, AES (ECB, CBC, XCBC, CNTR)128, 256 bit
  • Insight Managed Business Router : VPN, SSL Message Integrity MD5, SHA-1, MAC-MD5/SHA-1, HMAC-MD5/SHA-1, SSL Certificate Support RSA, Diffie-Hellman, Self
  • PPTP Server : Yes
  • Management : Management Options Insight Cloud, Logging Accepted Packets, Dropped Packets, System, Source MAC filter, Session Limit, Bandwidth Limit, IPsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades via Web Browser, Display Statistics
  • Hardware : Processor: Dual-core 1.7GHz CPU with additional dual-core, Network Switching Subsystem (NSS) processors, Flash Memory/RAM 128MB/1GB
  • Major Regulatory Compliance Environment : RoHS Safety: CE/LVD, cUL
  • EMI : FCC Part 15 Class B, CE mark, C-Tick Class B, VCCI
  • Temperatures Operating Temperature : 0° - 45°C (32°-113° F)
  • Storage Temperature : -20° - 70° C (-4° - 158° F)
  • Humidity Operating : humidity 90% maximum relative humidity, non-condensing, Storage humidity 95% maximum relative humidity, non-condensing, Electrical Specifications Power adapter input localized to regions
  • Output : DC 12V/1.5A
  • System Requirements : Cable or DSL Broadband Modem, Internet Service
  • Windows Client Device
  • Internet Explorer/Firefox/Chrome/Safari Web Browser
  • (1) Insight Managed Business Router
  • (1) Ethernet Cable
  • (1) Installation Guide
  • (1) Warranty Card

    This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.

    **The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product. NETGEAR, the NETGEAR Logo, and NETGEAR Insight are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, 1-888-NETGEAR (638-4327), E-mail: info@NETGEAR.com, www.NETGEAR.com DS-BR200-3Sept20

  • Warranty and Support : Hardware Warranty* 2-year
  • Next Business Day Replacement 2-year
  • Free Technical Support* 90 Days
  • Professional Configuration and Setup Support (remote) PSB0304-10000S
  • Support
  • L2TP Server : Yes
