NETGEAR Extend your network by a mile, rain or shine. Bridge networks wirelessly across buildings or support WiFi devices outdoors. WBC502B2 WBC502B2-100NAS

Wireless AirBridge (WBC502B2) armor

Insight Instant Wireless AirBridge - Pack of 2armor

Extend your network by a mile, rain or shine. Bridge networks wirelessly across buildings or support WiFi devices outdoors.

Wireless AirBridge (WBC502B2)

Insight Instant Wireless AirBridge - Pack of 2armor

Extend your network by a mile, rain or shine. Bridge networks wirelessly across buildings or support WiFi devices outdoors.

Temporarily Out of Stock

Order now and we’ll ship as soon as it’s back in stock.

Temporarily Out of Stock

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get it by icon
Ships by icon

Get It By: Ships By:

Free Shipping & Returns
High Performance WiFi
5GHz AC 2x2 with 500mbs at 500ft
Long Distance Outdoors
Usable connections for up to 9000ft (3km)
Rated for Outdoors
IP55 enclosure rated to resist harsh weather (water and dust resistant, long sun exposure, snow, hail, frost…)
Bridge the Gaps
High-gain directional 14 dBi Antenna
Flexible Mounting Options
Included mounting accessories, for easy outdoor installation on walls, poles
Unobtrusive design
Easily blend into many deployment environments
Power Supply
Use exclusively with the power supply provided in the box
Line-of-site Outdoor Point-to-point

Outdoor long-distance wireless bridge for over a mile (2 units required)

Local or Remote Insight Management 1-Year Insight Management Included

Point-to-multipoint
Designate one AirBridge as host and connect to multiple AirBridge as Satellites
Power Outdoor Security
Connect AirBridge to existing wireless networks and ethernet hardwire IP cameras
Outdoor Access Point
Local Management mode only
Experience Safety
Connect Outdoor IP surveillance camera for home and business security
Outdoor WiFi expansion
Take WiFi outdoors to where no wires have gone before such as golf-courses etc.
Multiple buildings
Expand connectivity faster than perminant infastuture allows
Campgrounds
Cover large outdoors areas mulitple configurations
Schools
Improve campus connectivty to remote building

Technical Specifications

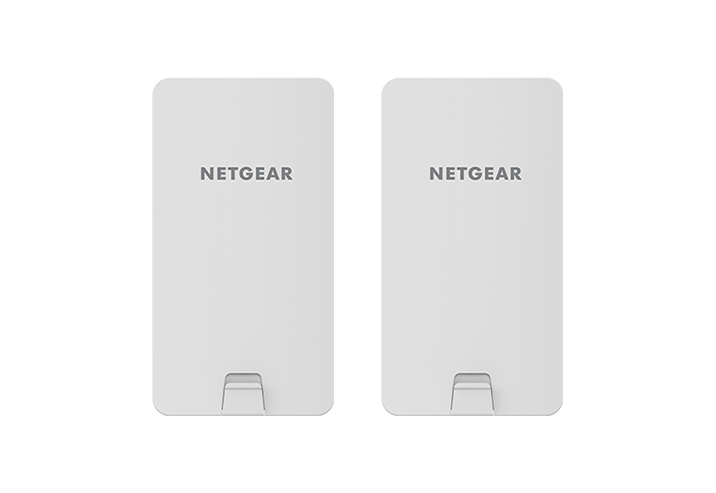

WBC502B2_tech_specs_image_1

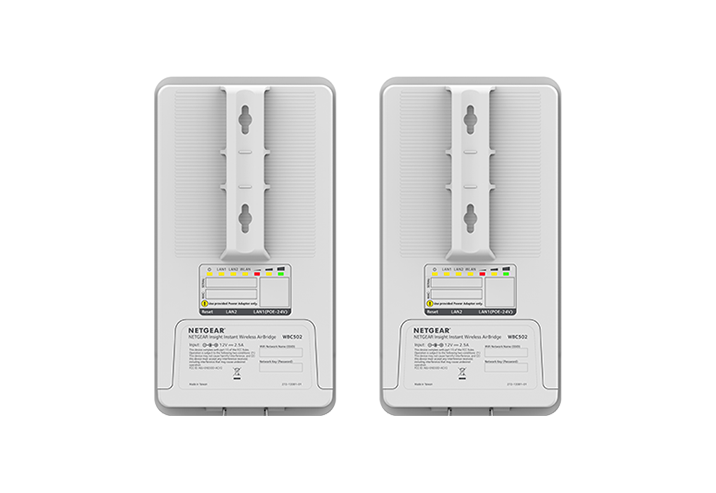

WBC502B2_tech_specs_image_2

Physical Specification

  • Dimensions : (Device only) 186mm (L) x 100mm (W) x 29mm (H) (7.54” x 4.49” x 1.88”)
  • Weight : 504g (1.11lbs)

Technical Specs

  • Model Description : Insight Instant Wireless AirBridge (WBC502)
  • Throughput : Delivers 500Mbps at 500ft (166m) distance at line-of-sight for long distance applications Maximum up to 9000ft (3km) with reduced bandwidth
  • Networking Interface : Two (2) 10/100/1000 BASE-T RJ-45 Ethernet Ports
  • LED Indicators : Display system and wireless transmission status
  • Outdoor Protection : Main unit is IP55 Protected against dust and water. Power supply must remain protected indoors.
  • Humidity : 0%~90% typical
  • Mounting : Pole Mounting Assemble a mounting bracket to fix this Access Point on a pole
  • Wall Mounting Mount this Access Point on a flat wall

Support & Warranty

    • Warranty: This product is backed by a NETGEAR limited 5-year Hardware Warranty .

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support
WBC502B2_tech_specs_image_1
WBC502B2_tech_specs_image_2

Support & Warranty

    • Warranty: This product is backed by a NETGEAR limited 5-year Hardware Warranty .

  • Support : 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller.
  • Support

Technical Specs

  • Antenna : High-gain directional 14 dBi Antenna
  • Widely frequency supported from 5150MHz to 5925MHz
  • Wireless
  • Wifi Technology : Primary 5GHz 802.11 ac 2x2 MIMO. Compatible with 802.11 ac/a/n mode. (Secondary 2.4 Ghz radio is only for management).
  • Multiplexing : OFDM with TDMA
  • Maximum Signal Output : 23dBM (Output dependent on regulatory domain with)
