With the Orbi Pro WiFi 6 Tri-Band WiFi Add-On Satellite, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places. SXS80 SXS80-100NAS SXS80-100NAS

AX6000 WiFi Mesh System (SXS80) armor

AX6000 Tri-Band Orbi Pro WiFi 6 Add-On Satellite armor

AX6000 WiFi Mesh System (SXS80)

AX6000 Tri-Band Orbi Pro WiFi 6 Add-On Satellite armor

With the Orbi Pro WiFi 6 Tri-Band WiFi Add-On Satellite, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get It By: Ships By:

Free Shipping & Returns
Orbi Pro Orbi Pro - Maximum security and configurability at work

Orbi Pro



MAXIMUM SECURITY
AND CONFIGURABILITY
AT WORK

orbipro_sxk80_moreofeverything_mobile_v2 orbipro_sxk80_moreofeverything_desktop_v2
orbipro_sxk80_mobile_3

SMALL BUSINESS CONTROL

Securely isolate your back-office network and critical data from the networks your guests and employees access, while optimizing WiFi performance for everyone’s needs.


Orbi Pro - Office Device Networks
Orbi Pro - Small Business Control

Orbi Pro - Work From Home Control

WORK FROM HOME CONTROL

Separate your work devices on their own network for maximum security and the performance you need for fast streaming, uninterrupted video calls and large file downloads.


Orbi Pro - Home Device Networks

UNRIVALED SECURITY WITH NETWORK SEGMENTATION

Orbi Pro is the industry's first mesh system to support IP segmentation across wired and wireless interfaces. Isolate network segments by assigning individual Ethernet ports and SSIDs across the router and all satellites to any VLAN you create.


WHITE PAPER
network-segmentation_6

Orbi Pro - The Best Performance, Period

THE BEST
PERFORMANCE,
PERIOD

Orbi Pro’s unique shape, height and array of high-power antennas deliver longer, stronger WiFi signals and maximum speed in every corner of your home or business.

orbipro_sxk80_mobile_8 orbipro_sxk80_desktop_8
Orbi Pro - Expandable as your needs grow Orbi Pro - Expandable as your needs grow

EXPANDABLE
AS YOUR
NEEDS GROW

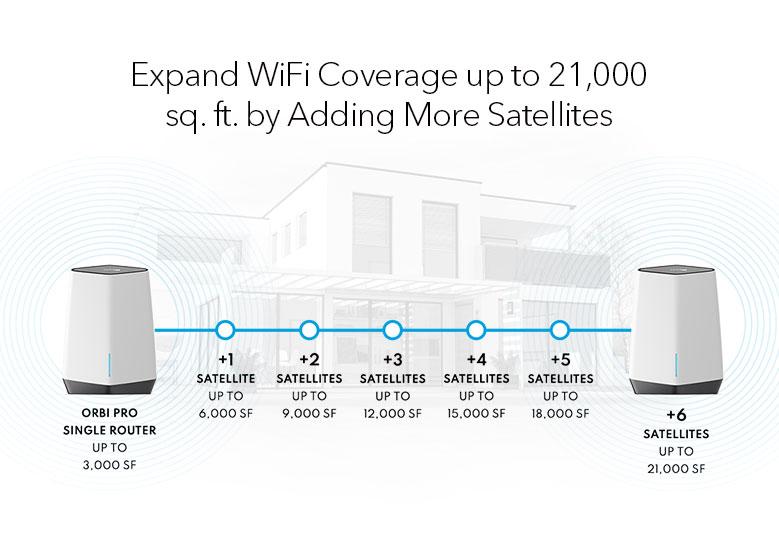

Easily add WiFi coverage with additional
wireless satellites — each expands
coverage by 3,000 sq. ft. (sold separately).

For the correct configuration and number of satellites, consult the KB here

LEARN MORE
Orbi Pro - Netgear Insight Management Orbi Pro - Netgear Insight Management

NETGEAR INSIGHT MANAGEMENT

Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere.



Netgear Insight App Store  Netgear Insight Google Play

Technical Specifications

Tech_Specs_Image_1

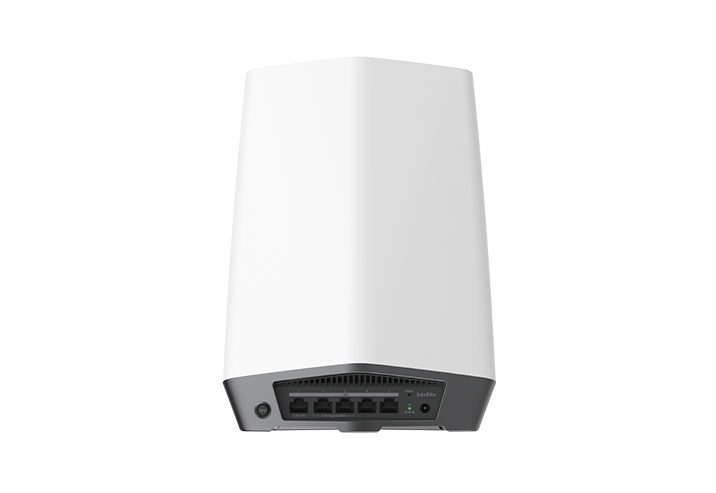

Orbi Pro SXS80 Satellite
  • Orbi Pro WiFi 6 Satellite (SXS80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
  • What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing modem or gateway 3. Use the local UI to set up and customize in minutes
  • WiFi Technology : (2,400 + 2,400 + 1,200) Mbps† Simultaneous Tri-band WiFi
  • Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
  • Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
  • Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

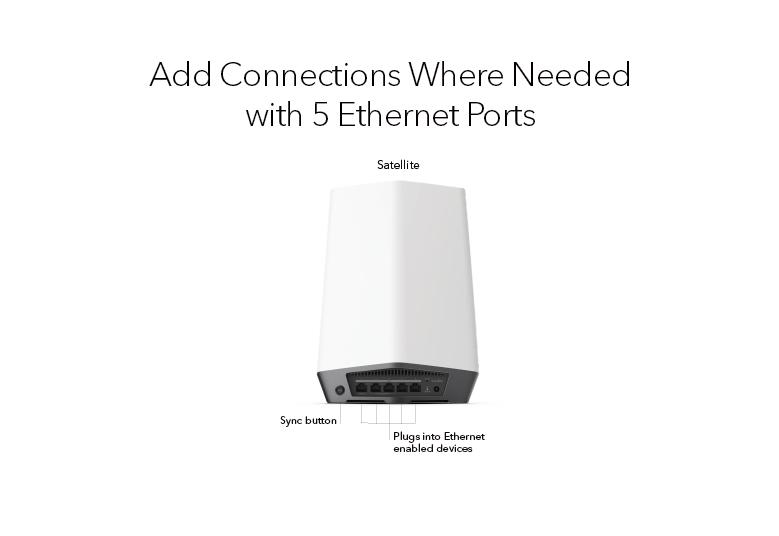

  • Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
  • Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices), Flexible VLAN configuration on all four (4) SSID WiFi networks, Client isolation by default on Guest SSID and configurable on other SSIDs, WPA/WPA2/WPA3 support,
  • Local Admin : Local Admin UI available for extensive feature setting and maintenance
  • Insight : Insight App - Secured Cloud for remote monitoring
  • Compatibility with Orbi Home : Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
  • ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
  • PMP0332-10000S
  • PMP0352-10000S
  • Insight : 1-year subscription included
  • Support
  • One (1) Orbi Pro WiFi 6 Satellite (SXS80)
  • One (1) wall mounts with screws
  • One (1) 12V/3.5A power adapters
  • Installation guide

Orbi Pro Family Comparison

SXK30 Orbi Pro WiFi 6 Mini

SXK80 Orbi Pro WiFi 6

SRK60 Orbi Pro

WiFi Speed

WiFi Speed

WiFi 6 – AX1800 (Up to 1.8 Gbps)

WiFi Speed

WiFi 6 - AX6000 (Up to 6.0 Gbps)

WiFi Speed

WiFi 5 - AC3000 (Up to 3.0 Gbps)

WiFi Configuration

WiFi Configuration

Dual-Band

WiFi Configuration

Tri-Band

WiFi Configuration

Tri-Band

Physical Specifications

Physical Specifications

Dimensions: 5.8 x 2.7 x 7.4in, Weight: 1.06lb

Physical Specifications

Dimensions: 6.8 x 3.3 x 9.7 in, Weight 2.06lb

Physical Specifications

Dimensions : 6.8 x 3.3 x 9.7in, Weight : 2.06lb

# of Concurrent Users

# of Concurrent Users

40

# of Concurrent Users

80

# of Concurrent Users

40

Ideal Use

Ideal Use

Small Business and SOHO

Ideal Use

SOHO and Small Business

Ideal Use

SOHO

WiFi Coverage

WiFi Coverage

Up to 4,000 sq. ft.

WiFi Coverage

Up to 6,000 sq. ft.

WiFi Coverage

Up to 5,000 sq. ft.

Dedicated Wireless Backhaul

Dedicated Wireless Backhaul

No

Dedicated Wireless Backhaul

Yes

Dedicated Wireless Backhaul

Yes

Multi-Gig Port 2.5

Multi-Gig Port 2.5

No

Multi-Gig Port 2.5

Yes

Multi-Gig Port 2.5

No

Integrated Plus Switch with VLANs

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

Yes

Integrated Plus Switch with VLANs

No

Remote Management

Remote Management

Insight Remote Management

Remote Management

Insight Remote Management

Remote Management

Insight Remote Management
