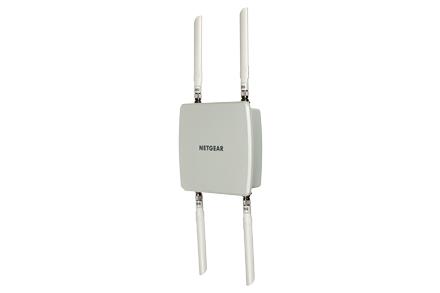

NETGEAR Extends wireless coverage to outdoor with the high power WND930 Access Point. The WND930 Access Point combines industrial and robust design with flexible antenna options, and dual band (2.4 and 5 GHz) concurrent operation for optimal outdoor deployment. The WND930 Outdoor Access Point is powered by redundant dual Power over Ethernet (PoE) gigabit ports as well as the capability to power other PoE devices. The WND930 Outdoor Access Point operates under harsh environment with its industrial grade IP67 enclosure and an embedded heater to allow the Access Point to operate in below freezing point temperature. Through its user friendly interface and mounting accessory kits, the WND930 Access Point can be configured and installed easily in less than 10 minutes. WND930 WND930-100NAS WND930-100NAS

Premium Wireless (WND930) armor

Outdoor Dual Band Wireless Access Pointarmor

Extends wireless coverage to outdoor with the high power WND930 Access Point. The WND930 Access Point combines industrial and robust design with flexible antenna options, and dual band (2.4 and 5 GHz) concurrent operation for optimal outdoor deployment. The WND930 Outdoor Access Point is powered by redundant dual Power over Ethernet (PoE) gigabit ports as well as the capability to power other PoE devices. The WND930 Outdoor Access Point operates under harsh environment with its industrial grade IP67 enclosure and an embedded heater to allow the Access Point to operate in below freezing point temperature. Through its user friendly interface and mounting accessory kits, the WND930 Access Point can be configured and installed easily in less than 10 minutes.

Premium Wireless (WND930)

Outdoor Dual Band Wireless Access Pointarmor

Extends wireless coverage to outdoor with the high power WND930 Access Point. The WND930 Access Point combines industrial and robust design with flexible antenna options, and dual band (2.4 and 5 GHz) concurrent operation for optimal outdoor deployment. The WND930 Outdoor Access Point is powered by redundant dual Power over Ethernet (PoE) gigabit ports as well as the capability to power other PoE devices. The WND930 Outdoor Access Point operates under harsh environment with its industrial grade IP67 enclosure and an embedded heater to allow the Access Point to operate in below freezing point temperature. Through its user friendly interface and mounting accessory kits, the WND930 Access Point can be configured and installed easily in less than 10 minutes.

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get it by icon
Ships by icon

Get It By: Ships By: with complimentary 2-day shipping

Free Shipping & Returns

Features

High powered for maximum coverage with ultra-reliability

500 mW output power with additional high gain internal antenna to deliver extended coverage

Dual band concurrent operation (2.4 and 5 GHz) for maximum flexibility

NETGEAR reliable 2 year product warranty

Hardened enclosure for harsh outdoor environment

IP-67 water and dust proof industrial grade enclosure ensure deployment in extreme weather conditions

Embedded heater automatically activate to enable operation in below freezing temperature

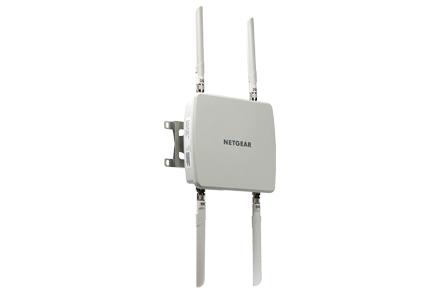

Included wall, pole, and ceiling mounts to facilitate flexible deployment options

Ideal for both Hotspot WiFi access and point-to-point mesh links

Internal high gain narrow beam sectorized antenna for high performance point to point connectivity over long distance

External antenna connectors with optional external omni antennas to provide hostpot WiFi access on both 2.4 and 5 GHz bands

Simple to deploy and easy to set up with intuitive user interfaces

Simple connectivity and ease of set up

Dual redundant Gigabit Power over Ethernet for simple connectivity

Powered external PoE devices such as surveillance cameras to maximize use applications

Comprehensive wireless security and sophisticated quality of services

Technical Specifications

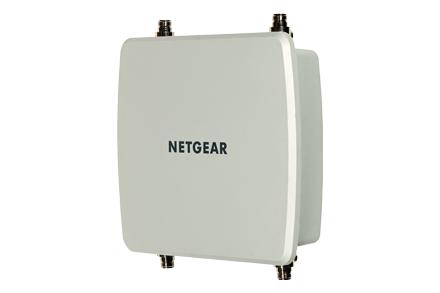

header-wnd930-1-4-left-photo-large
  • Dimensions (LxWxH) : 255x225x78 mm 10x10x3 in
  • Weight : 1894 g (67 oz)
  • Power : Power over Ethernet (802.3af or 802.3at)
  • 2 ports 802.3af or 1 port of 802.3at for AP operation
  • 2 ports of 802.3at for concurrent AP and PoE PSE operations
  • Mounting : Wall mount/pole mount kit included

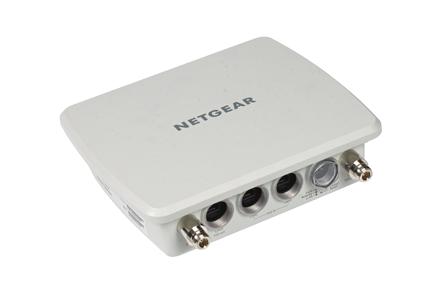

  • Physical Interfaces : Two (10/100/1000Base-T Ethernet (RJ-45) port with Auto UplinkTM (Auto MDI-X) with PoE PD (Power over Ethernet In)
  • One (10/100/1000Base-T Ethernet (RJ-45) port with Auto UplinkTM (Auto MDI-X) with PoE PSE (Power over Ethernet Out)
  • External Antenna Connectors : Two connectors for 2.4GHz antennas Type N connector (female)
  • Two connectors for 5 GHz antennas Type N connector (female)
  • LEDs : Power, Activity, 2.4GHz, 5 GHz, Heater
  • Operating Temperature : -4° to 140° F (-20° to 60°C)
  • Storage Temperature : -40° to 176° F (-40° to 80° C)
  • Operating Relative Humidity : Minimum 10%
  • Maximum 90%
  • Storage Humidity : Minimum 5%
  • Maximum 95%
  • MTBF : @ 25°C > 10,45K hours
  • @ 60°C > 290,000 hours
  • Ingress Protection Marking : IP67 rated
  • Power Consumption : 15.2 W max (heater off, no PoE out)
  • 25.1 W max (heater on, no PoE out)
  • 33.9 W max (heater off, PoE out)
  • 43.8 W max (heater on, PoE out)
  • RF Characteristics : content goes here
  • Standards : IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
  • Frequency Band : 2.4GHz and 5 GHz dual band concurrent operation
  • Maximum RF Power Output (country dependent) : 27 dBm (500 mW) 2.4GHz
  • 26 dBm (400 mW) 5 GHz
  • Maximum Theoretical Throughput : 300 Mbps (2.4GHz)
  • 300 Mbps (5 GHz)
  • Antenna Gain : 8 dBi (2.4GHz)
  • 8 dBi (5 GHz)
  • Network Management : Standalone
  • Centralized management (future)
  • Advanced Wireless Modes : WDS Point-to-point wireless bridge mode
  • Wireless Access point mode
  • Security : Wired Equivalent Privacy (WEP) Encryption
  • WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
  • MAC address filtering
  • 1 BSSID
  • 802.11e WMM : Wireless multimedia mode for QoS
  • Safety Certification : ITU-T K.21
  • Optional Support : PMB0351: 5 years OnCall 24x7
  • PMB0331: 3 years OnCall 24x7
  • PMB0311: 1 year OnCall 24x7
  • PRR0351: 5 years XPressHW
  • PRR0331: 3 years XPressHW
  • Product Ordering Information : WND930-10000S High Power Dual Band Outdoor 802.11n Wireless Access Point
  • WND930-100NAS High Power Dual Band Outdoor 802.11n Wireless Access Point (US)
  • ANT24501B-10000S External antenna bundles (2 x 2.4GHz and 2 x 5 GHz)

    • Warranty: This product is backed by a NETGEAR limited 2-year Hardware Warranty.

  • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).
  • Support
  • Outdoor High Power Wireless N Access Point

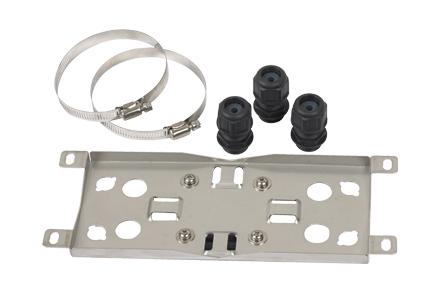

  • Wall mounting bracket
  • Pole mount clamps
  • Weatherproof cable glands
  • Installation guide
  • Warranty/support information card
