NETGEAR NETGEAR Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point, purposely designed for enterprises requiring high density and superior performance. The NETGEAR® Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point (AP) delivers high performance with maximum client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC740 is a controller managed Access Point with ease of centralized management with all NETGEAR wireless controllers from small (WC7500) to mid-size (WC7600) and large-size (WC9500) deployment. The WAC740 operates with Multi-User MIMO and can achieve speeds up to 600 Mbps for 2.4 GHz and 1.7 Gbps at 5 GHz. The WAC740 is Power over Ethernet enabled and comes with 2 Ethernet ports, including one Multi-Gig port that can handle up to 2.5 Gbps of throughput, enabling a single wire to connect to Multi-Gig capable switch for ease of wiring installation. WAC740 WAC740-100NAS WAC740-100NAS

Premium Wireless (WAC740) armor

802.11ac 4x4 Wave 2 Wireless Access Pointarmor

NETGEAR Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point, purposely designed for enterprises requiring high density and superior performance. The NETGEAR® Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point (AP) delivers high performance with maximum client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC740 is a controller managed Access Point with ease of centralized management with all NETGEAR wireless controllers from small (WC7500) to mid-size (WC7600) and large-size (WC9500) deployment. The WAC740 operates with Multi-User MIMO and can achieve speeds up to 600 Mbps for 2.4 GHz and 1.7 Gbps at 5 GHz. The WAC740 is Power over Ethernet enabled and comes with 2 Ethernet ports, including one Multi-Gig port that can handle up to 2.5 Gbps of throughput, enabling a single wire to connect to Multi-Gig capable switch for ease of wiring installation.

Premium Wireless (WAC740)

802.11ac 4x4 Wave 2 Wireless Access Pointarmor

NETGEAR Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point, purposely designed for enterprises requiring high density and superior performance. The NETGEAR® Premium Business 802.11ac 4 x 4 Wave 2 Wireless Access Point (AP) delivers high performance with maximum client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC740 is a controller managed Access Point with ease of centralized management with all NETGEAR wireless controllers from small (WC7500) to mid-size (WC7600) and large-size (WC9500) deployment. The WAC740 operates with Multi-User MIMO and can achieve speeds up to 600 Mbps for 2.4 GHz and 1.7 Gbps at 5 GHz. The WAC740 is Power over Ethernet enabled and comes with 2 Ethernet ports, including one Multi-Gig port that can handle up to 2.5 Gbps of throughput, enabling a single wire to connect to Multi-Gig capable switch for ease of wiring installation.

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

Get it by icon
Ships by icon

Get It By: Ships By: with complimentary 2-day shipping

Free Shipping & Returns
High performance and superior coverage
  • Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
  • Maximum performance with multi-gigabit throughput (up to 2.3 Gbps)
Maximize capacity with Multi-user MIMO support
  • Enable concurrent wireless transmit and receive with multiple clients
  • Improves coverage for multiple users in dense environment
Easy to Configure
  • Simple setup in minutes with wireless controllers (WC7500/WC7600/WC9500)
  • <div>Centralized configuration and monitoring with complete visibility</div>
Simple and cost effective for installation
  • Power over Ethernet (PoE) for flexibility of deployment
  • 2.5 Multi-Gigabit Ethernet port with single cable installation with no compromisest

Technical Specifications

WAC740_tech_specs_image_1
WAC740_tech_specs_image_2
  • Dimensions : (W x D x H): 197 x 197 x 40mm (7.76 x 7.76 x 1.57in)
  • Weight : 726g (1.6lb)
  • Standards : IEEE 802.11ac Wave 2 standard
  • WMM Wireless Multimedia Prioritization
  • Power over Ethernet (PoE) IEEE 802.3af/802.3at

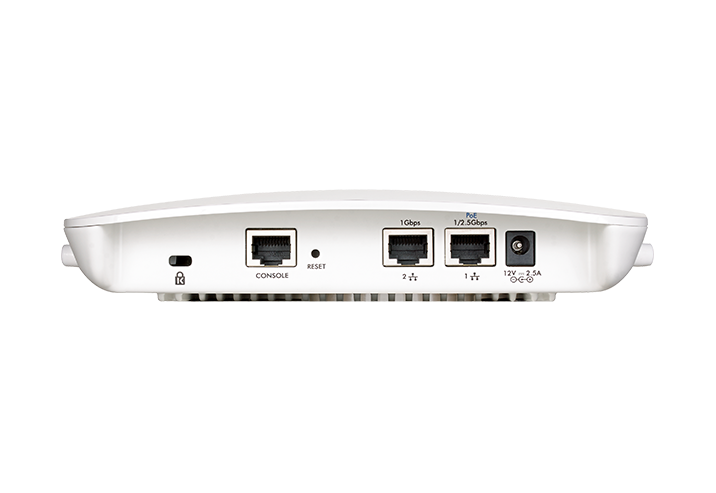

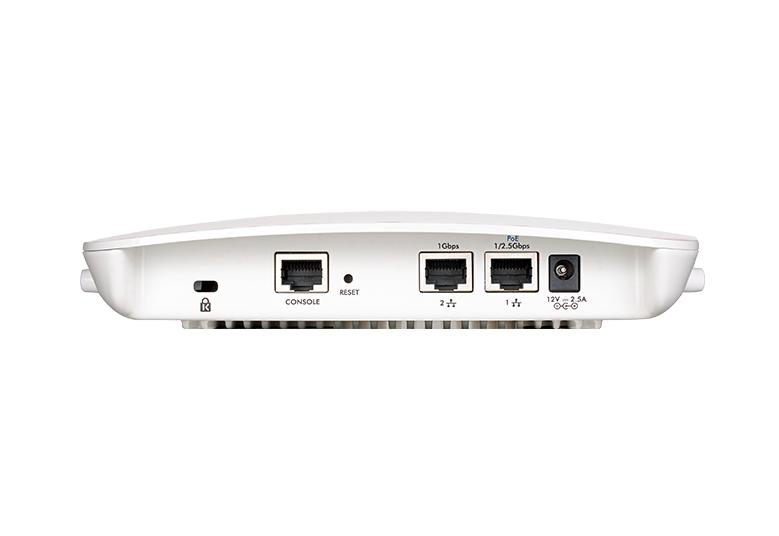

  • Physical Interfaces : One (1) 10/100/1000/2500BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af or 802.3at Power over Ethernet (PoE) support
  • One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) ports with Auto Uplink™ (Auto MDI-X)
  • Static link aggregation (LAG) support for redundancy and aggregate throughput exceeding 1Gbps
  • Power adapter (not included): 12V DC, 2.5A; plug is localized to country of sale
  • One (1) console port with RJ45 Interface

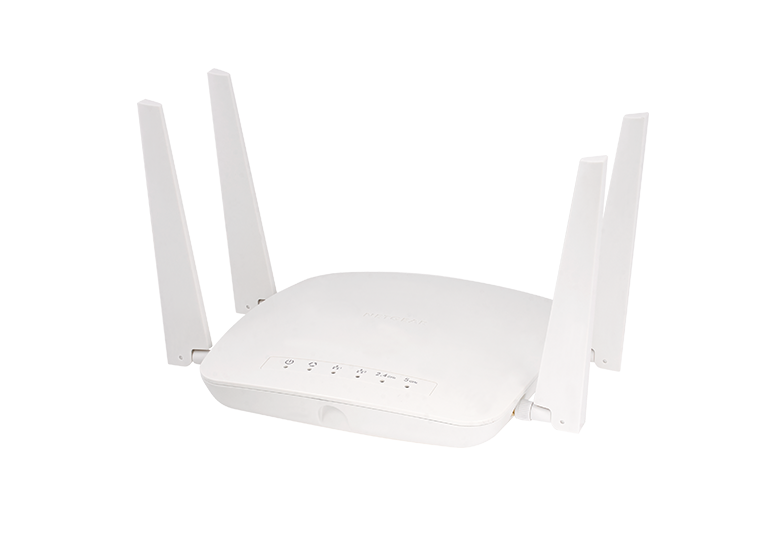

  • Four (4) reverse SMA antenna connectors for dual band 2.4 and 5GHz external antennas (not included)

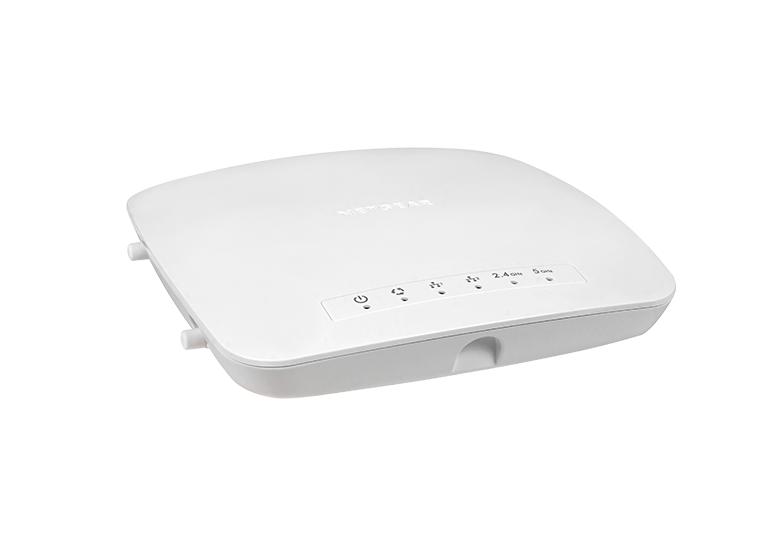

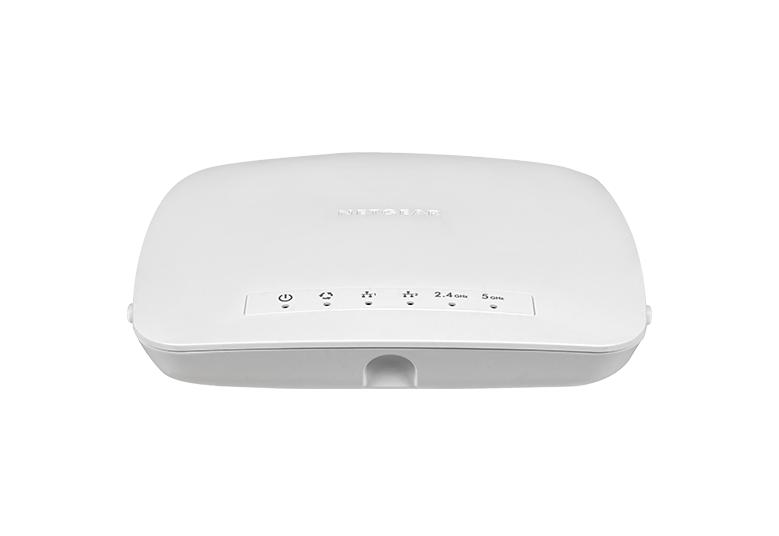

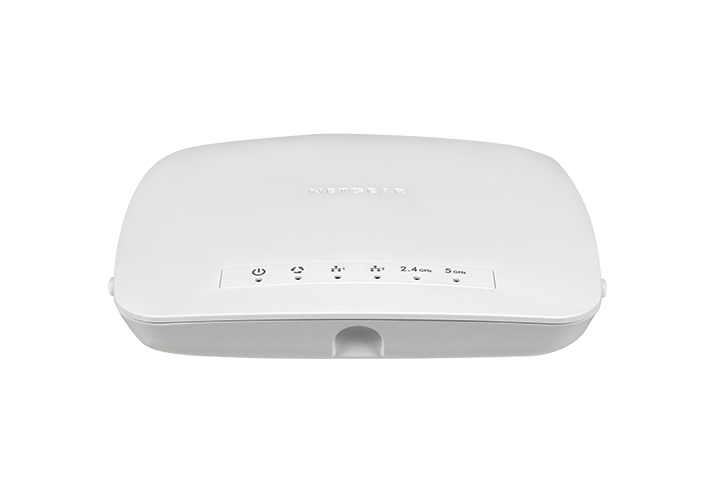

  • Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz
  • Security : WiFi Protected Access (WPA/WPA2), 802.11i
  • MAC address filtering with access control
  • 802.1x RADIUS support with EAP TLS, TTLS, PEAP
  • Rogue AP detection
  • Block SSID Broadcast
  • Secure SSH Telnet
  • Secure Socket Layer (SSL)
  • Remote management login
  • Peer-to-peer blocking so users may not access another user’s PC
  • Management : Controller managed by WC7500/ WC7600/WC9500
  • Advanced Wireless Features : Adjustable Transmit Power Control (TPC)
  • Accessories : Power Adapters with plug localized to country of sales
  • PAV12V-100AUS (for Australia)
  • PAV12V-100EUS (for Europe, Outside of UK)
  • PAV12V-100NAS (for North America)
  • PAV12V-100PRS (for China)
  • PAV12V-100UKS (for UK)
  • Ordering Information : WAC740-10000S: Everywhere except U.S and Canada
  • WAC740-100NAS: U.S and Canada
  • Support : Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
  • ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
  • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
  • Warranty : This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Support

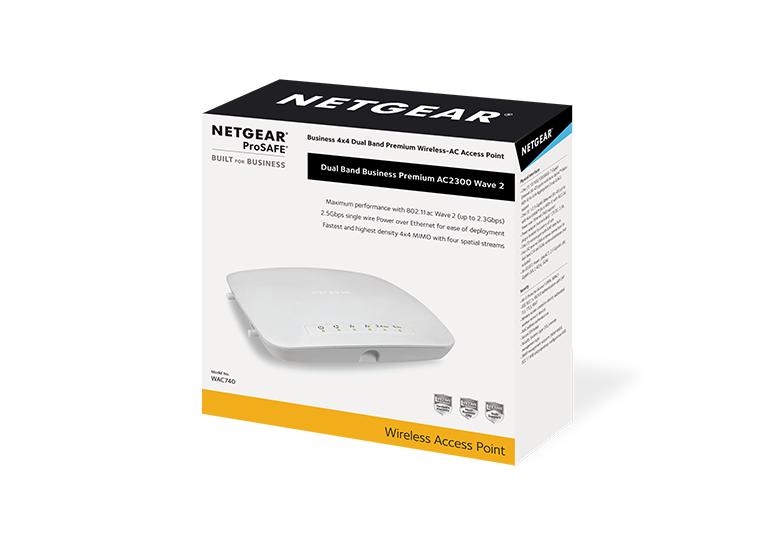

  • Package Contents : Business Dual Band Wireless-AC Access Point (WAC740)
  • Ethernet cable
  • Ceiling and wall mount kit
  • Installation guide
