AX6000 WiFi Mesh System (SXS80)
Tri-Band Orbi Pro WiFi 6 Add-On Satellite
With the Orbi Pro WiFi 6 Tri-Band WiFi Add-On Satellite, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.
AX6000 WiFi Mesh System (SXS80)
Tri-Band Orbi Pro WiFi 6 Add-On Satellite
With the Orbi Pro WiFi 6 Tri-Band WiFi Add-On Satellite, you can extend unparalleled coverage, speed, and capacity to more parts of your office, even hard-to-reach places.
NETGEAR Insight Management
Simple yet powerful control of your network anytime and anywhere, even across multiple locations. NETGEAR Insight handles your network so you can focus on running your business
The Best Speeds
WiFi 6 speeds and tri-band technology work together to ensure you’re getting the fastest WiFi on every device.
No More Dead Zones
Mesh WiFi 6 covers every part of your space with powerful WiFi so you don’t have to worry about dead zones or dropped connections.
Connect More Devices
Enjoy up to 4X more capacity for connected devices than before.
Business-Class Security
Set up separate, secure networks for different groups of people, like employees and customers.
Features
Business-Minded WiFi
All the business features you need for fully secure, fast WiFiFull WiFi Coverage for 3,000 Sq. Ft. per unit
Covers your entire business with consistent WiFi so your customers and employees have stable internetFast, Simple Installation
A wire-free system makes setting up WiFi so easySecurely Share your WiFi
Guests can connect to a dedicated SSID separate from staff use. Deploy up to 4 different SSIDs.Grows with Your Business
Connect additional satellites with or without wires to extend your coverage indoors and outdoors by 3,000 sq. ft.Wall and Ceiling Mounts
Mount out of reach or in the most convenient locations.Great performance
100% more throughput than WiFi 5 Orbi Pro - AX6000 vs. AC3000
More capacity
4x more client device handling for less congestion and simultaneous WiFi 6 streaming, file transfer, and browsing on more devices.
Secure WiFi zones
Supports WPA3 wireless security protocols and includes VLAN management and client separation enabled by VLAN-SSID tie-in
Tri-band WiFi
Orbi Pro establishes a dedicated connection between units, maximizing internet speeds
Daisy Chain
Satellites automatically connect to the router in the most efficient way
Wired or Wireless
Use the 7 Ethernet ports to connect to PoS, printers, IP phones, digital billboards, and more
Maintain from Anywhere
Manage your Orbi Pro directly from your phone with the NETGEAR Insight app
Technical Specifications

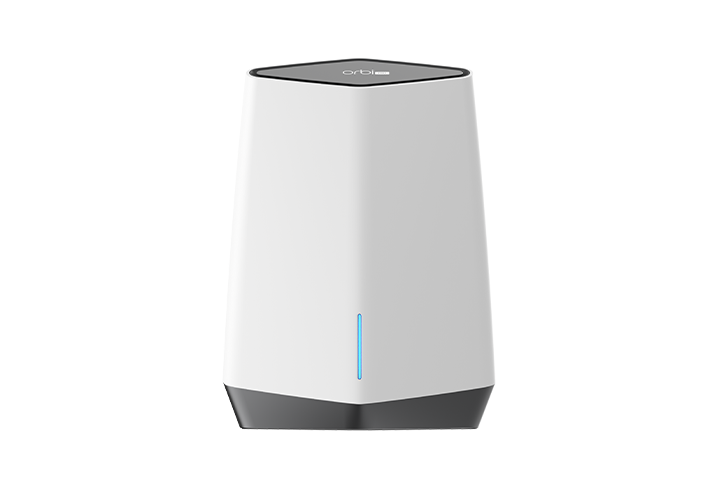

- Orbi Pro WiFi 6 Satellite (SXS80) : Dimensions 6.8 x 3.3 x 9.7 in, Weight 2.06lb
- What do I need for Orbi Pro WiFi 6 to work? : 1. High-speed Internet connection 2. Connect to existing Orbi Pro WiFi 6 Router 3. Use NETGEAR Insight® app with an iOS or Android smartphone for easy setup
- WiFi Technology : (2,400 + 2,400 + 1,200) Mbps† Simultaneous Tri-band WiFi
- Radio 1 : IEEE 802.11b/g/n/ax 2.4GHz - 256QAM support
- Radio 2 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support
- Radio 3 : IEEE 802.11a/n/ac/ax 5GHz - 1024QAM support

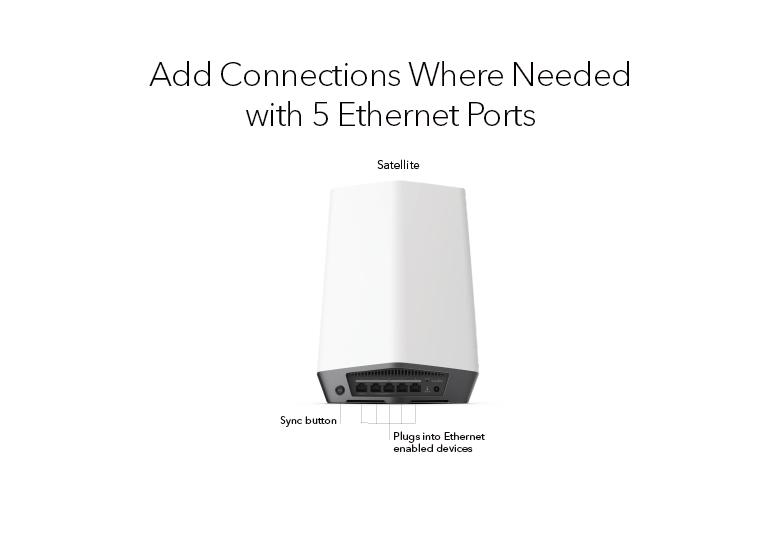

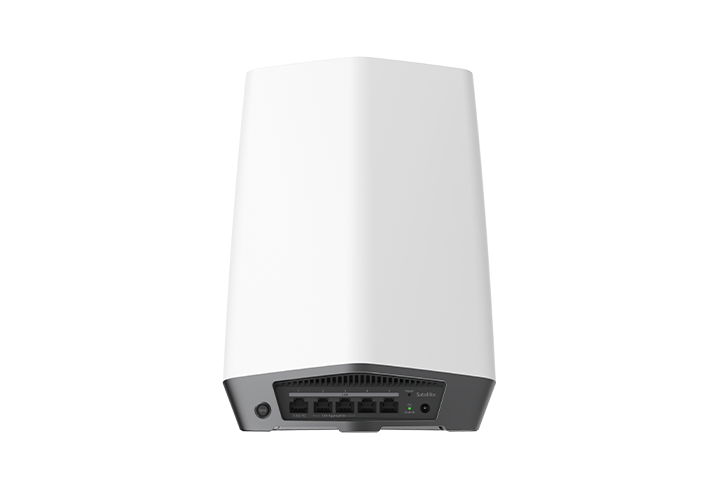

- Ports – Orbi Pro WiFi 6 Satellite : One (1) Gigabit or 2.5 Gigabit Ethernet LAN port, Two (2) Gigabit Ethernet LAN ports, Link Aggregation Mode4 optional, Two (2) Gigabit Ethernet LAN ports
- Security : Four (4) SSID wireless networks (Administration, Employee devices, Guest WiFi, IoT devices), Flexible VLAN configuration on all four (4) SSID WiFi networks, Client isolation by default on Guest SSID and configurable on other SSIDs, WPA/WPA2/WPA3 support,
- Insight : Insight App - Secured cloud and local management
- Local Admin : Local Admin UI available for extensive feature setting and maintenance

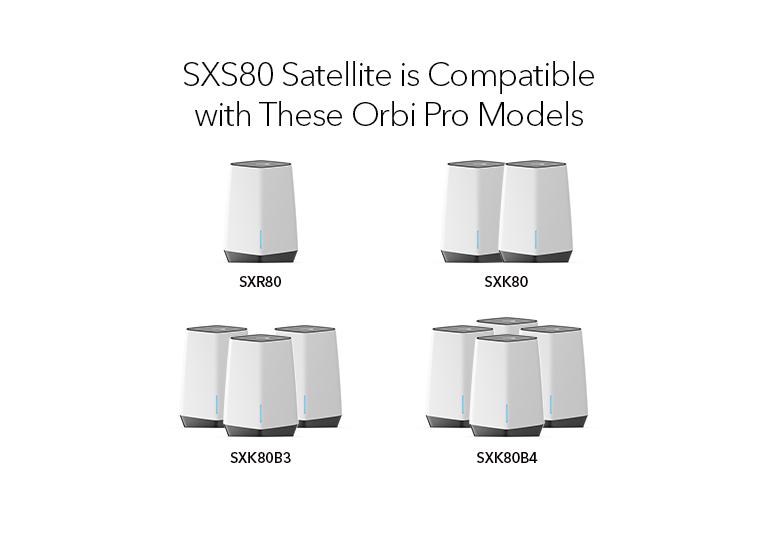

- Compatibility with Orbi Home : Orbi Pro WiFi 6 Router does not support and will not pair with Orbi Home or Orbi Pro (WiFi 5) WiFi System Satellites.
- ProSUPPORT OnCall 24x7 Service Packs3 : PMP0312-10000S
- PMP0332-10000S
- PMP0352-10000S
- Insight : 1-year subscription included
- Support
- One (1) Orbi Pro WiFi 6 Satellite (SXS80)
- One (1) wall mounts with screws
- One (1) ceiling mounts with screws
- One (1) 2m Ethernet cable
- One (1) 12V/3.5A power adapters
- Installation guide
Data Sheet (PDF)
