  • High-performance, whole-home WiFi with up to 6Gbps WiFi speeds & coverage up to 560 sq. m., including front & back yards
  • NEW:  10 Gig internet port unleashes the fastest download speeds of today & tomorrow. Connect to the latest cable or fiber Internet service up to 10Gbps ††
  • NEW:  Upgraded, patented antenna design boosts WiFi coverage and performance by 20% over previous generation
  • Patented & industry unique Tri-Band & Dedicated Backhaul WiFi ensures max speeds for up to 100 connected devices
  • NETGEAR® Armor software provides an automatic shield of security for your WiFi and connected devices (PC, phone, camera, TV, Echo, etc.) for real-time protection against hackers and added privacy with VPN. 1-year subscription included.1
  • Compatible with any internet service provider
RBK863SB RBK863SB-100APS RBK863SB-100APS

AX6000 Mesh WiFi System (RBK863SB) armor

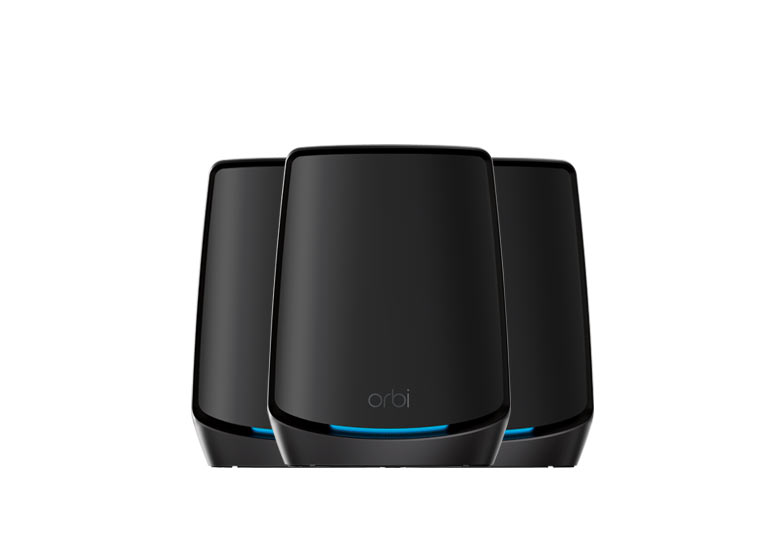

Orbi 860 Series Tri-Band WiFi 6 Mesh System, 6Gbps, 10 Gig Port, 3-Pack, Black, with 1-year NETGEAR Armor included armor

AX6000 Mesh WiFi System (RBK863SB)

Orbi 860 Series Tri-Band WiFi 6 Mesh System, 6Gbps, 10 Gig Port, 3-Pack, Black, with 1-year NETGEAR Armor included armor

Join Waitlist

Order now and we’ll ship as soon as it’s back in stock.

×

addcartADDED TO CART

Orbi 860 Series Tri-Band WiFi 6 Mesh System, 6Gbps, 10 Gig Port, 3-Pack, Black, with 1-year NETGEAR Armor included

Select Additional Software

NETGEAR ArmoritemSelect

Essential all-in-one internet security

Learn More

NETGEAR ProSupportitemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupportitemSelect

Premium Support

Learn More

1 year

NETGEAR ProSupportitemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupportitemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

NETGEAR ProSupport + 24/7itemSelect

for 1 years and auto renews yearly after initial term

Learn More

2 years

Armor/ProSupport bundleitemSelect

NETGEAR Smart Parental ControlsitemSelect

Promote a balance between online and offline time

Learn More

1 year

Meural Membership - AnnualitemSelect

Save 35%. Get exclusive access to 30,000 curated artworks, plus exclusive savings and support

Learn More

1 year

Meural Membership - MonthlyitemSelect

Get exclusive access to 30,000 curated artworks, plus exclusive savings and support

Learn More

1 month

Error Occurred. Please try again later.

Get It By: Ships By:

Delivery dates may vary based on location. See Shipping & Returns for more information.

Join Waitlist

Notify me when this item comes back in stock

Please enter a valid e-mail address.

You are already on the list. We’ll notify you shortly.

Successfully registered.

  • High-performance, whole-home WiFi with up to 6Gbps WiFi speeds & coverage up to 560 sq. m., including front & back yards
  • NEW: 10 Gig internet port unleashes the fastest download speeds of today & tomorrow. Connect to the latest cable or fiber Internet service up to 10Gbps ††
  • NEW: Upgraded, patented antenna design boosts WiFi coverage and performance by 20% over previous generation
  • Patented & industry unique Tri-Band & Dedicated Backhaul WiFi ensures max speeds for up to 100 connected devices
  • NETGEAR® Armor software provides an automatic shield of security for your WiFi and connected devices (PC, phone, camera, TV, Echo, etc.) for real-time protection against hackers and added privacy with VPN. 1-year subscription included.1
  • Compatible with any internet service provider

Product Overview

WiFi 6

Technology

Tri-Band WiFi

with Dedicated Backhaul

560sq. m

WiFi coverage

6Gbps

maximum wireless speed

100

concurrent devices

Router & Satellite

NETGEAR Orbi Tri-Band WiFi 6 Router comes with one 10Gbps WAN port. Router and satellite comes with four 1Gbps ethernet ports NETGEAR Orbi Tri-Band WiFi 6 Router comes with one 10Gbps WAN port. Router and satellite comes with four 1Gbps ethernet ports
  • Orbi WiFi 6 Router (RBR860B)
    1
  • Orbi WiFi 6 Satellites (RBS860B)
    2
  • 6ft (2m) Ethernet cable
    1
  • 19V/3.16A power adapters
    3
  • Quick Start Guide
    1
  • Height
    10 inches (254mm)
  • Width
    7.5 inches (190.5mm)
  • Depth
    2.8 inches (71.12mm)
  • Weight
    2.86 lbs (1.29kg)
  • Overall WiFi Coverage
    560 sq. m.
  • Requirements
    High-speed internet connection to existing modem or gateway
ROUTER
  • WiFi Coverage
    180 sq. m.
  • Speed
    AX6000 (2400 + 2400 + 1200Mbps)†
  • Simultaneous Tri-Band WiFi with dedicated backhaul

    Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support

    Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

    Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

  • Processor
    Quad-core 2.2GHz processor
  • Memory
    512MB NAND Flash and 1GB RAM
  • Antenna
    Eight (8) high-performance internal antennas with high-power amplifiers
  • Ports

    One (1) 10Gbps Multi-Gigabit Ethernet WAN port

    Four (4) 10/100/1000Mbps Gigabit Ethernet LAN ports

SATELLITE
  • WiFi Coverage
    180 sq. m.
  • Speed
    AX6000 (2400 + 2400 + 1200Mbps)†
  • Simultaneous Tri-Band WiFi with dedicated backhaul

    Radio 1: IEEE® 802.11b/g/n/ax/2.4GHz – 1024 QAM support

    Radio 2: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

    Radio 3: IEEE® 802.11a/n/ac/ax/5GHz – 1024 QAM support

  • Processor
    Quad-core 2.2GHz processor
  • Memory
    512MB NAND Flash and 1GB RAM
  • Antenna
    Eight (8) high-performance internal antennas with high-power amplifiers
  • Ports
    (Four) 10/100/1000Mbps Gigabit Ethernet LAN ports each
  • Standards-based WiFi Security
    802.11i, 128-bit AES encryption with PSK
  • Guest WiFi Network
    Easy to setup separate & secure Internet access for guests
  • NETGEAR Armor™
    Internet security for your home with automatic protection, updates, & alerts that monitors and helps safeguard all connected devices from hackers and data theft.
    Learn More
  • NETGEAR Smart Parental Controls™

    Easily manage your kids' time and accessibility online across their connected devices.2
    Learn More

  • NETGEAR 2-year limited warranty (valid only if purchased from a NETGEAR authorized reseller)
  • 90-day complimentary technical support (valid only if purchased from a NETGEAR authorized reseller)
image 95image 95

Never sacrifice speed

NETGEAR-invented Tri-band technology with a Dedicated Backhaul “express lane” for WiFi to travel directly between router and satellites means you get maximum, unimpeded whole-home WiFi speed that stays fast even with 100 devices connected at the same time.

Group 624Group 624

Bigger means better coverage

Orbi’s tall, elegant shape is no coincidence. Under the hood, our patented antenna design ensures superior WiFi coverage across your entire property - inside and outdoors.

wifi6e-fullassetwifi6e-fullasset

Connect more devices than ever

Orbi WiFi 6 mesh systems are supercharged for today’s data intensive devices and smart homes. Connect everything from PCs, phones, and TVs to security cameras, door locks, and more. Only Orbi can deliver so much device capacity with maximum speed.

DualBox-easy-setup-and-managementDualBox-easy-setup-and-management

Easy setup and management

The Orbi app makes it easy to install your Orbi and get it up and running in less than 15 minutes. Easily manage your home network even when you are not at home. Orbi is compatible with any internet service provider’s equipment.

Satellite Considerations

Having the right number of satellites is essential for getting great coverage across your entire property. Here are a few things to consider.

Is coverage just for the home, or does it need to extend to outdoor areas and detached buildings? Placing Orbi near doors or windows can improve outdoor coverage.
What does your home look like from a birds-eye view? An L or U-shaped home may need additional satellites to extend WiFi around corners to every part of the home.
Ensure router and satellites are placed within range of one another so units can talk to each other. The Orbi App will help you ensure all satellites are within range.
Orbi routers and satellites have multiple ethernet ports, giving you wired connections in places where you need them, like in home offices and media rooms.
Thicker materials like brick and concrete can weaken WiFi signals. Consider additional satellites or alternative placement options for the strongest WiFi coverage.
Find the perfect NETGEAR Orbi Solution for your home by answering few questions Find the perfect NETGEAR Orbi Solution for your home by answering few questions

Which Orbi is right for you?

Answer a few questions and we'll find the perfect
solution for your home

Compare Similar Products

Main_RBK863SB

RBK863B
nbke963-wiredconnection-7a

RBKE963​B

Price

Price

Price

WiFi 6 / 6E

WiFi 6 / 6E

WiFi 6

WiFi 6 / 6E

WiFi 6E​

WiFi Bands

WiFi Bands

Tri-Band​

WiFi Bands

Quad-Band

Max WiFi Speed

Max WiFi Speed

6 Gbps​

Max WiFi Speed

10.8 Gbps​

Coverage

Coverage

560 sq. m.

Coverage

600 sq. m.

# of Devices

# of Devices

100

# of Devices

200

Internet Port Speed

Internet Port Speed

Up to 10Gbps

Internet Port Speed

Up to 10Gbps

Dedicated WiFi Backhaul

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Dedicated WiFi Backhaul

Dedicated 5GHz 4x4 (80MHz)​

Fronthaul WiFi

Fronthaul WiFi

5GHz: 4x4 (80MHz); ​ 2.4GHz: 4x4​

Fronthaul WiFi

6GHz: 4x4 (160MHz),​ 5GHz: 4x4 (80MHz), ​ 2.4GHz: 4x4​

Total Wired Ethernet Ports (Router)

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Router)

One (1) 10Gbps Multi-Gigabit Ethernet WAN port, One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

Total Wired Ethernet Ports (Each Satellite)

Four (4) 1Gbps Gigabit Ethernet LAN ports

Total Wired Ethernet Ports (Each Satellite)

One (1) 2.5Gbps Multi-Gigabit Ethernet LAN port, Three (3) 1Gbps Gigabit Ethernet LAN ports

Footnotes:

Maximum wireless signal rate derived from IEEE® 802.11 specifications. Actual data throughput and wireless coverage will vary and be lowered by network and environmental conditions, including network traffic volume, device limitations, and building construction. NETGEAR makes no representations or warranties about this product’s compatibility with future standards. Up to 6Gbps wireless speeds achieved when connecting to other 802.11ax 6Gbps devices.

†† Gigabit service plans & compatible cable modem required for gigabit or multi-gig internet speeds.

Compared to RBK853 throughput improvement at maximum range.

1 NETGEAR® Armor™ Powered by Bitdefender® is a free during the initial 1-year period. A yearly subscription, after the trial period, protects all of your connected devices. Visit www.netgear.com/armor

2 NETGEAR Smart Parental Controls™ fees apply for a Premium Plan. Visit www.netgear.com/spc
