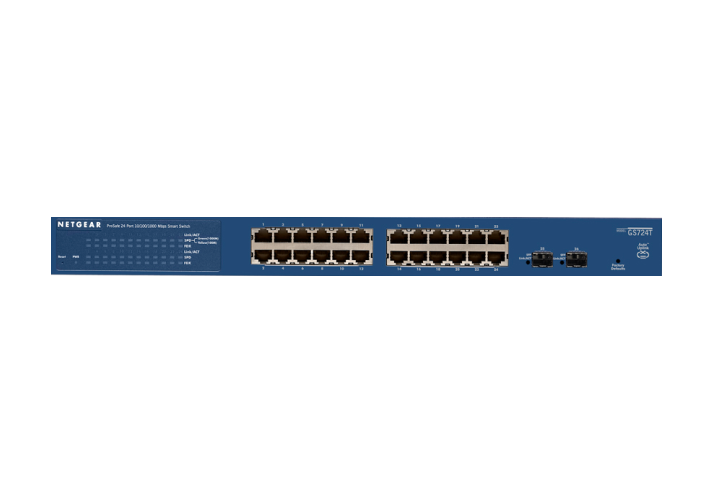

Smart Switch Series (GS724Tv4)
24-Port Gigabit Ethernet Smart Switch with 2 Dedicated SFP Ports
Dedicated SFP Fiber Uplinks
Dedicated SFP ports provide fiber uplinks without sacrificing any downlink Gigabit port. 4 SFP ports provide not only redundant uplinks, but can also build dual redundancy by a trunked uplink with link aggregation and failover, the dual-redundancy, a powerful design for the network virtualization.
GS724T can be placed on a desktop and can also be rack-mountable. All models include Kensington lock slot to physically secure your switch in open space. This 24-port non-PoE model will operate silently, ideal for noise-sensitive environment. It also works under 33dBA acoustic level.
Quiet operation makes these switches ideal solution for business environments which favor no noise from networking gears such as libraries, class rooms, offices, and etc.
Maximum power reduction for ongoing operational cost savings.
Dynamic VLAN Assignment
IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network.
A simple way to provide segmentation of the network with internal routing through the switch – reserving the router for external traffic routing only, making the entire network more efficient.
Comprehensive IPv6 Support for Management, ACL and QoS
Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement.
Build current network with future in mind
Ensure investment protection and a smooth migration to IPv6-based network without switch replacement. Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra Multicast router.
Robust Security Features
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users.
Port-based security by locked MAC
ACL filtering to permit or deny traffic based on MAC and IP addresses
Auto Voice and Auto Video
Automatic Voice over IP prioritization with Auto-VoIP simplifies most complex multi-vendor IP telephones deployments either based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user based OUIs) in the phone source MAC address; providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. When deployed IP phones are LLDP-MED compliant, the Voice VLAN will use LLDP-MED to pass on the VLAN ID, 802.1P priority and DSCP values to the IP phones, accelerating convergent deployments.
Comprehensive QoS Features
Advanced controls for optimized network performance and better delivery of mission-critical traffics such as voice and video.
Port-based or 802.1p-based prioritization
Layer 3-based (DSCP) prioritization
Port-based ingress and egress rate limiting
Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network.
Dual Firmware Images and Configuration Files
Dual firmware image and dual configuration file for transparent firmware updates / configuration changes with minimum service interruption.
Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversation can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
- Weight (kg) : 2,74
- Dimensions (WxDxH) mm : 440x204x43
- Model Description : ProSAFE® 24-Port Gigabit Smart Switch
- 10/100Mbps ports : N/A
- Gigabit ports : 24
- SFP ports : 2 dedicated
- Number of PoE ports : N/A
- PoE+ (802.3at) : N/A
- Total PoE Power budget (Watts) : N/A
- Max MAC entries : 16K
- Buffer size : 2MB
- VLAN (Number Supported) : 256
- VLAN routing : Yes
- Dynamic VLAN assignment : Yes
- MLD Snooping : Yes
- Static route : Yes
- Host ARP table : 512
- EEE : Yes
- DoS Prevention : Yes
- Internal/External : Internal 100-240VAC 50-60Hz
- Max consumption (Watts) : 17,4
- FAN : 0
- Acoustic Noise Level @25C (dBA) : 0 dBA
- Operating Temperature : 0° to 50° C
- MTBF : 567,680 hours
- Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .
- Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.
- Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.
- ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
